2AADEMAB0726HGoji play

FCC Confidentiality Request 2933 Bunker Hill Lane, Suite 100, Santa Clara, CA 95054 Tel : 408-755-3935 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Blue Goji Corp Addresss 2933 Bunker Hill Lane Suite 100 City Santa Clara, CA Country USA request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: 2AADE MAB0726H of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) Operational Description Block Diagrams Schematics Diagrams Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) Santa Clara, CA USA 5/30/13 Raul Renteria Hardware Production Coordinator

Declaration for FHSS Devices Additional declaration part according to FCC 15.247(a) for a 2410 MHz to 2470 MHz FHSS devices. 1. Frequency range The frequency range of this device is 2410-2470 MHz as declared by the applicant. 2. hopping sequences Example of a 75 hopping sequences: 54, 58, 15, 17, 5, 7, 18, 17, 4, 16, 09, 71, 55, 22, 29, 20, 18, 49, 47, 62, 66, 60, 51, 59, 48, 43, 40, 33, 38, 30, 35, 40, 49, 47, 43, 50, 59, 57, 11, 19, 16, 29, 10, 8, 7, 3, 2, 10, 70, 62, 15, 44, 43, 49, 50, 20, 29, 26, 28, 46, 43, 25, 27, 16, 74, 68, 62, 49, 40, 53, 4, 11, 71, 60, 68, 63 3. Equally average use of frequencies in data mode The use of frequencies will be pseudo randomly generated by the use of different channel sequence tables. So the used hopping sequence will be always different from the one before and an equally average use of the frequencies is guaranteed. 4. The receiver input bandwidth The input bandwidth of the receiver is 784 kHz. This will be part of the device manufacturing test.

2933 Bunker Hill Lane, Suite 100, Santa Clara, CA 95054 Tel : 408-755-3935 Power of Attorney To: Phoenix Testlab GmbH Name or model type of the Specified Radio Equipment: Goji Play FCC ID: 2AADEMAB0726H IC: 10974A-MAB0726H Applicant’s company name: Blue Goji Corp Applicant’s company address: 2933 Bunker Hill Lane – Suite 100 Santa Clara, CA 95054 Applicant’s name: Kai Huang Date and Applicant’s Signature: 5/30/13 Job Title and Department: CEO I hereby authorize the following person as a representative and all rights regarding the application to obtain Type Certification for the Specified Radio Equipment (mentioned above) are delegated. Attorney’s Company name: DONGGUAN EMTEK CO., LTD. Attorney’s Company address: No.281, Guantai Road, Nancheng District, Dongguan Guangdong, China. Attorney’s Name: Sam Lv Date and Attorney’s Signature: 5/30/13 Job Title and Department: Manager

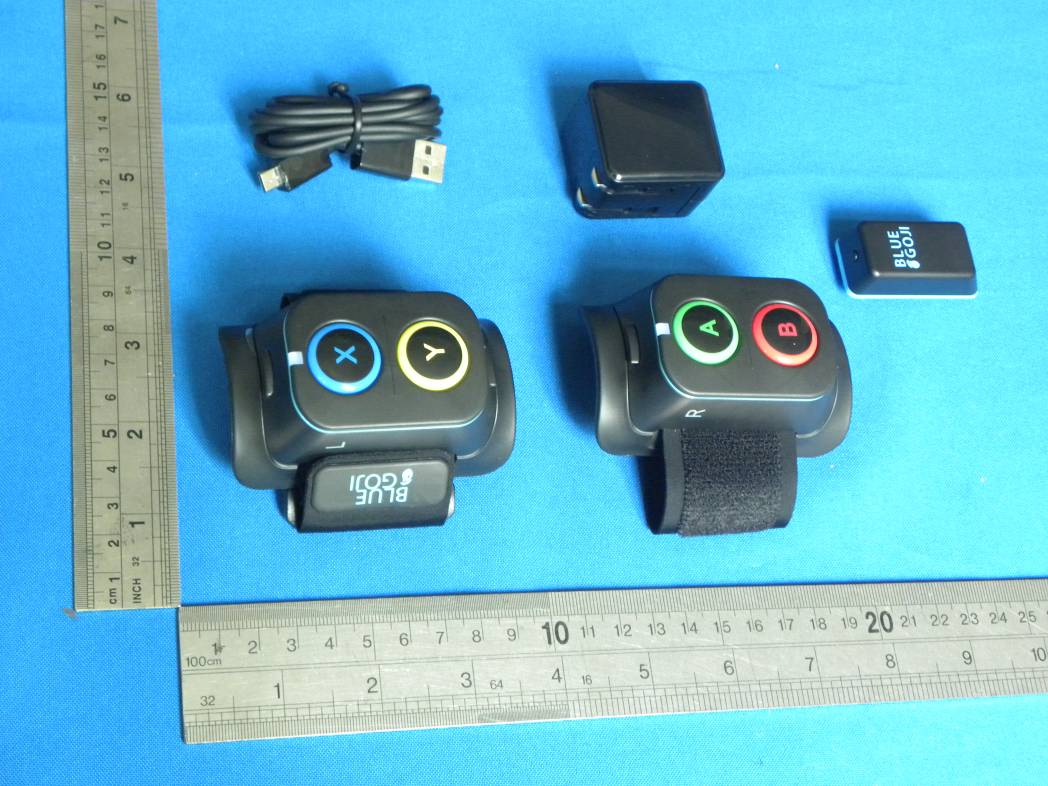

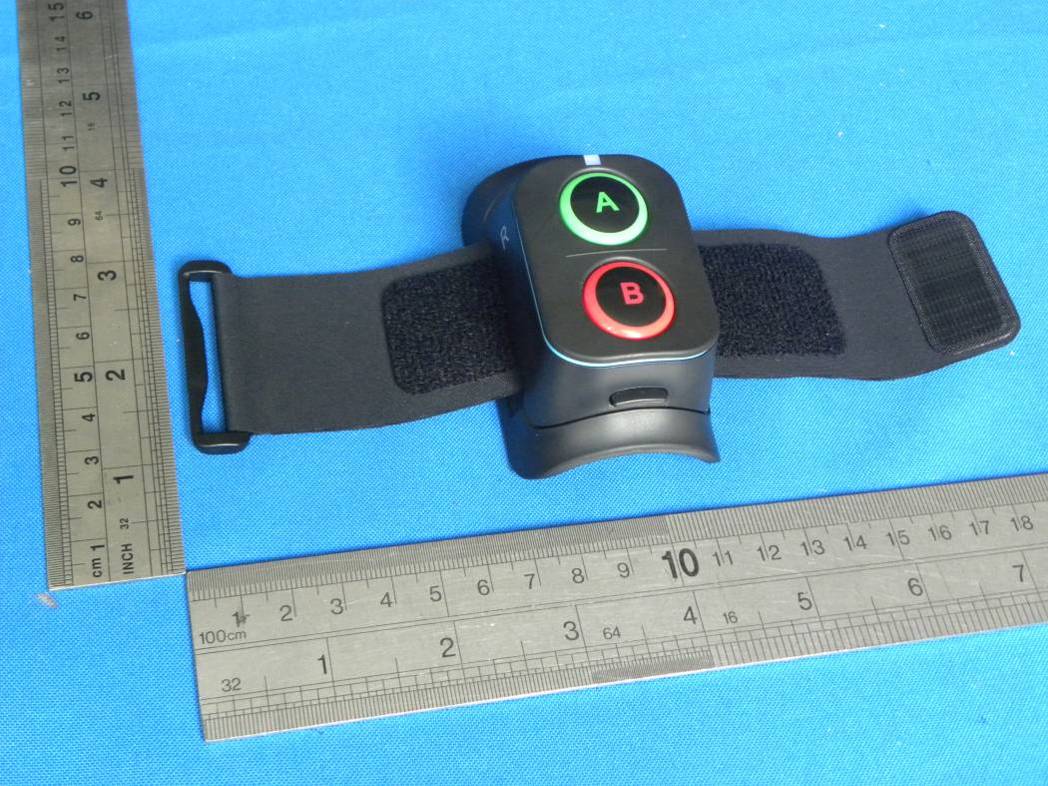

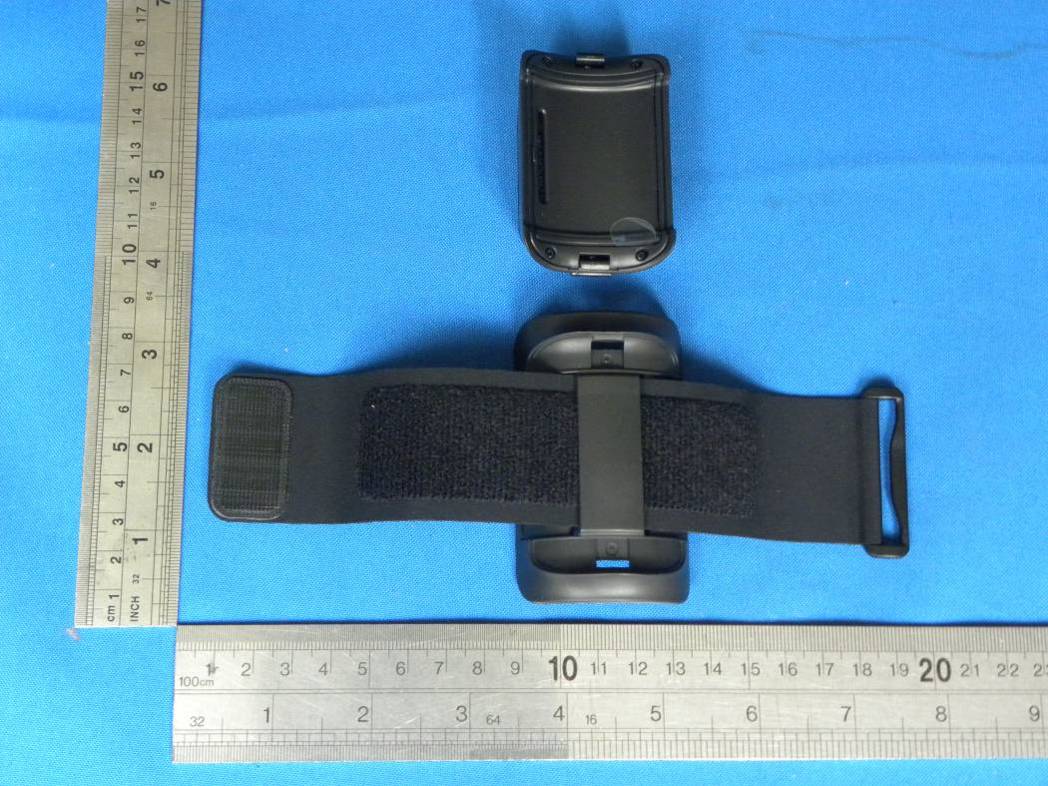

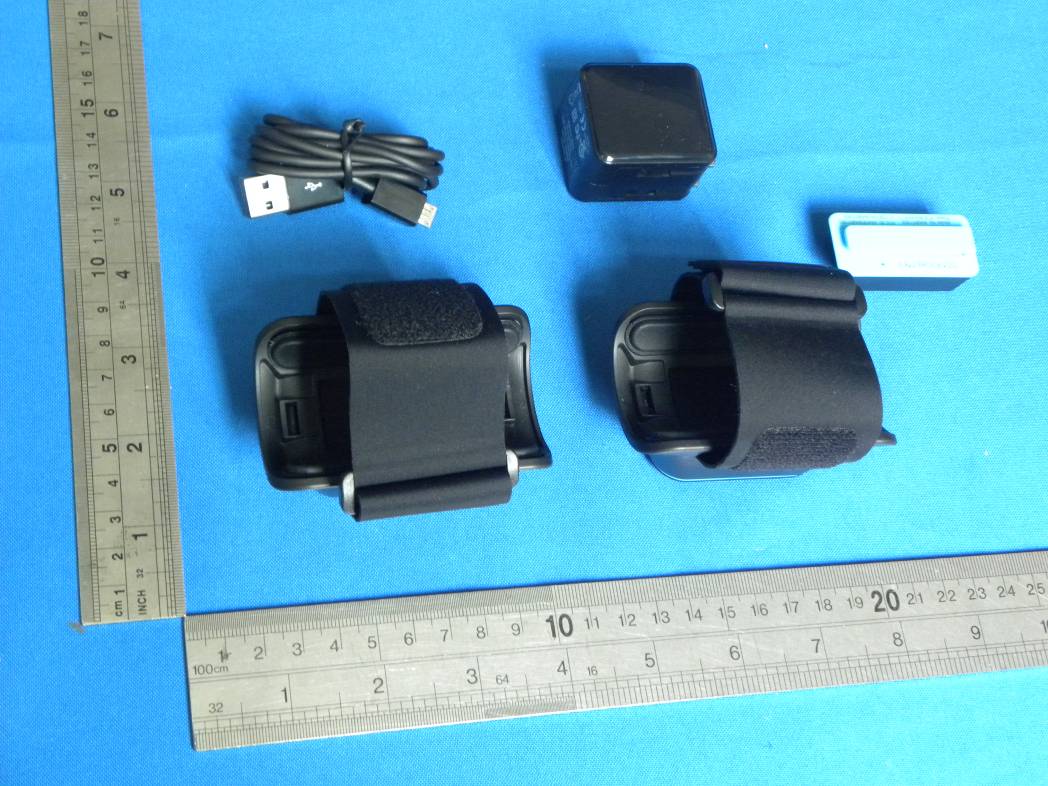

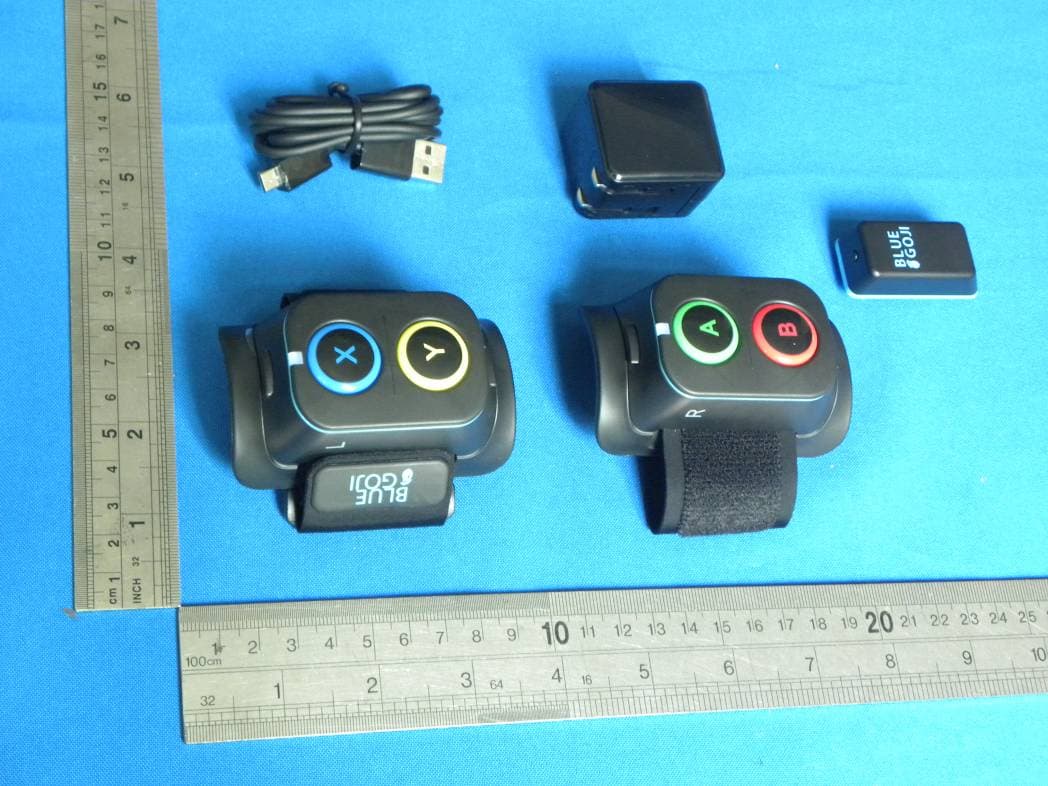

General Appearance of the EUT

Goji Play Hand Model No.:MAB0726H Power: AAA 1.5V X 2 FCC ID: 2AADEMAB0726H IC:10974A-MAB0726H

Antenna

TRF No. FCC 15.247/A Page 1 of 45 Report No.: KAD130517053E ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Goji play MODEL No.: MAB0726H BRAND NAME: Blue Goji FCC ID: 2AADEMAB0726H REPORT NO: KAD130517053E ISSUE DATE: June 06, 2013 Prepared for BLUE GOJI CORP. 2933 Bunker Hill Lane Suite 100 Santa Clara, CA 95054, USA Prepared by DONGGUAN EMTEK CO., LTD. No.281, Guantai Road, Nancheng District, Dongguan, Guangdong, China TEL: 86-769-22807078 FAX: 86-769-22807079 TRF No. FCC 15.247/A Page 2 of 45 Report No.: KAD130517053E VERIFICATION OF COMPLIANCE Applicant: BLUE GOJI CORP. 2933 Bunker Hill Lane Suite 100 Santa Clara, CA 95054, USA Manufacturer: BLUE GOJI CORP. 2933 Bunker Hill Lane Suite 100 Santa Clara, CA 95054, USA Product Description: Goji play Brand Name: Blue Goji Model Number: MAB0726H Serial Number: N/A File Number: KAD130517053E Date of Test: May 17, 2013 to June 06, 2013 We hereby certify that: The above equipment was tested by DONGGUAN EMTEK CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2009) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Sam Lv / Q.A. Manager DONGGUAN EMTEK CO., LTD. TRF No. FCC 15.247/A Page 3 of 45 Report No.: KAD130517053E Table of Contents 1. GENERAL INFORMATION ................................................................................................ 5 1.1 PRODUCT DESCRIPTION............................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S)............................................................................................ 5 1.3 TEST METHODOLOGY.................................................................................................................. 5 1.4 SPECIAL ACCESSORIES................................................................................................................ 5 1.5 EQUIPMENT MODIFICATIONS........................................................................................................ 5 1.6 TEST FACILITY............................................................................................................................. 6 2. SYSTEM TEST CONFIGURATION ........................................................................... 7 2.1 EUT CONFIGURATION.................................................................................................................. 7 2.2 EUT EXERCISE............................................................................................................................ 7 2.3 TEST PROCEDURE....................................................................................................................... 7 2.4 LIMITATION.................................................................................................................................. 7 2.5 CONFIGURATION OF TESTED SYSTEM........................................................................................ 11 3. SUMMARY OF TEST RESULTS ............................................................................. 12 4. DESCRIPTION OF TEST MODES........................................................................... 12 5. CONDUCTED EMISSIONS TEST ........................................................................... 13 5.1 MEASUREMENT PROCEDURE: .................................................................................................... 13 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 13 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 13 5.4 MEASUREMENT RESULT: .......................................................................................................... 13 5.5 CONDUCTED MEASUREMENT PHOTOS: ...................................................................................... 13 6. RADIATED EMISSION TEST .................................................................................. 14 6.1 MEASUREMENT PROCEDURE..................................................................................................... 14 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 15 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 16 6.4 MEASUREMENT RESULT............................................................................................................. 16 6.5 RADIATED MEASUREMENT PHOTOS: .......................................................................................... 23 7. CHANNEL SEPARATION TEST ............................................................................. 24 7.1 MEASUREMENT PROCEDURE..................................................................................................... 24 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)............................................................... 24 7.3 MEASUREMENT EQUIPMENT USED: ............................................................................................ 24 7.4 MEASUREMENT RESULTS:.......................................................................................................... 24 8. 20DB BANDWIDTH TEST ....................................................................................... 27 8.1 MEASUREMENT PROCEDURE..................................................................................................... 27 8.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)...................................…

Text truncated - open the document above for the full version.

Setup Photos
