2AAES-POP2015Tennis game measuring device

QUICK START GUIDE 2 Babolat POP What’s included ? FR Inclus dans la boîte | ES IIncluido en la caja | IT La confezione comprende | DE Packungsinhalt | JP 内容 / KR 내용물 Charger Wristband Micro-USB cable On/Off button Indicator light 3 for the first time ! The sensor must be worn at the arm holding the racquet. Power On Blinking blue light Low battery Blinking red light Babolat POP GET THE APP AND SIGN UPHOW TO WEAR MY WRISTBAND ? 4 Battery full Blinking red light Charging in progress Yellow light Charge the 5 SENSORS • 9 axis sensor : Gyroscope Accelerometer Magnetometer Up to 200Hz sampling rate SIZES AND WEIGHTS: Sensor • Height: 5.4 mm • Lenght: 44.6 mm • Depth: 39 mm • Weight: less than 9g SIZES AND WEIGHTS: Charger • Height: 6.0 mm • Lenght: 60 mm • Depth: 58 mm • Weight: 33 g MEMORY • Flash Storage (more than 10 hours of tennis*) BATTERY • Built-in rechargeable Lithium • Polymer Batterie (100mAH) •2 hours full charge cycle • Up to 10 hours of tennis* CONNECTIVITY • Bluetooth 4.0 (BLE) • Get Real time feedbacks in challenge mode Specifications *based on typical match activity Need help? www.babolatplay.com/help More information on www.babolatplay.com 2AAESPOP2015

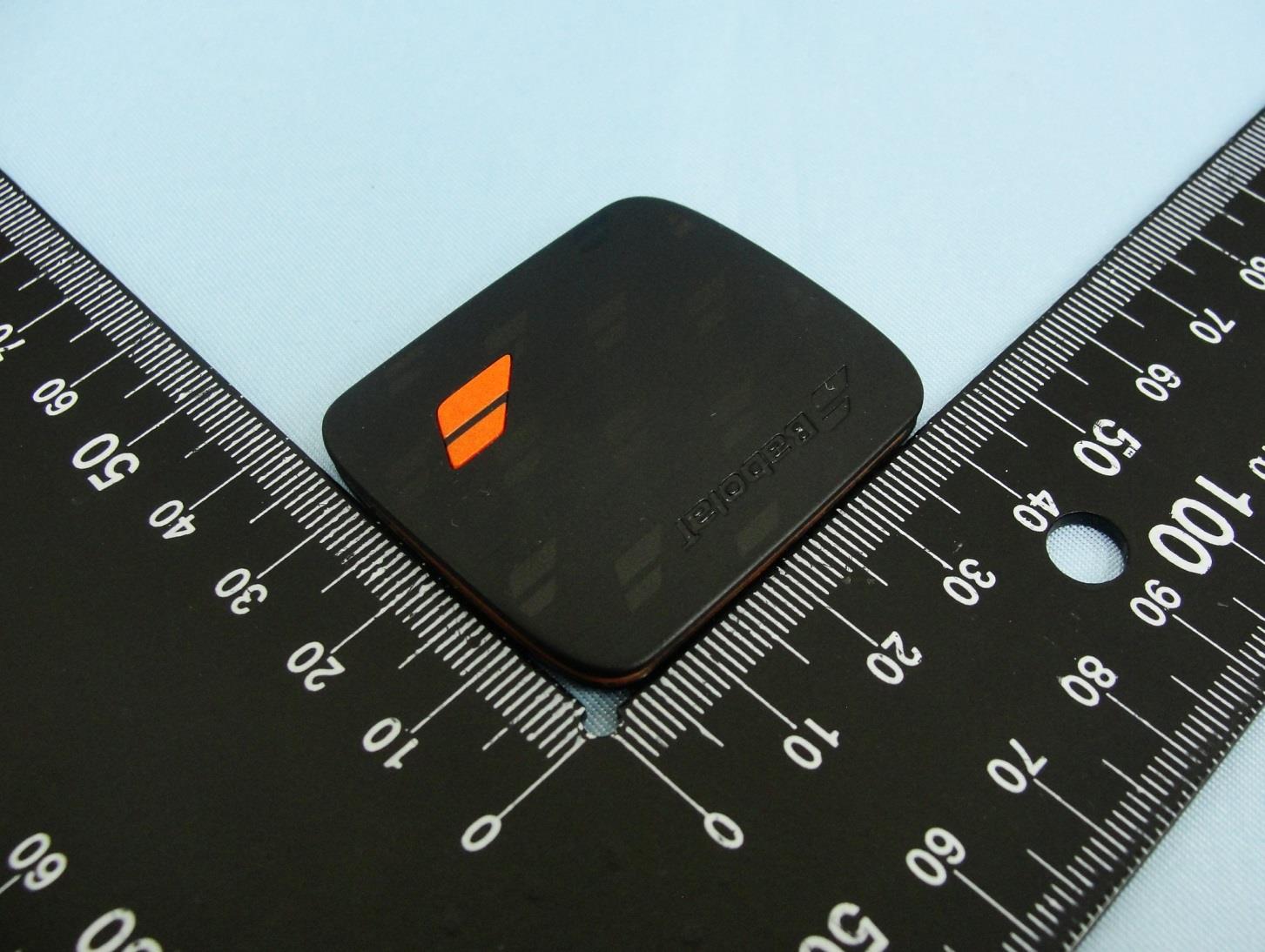

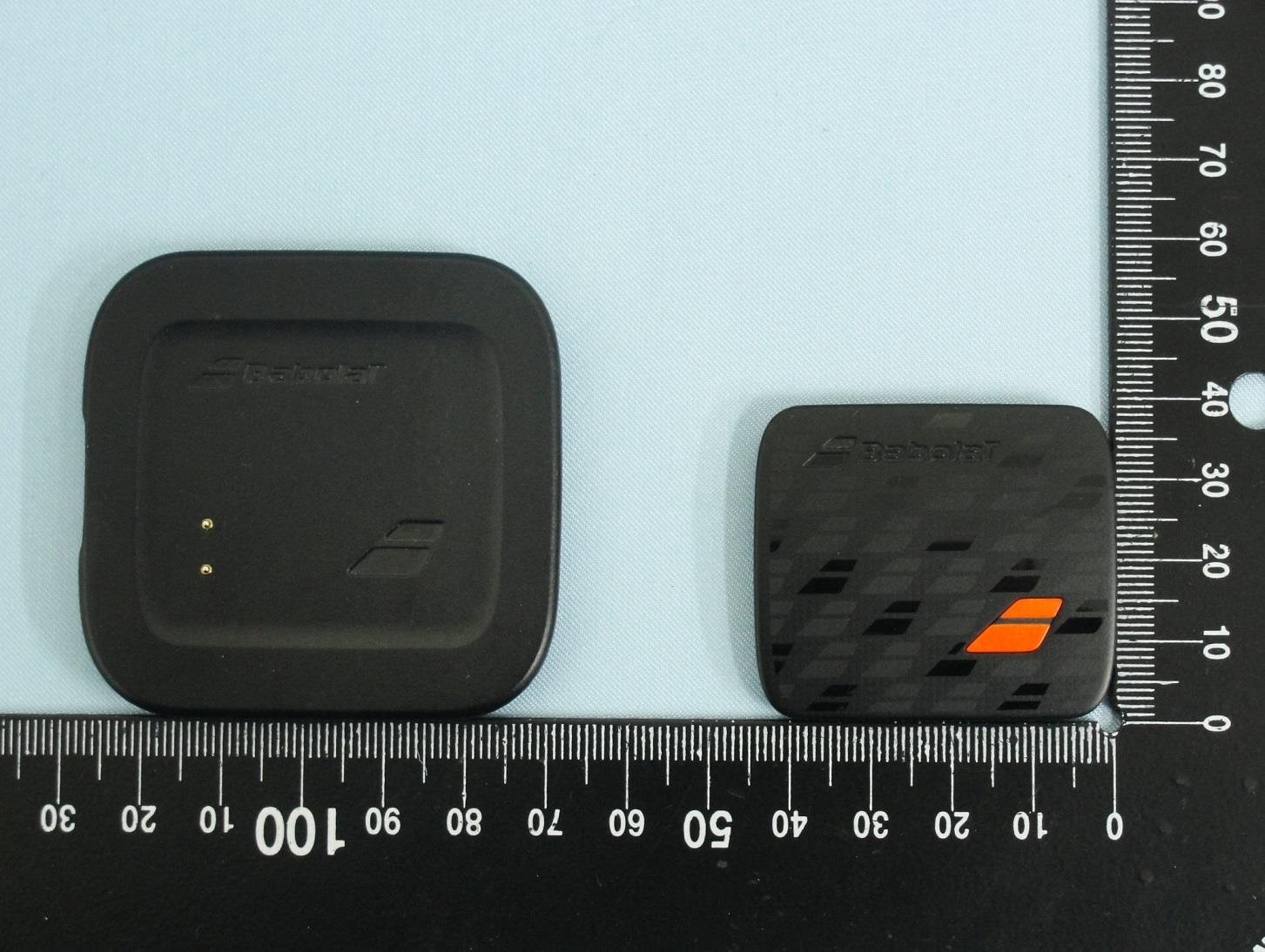

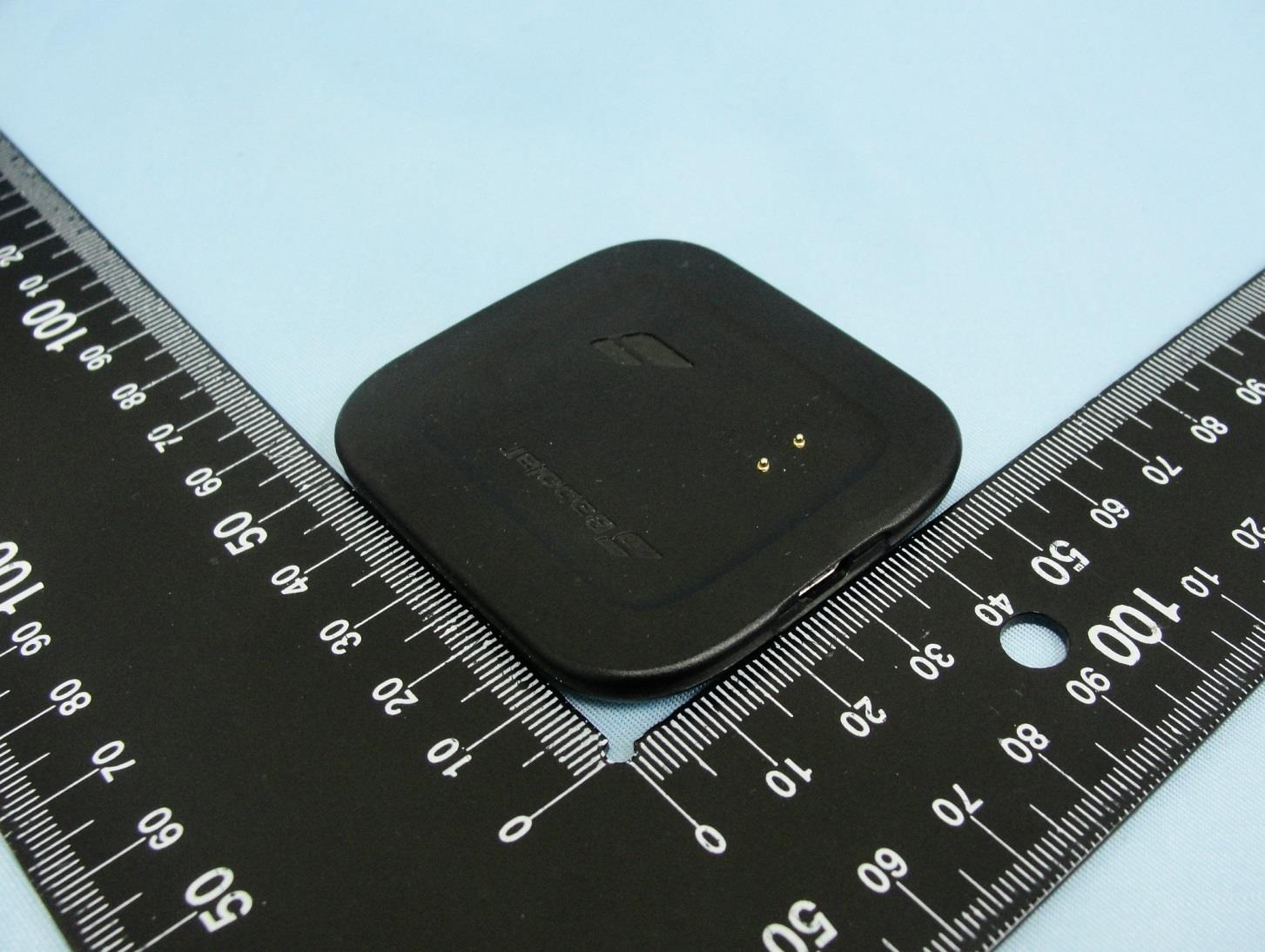

Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 1 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 1. External Photograph of EUT Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 2 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 720510 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 3 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Specification of Accessory Battery Brand Name HL Model Name 301535 Charging Pad Brand Name BABOLAT Model Name BABOLAT POP Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 4 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 5 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Charging Pad Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 6 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 7 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 720510 Battery

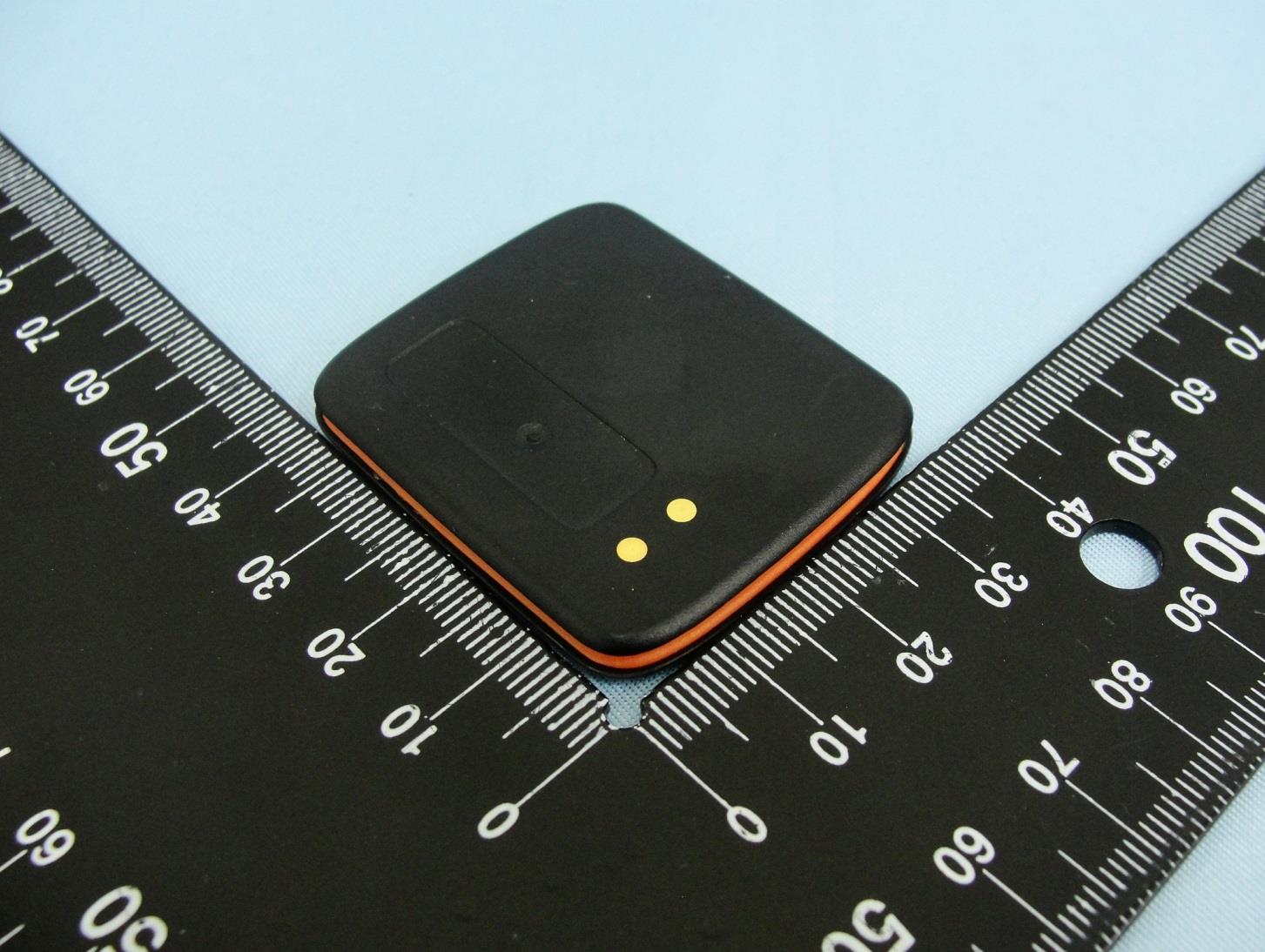

Back of the EUT Label Location

Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 8 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 3. Internal Photograph of EUT Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 9 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 10 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 11 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 12 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 13 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 Photographs of EUT Report No.: EP561709 Brand Name: BABOLAT / Model Name: BABOLAT POP / Marketing Name: BABOLAT PLAY POP SPORTON INTERNATIONAL INC. Page Number : 14 of 14 TEL : 886-3-327-3456 Report Issued Date : Aug. 28, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 IC : 12112A-BVSPLAYPOP1 720510 Bluetooth Antenna

SPORTON INTERNATIONAL INC. Page Number : 1 of 4 TEL : 886-3-327-3456 Report Issued Date : Aug. 31, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 RF Exposure Evaluation Report Report No. : FA561709 RF Exposure Evaluation Report APPLICANT : Babolat VS EQUIPMENT : Tennis game measuring device BRAND NAME : BABOLAT MODEL NAME : BABOLAT POP MARKETING NAME BABOLAT PLAY POP FCC ID : 2AAES-POP2015 STANDARD : 47 CFR Part 2.1093 FCC KDB 447498 D01 v05r02 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1093, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 4 TEL : 886-3-327-3456 Report Issued Date : Aug. 31, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 RF Exposure Evaluation Report Report No. : FA561709 Table of Contents 1. Administration Data ........................................................................................................................... 3 2. General Information ........................................................................................................................... 3 2.1 Description of Device Under Test (DUT) ........................................................................................... 3 3. Maximum RF output power among production units ......................................................................... 4 4. RF Exposure Evaluation .................................................................................................................... 4 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA561709 Rev. 01 Initial issue of report Aug. 31, 2015 SPORTON INTERNATIONAL INC. Page Number : 3 of 4 TEL : 886-3-327-3456 Report Issued Date : Aug. 31, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 RF Exposure Evaluation Report Report No. : FA561709 1. Administration Data Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) TEL: +886-3-327-3456 FAX: +886-3-328-4978 Applicant Company Name Babolat VS Address 93 rue André Bollier 69007 Lyon France Manufacturer Company Name Octonion SA Address EPFL Innovation Park Batiment C, 1015 Lausanne Switzerland 2. General Information 2.1 Description of Device Under Test (DUT) Product Feature & Specification DUT Type Tennis game measuring device Brand Name BABOLAT Model Name BABOLAT POP Marketing Name BABOLAT PLAY POP FCC ID 2AAES-POP2015 Wireless Technology and Frequency Range Bluetooth: 2402 MHz ~ 2480 MHz Mode Bluetooth v4.0-LE Antenna Type Chip Antenna HW Version SU2 DUT Stage Identical Prototype Remark: The above DUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. SPORTON INTERNATIONAL INC. Page Number : 4 of 4 TEL : 886-3-327-3456 Report Issued Date : Aug. 31, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 RF Exposure Evaluation Report Report No. : FA561709 3. Maximum RF output power among production units Mode / Band Average Power (dBm) v4.0 with LE 2.4 GHz Bluetooth 2.0 4. RF Exposure Evaluation Bluetooth Max Power (dBm) mW Separation Distance (mm) Frequency (GHz) Exclusion Thresholds 2 2.00 5 2.48 0.63 Note: 1. Per KDB 447498 D01v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison Conclusion: Per KDB 447498 D01v05r02, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.63 which is <= 7.5, SAR testing is not required.

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A1 of A6 FCC RF Test Report Report No. : FR561709 Appendix A. Radiated Spurious Emission Test Engineer : Elvis Chen and Stan Hsieh Temperature : 22~24°C Relative Humidity : 46~48% 2.4GHz 2400~2483.5MHz BLE (Band Edge @ 3m) BLE Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BLE CH 00 2402MHz 2352.12 51.19 -22.81 74 51.97 27.14 5.33 33.25 117 6 P H 2387.04 41.81 -12.19 54 42.43 27.23 5.39 33.24 117 6 A H * 2401.84 80.92 - - 81.52 27.23 5.39 33.22 117 6 P H * 2402.09 80.31 - - 80.91 27.23 5.39 33.22 117 6 A H H H 2387.4 51.27 -22.73 74 51.89 27.23 5.39 33.24 101 275 P V 2382.9 41.82 -12.18 54 42.48 27.19 5.39 33.24 101 275 A V * 2401.84 88.02 - - 88.62 27.23 5.39 33.22 101 275 P V * 2402.09 87.5 - - 88.1 27.23 5.39 33.22 101 275 A V V V BLE CH 19 2440MHz 2334.3 51.12 -22.88 74 52 27.05 5.33 33.26 134 356 P H 2357.97 41.78 -12.22 54 42.56 27.14 5.33 33.25 134 356 A H * 2439.83 80.82 - - 81.24 27.37 5.42 33.21 134 356 P H * 2440.08 80.19 - - 80.61 27.37 5.42 33.21 134 356 A H 2485.08 52.13 -21.87 74 52.39 27.46 5.46 33.18 134 356 P H 2484.08 42.28 -11.72 54 42.54 27.46 5.46 33.18 134 356 A H 2388.66 51.57 -22.43 74 52.19 27.23 5.39 33.24 125 276 P V 2365.89 41.72 -12.28 54 42.43 27.14 5.39 33.24 125 276 A V * 2440.33 86.75 - - 87.17 27.37 5.42 33.21 125 276 P V * 2440.08 86.2 - - 86.62 27.37 5.42 33.21 125 276 A V 2497.2 51.1 -22.9 74 51.31 27.5 5.46 33.17 125 276 P V 2486.12 42.13 -11.87 54 42.39 27.46 5.46 33.18 125 276 A V SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A2 of A6 FCC RF Test Report Report No. : FR561709 BLE CH 39 2480MHz * 2480.33 80.16 - - 80.44 27.46 5.44 33.18 104 10 P H * 2480.08 79.3 - - 79.58 27.46 5.44 33.18 104 10 A H 2497.96 51.88 -22.12 74 52.09 27.5 5.46 33.17 104 10 P H 2484.52 42.65 -11.35 54 42.91 27.46 5.46 33.18 104 10 A H H H * 2479.83 87.2 - - 87.48 27.46 5.44 33.18 115 328 P V * 2480.08 86.52 - - 86.8 27.46 5.44 33.18 115 328 A V 2484.64 54.53 -19.47 74 54.79 27.46 5.46 33.18 115 328 P V 2484.16 43.45 -10.55 54 43.71 27.46 5.46 33.18 115 328 A V V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A3 of A6 FCC RF Test Report Report No. : FR561709 2.4GHz 2400~2483.5MHz BLE (Harmonic @ 3m) BLE Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) BLE CH 00 2402MHz 4806 52.93 -21.07 74 74.57 31.42 7.58 60.64 100 249 P H 4806 47.81 -6.19 54 69.45 31.42 7.58 60.64 100 249 A H H H 4806 49.35 -24.65 74 70.99 31.42 7.58 60.64 100 0 P V V V V BLE CH 19 2440MHz 4878 49.1 -24.9 74 70.36 31.56 7.7 60.52 100 0 P H 7320 47.33 -26.67 74 62.6 36.22 9.49 60.98 100 0 P H H H 4878 49.35 -24.65 74 70.61 31.56 7.7 60.52 100 0 P V 7320 52.21 -21.79 74 67.48 36.22 9.49 60.98 100 272 P V 7320 49.3 -4.7 54 64.57 36.22 9.49 60.98 100 272 A V V BLE CH 39 2480MHz 4962 51.72 -22.28 74 72.3 31.73 8.05 60.36 100 20 P H 4962 49.94 -4.06 54 70.52 31.73 8.05 60.36 100 20 A H 7440 46.93 -27.07 74 62.17 36.49 9.61 61.34 100 0 P H H 4962 54.5 -19.5 74 75.08 31.73 8.05 60.36 306 190 P V 4962 53.27 -0.73 54 73.85 31.73 8.05 60.36 306 190 A V 7440 48.99 -25.01 74 64.23 36.49 9.61 61.34 100 0 P V V Remark 1. No other spurious found. 2. All results are PASS against Peak and Average limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A4 of A6 FCC RF Test Report Report No. : FR561709 Emission below 1GHz 2.4GHz BLE (LF) BLE Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Limit Line Level Factor Loss Factor Pos Pos Avg. ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) (dBμV) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 2.4GHz BLE LF 34.05 13.52 -26.48 40 27.84 17.84 0.65 32.81 - - P H 147.45 10.53 -32.97 43.5 30.2 11.68 1.33 32.68 - - P H 269.49 15.29 -30.71 46 32.76 13.5 1.76 32.73 - - P H 424.6 16.05 -29.95 46 29.85 16.9 2.16 32.86 - - P H 790 22.69 -23.31 46 30.61 22 2.97 32.89 - - P H 947.5 25.49 -20.51 46 29.73 24.26 3.29 31.79 111 152 P H H H H H H H 41.07 20.1 -19.9 40 38.31 13.94 0.65 32.8 153 64 P V 162.03 10.08 -33.42 43.5 30.54 10.9 1.33 32.69 - - P V 269.49 14.15 -31.85 46 31.62 13.5 1.76 32.73 - - P V 412.7 15.47 -30.53 46 29.44 16.72 2.16 32.85 - - P V 731.9 22.4 -23.6 46 31.19 21.25 2.91 32.95 - - P V 872.6 25.09 -20.91 46 31.57 22.82 3.16 32.46 - - P V V V V V V V Remark 1. No other spurious found. 2. All results are PASS against limit line. SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A5 of A6 FCC RF Test Report Report No. : FR561709 Note symbol * Fundamental Frequency which can be ignored. However, the level of any unwanted emissions shall not exceed the level of the fundamental frequency. ! Test result is over limit line. P/A Peak or Average H/V Horizontal or Vertical SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 FAX : 886-3-328-4978 Page Number : A6 of A6 FCC RF Test Report Report No. : FR561709 A calculation example for radiated spurious emission is shown as below: WIFI Note Frequency Level Over Limit Read Antenna Cable Preamp Ant Table Peak Pol. Ant. Limit Line Level Factor Loss Factor Pos Pos Avg. 1+2 ( MHz ) ( dBμV/m ) ( dB ) ( dBμV/m ) ( dBμV ) ( dB/m ) ( dB ) ( dB ) ( cm ) ( deg ) (P/A) (H/V) 802.11b CH 01 2412MHz 2390 55.45 -18.55 74 54.51 32.22 4.58 35.86 103 308 P H 2390 43.54 -10.46 54 42.6 32.22 4.58 35.86 103 308 A H 1. Level(dBμV/m) = Antenna Factor(dB/m) + Cable Loss(dB) + Read Level(dBμV) - Preamp Factor(dB) 2. Over Limit(dB) = Level(dBμV/m) – Limit Line(dBμV/m) For Peak Limit @ 2…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : 1 of 42 TEL : 886-3-327-3456 Report Issued Date : Sep. 01, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR561709 FCC RF Test Report APPLICANT : Babolat VS EQUIPMENT : Tennis game measuring device BRAND NAME : BABOLAT MODEL NAME : BABOLAT POP MARKETING NAME : BABOLAT PLAY POP FCC ID : 2AAES-POP2015 STANDARD : FCC Part 15 Subpart C §15.247 CLASSIFICATION : (DTS) Digital Transmission System The product was received on Jun. 17, 2015 and testing was completed on Aug. 08, 2015. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan District, Tao Yuan City, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 42 TEL : 886-3-327-3456 Report Issued Date : Sep. 01, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR561709 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ...................................................................................................................................... 5 1.3 Product Feature of Equipment Under Test ........................................................................................ 5 1.4 Product Specification subjective to this standard .............................................................................. 5 1.5 Modification of EUT ........................................................................................................................... 5 1.6 Testing Location ................................................................................................................................ 6 1.7 Applicable Standards ......................................................................................................................... 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Descriptions of Test Mode ................................................................................................................. 8 2.2 Test Mode .......................................................................................................................................... 8 2.3 Connection Diagram of Test System ................................................................................................. 9 2.4 Support Unit used in test configuration and system ........................................................................ 10 2.5 EUT Operation Test Setup .............................................................................................................. 10 2.6 Measurement Results Explanation Example ................................................................................... 10 3 TEST RESULT .......................................................................................................................................... 11 3.1 6dB and 99% Bandwidth Measurement .......................................................................................... 11 3.2 Peak Output Power Measurement .................................................................................................. 16 3.3 Power Spectral Density Measurement ............................................................................................ 18 3.4 Conducted Band Edges and Spurious Emission Measurement ..................................................... 23 3.5 Radiated Band Edges and Spurious Emission Measurement ........................................................ 32 3.6 AC Conducted Emission Measurement........................................................................................... 36 3.7 Antenna Requirements .................................................................................................................... 40 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 41 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 42 APPENDIX A. RADIATED TEST RESULTS APPENDIX B. SETUP PHOTOGRAPHS SPORTON INTERNATIONAL INC. Page Number : 3 of 42 TEL : 886-3-327-3456 Report Issued Date : Sep. 01, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR561709 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FR561709 Rev. 01 Initial issue of report Sep. 01, 2015 SPORTON INTERNATIONAL INC. Page Number : 4 of 42 TEL : 886-3-327-3456 Report Issued Date : Sep. 01, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR561709 …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page Number : B1 of B2 TEL : 886-3-327-3456 Report Issued Date : Sep. 01, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR561709 Appendix B. Setup Photographs <Conducted Emission> SPORTON INTERNATIONAL INC. Page Number : B2 of B2 TEL : 886-3-327-3456 Report Issued Date : Sep. 01, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : 2AAES-POP2015 Report Template No.: BU5-FR15CBT4.0 Version 1.0 FCC RF Test Report Report No. : FR561709 <Radiated Emission> Y Plane LF HF
