2AAEVM-1000P4PAGING RECEIVER UNIT (RX) (M-1000P4)

Programming Guide for M-1000P4 4 Lines Alpha Pager Specification of M-1000P4 4 line Data display Pager FEATURE LIST General POCSAG 1 bit or 2 bits burst error correction 4 Lines Alphanumeric Message Display Baud rate option for 512 bps or 1200 bps or 2400 bps Time and Data Display Message Time and Date Stamp Contrast Adjustable Display Message Lock Alarm Clock Auto On/Off with Calendar Memory Capacity 64,000.character memory Up to 2,000 Characters per Personal Message Up to 4,000 Characters per Data Service Message 99 Message Slots Large 4-line, 80 Character Display Message stored in stack, first-in-first-out Display 4 lines alphanumeric message Service signal indication Audio alert indication Vibration indication Music alert indication Alarm ON indication Auto ON indication Low battery indication Message lock indication Message delete indication Duplicated message indication Message full indication Next page indication Alert Audio, music, vibration, silent. Address Capacity 4 address codes, Battery Requirement One cell "AAA" Dimension and Weight 65×44×19m/m Accessory Belt case holder, SPECIFICATION Frequency Band132-174MHz,279-286MHz,420-490MHz,929-933MHz. Channel Spacing12.5KHz, 25 KHz Code FormatPOCSAG CCIR#1(NRZ) Deviation Mark Carrier Frequency Space Carrier Frequency -4.5 KHz (max. -5 KHz) +4.5 KHz (max. +5 KHz) Error Correction1 bit or 2 bits burst error correction Baud Rate512 bps or 1200 bps or 2400 bps Receiver SystemDouble superhet system Battery RequirementOne cell "AAA" type 1.5V battery (1.2V~1.7V) Typical Battery LifeMin. 600 hours / Alkaline battery Paging Sensitivity7uV/m @ 1200 bps, Spurious Rejection50dB Image Rejection50dB Selectivity65dB @ ±25 KHz Frequency Stability±10ppm (at 25°C) Alert Tone Output Level75db SPL (Signal Tone at 30 cm) Battery Low Indication Voltage1.05V±5% Operating Temperature-10°C~+50°C Storage Temperature-20°C~+60°C Programming Manual 1. Computer Requirement: 1) IBM compatible PC with the 200 MHz Pentium II CPU or higher speed. 2) 64MB RAM and above. 3). 16MB RAM AGP interface 2. Operation Procedure: 1) Connect the 25 pins program plug into the computer parallel port LPT1. 2) Insert CD disk. Then click “4 Lines Pager” execution file to start the Programming operation. The software also can be installed into HDD Drive to execute the writing process. 3. M-1000P4 Key Functions’ Description: 1) Address 1-4: 7 digits POCSAG cape code 2) Polarity: Signal polarity selection (default value normal) 3) Baud Rate: Data speed (default 1200 bps) 4) Language: Message language type (default value English) 5) Group Call: Group messages call set-up (default in disable). 6) Date Mode: Pager calendar type display (default in MM/DD/YY). 7) Inc Mode: Address digit with auto-increment by 1 set-up. 8) Self Number: Personal storage in 10-99 messages set-up. 9) Lock Number: Personal message in 8-98 protection messages set-up. 10) Title 01-12: Receiving message title set-up. 11) Logo Word: Power on LCD display messages. 12) Write: Programming the set data into the pager. 13) Read: Reading the data out form the pager. 14) Save: Save the current set data into this software. 15) Exit: Exit this programming screen. 4. M-1000P4 Set-Up Guide: 1) Address1~4: Press numeric key to input 7digits address. If the address is not in use, you can press “0” digit to select “close”. Address 1 is a personal use address, Address2, 3, and 4 are public address. And the address range must be set from the 8~2097151. If the group call is set either in the Group/Enable or Group/Self, the address 4 will be the same alert tone as the address 1. 2) Polarity: Click to select “Normal” or “Invert” signal polarity. 3) Baud Rate: Click to select 512 or 1200 or 2400 bps speed. 4) Language: Click to select the desired language type. 6) Group Call: Click to select the Disable, Enable/Group and Enable/Self set-up. The Enable/Group is for the group calls with the messages kept in the public mailbox. And the Group/Self is for the group calls with messages stored in the personal mailbox. 6) Date Mode: Click to select the desired calendar display type. 7) Inc Mode: Click to select the Disable or Enable feature mode. If this is set in the Enable, the Address digit will be automatically incremented by 1 no. 8) Self Number: Click to select the Personal storage in 10-99 messages. 9) Lock Number: Click to select the Personal message in 8-98 protection messages feature. 10) Title 01-12: Press any 4 digits for the receiving message title. 12) Logo Word: Press any 14 digits (maximum) for the initial Power on LCD display usage. 13) Write: Click to start the programming process. 14) Read: Click to Read the data out form the pager. 15) Save: Click to save the current set data into this software. 16) Exit: Click to exit this programming screen. FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1. Reorient the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Co…

Text truncated - open the document above for the full version.

Confidentiality request letter To Whom it may concern, This application ,FCC ID : 2AAEVM-1000P4, will include a request for long term and short term confidentiality for any portion(s) of the data contained in this application pursuant to FCC DA 04-1705 (date 06/15/2004). SRT was authorized to have this letter and OTOTRONIX will keep in long term and short term confidentiality for any portion(s) of the data contained in this application. short term confidentiality: • PHOTOS OF EUT-External.pdf • PHOTOS OF EUT-Internal.pdf • PHOTOS OF TESTING.pdf • User manual.pdf Long term exhibits can be: • BLOCK DIAGRAM.pdf • SCHEMATIC DIAGRAM.pdf If you have any questions , please feel free to contact Spectrum Research and Testing Laboratory, Inc. (886)34987684 or e-mail:[email protected]. Thank You! Sincerely, ________________ Johnson Ho SRT LAB./President Date : 06/14/2013 PS: Attached is the OTOTRONIX 律 頻 科 技 股 份 有 限 公 司 SPECTRUM RESEARCH & TESTING LAB., INC. New:桃園縣中壢市山東里8鄰山東路780巷167號 No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEL: (03)498-7684 FAX: (03)498-6528

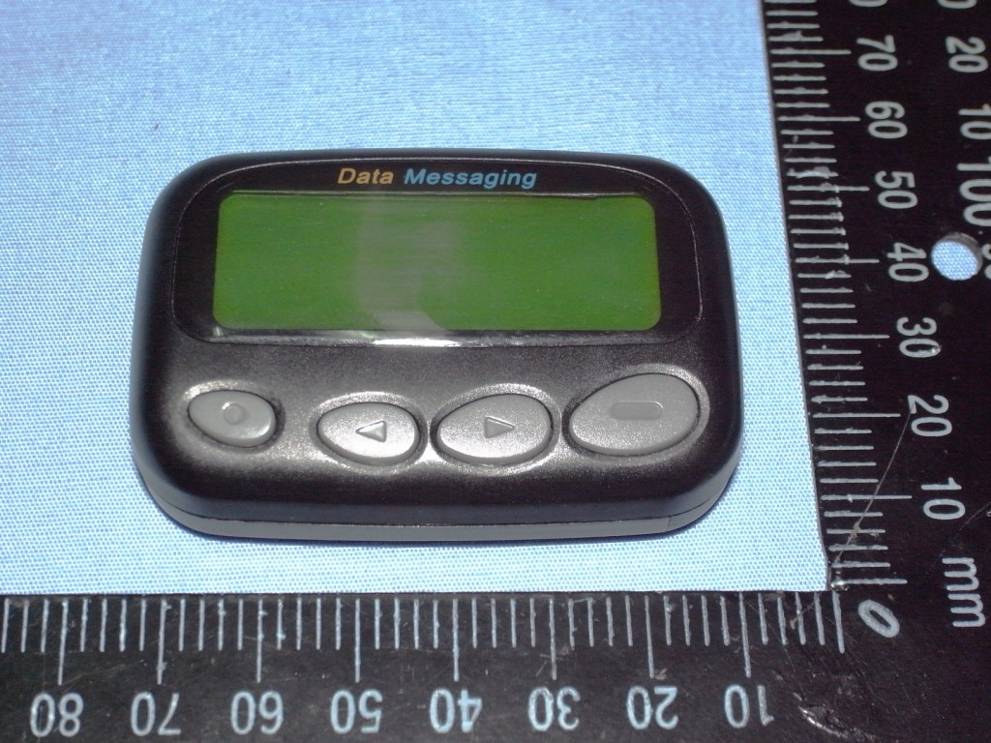

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - External

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) FCC ID：2AAEVM-1000P4 FCC ID：2AAEVM-1000P4

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - Internal TOP Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PCB Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) IC Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) RF Case

TECHNOLOGICAL SPEC. 1. Product Name： Paging Receiver Unit (RX) Model： M-1000P4 2. Power Source： ■ TX: DC 1.5 V, mA; 3. Carrier Frequency： 433.92 MHz 4. RF Output Power (ERP or EIRP)： 53.70 dBuV/m = -53.29 dBm = 4.69 μW 5. I.F.： MHz; L.O.： MHz 6. Modulation Type： FSK 7. Duty Cycle： % 8. Mode of operation (duplex, simplex, half duplex) ： Simplex 9. Antenna Type： Loop Antenna 10. Antenna gain： -6 dBi

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706-01 Report No.:FCCA13051706-01 FCC ID : 2AAEVM-1000P4 Page: 1 of 19 Date: Jun. 18, 2013 FMNG-059.11 REPORT Product Name: Paging Receiver Unit (RX) Model No.: M-1000P4 Applicant: Ototronix 26620 Interstate 45 North, Spring, TX-77386-1016, U.S.A Date of Receipt: May. 17, 2013 Finished date of Test: Jun. 03, 2013 Applicable Standards: 47 CFR Part 15, Subpart B ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Richard Lin) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 2 of 19 Date: Jun. 18, 2013 Revisions History Report No. Issue Date Revisions FCCA13051706-01 Jun. 14, 2013 Initial issue FCCA13051706-01 Jun. 18, 2013 1. 3.1 SUMMARY OF TEST RESULTS STANDARD SECTION change to 15.109 2. 4.1 Limit changeto 15.109 3. Remove the <30 MHz test results Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 3 of 19 Date: Jun. 18, 2013 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT .................................................. 4 1.1 DOCUMENT POLICY......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION ......................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE......................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.3 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 5 2.4 EUT OPERATING CONDITION ......................................................................... 5 2.5 DESCRIPTION OF TEST MODE ....................................................................... 6 2.6 DESCRIPTION OF SUPPORT UNIT ................................................................. 6 3. DESCRIPTION OF APPLIED STANDARDS ........................................................ 6 3.1 SUMMARY OF TEST RESULTS ........................................................................ 7 4. SPURIOUS RADIATED EMISSION TEST ........................................................... 8 4.1 LIMIT .................................................................................................................. 8 4.2 TEST EQUIPMENT ............................................................................................ 9 4.3 TEST SET-UP .................................................................................................. 10 4.4 TEST PROCEDURE .........................................................................................11 4.5 TEST RESULT ................................................................................................. 12 5. PHOTOS OF TESTING ...................................................................................... 16 6. TERMS OF ABBREVIATION .............................................................................. 19 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 4 of 19 Date: Jun. 18, 2013 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source from battery: DC power source, 1.5 Vdc, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 5 of 19 Date: Jun. 18, 2013 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Paging Receiver Unit (RX) MODEL NO. M-1000P4 POWER SUPPLY Rx: DC 1.5V, power source from AAA battery CABLE NA CARRIER FREQUENCY 433.92 MHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 53.70 dBuV/m = -53.29 dBm = 4.69 μW MODULATION TYPE FSK MODE OF OPERATION Simplex ANTENNA TYPE Loop Antenna ANTENNA GAIN -6 dBi OPERATING TEMPERATURE RANGE -20 ~ 50°C NOTE: For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.3 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKERMODEL # FCC ID / DOC REMARK NA 2.4 EUT OPERATING CONDITION 1. Setup the EUT and all peripheral devices . 2. Turn on the power of all equipment and EUT. 3. Set the EUT under continuous transmission condition, standby and link mode. 4. The EUT was set to the highest available power level. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 6 of 19 Da…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706-01 Report No.:FCCA13051706-01 FCC ID : 2AAEVM-1000P4 Page: 1 of 20 Date: Jun. 14, 2013 FMNG-059.11 REPORT Product Name: Paging Receiver Unit (RX) Model No.: M-1000P4 Applicant: Ototronix 26620 Interstate 45 North, Spring, TX-77386-1016, U.S.A Date of Receipt: May. 17, 2013 Finished date of Test: Jun. 03, 2013 Applicable Standards: 47 CFR Part 15, Subpart C 47 CFR Part 15, Subpart B ANSI C63.4: 2003 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Richard Lin) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 2 of 20 Date: Jun. 14, 2013 Revisions History Report No. Issue Date Revisions FCCA13051706-01 Jun. 14, 2013 Initial issue Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 3 of 20 Date: Jun. 14, 2013 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT .................................................. 4 1.1 DOCUMENT POLICY......................................................................................... 4 1.2 TEST STATEMENT ............................................................................................ 4 1.3 EUT MODIFICATION ......................................................................................... 4 2. DESCRIPTION OF EUT AND TEST MODE......................................................... 5 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 5 2.3 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 5 2.4 EUT OPERATING CONDITION ......................................................................... 5 2.5 DESCRIPTION OF TEST MODE ....................................................................... 6 2.6 DESCRIPTION OF SUPPORT UNIT ................................................................. 6 3. DESCRIPTION OF APPLIED STANDARDS ........................................................ 6 3.1 SUMMARY OF TEST RESULTS ........................................................................ 7 4. SPURIOUS RADIATED EMISSION TEST ........................................................... 8 4.1 LIMIT .................................................................................................................. 8 4.2 TEST EQUIPMENT ............................................................................................ 9 4.3 TEST SET-UP .................................................................................................. 10 4.4 TEST PROCEDURE .........................................................................................11 4.5 TEST RESULT ................................................................................................. 12 5. PHOTOS OF TESTING ...................................................................................... 17 6. TERMS OF ABBREVIATION .............................................................................. 20 Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 4 of 20 Date: Jun. 14, 2013 1. DOCUMENT POLICY AND TEST STATEMENT 1.1 DOCUMENT POLICY - The report shall not be reproduced except in full, without the written approval of SRT Lab, Inc. 1.2 TEST STATEMENT - The test results in the report apply only to the unit tested by SRT Lab. - There was no deviation from the requirements of test standards during the test. - DC power source from battery: DC power source, 1.5 Vdc, was used during the test. 1.3 EUT MODIFICATION - No modification in SRT Lab. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 5 of 20 Date: Jun. 14, 2013 2. DESCRIPTION OF EUT AND TEST MODE 2.1 GENERAL DESCRIPTION OF EUT PRODUCT Paging Receiver Unit (RX) MODEL NO. M-1000P4 POWER SUPPLY Rx: DC 1.5V, power source from AAA battery CABLE NA CARRIER FREQUENCY 433.92 MHz NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 53.70 dBuV/m = -53.29 dBm = 4.69 μW MODULATION TYPE FSK MODE OF OPERATION Simplex ANTENNA TYPE Loop Antenna ANTENNA GAIN -6 dBi OPERATING TEMPERATURE RANGE -20 ~ 50°C NOTE: For more detailed information, please refer to the EUT’s specification or user’s manual provided by manufacturer. 2.3 DESCRIPTION OF EUT INTERNAL DEVICE DEVICE BRAND / MAKERMODEL # FCC ID / DOC REMARK NA 2.4 EUT OPERATING CONDITION 1. Setup the EUT and all peripheral devices . 2. Turn on the power of all equipment and EUT. 3. Set the EUT under continuous transmission condition, standby and link mode. 4. The EUT was set to the highest available power level. Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13051706 Report No.:FCCA13051706 FCC ID : 2AAEVM-1000P4 Page: 6 of 20 Date: Jun. 14, 2013 2.5 DESCRIPTION OF TEST MODE Mode Frequency 1 Receiving 433.92 MHz 2 Rx Standby NA NOTE: The axis X,Y and Z we eval…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF TESTING - Radiated test (below 30M , Receiving & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (below 1G , Receiving & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (above 1G , Receiving & Standby)
