2AAEWHBRFHS001RF Control System - Transmitter

Page 1 of 7 Rev B 2AAEWHBRFHS001 User Guide 05.28.2013 REV. A RF Control System HeliBasket LLC 2810 Blue Ridge Blvd PO Box 259 West Union, SC 29696 Cage Code 6K5F7 Ph: 864.985.0804 ** Manual should be printed in color for clarity** Fax: 864.985.0881 [email protected] For use with all Remote Hook Systems Picture Goes Here Page 2 of 7 Rev B WARNING [all caps, bold, and underlined] OPERATING PROCEDURE, PRACTICE, ETS., WHICH MAY RESULT IN PERSONAL INJURY OR LOSS OF LIFE IF NOT FOLLOWED CAREFULLY [bold all caps text] CAUTION [all caps, bold] OPERATING PROCEDURE, PRACTICE, ETC., WHICH IF NOT STRICTLY OBSERVED MAY RESULT IN DAMAGE TO EQUIPMENT. [non-bold all caps text] NOTE [all caps] An operating procedure, condition, etc., which is essential to emphasize. [normal text] Page 3 of 7 Rev B Table of Contents Section 1 – Operation .....................................................................................................4 1.1 – FCC Instructions...............................................................................................4 1.2 – Purpose.............................................................................................................5 1.3 – Product Features.............................................................................................5 1.4 – Pre-Flight Testing............................................................................................5 Step 1 – Electrical Connection to the Aircraft.............................................5 Step 2 – Turn on Power on Receiver...........................................................7 Step 3 - Test...................................................................................................7 1.5 – In-Flight Use Section 2 – Maintenance..............................................................................................9 2.1 – Battery Charging Receiver............................................................................5 2.2 – Battery Replacement Receiver and Transmitter.......................................10 2.3 – Hand Control Circuit and Polarity..............................................................11 Page 4 of 7 Rev B 2AAEWHBRFHS001 Operators Manual Section 1 – Operation 1.1 – FCC Instructions INSTRUCTION TO THE USER This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Operation with non-approved equipment is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. Page 5 of 7 Rev B 1.2 – Purpose This system was designed to provide a wireless link from the Hand Control to the Remote Hook using an encoded Radio Frequency Transmitter and Receiver. The use of this system will allow the use of a long line of any length or capacity to be used with a remote hook without the need to provide an electrical wire and protective wire cover on the long line. This removes many of the problems associated with using the hook system in areas covered with vegetation or obstacles that might snag the wire or tear the cover. 1.3 – Product Features The system consists of the following:  Hand control which allows the crewmember to operate the system from anyplace within the cabin of the Helicopter.  Transmitter that is directly connected to the Hand Control. The Transmitter sends an encoded signal which is encoded to a type one level preventing any inadvertent operation from signals close enough to be detected.  Receiver that is mounted on the Hook body powered by a battery that also powers the solenoid.  Wireless connection from the Helicopter to the receiver which removes the need for electrical cable from the Helicopter to the long line.  The system can be used with any length long line up to 200 ft. (Depth perception becomes questionable past 200 ft.) 1.4 – Pre-Flight or Daily Testing The System should be tested prior to the first flight of the work day. Step 1 – Electrical Connection to the Aircraft The Hand Control needs to be connected to the aircraft. Turn the Aircraft battery to the on position. Ensure that the Hand Control is connected to the Transmitter and that the connection is good. Step 2 – Turn on Power on Receiver Turn the power on at the receiver. To ensure extended battery life, the receiver should be turned to the Off position after each days flights have been completed. Therefore, to begin the test, the receiver must be turned to the ON position. Page 6 of 7 Rev B Step 3 – Test Apply a slight load to the load beam of the Hook (this may be done by hand). Signal the crewmember to press the correct button on the Hand Control. The solenoid should operate and the load beam of the Hook should be released. Close the Load Beam and check to see it is engaged. Complete this process a minimum of three times. If all are successful, the system is ready for use. 1.5 – In-Flight Use The system should ope…

Text truncated - open the document above for the full version.

May 28, 2013 CETCB 114 Olinda Dr. Brea, Ca 92823 Gentlemen: This is a letter of authorization to accept Compatible Electronics, Inc., specifically including the employees of Compatible Electronics, as an Agent for HeliBasket LLC, PO Box 259, West Union, SC 29696, for a period of one year, to sign applications before the Commission on our behalf, to make representations to you on our behalf, and to receive and exchange data between our company and the Commission in connection with certification of the following HeliBasket LLC product: RF Control System for Remote Hook Transmitter and Receiver under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part l5 of FCC Rules and Regulations. Please also accept this letter as an attestation that neither HeliBasket LLC nor any of its officers, directors, or persons holding 5% or more of the outstanding stock or shares, voting or non-voting, have been denied federal benefits under section 5301 of the Anti- Drug-Abuse act of 1988,21 U.S.C. 853(a). In addition, HeliBasket LLC will notify the Federal Communications Commission if, at any time, the situation changes causing HeliBasket LLC to be denied federal benefits. If you have any further questions or need additional information, please feel free to give me a call at 864-985-0804. Sincerely, Veronica Wigington President

1 May, 28 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: TCB application submittal Gentlemen: We, HeliBasket LLC, would like to declare that the application being submitted for the device with FCC ID: 2AAEWHBRFHS001, has not been submitted to another TCB or FCC for certification. If you have any questions, please do not hesitate to contact us at 864 985 0804. Sincerely, Veronica Wigington President

PO Box 259 West Union South Carolina June 4, 2013 CETCB 114 Olinda Drive Brea, CA 92823 Gentlemen: This letter is to formally notify you that the following modification that was completed by Compatible Electronics, Inc. to our RF Control System - Transmitter and Model: 2AAEWHBRFHS001 during FCC certification will be implemented in production. Modification: During the testing of the transmitter for compliance, the value for resistor R13 was changed to 470 Ω to get closer to the limit. This has been reflected in the schematic for the transmitter. The corrected schematic will be used to produce all future units. Sincerely, VJ Wigington President

1 May, 28 2013 Compatible Electronics TCB 114 Olinda Drive Brea, California 92823 Subject: Request for withholding from public disclosure the schematics, block diagrams, and operational description pursuant to an application for certification Gentlemen: We, HeliBasket LLC, would like to request that all schematics, block diagrams, and operational descriptions submitted with the application for certification be withheld from public disclosure as per Section 0.459 of FCC Rules. This request is made under the provisions of Section 0.457 (d) of the Commission’s Rules, and Section 552 (b)(4) of the Freedom of Information Act. These sections authorize the withholding from public inspection, those materials which would be privileged as a matter of law if retained by the person submitting them, and materials which would not customarily be released to the public by that person. If you have any questions, please do not hesitate to contact us at 864-985-0804. Sincerely, VJ Wigington FCC FRN Contact FCC Grantee Code 2AAEW FCC ID: 2AAEWHBRFHS001 2 Note: Normally schematics, detailed block diagrams, and detailed theories of operation are the only information held confidential. Internal photographs are only held confidential in certain circumstances where the access to the information isn’t available to the end user. Test reports, cover letters, external photos, ID labels, setup photos, attestation statements, and RF exposure reports will not be held confidential.

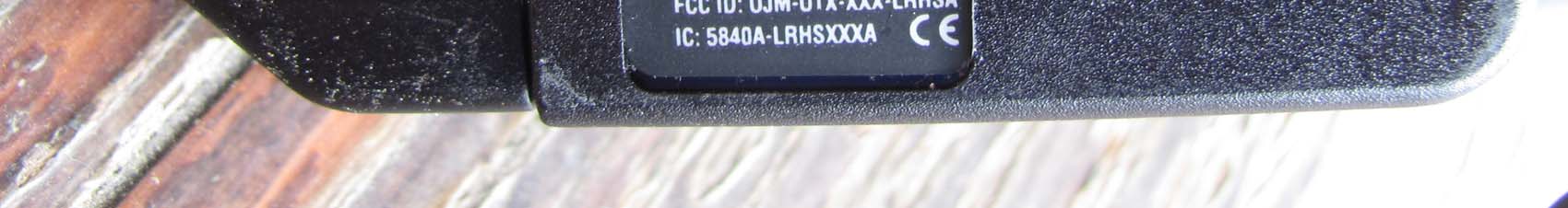

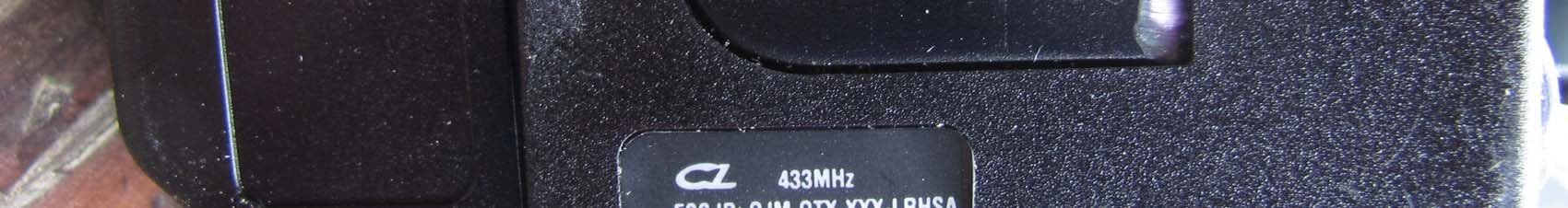

FCC Required Label Placement on FCC ID 2AAEWHBRFHS001

Report Number: B30530A1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report RF Control System -- Transmitter Model: 2AAEWHBRFHS001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 17 FCC PART 15 SUBPART B and C TEST REPORT for RF CONTROL SYSTEM -- TRANSMITTER MODEL: 2AAEWHBRFHS001 Prepared for HELIBASKET, LLC P.O. BOX 259 WEST UNION, SOUTH CAROLINA 29696 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: JUNE 10, 2013 REPORTAPPENDICESTOTAL BODYA B C D E PAGES 17 2 2 2 10 8 41 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B30530A1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report RF Control System -- Transmitter Model: 2AAEWHBRFHS001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 17 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description of Test Configuration – Emissions 8 4.1.1 Cable Construction and Termination 8 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 9 5.1 EUT and Accessory List 9 5.2 Emissions Test Equipment 10 6. TEST SITE DESCRIPTION 11 6.1 Test Facility Description 11 6.2 EUT Mounting, Bonding and Grounding 11 6.3 Facility Environmental Characteristics 11 7. TEST PROCEDURES 12 7.1 RF Emissions 12 7.1.1 Conducted Emissions Test 12 7.1.2 Radiated Emissions (Spurious and Harmonics) Test 13 7.1.3 RF Emissions Test Results 15 7.2 Bandwidth of the Fundamental 16 8. CONCLUSIONS 17 Report Number: B30530A1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report RF Control System -- Transmitter Model: 2AAEWHBRFHS001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 17 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagram, Charts, and Photos  Test Setup Diagram  Antenna and Amplifier Factors  Radiated Emissions Photos E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Conducted Emissions Test Setup 2 Plot Map And Layout of Radiated Test Site – 3 Meters Report Number: B30530A1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report RF Control System -- Transmitter Model: 2AAEWHBRFHS001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 17 GENERAL REPORT SUMMARY Compatible Electronics Inc. generates this electromagnetic emission test report, which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: RF Control System – Transmitter Model: 2AAEWHBRFHS001 Product Description: See Expository Statement Modifications: The EUT was modified in order to meet the specifications. Please see the list located in Appendix B. Customer: HeliBasket, LLC P.O. Box 259 West Union, South Carolina 29696 Test Date(s): May 30, 2013 Test Specifications: Emissions requirements CFR Title 47, Part 15, Subpart B and Subpart C, Sections 15.205, 15.209, and 15.231 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions 150 kHz to 30 MHz This test was not performed because the EUT cannot directly or indirectly connect to the AC public mains. 2 Radiated RF Emissions 10 kHz to 4400MHz (Transmitter and Digital Portion) Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B30530A1 FCC Part 15 Subpart B and C, Section 15.205, 15.209 and 15.231 Test Report RF Control System -- Transmitter Model: 2AAEWHBRFHS001 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 17 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the RF Control System – Transmitter, Model: 2AAEWHBRFHS001. The Emissions measurements were perform…

Text truncated - open the document above for the full version.

Mike From: Kyle Fujimoto [[email protected]] Sent: Wednesday, December 27, 2006 7:39 AM To: [email protected] Subject: Fwd: Response to Inquiry to FCC (Tracking Number 379492) 4/10/2007 Mike, Below is the response from the FCC regarding the Linx project. Regards, Kyle Fujimoto Test Engineer -- Compatible Electronics, Inc. -- Brea Division Phone:(714) 579-0500 Fax: (714) 579-1850 [email protected] http://www.celectronics.com -----Original Message----- From: Generic Office of Engineering Technology <[email protected]> To: [email protected] Date: Tue, 26 Dec 2006 10:00:24 -0500 (EST) Subject: Response to Inquiry to FCC (Tracking Number 379492) Inquiry: Hello, I have a question regarding the duty cycle plots and calculation for a pulsed modulation transmitter that is going to be certified. The device that is going to be certified will be using an encoder that uses an algorithm to change the code of each packet during transmission, not just after each button press. This is done for security purposes to prevent code capture, similar to other code hopping encoders already on the market. Because of this, it makes it essentially impossible to acquire the code and provide the duty cycle plots that are typically required for certification of a device like this since the code changes with every transmitted packet. The manufacturer of the encoder states that the duty cycle may change slightly, but will never be higher than a certain percentage. In such a case, would it be permitted for the Grantee to provide a written explanation, from the manufacturer of the encoder, of what the highest possible duty cycle is instead of showing the plots and then use this explanation when we calculate the average field strength and submit for certification? Thank you for your help. Response: You should obtain an explanation and measurement data from the manufacturer showing the highest possible duty cycle and submit with your application for Certification. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry. 4/10/2007

HS-Encoder worst-case duty cycle plots for FCC By: Chris Murphy 1/5/2007 Definitions: 1. All data is sent LSB first (D0-D7) 2. Start bit = 0 3. Stop bit = 1 4. Preamble Byte = start bit + 1100 1111 + stop bit a. Error check bits 0-2 never change (110) b. Inversion bit 3 is clear (0) since 50% is a non-inverting packet c. UserID bits 4-7 set at 15 for worst case scenario (1111) 5. Each byte of data portion = start bit + 0101 0101 + stop bit *Note: start bit appears merged with bit-0 and stop bit appears merged with bit-7 6. Start sequence = wake bits + noise filter + preamble 7. Packet = processing period + start sequence + data 8. Message = Packet-A + Packet-B 9. Pulse Train = 1 complete message Baud rate = 4800bps *Complete 200ms data capture from HS encoder at 4800bps *Complete 100ms data capture from HS encoder at 4800bps * Total time of 1 pulse train = 57.0006ms * Zoomed in on processing period and start sequence of packet-A * Zoomed in on data portion of packet A * Zoomed in on processing period and start sequence of packet-B * Zoomed in on data portion of packet-B * Pulse measurement #1 = 3.3982ms (processing pulse, only 1of these per pulse train) * Pulse measurement #2 = 200.465us (wake pulses, 4 of these per pulse train) * Pulse measurement #3 = 1.4114ms (noise filter, 2 of these per pulse train) * Pulse measurement #4 = 404.101us (error check, 2 of these per pulse train) * Pulse measurement #5 = 1.0659ms (UserID + stop bit, 2 of these per pulse train) * Pulse measurement #6 = 215.009us (bits 1,3,5 of each byte of data, 48 of these per pulse train) * Pulse measurement #7 = 464.271us (bit 7 + stop bit of each byte of data, 16 of these per pulse train) Pulse Description Pulse Meas. #Pulse Length (us)Pulses per Train Total Time (us) Processing time 1 3398.2 1 3398.2 Wake bits 2 200.465 4 801.86 Noise filter 3 1411.4 2 2822.8 Error check 4 404.101 2 808.202 UserID + stop bit 5 1065.9 2 2131.8 Bits 1,3,& 5 of ea. data byte 6 215.009 48 10320.432 Bit 7 + stop bit of ea. data byte 7 464.271 16 7428.336 Total On-Time @ 4800bps 27711.63 Total On-Time = 27711.63us Total Time = 57000.6us 27711.63 /57000.6 = 0.48616 Duty Cycle @ 4800bps = 48.6% Baud rate = 28800bps * Complete 100ms data capture from HS encoder at 28800bps * Total time of 1 pulse train = 25.5264ms * Zoomed in on processing period of packet-A * Zoomed in on start sequence of packet-A * Zoomed in on data portion of packet A * Zoomed in on processing period of packet-B * Zoomed in on start sequence of packet-B * Zoomed in on data portion of packet B * Pulse measurement #1 = 3.38245ms (processing pulse, only 1of these per pulse train) * Pulse measurement #2 = 32.909us (wake pulses, 4 of these per pulse train) * Pulse measurement #3 = 1.40564ms (noise filter, 2 of these per pulse train) * Pulse measurement #4 = 65.091us (error check, 2 of these per pulse train) * Pulse measurement #5 = 223.27us (UserID + stop bit, 2 of these per pulse train) * Pulse measurement #6 = 42.727us (bits 1,3,5 of each byte of data, 48 of these per pulse train) * Pulse measurement #7 = 126.000us (bit 7 + stop bit of each byte of data, 16 of these per pulse train) Pulse Description Pulse Meas. #Pulse Length (us)Pulses per Train Total Time (us) Processing time 1 3382.45 1 3382.45 Wake bits 2 32.909 4 131.636 Noise filter 3 1405.64 2 2811.28 Error check 4 65.091 2 130.182 UserID + stop bit 5 223.27 2 446.54 Bits 1,3,& 5 of ea. data byte 6 42.727 48 2050.896 Bit 7 + stop bit of ea. data byte 7 126 16 2016 Total On-Time @ 28800bps 10968.984 Total On-Time = 10968.984us Total Time = 25526.4us 10968.984 / 25526.4 = 0.42971 Duty Cycle @ 28800bps = 43.0%

HS Series Encoder Data Structure Power Up Is the SEND Line High? Send Message YES NO The HS Series encoder is designed to securely register button pr esses or switch closures over a wireless link for remote contro l applications. It will turn eight parallel input lines into an encrypted serial bit stream output. The encoder will send messages for as long as the SEND line is high. Each message consists of two packets separated by a 3.8mS gap. Each packet has a start sequence that consists of a wake period, noise filter, and prea mble byte. The preamble byte has 10 bits, a start bit, 3-bit err or check, inversion flag bit, four-bit User ID, and a stop bit. The data portion is encrypted, so will be diffe rent within each message, and from message to message. The HS Series algorithm calculates the Hamming weight of the enc rypted data portion of each packe t before it is sent. If it is greater than 50%, then the packet is logically inverted. This guarantees that the duty cycle of the encrypted data will ne ver be greater than 50%. The preamble is d esigned to be less than 50% worst- case, so adding these together gives a worst- case message duty cycle of just under 50%. Total Message Time at 4,800bps = 57.1mS Worst Case Duty Cycle at 4,800bps = 48.6% Total Message Time at 28,800bps = 25.5mS Worst Case Duty Cycle at 28,800bps = 43% 3.8mS 3.4mS 3.3mS 1400uS 0 1100 or 0 1101 80 bits 1010 Processing Time Wake Noise Filter Error Check Encrypted Data XXXX 1User ID 3.8mS 1400uS 0 1100 or 0 1101 80 bits 1010 Processing Time Wake Noise Filter Error Check XXXX 1 User ID Encrypted Data
