2AAHS-ASRCLow Energy Bluetooth Module

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AAHS-ASRC IC: 4397C-ASRC FCC Rule Part: 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0462 Manufacturer: Johnson Outdoors Marine Electronics Model: ASRC ASRC TRANSCEIVER MODULE DATASHEET 1 | P a g e TABLE OF CONTENTS TABLE OF CONTENTS ................................................................................................................................................... 1 ASRC MODULE FOOTPRINT AND PIN DEFINITIONS ........................................................................................... 2 PIN DESCRIPTIONS ........................................................................................................................................................ 3 ELECTRICAL SPECIFICATIONS ................................................................................................................................. 5 AGENCY CERTIFICATIONS ......................................................................................................................................... 8 AGENCY STATEMENTS ................................................................................................................................................. 8 OEM LABELING REQUIREMENTS FOR END-PRODUCT ................................................................................... 10 CONTACTING JOHNSON OUTDOORS MARINE ELECTRONICS, INC ............................................................ 11 ASRC TRANSCEIVER MODULE DATASHEET 2 | P a g e ASRC MODULE FOOTPRINT AND PIN DEFINITIONS To apply the ASRC module, it is important to use the module pins in your application as they are designated in below and in the corresponding pin definition table found below. Some pins were remove during the development, indicated by the pin numbers skipped. Figure 1 ASRC Pinout (Top View) PIN DESCRIPTIONS PIN NAME FUNCTION DESCRIPTION 1 GROUND GND Ground connection. 2 P2.2 GPIO General Purpose Input or Output. 5 P2.1 GPIO General Purpose Input or Output. 6 P2.0 GPIO General Purpose Input or Output. 7 P1.7 GPIO General Purpose Input or Output. 8 P1.6 GPIO General Purpose Input or Output. 9 VCC VCC Positive voltage supply for module. 12 VCC VCC Positive voltage supply for module. 13 P1.5 GPIO General Purpose Input or Output. 14 P1.4 GPIO General Purpose Input or Output. 15 P1.3 GPIO General Purpose Input or Output. ASRC TRANSCEIVER MODULE DATASHEET 3 | P a g e 16 P1.2 GPIO General Purpose Input or Output. 17 VCC VCC Positive voltage supply for module. 18 P1.1 GPIO General Purpose Input or Output. 19 VCC VCC Positive voltage supply for module. 20 P1.0 GPIO General Purpose Input or Output. 21 VCC VCC Positive voltage supply for module. 22 P0.7 GPIO General Purpose Input or Output. 23 P0.6 GPIO General Purpose Input or Output. 24 VCC VCC Positive voltage supply for module. 25 P0.5 GPIO General Purpose Input or Output. 26 P0.4 GPIO General Purpose Input or Output. 27 P0.3 GPIO General Purpose Input or Output. 28 P0.2 GPIO General Purpose Input or Output. 29 P0.1 GPIO General Purpose Input or Output. 30 P0.0 GPIO General Purpose Input or Output. 31 RESET RESET This is a logic low line that resets the whole module. ASRC TRANSCEIVER MODULE DATASHEET 4 | P a g e 32 GROUND GND Ground connection. 33 GROUND PAD GND This is a large ground pad beneath the module. GND = ground connection. VCC = positive supply connection. The voltage on these pins should not exceed 3.6V DC. GPIO = General Purpose Input or Output. These have multiple configurations as digital input or output pins, programming interfaces, serial interfaces, or analog input pins. The voltage on these pins should not exceed the voltage on VCC. RESET = module reset. Pulling this pin low will reset the whole module. The voltage on this pin should not exceed VCC. This pin has an internal pull up, and can be left floating when not in use. Table 1 ASRC Module Pin Descriptions All digital I/O signals use logic based on the supply voltage. If the external digital circuitry does not support this logic level, then level shifters MUST be used. ASRC TRANSCEIVER MODULE DATASHEET 5 | P a g e ELECTRICAL SPECIFICATIONS Absolute Maximum Ratings Parameter Min Max Unit Power supply voltage (VCC) -0.3 +3.6 V Voltage on any GPIO -0.5 VCC + 0.3 V Operating temperature (6) -40 +85 ºC Storage temperature -55 +125 ºC Table 2 Absolute Maximum Ratings ASRC TRANSCEIVER MODULE DATASHEET 6 | P a g e Recommended Operating Conditions Parameter Min Typ Max Unit V BAT 2.0 3.0 3.3 V Ambient temperature range -40 25 85 ºC Table 3 Recommended Operating Conditions General Characteristics Parameter Min Typ Max Unit BT RF frequency Range 2402 2480 MHz Table 4 General Characteristics ASRC TRANSCEIVER MODULE DATASHEET 7 | P a g e BLOCK DIAGRAM Figure 2 ASRC Module Block Diagram – Top-Level ASRC TRANSCEIVER MODULE DATASHEET 8 | P a g e AGENCY CERTIFICATIONS FCC ID: 2AAHS-ASRC IC: 4397C-ASRC AGENCY STATEMENTS Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into …

Text truncated - open the document above for the full version.

5015 B. U. Bowman Dr. Buford, GA 30518 January 19, 2014 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: 2AAHS-ASRC To Whom It May Concern: The following application is submitted on behalf of our client, Johnson Outdoors Marine Electronics, for evaluation of their model ASRC for certification under FCC Part 15.249. The ASRC is a small, custom-built Low Energy Bluetooth Module PCBA (2402 – 2480 MHz) which will be placed inside a hand-held, coin cell battery remote control (transmitter) as well as a “dongle” (receiver) that attaches to and is powered from the Humminbird control head Accessory/GPS port located on the back of the ASRC. The ASRC was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

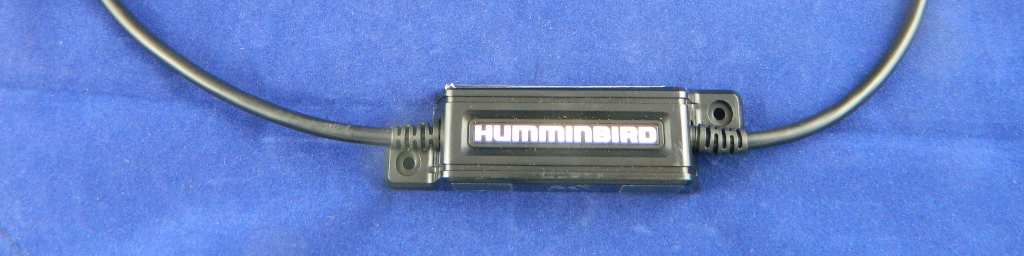

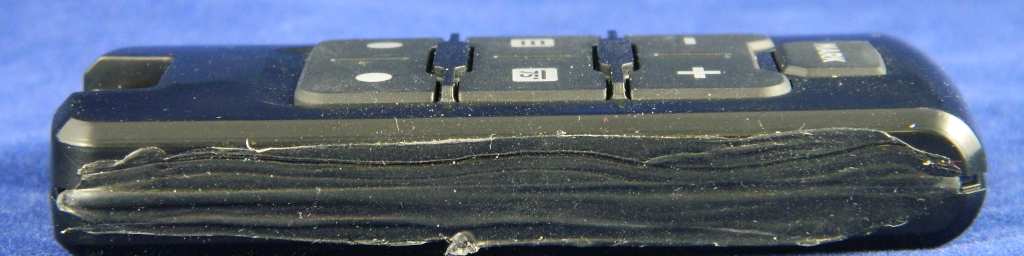

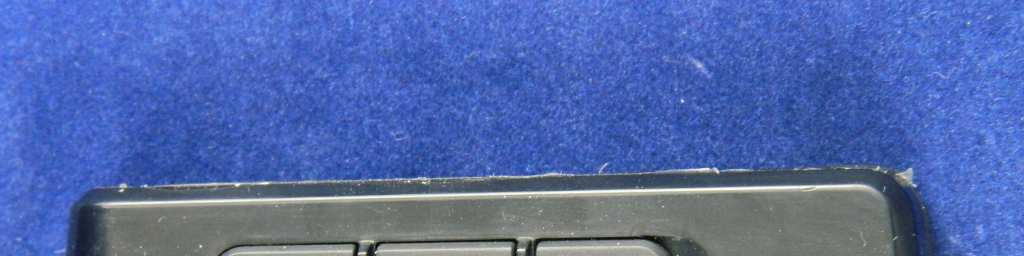

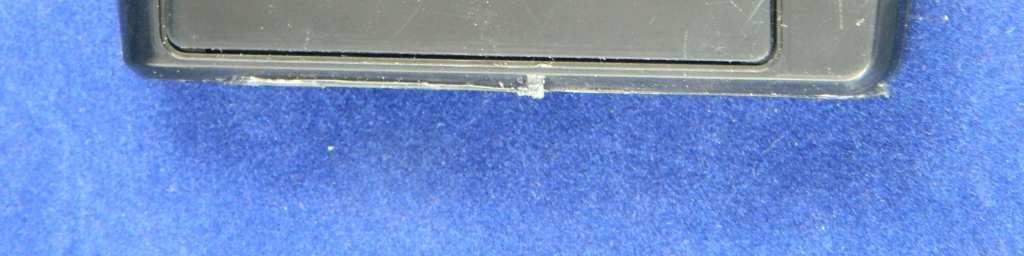

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AAHS-ASRC IC: 4397C-ASRC FCC Rule Part: 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0462 Manufacturer: Johnson Outdoors Marine Electronics Model: ASRC Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 2 Figure 1: External Photo Figure 2: External Photo Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 3 Figure 3: External Photo – Dongle Host Figure 4: External Photo – Dongle Host Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 4 Figure 5: External Photo – Dongle Host Figure 6: External Photo – Dongle Host Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 5 Figure 7: External Photo – Dongle Host Figure 8: External Photo – Dongle Host Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 6 Figure 9: External Photo – Remote Host Figure 10: External Photo – Remote Host Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 7 Figure 11: External Photo – Remote Host Figure 12: External Photo – Remote Host Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 8 Figure 13: External Photo – Remote Host Figure 14: External Photo – Remote Host

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AAHS-ASRC IC: 4397C-ASRC FCC Rule Part: 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0462 Manufacturer: Johnson Outdoors Marine Electronics Model: ASRC 409378-2REV B FCC ID: 2AAHS-ASRC IC:4397C-ASRC MODEL: ASRC GND_PAD GND_PADx1 1 1x1 12 12x1 13 13x1 14 14x1 15 15x1 16 16x1 17 17x1 18 18x1 19 19x1 2 2x1 20 20x1 21 21x1 22 22x1 23 23x1 24 24x1 25 25x1 26 26x1 27 27x1 28 28x1 29 29x1 30 30x1 31 31x1 32 32x1 5 5x1 6 6x1 7 7x1 8 8x1 9 9x1 FID1 FID1x1 FID3 FID3x1 FID2 FID2x1 Title: Scale: Bluetooth Remote Battery Door Etching 409479-1apd Notes: 1. All units are Inches 2. Refer to file “drawing#”.eps for Camera Ready Artwork 3. Etched Text to be Raised .012” Quality Specification: All finished parts must conform with the following ASTM standards where applicable: 1. ASTM D3359-08 2. ASTM F1842-02 3. ASTM E1541-98 4. ASTM D2244-07 For referenced ASTM standards, visit the ASTM website, www.astm.org Confidential and Proprietary Information Revisions: (with ECO & Date) 1. Content change 2. Content and position change 3. 1:1 Drawing # Rev Issue Date: 12/5/14 Drawn By: S. Dettman C Tolerances: 1. Positioning Tolerances: Linear: ±.015” Angular: ± 30 minutes 2. Pock Tolerances: Large: 1 hole over .015” per square inch of ink Cluster: <10 holes of any size in a .25” square area of ink 3. Part Outline is shown for position reference only Johnson Outdoors Marine Electronics, Inc. 1220 Old Alpharetta Road Alpharetta, GA 30005 Tel +1 770 888 6292 Fax +1 770 888 9258 .243” .228” Lines shown for part denition Title: Scale: Bluetooth Remote Dongle Housing Etching 409489-1apd Notes: 1. All units are Inches 2. Refer to file “drawing#”.eps for Camera Ready Artwork 3. Etched Text to be Raised .012” Quality Specification: All finished parts must conform with the following ASTM standards where applicable: 1. ASTM D3359-08 2. ASTM F1842-02 3. ASTM E1541-98 4. ASTM D2244-07 For referenced ASTM standards, visit the ASTM website, www.astm.org Confidential and Proprietary Information Revisions: (with ECO & Date) 1. Content change 2. Content and position change 3. 1:1 Drawing # Rev Issue Date: 12/5/14 Drawn By: S. Dettman C Tolerances: 1. Positioning Tolerances: Linear: ±.015” Angular: ± 30 minutes 2. Pock Tolerances: Large: 1 hole over .015” per square inch of ink Cluster: <10 holes of any size in a .25” square area of ink 3. Part Outline is shown for position reference only Johnson Outdoors Marine Electronics, Inc. 1220 Old Alpharetta Road Alpharetta, GA 30005 Tel +1 770 888 6292 Fax +1 770 888 9258 .121” .645” Lines shown for part denition

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AAHS-ASRC IC: 4397C-ASRC FCC Rule Part: 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0462 Manufacturer: Johnson Outdoors Marine Electronics Model: ASRC Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 2 Figure 1: Internal Photo Figure 2: Internal Photo Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 3 Figure 3: Internal Photo – Integrated on Dongle Host PCB Figure 4: Internal Photo – Integrated on Dongle Host PCB Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 4 Figure 5: Internal Photo – Integrated on Remote Host PCB Figure 6: Internal Photo – Integrated on Remote Host PCB

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: 2AAHS-ASRC IC: 4397C-ASRC FCC Rule Part: 15.249 IC Radio Standards Specification: RSS-210 ACS Report Number: 14-0462.W06.1A Manufacturer: Johnson Outdoors Marine Electronics Model: ASRC Test Begin Date: November 18, 2014 Test End Date: November 25, 2014 Report Issue Date: January 28, 2015 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 14 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1GENERAL .............................................................................................................................................. 3 1.1PURPOSE............................................................................................................................................ 3 1.2PRODUCT DESCRIPTION..................................................................................................................... 3 1.3TESTMETHODOLOGY ANDCONSIDERATIONS................................................................................... 3 2TEST FACILITIES ................................................................................................................................ 4 2.1LOCATION......................................................................................................................................... 4 2.2LABORATORYACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS.................................................. 4 2.3RADIATEDEMISSIONSTESTSITEDESCRIPTION................................................................................ 5 2.3.1Semi-Anechoic Chamber Test Site ........................................................................................... 5 2.3.2Open Area Tests Site (OATS) ................................................................................................... 6 2.4CONDUCTEDEMISSIONSTESTSITEDESCRIPTION............................................................................ 7 3APPLICABLE STANDARD REFERENCES ..................................................................................... 7 4LIST OF TEST EQUIPMENT.............................................................................................................. 8 5SUPPORT EQUIPMENT ...................................................................................................................... 9 6EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ............................................................ 9 7SUMMARY OF TESTS ....................................................................................................................... 10 7.1ANTENNAREQUIREMENT–FCC15.203......................................................................................... 10 7.2POWERLINECONDUCTEDEMISSIONS–FCC15.207;ICRSS-GEN8.8 ......................................... 10 7.2.1Measurement Procedure ........................................................................................................ 10 7.320DB/99%BANDWIDTH–FCC15.215;ICRSS-GEN6.6............................................................. 10 7.3.1Measurement Procedure ........................................................................................................ 10 7.3.2Measurement Results.............................................................................................................. 10 7.4FUNDAMENTALFIELDSTRENGTH–FCC15.249(A);ICRSS-210A2.9(A) .................................... 12 7.4.1Measurement Procedure ........................................................................................................ 12 7.4.2Measurement Results.............................................................................................................. 12 7.5RADIATEDSPURIOUSEMISSIONS–FCC15.249(A)(D)(E);ICRSS-210A2.9(A)(B) ....................... 13 7.5.1Measurement Procedure ........................................................................................................ 13 7.5.2Measurement Results.............................................................................................................. 13 7.5.3Sample Calculation: ............................................................................................................... 14 8CONCLUSION ..................................................................................................................................... 14 Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Report: 14-0462.W06.1AAdvanced Compliance SolutionsPage 3 1GENERAL 1.1Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210 for Certification for Limited Modular Approval. 1.2Product description The ASRC is a small, custom-built Low Energy Bluetooth Module PCBA which will be placed inside a hand-held, coin cell battery remote control (transmitter) as well as a “dongle” (receiver) that attaches to and is powered from the Humminbird control head Accessory/GPS port located on the back of the ASRC. Technical Information: DetailDescription Frequency Range2402 -2480 MHz Number of Channels40 Modulation FormatGFSK Operating Voltage3.6V Antenna Type / GainPIFA / -1.87dBi Manufacturer Information: Johnson Outdoors Marine Electronics 1220 Old Alpharetta Rd STE 340 Alpharetta, GA 30005 EUT MAC Address Numbers: 90:59:AF:16:16:42 (Dongle), 90:59:AF:16:0F:BB (Remote Control)…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: 2AAHS-ASRC IC: 4397C-ASRC FCC Rule Part: 15.249 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0462 Manufacturer: Johnson Outdoors Marine Electronics Model: ASRC Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 2 Figure 1: Radiated Emissions – Dongle Host XPOS Figure 2: Radiated Emissions – Dongle Host XPOS Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 3 Figure 3: Radiated Emissions – Dongle Host YPOS Figure 4: Radiated Emissions – Dongle Host YPOS Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 4 Figure 5: Radiated Emissions – Dongle Host ZPOS Figure 6: Radiated Emissions – Dongle Host ZPOS Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 5 Figure 7: Radiated Emissions – Remote Host XPOS Figure 8: Radiated Emissions – Remote Host XPOS Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 6 Figure 9: Radiated Emissions – Remote Host YPOS Figure 10: Radiated Emissions – Remote Host YPOS Model: ASRCFCC ID: 2AAHS-ASRCIC: 4397C-ASRC ACS Project: 14-0462Advanced Compliance SolutionsPage 7 Figure 11: Radiated Emissions – Remote Host ZPOS Figure 12: Radiated Emissions – Remote Host ZPOS
