JM7130S20PL-B RF Module – 2.4GHz, GFSK 4Mbps Transceiver (RoHS Compliant) V1 2018 1 / 8 1.0 General Description TheJM7130S20PL-Bmodule is designed for 2.4GHz ISM band wireless applications using GFSK transceiver. This module features a fully programmable frequency synthesizer by SPI. The data rate is 4Mbps. 2.0 Electrical specification ItemSpecificationRemark Supply Voltage3.3V+/-0.1V Current Consumption<10uA (typical) @Sleep mode 2.5mA (typical) @Standby mode 250mA (typical) @Tx mode 30mA (typical) @Rx mode Typical Frequency2400 – 2483.5MHzISM band Transmit Output Power Rx Sensitivity-90dBm (typical) @ 4M mode, Dev = 1MHz Typical, BER≦1E-3, With Gaussian filter. ModulationGFSK Transmission DistanceDipole Antenna: > 50 meters (typical) - Closed area > 350 meters (typical) - Open area (LOS)Line-of-Sight Connector Interface 10 pin 2.0mm header Dimension23 (L) x 21.5(W) x 4.2(H) mm (+/-0.5mm) - With External Crystal - Without connector Crystal Frequency16MHz +/-20ppm Operating Temperature-20 ~ +70°C JM7130S20PL-B RF Module – 2.4GHz, GFSK 4Mbps Transceiver (RoHS Compliant) V1 2018 2 / 8 3.0 Module Picture Top view JM7130S20PL-B RF Module – 2.4GHz, GFSK 4Mbps Transceiver (RoHS Compliant) V1 2018 3 / 8 Top view 4.0 Mechanical Dimension Side View JM7130S20PL-B RF Module – 2.4GHz, GFSK 4Mbps Transceiver (RoHS Compliant) V1 2018Jess Technology Co., Ltd. 4 / 8 5.0 Interface 6.0 PA & LNA control state Control functionRX ONTX ONTR/X OFFInhibition TX SW 10 10 RX SW 01 1 0 7.0Reflow Profile Pin No. Pin nameCommentNote 1 REGI33RF module supply voltage input3.3V 2 CKOClock output of A7130 3 GIO2General Purpose I/O 2 4 GIO1General Purpose I/O 1Active low 5 SDIOSPI Data I/O 6 SCKSPI Clock 7 SCSSPI Chip Selection 8 TX SWRF front end PA/LNA selectActive low 9 RX SWRF front end PA/LNA select 10 GNDGND 11 X’tal inClock in for A7130 JM7130S20PL-B RF Module – 2.4GHz, GFSK 4Mbps Transceiver (RoHS Compliant) V1 2018 5 / 8 8.0 Ordering Information Part numberSize (mm)Remark JM7130S20PL-B23 (L) x 21.5(W) x 4.2(H) mm (+/-0.5mm)With 4Mbps data rate JM7130S20PL-B RF Module – 2.4GHz, GFSK 4Mbps Transceiver (RoHS Compliant) V1 2018 6 / 8 9.0 JM7130S20PL-B Packing Method FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Note: The Grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance. such modifications could void the user's authority to operate the equipment. The OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed. IMPORTANT NOTE: In the event that these conditions cannot be met (for example co- location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user's manual of the end product which integrates this module. The JM7130S20PL-B module is designed to comply with the FCC statement. FCC ID is 2AAIXVCM713OVO1. The host system using JM7130S20PL-B, should have label indicated it contain modular's FCC ID: 2AAIXVCM713OVO1. The device has been evaluated to meet general RF exposure requirement. To maintain compliance with FCC's RF exposure guidelines, the distance must be at least 20 cm between the radiator and your body, and fully supported by the operating and installation configurations of transmitter and its antenna(s). V1 2018 7 / 8 V1 2018 8 / 8 IC Warning: If the IC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module IC: 8102A-VCM713OVO1 When the module is installed inside another device, the user manual of this device must contain below warning statements: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas p…

Text truncated - open the document above for the full version.

Axia Innovations LTD. PHOENIX TESTLAB GmbH Date: 28 May 2020 Product Certification Königswinkel 10 D 32825 Blomberg RE : LETTER OF AGENCY AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. W e certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thi s agreement is valid one year – until 28 May 2021– until further notice. If you have any questions, please feel free to contact me Y ours sincerely, Signatory Printed Name: Eric Lau Position: Engineer

Axia Innovations LTD. Long -term Confidentiality Request PHOENIX TESTLAB GmbH Date:28 May 2020 Product Certification Königswinkel 10 D 32825 Blomberg FCC ID: 2AAIXVCM713OVO1 To Whom It May Concerns, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, we hereby request long-term confidential treatment of information accompanying this application as outlined below: ☒Schematics ☐ Parts List ☒ Block Diagram ☐ Tune-Up Info ☒Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. If you have any questions, please feel free to contact me. Yours sincerely, S ignatory Printed Name: Eric Lau Position: Engineer

Axia Innovations LTD. PHOENIX TESTLAB GmbH Date: 29 May 2020 Product Certification Königswinkel 10 D 32825 Blomberg Attn : Reviewing Engineer Subject: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To Whom It May Concern: We, (applicant name), hereby requests for part 15 unlicensed modular transmitter approval of our device, described as follows: Brand name: N/A Model name: JM7130S20PL-B FCC ID: 2AAIXVCM713OVO1 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered requirements that our device complies with: 1. The modular transmitter must have its own shielding. Device is equipped with metal shielding to cover RF section. This module uses SMD type components which can not be modified by user. 2. The modular transmitter must have buffered modulation/data inputs Complies, 16MHz crystal has buffered modulation/data inputs. 3. The modular transmitter must have its own power supply regulation Complies, Powered by 3.3VDC 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The host with the modular is Product name: Wireless Backup CameraSolar Powered with Extended Battery Life, Model: BT530033, BT530033-60, Brand name: Type S ; The host product was made by the ADC Solutions Auto, LLC DBA Type S. Device is not equipped with antenna. The Host integrator equip the modular with antenna in the host product and the antenna is a intergral antenna and un-replaceable. 5. The modular transmitter must be tested in a stand-alone configuration Complies, The Modular can power by 3.3V. We can control the module to transmit the RF signal by update firmware of the product. 6. The modular transmitter must be labelled with its own FCC ID number Complies,Please see lable location. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The modular transmitter is powered by whole machine, and the parameters of the wireless are determined by the firmware and the wireless module. There is no authority outside the use of. 8.The modular transmitter must comply with any applicable RF exposure requirements. Complies, This device and its antenna(s) must not be co-located or conjunction with any other antenna or transmitter. Yours sincerely, Signatory [Eric Lau, Engineer]

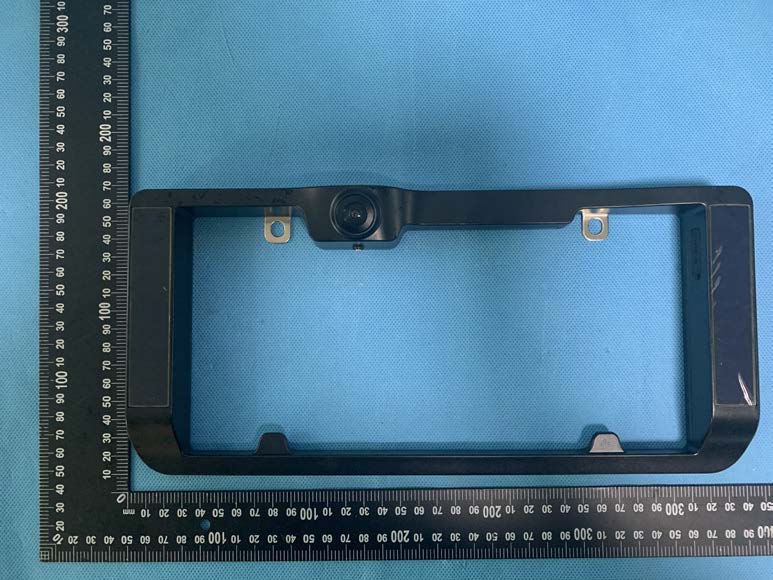

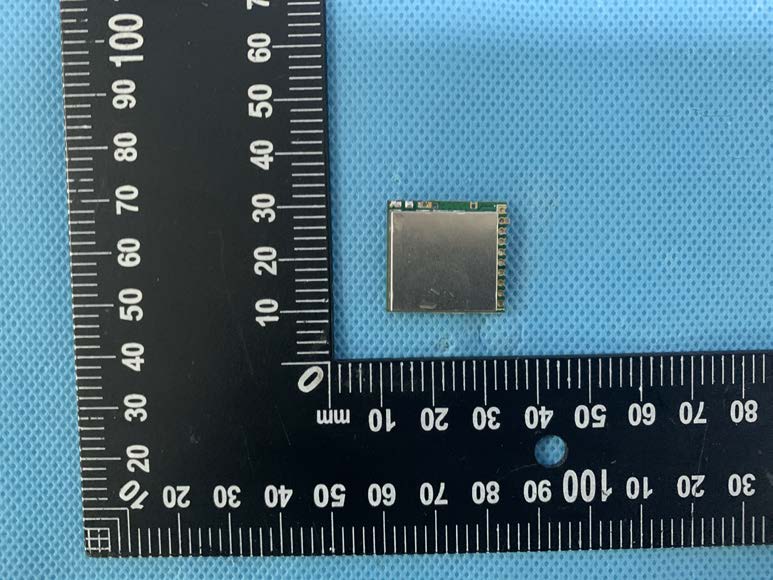

Appendix-External-Photos Model: JM7130S20PL-B External Photos of Module Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 5 Appendix-External-Photos External Photos of Host Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 5 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 3 of 5 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 4 of 5 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 5 of 5

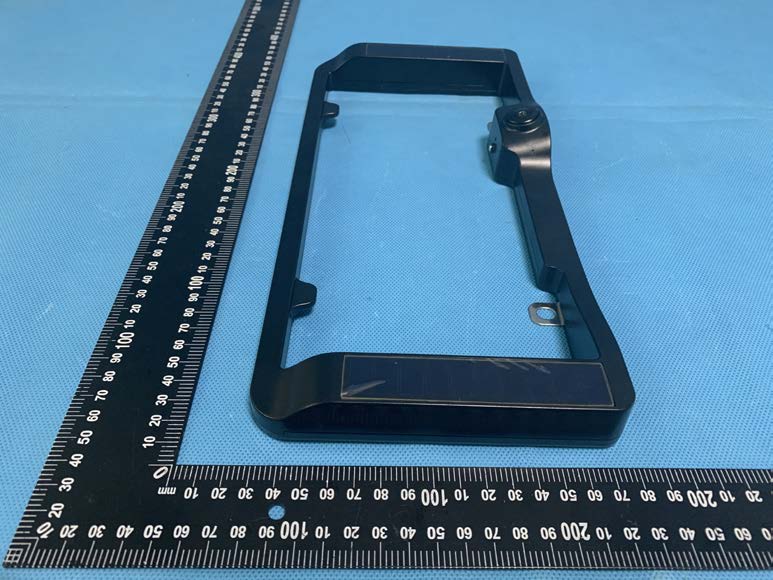

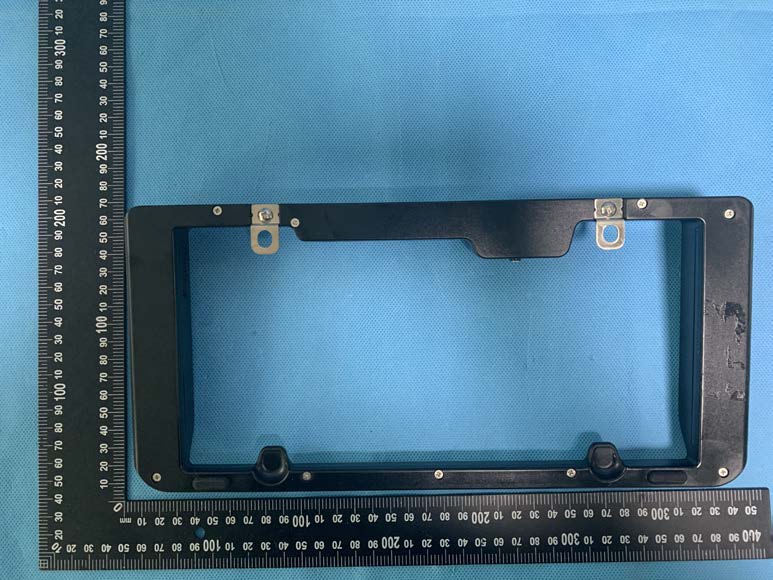

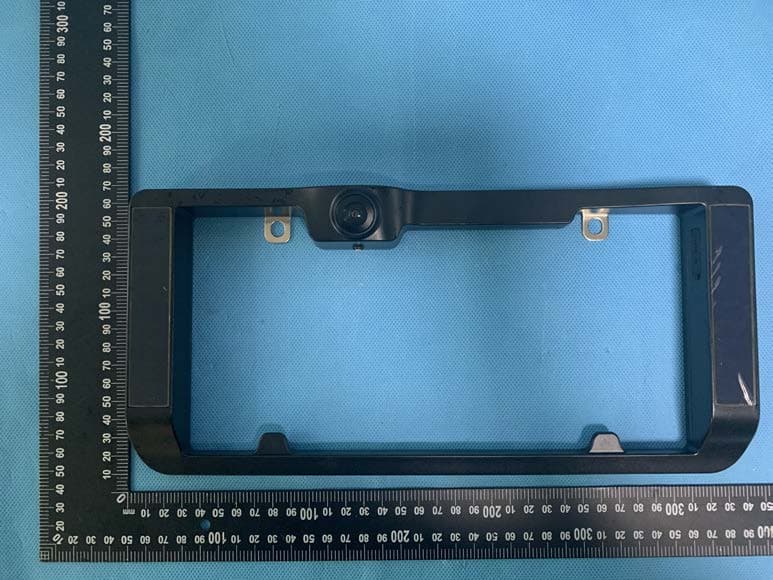

Appendix-External-Photos External Photos of Host Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 4 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 4 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 3 of 4 Appendix-External-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 4 of 4

-063/%_FCC&IC ID Label Sample and Label Location AxiaInnov  ationsLTD. RFmodule–2.4Gtransceiver ModelNo.::DϳϭϯϬ^ϮϬW>Ͳ FCCID:Ϯ/ysDϳϭϯKsKϭ /͗ΘϭϬϮͲsDϳϭϯKsKϭ

Appendix-Internal-Photos Model: JM7130S20PL-B Internal Photos of Module Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 2 Appendix-Internal-Photos Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 2 of 2

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 25 TEST REPORT Reference No. .................... : WTD20S04020643W001 FCC ID........................... : 2AAIXVCM713OVO1 Applicant ........................... : Axia Innovations LTD. Address ............................. : 7/F, Sui Hong Ind. Building, 547-549 Castle Peak Rd.,Kwai Chung, NT, Hong Kong, China Manufacturer ..................... : Axia Innovations LTD. Address ............................. : 7/F, Sui Hong Ind. Building, 547-549 Castle Peak Rd.,Kwai Chung, NT, Hong Kong, China Factory ............................... : HJT Electronics Co. Ltd Address ............................. : Floor 5, Tower AB, TianJi Building, TianAn Cyber Park, FuTian District, ShenZhen, China Product .............................. : RF module-2.4G transceiver Model(s). ............................ : JM7130S20PL-B Standards .......................... : FCC CFR47 Part 15 Section 15.249:2019 Date of Receipt sample .... : 2020-04-20 Date of Test ....................... : 2020-05-21 to 2020-05-29 Date of Issue ..................... : 2020-05-29 Test Result ........................ : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Test site/Test location: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Frank Yin / Test Engineer Philo Zhong / Manager Reference No.:WTD20S04020643W001 Page 2 of 25 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 1 Contents Page 1 CONTENTS ............................................................................................................................................................ 2 2 REVISION HISTORY ............................................................................................................................................ 3 3 GENERAL INFORMATION .................................................................................................................................. 4 3.1 GENERAL DESCRIPTION OF E.U.T ................................................................................................................. 4 3.2 DETAILS OF E.U.T ........................................................................................................................................... 4 3.3 CHANNEL LIST ................................................................................................................................................. 4 3.4 TEST MODE ..................................................................................................................................................... 4 4 EQUIPMENT USED DURING TEST .................................................................................................................. 5 4.1 EQUIPMENTS LIST ........................................................................................................................................... 5 4.2 MEASUREMENT UNCERTAINTY ....................................................................................................................... 6 4.3 SUBCONTRACTED ............................................................................................................................................ 6 4.4 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 6 4.5 TEST FACILITY ................................................................................................................................................. 6 5 TEST SUMMARY .................................................................................................................................................. 7 6 CONDUCTED EMISSION .................................................................................................................................... 8 6.1 E.U.T. OPERATION ......................................................................................................................................... 8 6.2 EUT SETUP ..................................................................................................................................................... 8 6.3 MEASUREMENT DESCRIPTION ........................................................................................................................ 8 6.4 CONDUCTED EMISSION TEST RESULT ........................................................................................................... 9 7 RADIATED EMISSIONS ..................................................................................................................................... 11 7.1 EUT OPERATION ........................................................................................................................................... 11 7.2 TEST SETUP .................................................................................................................................................. 12 7.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 13 7.4 TEST PROCEDURE ........................................................................................................................................ 14 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION ..................................................................................... 14 7.6 SUMMARY OF TEST RESULTS …
