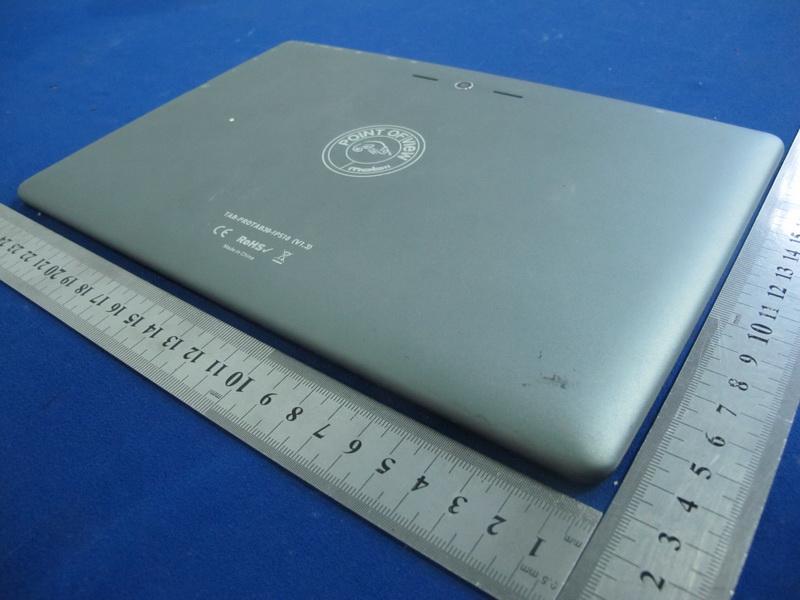

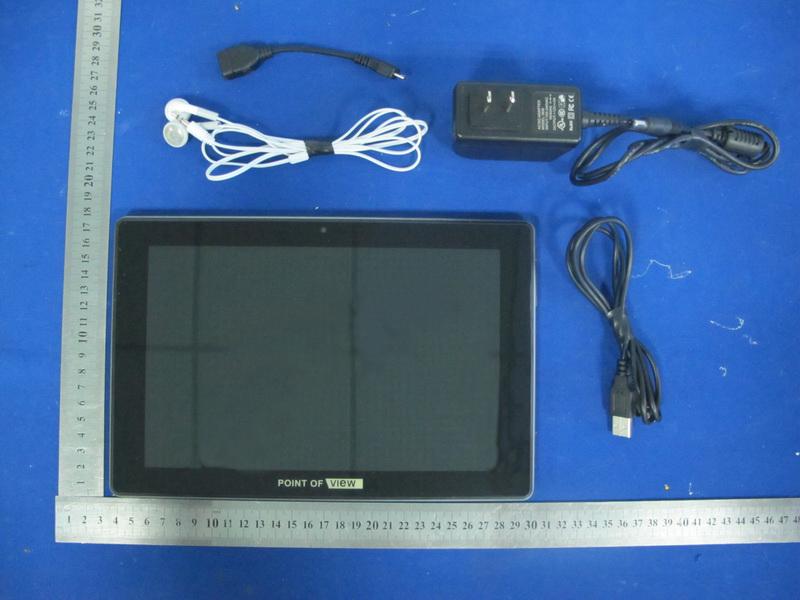

Page 3 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 APPENDIX III EUT PHOTOS External Photos Photo 1 Appearance of EUT Photo 2 Appearance of EUT Page 4 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 Photo 3 Appearance of EUT

Page 2 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 APPENDIX II ID LABEL LOCATION FCC ID: 2AAJE-M736

Page 5 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 Internal Photos Photo 4 Internal of EUT Photo 5 Internal of EUT Page 6 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 Photo 6 Appearance of PCB Photo 7 Appearance of PCB Page 7 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 Photo 8 Appearance of PCB Photo 9 Appearance of Antenna 2.4G Antenna Page 8 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 Photo 10 Appearance of PCB

Page 1 of 7 Report No.: STT20130715196EMPE Version: STT-FCCRF-13V01 MPE Report FCC ID: 2AAJE-M736 Product： Tablet PC Trade Name： KOCASO Model Number： M736, M836, M870, M1062, M1066, M872, M1070 Issued for Global Phoeni x Computer T&S, Inc. 21 Dutch Mill Road, Ithaca, NY 14850 Issued by Shenzhen STONE Testing Technology Co., Ltd. F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District, Shenzhen, Guangdong, China Tel.: +86-0755-26582862 Fax.: +86-0755-61673854 Website: www.stt-lab.org Note: This report shall not be reproduced except in full, without the written approval of Shenzhen STONE Testing Technol ogy Co., Ltd.. This document may be altered or revised by Shenz hen STONE Testing Technol ogy Co., Ltd. personnel only, and shall be noted in the revision section of the docum ent. The test results in the report only appl y to the tested sampl e. Page 2 of 7 Report No.: STT20130715196EMPE Version: STT-FCCRF-13V01 TEST RESULT CERTIFICATION Product.................................... : Tablet PC Applicant ................................. : Global Phoeni x Computer T&S, Inc. Address ................................... : 21 Dutch Mill Road, Ithaca, NY 14850 Manufacturer ........................... : Global Phoeni x Computer T&S, Inc. Address ................................... : 21 Dutch Mill Road, Ithaca, NY 14850 Model No................................. : M736, M836, M870, M1062, M1066, M872, M1070 Test Method ............................ : KDB 447498 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies V05 The above equipment has been tested by Shenzhen STONE Testi ng Technology Co., Ltd. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessari ly produce the same results due to production tolerance and measurement uncertai nties. Test ........................................................ : Date of receipt of test item ................................. : 2013-07-03 Date(s) of performance of test............................. : 2013-07-10 to 2013-07-16 Test Result.............................................. : Compliance Testing by : Date : 2013-07-15 (Linna Liu) Check by : Date : 2013-07-17 (Andy Huang) Approved by : Date : 2013-07-18 (Ethan Chen) Page 3 of 7 Report No.: STT20130715196EMPE Version: STT-FCCRF-13V01 Table of Contents Page 1 . GENERAL INFORMATION 4 GENERAL DESCRIPTION OF EUT 4 2 . RF EXPOSURE LIMIT 5 3 . CALCULATION 6 Page 4 of 7 Report No.: STT20130715196EMPE Version: STT-FCCRF-13V01 1. GENERAL INFORMATION GENERAL DESCRIPTION OF EUT Equipment Tablet PC Model Name M736 Additional Model Number(s) M836, M870, M1062, M1066, M872, M1070 Model Difference All models are identical except model names. Frequency Range IEEE 802.11b/g/n(HT20): 2412~2462 MHz Bluetooth(Version: 3.0): 2402~2480 MHz Modulation Type IEEE 802.11b: DSSS IEEE 802.11g:OFDM IEEE 802.11n:OFDM Bluetooth: GFSK/π/4-DQPSK/8-DPSK RF Output Power IEEE 802.11b: 8.54 dBm IEEE 802.11g: 8.13 dBm IEEE 802.11n: 8.26 dBm Bluetooth: GFSK: 0.75 dBm 8-DPSK: -0.33 dBm Antenna Type PFA Antenna (Gain: 0 dBi) Power Source DC power from AC/DC Adapter DC power from USB cable by host system Power Rating AC/DC Adapter: Input: AC 120~240V 50/60 Hz Output: DC5V 2A DC 5.0V from USB cable. Remark Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Note: (1) More test information refer to Radio test reports for Bluetooth and IEEE802.11b/g/n. Page 5 of 7 Report No.: STT20130715196EMPE Version: STT-FCCRF-13V01 2. RF EXPOSURE LIMIT FCC: According to KDB 447498 D01 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies V05. Appendix A: SAR Test Thresholds for 100MHz~6GHz and ≤50mm. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is <5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Page 6 of 7 Report No.: STT20130715196EMPE Version: STT-FCCRF-13V01 3. CALCULATION 1. MAXIMUM POWER IEEE 802.11b Channel Max. Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2412 8.54 0 8.54 7.145 2437 8.07 0 8.07 6.412 2462 7.97 0 7.97 6.266 IEEE 802.11g Channel Max. Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2412 8.01 0 8.01 6.324 2437 8.10 0 8.10 6.456 2462 8.13 0 8.13 6.501 IEEE 802.11n Channel Max. Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2412 8.26 0 8.26 6.699 2437 7.92 0 7.92 6.194 2462 8.16 0 8.16 6.546 Bluetooth (GFSK) Channel Max. Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2402 0.62 0 0.62 1.153 2441 0.75 0 0.75 1.188 2480 0.63 0 0.63 1.156 Bluetooth (8-DPSK) Channel Max. Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2402 -0.90 0 -0.90 0.813 2441 -0.55 0 -0.55 0.881 2480 -0.33 0 -0.33 0.927 Page 7 of 7 Report No.: STT20130715196EMPE Version: STT-FCCRF-13V01 2. The Max. Output Power EIRP= 8.54 (dBm)=7.145 (mW), Frequency is 2412 MHz(2.412GHz), So [ (7.145/5)]*[ √2.412]= 2.219 ≤ 3.0 Conclusion: No SAR is required.

Page 1 of 69 Report No.: STT20130715196ERF2 Version: STT-FCCRF-13V01 FCC Radio Test Report FCC ID: 2AAJE-M736 FCC 47 CFR Part 15 Subpart C Product： Tablet PC Trade Name： KOCASO Model Number： M736, M836, M870, M1062, M1066, M872, M1070 Issued for Global Phoeni x Computer T&S, Inc. 21 Dutch Mill Road, Ithaca, NY 14850 Issued by Shenzhen STONE Testing Technology Co., Ltd. F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District, Shenzhen, Guangdong, China Tel.: +86-0755-26582862 Fax.: +86-0755-61673854 Website: www.stt-lab.org Note: This report shall not be reproduced except in full, without the written approval of Shenzhen STONE Testing Technol ogy Co., Ltd.. This document may be altered or revised by Shenz hen STONE Testing Technol ogy Co., Ltd. personnel only, and shall be noted in the revision section of the docum ent. The test results in the report only appl y to the tested sampl e. Page 2 of 69 Report No.: STT20130715196ERF2 Version: STT-FCCRF-13V01 TEST RESULT CERTIFICATION Product.................................... : Tablet PC Applicant ................................. : Global Phoeni x Computer T&S, Inc. Address ................................... : 21 Dutch Mill Road, Ithaca, NY 14850 Manufacturer ........................... : Global Phoeni x Computer T&S, Inc. Address ................................... : 21 Dutch Mill Road, Ithaca, NY 14850 Model No................................. : M736, M836, M870, M1062, M1066, M872, M1070 Standards................................ : FCC Part 15 Subpart C (15.247) Test Method ............................ : ANSI C63.4: 2003 The above equipment has been tested by Shenzhen STONE Testi ng Technology Co., Ltd. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessari ly produce the same results due to production tolerance and measurement uncertai nties. Test ........................................................ : Date of receipt of test item ................................. : 2013-07-03 Date(s) of performance of test............................. : 2013-07-10 to 2013-07-16 Test Result.............................................. : Pass Testing by : Date : 2013-07-15 (Linna Liu) Check by : Date : 2013-07-17 (Andy Huang) Approved by : Date : 2013-07-18 (Ethan Chen) Page 3 of 69 Report No.: STT20130715196ERF2 Version: STT-FCCRF-13V01 Table of Contents Page 1 . TEST SUMMARY 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 DESCRIPTION OF TEST SETUP 9 2.4 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 10 2.5 EUT Exercise Software 10 3 . CONDUCTED EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT (Frequency Range 150KHz-30MHz)11 3.2 TEST PROCEDURE 11 3.3 TEST SETUP 12 3.4 TEST INSTRUMENTS 12 3.5 EUT OPERATING CONDITIONS 12 3.6 TEST RESULTS 13 4 . RADIATED EMISSION MEASUREMENT 17 4.1 RADIATED EMISSION LIMIT (Frequency Range 9KHz-1000MHz) 17 4.2 TEST PROCEDURE 17 4.3 TEST SETUP 18 4.4 TEST INSTRUMENTS 19 4.5 EUT OPERATING CONDITIONS 19 4.6 TEST RESULTS 20 5 . MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT 31 5.1 LIMITS 31 5.2 TEST PROCEDURE 31 5.3 TEST SETUP 31 5.4 TEST INSTRUMENTS 31 5.5 EUT OPERATING CONDITIONS 31 5.6 TEST RESULTS 31 Page 4 of 69 Report No.: STT20130715196ERF2 Version: STT-FCCRF-13V01 Table of Contents Page 6 . OCCUPIED BANDWID TH MEASUREMENT 38 6.1 LIMITS 38 6.2 TEST PROCEDURE 38 6.3 TEST SETUP 38 6.4 TEST INSTRUMENTS 38 6.5 EUT OPERATING CONDITIONS 38 6.6 TEST RESULTS 38 7 . POWER DENSITY 45 7.1 LIMITS 45 7.2 TEST PROCEDURE 45 7.3 TEST SETUP 45 7.4 TEST INSTRUMENTS 45 7.5 EUT OPERATING CONDITIONS 45 7.6 TEST RESULTS 45 8 . BAND EDGES MEASUREMENT 52 8.1 LIMITS 52 8.2 TEST PROCEDURE 52 8.3 TEST SETUP 52 8.4 TEST INSTRUMENTS 53 8.5 EUT OPERATING CONDITIONS 53 8.6 TEST RESULTS 53 9 . OUT OF BAND CONDUC TED EMISSIONS MEASUREMENT 59 9.1 LIMITS 59 9.2 TEST PROCEDURE 59 9.3 TEST SETUP 59 9.4 TEST INSTRUMENTS 59 9.5 EUT OPERATING CONDITIONS 59 9.6 TEST RESULTS 59 10 . ANTENNA REQUIREMENT 69 10.1 REQUIREMENT 69 10.2 ANTENNA CONNECTOR CONSTRUCTION 69 Page 5 of 69 Report No.: STT20130715196ERF2 Version: STT-FCCRF-13V01 1. TEST SUMMARY Test procedures according to the technical standards: FCC Part 15 Subpart C (15.247) Standard Section Test Item Judgment Remark 15.207 AC Power Conducted Emission PASS 15.247(d) Transmitter Radiated Emissions PASS 15.247(b)(3) Output Power PASS 15.247(a)(2) 6dB RF Bandwidht PASS 15.247(e) Power Spectral Density PASS 15.247(c) Out of Band Conducted Spurious Emission PASS 15.247(d) Band Edge Measurement PASS 15.247(c) Occupied Bandwidth Measurement PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2)The test results of this report relate only to the tested sample(s) identified in this report. Page 6 of 69 Report No.: STT20130715196ERF2 Version: STT-FCCRF-13V01 1.1 TEST FACILITY Shenzhen STONE Testing Technology Co., Ltd. Add. : F/6, Bldg.12, Zhongxing Industrial City, Chuangye Rd., Nanshan District, Shenzhen, Guangdong, China Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025. FCC Registration No.: 323508 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. A. Conducted Emission : The measurement uncertainty is evaluated as ± 3.2 dB. B. Radiated Measurement : The measurement uncertainty is evaluated as ± 3.7 dB. Page 7 of 69 Report No.: STT20130715196ERF2 Version: STT-FCCRF-13V01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Tablet PC Model Name M736 Additional Model Number(s) M836, M870, M1062, M1066, M872, M1070 Model Difference Al…

Text truncated - open the document above for the full version.

Page 9 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 APPENDIX IV TEST PHOTOS Conducted Emission Test Setup Page 12 of 12 Report No.: STT20130715196EEUT Version: STT-FCCRF-13V01 Radiated Emission Test Setup (15C Test)
