2AAJPEP-P100IEWEGWWWireless Charger

Type STA. A00101 04/2013. Rev.1.0www.samsung.com English Safety information To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device Samsung cannot be held responsible for any injury or property damage caused by failure to comply with the safety cautions and regulations Do not use damaged power cords or plugs, or loose electrical sockets Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Do not bend or damage the power cord Do not store your device with metal objects, such as coins, keys, and necklaces Your device may overheat. Do not use your device or applications for a while if the device is overheated Prolonged exposure of your skin to an overheated device may cause low temperature burn symptoms, such as red spots and pigmentation. Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers Your device may overheat and cause a fire. Do not drop or cause an impact to the charger or the device Store your device only on flat surfaces• If your device falls, it may be damaged.• Do not bite or suck the device or the battery Doing so may damage the device or cause an explosion.• If children use the device, make sure that they use the • device properly. Keep your device dry Humidity and liquids may damage the parts or electronic • circuits in your device. If your device is wet, dry the device with a towel and take it • to a service center. Do not disassemble, modify, or repair your device Your device may malfunction and your risk of electric • shock is increased. Any changes or modifications to your device can void your • manufacturer’s warranty. If your device needs servicing, take your device to a Samsung Service Center. This manual’s images and content may differ from the product. Overview Check the product box for the following items: Wireless Charging Pad and user manual. The items supplied with the Wireless Charging Pad and any available accessories may vary depending on the region. Using the Wireless Charging Pad Connect the Wireless Charging Pad and a charger 1 with a charging cable, and plug the charger into an electric socket. When the Wireless Charging Pad is connected to the • electric socket, the indicator light flashes from red to green to orange, and then turns off. Use only Samsung-approved chargers (over 2 A). Unauthorized chargers may cause damage or the Wireless Charging Pad may malfunction. The charger and the charging cable are sold • separately. The Wireless Charging Pad’s indicator light flashes • differently depending on its status. For more information about the indicator light, see below. If the indicator light is not working properly, reconnect the charger to the Wireless Charging Pad. Indicator lightDevice status Red → Green → Orange When connecting to the power outlet OrangeWhen not charging properly GreenWhen charging properly OffWhen in Idle mode Attach the Wireless Charging Cover to a 2 smartphone, and then place the smartphone on the Wireless Charging Pad. The Wireless Charging Cover is sold separately. For more information about the Wireless Charging Cover, refer to the Wireless Charging Cover’s user manual. When the smartphone is fully charged, disconnect 3 the charger from the Wireless Charging Pad. Check the smartphone’s battery status looking at • the charging icon displayed on the screen. Do not place any other object between the • smartphone and the Wireless Charging Pad. The smartphone may not charge properly. Charging a smartphone with the Wireless Charging • Pad in an area with a weak signal may cause a significant drop in reception. The Wireless Charging Pad is compatible with WPC • certified devices. Do not place the Wireless Charging Cover solely on the Wireless Charging Pad Doing so may overheat the device and cause a fire. Place the smartphone properly on the Wireless Charging Pad The position guide indicates the upper side, lower side and the center of the Wireless Charging Pad. Match the upper and lower side of the smartphone with the Wireless Charging Pad, and place the smartphone in the middle. If not, the smartphone may not charge properly, and its signal may drop. Recycling Direct To dispose electronics properly, follow the recycling process regulated in your area or go to Samsung website to find the nearest recycling location: www.samsung.com/recyclingdirect Or call, (877) 278 – 0799. Samsung Telecommunications America, LLC 1301 E. Lookout Drive Richardson, Texas 75082 Phone: 1-800-SAMSUNG Phone: 1-888-987-HELP (4357) Indicator light Position guide Charging jack S Charger Pad Wireless Charging Pad FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment. Based on Wireless charging standards, must keep the device at least 10 cm away from user during usage. EP-P100_UM_STA.indd 12013-04-25 오후 1:54:09 Español Información sobre seguridad Para evitar lesiones a usted mismo y a otras personas, o daños al dispositivo, lea la información sobre seguridad del dispositivo antes de utilizarlo Samsung no se hace responsable de los daños a la propiedad o las lesiones que se produzcan por no cumplir con las normas y las precauciones de seguridad No utilice cables de alimentación o conectores dañados ni tomacorrientes sueltos No toque el cable de alimentación con las manos mojadas ni desconecte el cargador tirando del cable No doble ni dañe el cable de alimentación No guarde el dispositivo con objetos metálicos como monedas, llaves o collares El dispositivo puede sobrecalentarse. Si el di…

Text truncated - open the document above for the full version.

Hansol Technics Co., Ltd. 55, Hansam‐ro, Deoksan‐myeon, Jincheon‐gun, Chungcheongbuk‐do, Korea 3 Jul y 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER OF AUTHORIZATION To wh om it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti‐Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Kor ea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and pe rsonnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division in to disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Hansol Technics Co., Ltd. 55, Hansam‐ro, Deoksan‐myeon, Juncheon‐gun, Chungcheongbuk‐do, Korea f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Weon‐seo Lee, Senior Engineer Hansol Technics Co., Ltd.

Hansol Technics Co., Ltd. 55, Hansam‐ro, Deoksan‐myeon, Jincheon‐gun, Chungcheongbuk‐do, Korea 3 July 201 3 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST OF CONFIDENTIALITY FCC ID: 2AAJPEP‐P100IEWEGWW To Whom It May Concern: Pursua nt to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary informati on not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short‐Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04‐1705. This provision will give Sa msung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent 1 Block Diagram 2 Operational Descriptions 3 Schematics Short‐Term 4 External Photos 5 Internal Photos 6 Test‐Setup Photos 7 User’s Manual Hansol Technics Co., Ltd. 55, Hansam‐ro, Deoksan‐myeon, Juncheon‐gun, Chungcheongbuk‐do, Korea The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Weon‐seo Lee, Senior Engineer Hansol Technics Co., Ltd.

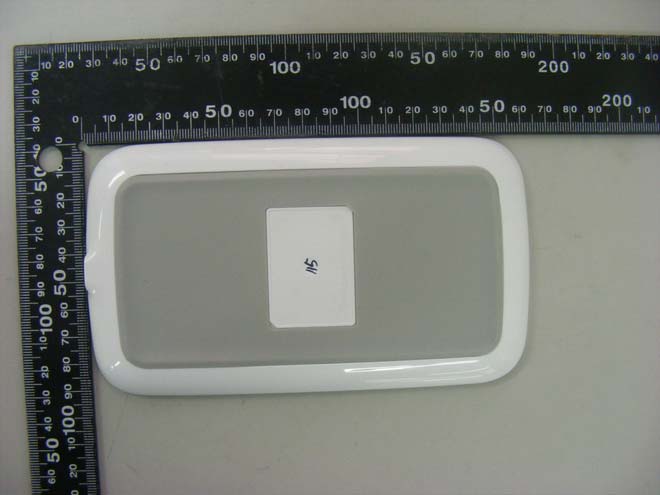

Model : EP-P100IEWEGWW External photos of EUT Model : EP-P100IEWEGWW Top view of EUT Bottom view of EUT Model : EP-P100IEWEGWW Front view of EUT Rear view of EUT Model : EP-P100IEWEGWW Side view of EUT Model : EP-P100IEWEGWW External view of adapter Model : EP-P100IEWEGWW External view of client device with receiver Model : EP-P100IEWEGWW External view of client device with receiver

EP ‐ P100IEWEGWW FCC/IC LABEL If ti FCC/IC LABEL I n f orma ti on LABELLABEL BOTTOM Label Location Label EP ‐ P100IEWEGWW Hansol Technics Co., Ltd. EP-P100IEWEGWW 2AAJPEP-P100IEWEGWW 11207A-EPP100IEWE

Model : EP-P100IEWEGWW Internal photos of EUT Model : EP-P100IEWEGWW Internal view of EUT Model : EP-P100IEWEGWW Top view of main board Bottom view of main board Model : EP-P100IEWEGWW Top view of antenna Loop Coil Antenna

Report Number :F690501/RF-RTL006613-2 Page:2of11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX TABLE OF CONTENTSPage 1. General Information ---------------------------------------------------------------------3 2. Test Result -----------------------------------------------------------------------------------5 3. Appendix A Photos of the EUT & Test Setup Photos ------------------------------9 Report Number :F690501/RF-RTL006613-2 Page:3of11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. :+82 31 428 5700 Fax No. :+82 31 427 2371 1.2. Details of applicant Applicant:Hansol Technics Co., Ltd. Address: 55, Hansam-ro,Deoksan-myeon, Jincheon-gun, Chungcheongbuk-do, Korea Contact Person:Lee, Weon-seo Phone No.:+82 43 530 8554 1.3. Description of EUT Kind of Product S Charger Pad Model Name EP-P100IEWEGWW Serial Number N/A Power Supply AC 120 V (Used adapter: DC 5 V / 2 A) Frequency Range 115㎑~ 205㎑ Operating Conditions -20°C~ 50°C Maximum Field strength 84.47㏈㎶/m at 3 m / 4.47㏈㎶/m at 300 m Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature: -20°C~ 50°C 1.5. Test report revision RevisionReport numberDescription 0F690501/RF-RTL006613Initial 1F690501/RF-RTL006613-1Modify applicant’s information 2F690501/RF-RTL006613-2Modify typo error Report Number :F690501/RF-RTL006613-2 Page:4of11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Spectrum Analyzer R&SFSW100578May. 20, 2013 Annual May. 20, 2014 Loop AntennaR&SHZ-10100143Jun. 15, 2012BiennialJun. 15, 2014 E-Field ProbeSchaffner2244/90.20AE-0023Sep. 10, 2012 Annual Sep. 10, 2013 EM Radiation Meter SchaffnerEMC-20AR-0044Sep. 10, 2012AnnualSep. 10, 2013 B-Field ProbeNardaBN 2300/90.10J-0025Jan. 21, 2013AnnualJan. 21, 2014 Exposure Level Meter NardaELT-400J-0015Jan. 21, 2013AnnualJan. 21, 2014 Turn TableINN-CODS 1200 S N/AN/AN/AN.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN/AN/AN.C.R. Shield BoxTescomTC-5916A5916A000279N/AN/AN.C.R. Mobile Test UnitAgilentE5515CGB43345198Mar. 29, 2013 Annual Mar. 29, 2014 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 300Minimum resistive load 600Medium resistive load 1 000Maximum resistive load Charging Mode 3) with client device SHV-E300S 2) Less than 1% of battery SHV-E300SLess than 50% of battery SHV-E300S100% full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output voltage = 5 V, Output current = 300㎃/ 600㎃/ 1 000㎃ - (Maximum load) 16.67 Ω = 5 V / 0.3 A - (Medium load) 8.33 Ω = 5 V / 0.6 A - (Minimum load) 5.00 Ω = 5 V / 1.0 A 2) FCC ID: A3LSHVE300SA (Client device: SHV-E300S) 3) WPC device with client device was investigated each battery status and compared in two operating configurations. Report Number :F690501/RF-RTL006613-2 Page:5of11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Battery status during charging condition -Less than 1% of battery -Less than 50% of battery -100% of battery Plot#1 – less than 1% of batteryPlot#2 – less than 50% of batteryPlot#3 – 100% of battery Operating configurations -While the client device was in airplane mode (Trace#1 “M1”) -While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result,GSM900 / GPRS / 2 TXwas found inMiddle channel. -While the wireless charger is charging without the client device. (Trace#3 “M3”) -While the wireless charger is charging with the client device turned off. (Trace#4 “M4”) Plot#4 – fundamental emission comparison -The level of Trace#2 was more than Trace#1, 3 and 4 so Trace#2 was selected. -Trace#2 asGSM900 / GPRS / 2 TXwhich was found inMiddle channelshould be tested with the client device as a worst case. Report Number :F690501/RF-RTL006613-2 Page:6of11 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written …

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL006611-2Page:2of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX TABLE OF CONTENTS Page 1. General Information --------------------------------------------------------------------------3 2. Field Strength of Fundamental ------------------------------------------------------------7 3. Spurious Emission----------------------------------------------------------------------------11 4. Occupied Bandwidth & 20 dB Bandwidth-----------------------------------------------18 5. Transmitter AC Power Line Conducted Emission-------------------------------------21 Report Number:F690501/RF-RTL006611-2Page:3of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:Hansol Technics Co., Ltd. Address: 55, Hansam-ro,Deoksan-myeon, Jincheon-gun, Chungcheongbuk-do, Korea Contact Person:Lee, Weon-seo Phone No.:+82 43 530 8554 1.3. Description of EUT Kind of Product S Charger Pad Model Name EP-P100IEWEGWW Serial Number N/A Power Supply AC 120 V (Used adapter: DC 5 V / 2 A) Frequency Range 115㎑~ 205㎑ Operating Conditions -20°C~ 50°C Maximum Field strength 84.47㏈㎶/m at 3 m / 4.47㏈㎶/m at 300 m Antenna Type Inductive loop coil antenna 1.4. Declarations by the manufacturer - Operation temperature: -20°C~ 50°C Report Number:F690501/RF-RTL006611-2Page:4of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.5. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Spectrum Analyzer R&SFSW100578May. 20, 2013 Annual May. 20, 2014 Spectrum Analyzer AgilentN9030AUS51350132Oct. 30, 2012 Annual Oct. 30, 2013 Mobile Test UnitAgilentE5515CGB43345198Mar. 29, 2013 Annual Mar. 29, 2014 Test ReceiverR&SESU26100194Sep. 13, 2012 Annual Sep. 13, 2013 Loop AntennaR&SHFH2-Z2100118Aug. 24, 2011BiennialAug. 24, 2013 Loop AntennaR&SHZ-10100143Jun. 15, 2012BiennialJun. 15, 2014 Bilog AntennaSCHWARZBECKVULB9163390Apr. 19, 2012BiennialApr. 19, 2014 Antenna MasterINN-COMM4000 N/AN/AN/AN.C.R. Turn TableINN-CODS 1200 S N/AN/AN/AN.C.R. Two-Line V-Network R&S ENV216100190Jan. 14, 2013 Annual Jan. 14, 2014 Test ReceiverR&S ESHS10863365/018Jul. 03, 2012AnnualJul. 03, 2013 Anechoic Chamber SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN/A N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN/AN/AN.C.R. Shield BoxTESCOMTC-5916A5916A000279N/AN/AN.C.R. 1.6.Sample calculation Where relevant, the following sample calculation is provided: Field strength level (㏈㎶/m) = Measured level (㏈㎶) + Antenna factor (㏈) + Cable loss (㏈) – amplifier gain (㏈) 1.7. Worst case of test configurations In order to check all kinds of possible configurations, EUT was evaluated with appropriate client and under each charging condition as below table. EUT configuration Charging current (㎃) Mobile phoneDescription Charging Mode 1) with resistive load 300Minimum resistive load 600Medium resistive load 1 000Maximum resistive load Charging Mode 3) with client device SHV-E300S 2) Less than 1% of battery SHV-E300SLess than 50% of battery SHV-E300S100% full charging of battery 1) Test Jig was used during the test to satisfy each current status by using resistive loads. Output voltage = 5 V, Output current = 300㎃/ 600㎃/ 1 000㎃ - (Maximum load) 16.67 Ω = 5 V / 0.3 A - (Medium load) 8.33 Ω = 5 V / 0.6 A - (Minimum load) 5.00 Ω = 5 V / 1.0 A Report Number:F690501/RF-RTL006611-2Page:5of34 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea - 2) FCC ID: A3LSHVE300SA (Client device: SHV-E300S) 3) WPC device with client device was investigated each battery status and compared in two operating configurations. Battery status during charging condition -Less than 1% of battery -Less than 50% of battery -100% of battery Plot#1 – less than 1% of batteryPlot#2 – less than 50% of batteryPlot#3 – 100% of battery Operating configurations -While the client device was in airplane mode (Trace#1 “M1”) -While the client device was connected to an active data connection (Trace#2 “M2”) The device was tested under all modes and bands like 2G and 3G. In the result,GSM900 / GPRS / 2 TXwas found inMiddle channel. -While the wireless charger is charging without the client device. (Trace#3 “M3”) -While the wireless charger is charging with the client device turned off. (Trace#4 “M4”) Plot#4 – fundamental emission co…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. the photo of E-Field strength and 30 MHz under radiated emission With client device B. the photo of radiated emission above 30 MHz with client device C. the photo of E-Field strength and 30 MHz under radiated emission With load D. the photo of radiated emission above 30 MHz with load E. the photo of AC conducted power source with a client device F. the photo of AC conducted power source with load G. the photo of H-Field strength with client device H. the photo of H-Field strength with load I. the photo of E-Field strength with client device J. the photo of E-Field strength with load
