SPACE DUO WALKIE TALKIE SET OPERATING INSTRUCTIONS CONTENTS: 2 WALKIE TALKIE’S TO OPERATE: • Carefully remove the product from the package. • The battery case is located on the back of the product. • Remove/Pull out the plastic insulating tab from the battery case. • Slide the “ON/OFF” switch located at the left side of the figure to the “ON” position. • Press and hold the “PUSH TO TALK” button located at the right side of figure and face apart 3” (8cm) to start talking and transmit. • Release the “PUSH TO TALK” button to receive. • KEEP the antenna in vertical position to receive and transmit speaking. • If the unit is not being used for an extended period, remove the batteries as this may cause damage to the unit. • To extend the battery life, always switch the unit “OFF” when not in use. TO REPLACE BATTERIES: • Use 4 x “AG13/LR44” batteries (Included). • Remove the battery case cover (located at the back of the figure) by using a PHILIPS screwdriver (not Included). • Replace the exhausted batteries with new button cell batteries (AG13/Lr44) following the markings in the compartment well. • Replace and secure the battery case cover. TO CLEAN: Wipe surface with a damp cloth. TECHNICAL SPECIFICATION: 1. Carrier frequency: 27.145 MHz, 2. Field strength: 48.5 dBμV/m at 3 m 3. Reflective detection range approx. 100 Feet (30 Meter) in open area. NOTICE: • Complex environment (e.g. at estate or commercial area which consists a lot of WIFI device) will affect the performance. • Real situation may be varies from different environment and the user practice. PLEASE NOTE: For best results, always use alkaline batteries. Be sure to check the expiration date because fresh batteries will ensure uninterrupted usage/enjoyment of the product. Remove the batteries if the product will not be used for an extended period. If the product does not perform as expected, check for proper battery charge and correct battery installation, or try a fresh set of batteries. CAUTION: BATTERIES SHOULD BE REMOVED AND REPLACED BY ADULTS ONLY. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. To avoid explosion or leakage, do not dispose of batteries in a fire or attempt to recharge standard or alkaline batteries. Be sure to insert batteries with the correct polarities and always follow the product and battery manufacturer’s instructions. Remove batteries and store them in a cool, dry place when not in use. Always remove old and dead batteries from the product. The supply terminals are not to be short-circuited. CAUTION: • For Indoor Use Only. • Please save these instructions for future use. • Do not mount or place the product near gas or electric heaters, fireplaces, candles or any flammable sources. • Never place product in or near wet locations. WARNING: Do not use rechargeable batteries. WARNING: Small children should not be left unsupervised WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ― Reorient or relocate the receiving antenna. ― Increase the separation between the equipment and receiver. ― Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ― Consult the dealer or an experienced radio/TV technician for help. This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. AGES 6 AND UP READ AND SAVE THESE INSTRUCTIONS. ENSEMBLE WALKIE-TALKIE DUO DE L’ESPACE INSTRUCTIONS CONTENU : 2 WALKIE TALKIES FONCTIONNEMENT : • Retirer soigneusement le produit de l’emballage. • Le compartiment à piles se trouve à l’arrière du produit. • Retirer la languette isolante en plastique du compartiment à piles. • Pour mettre en marche, glisser l’interrupteur ON/OFF (MARCHE/ARRÊT), situé sur le côté gauche du produit, à la position ON (MARCHE). • Appuyer et maintenir enfoncé le bouton de transmission PUSH TO TALK (APPUYER POUR PARLER) situé sur le côté droit du produit et parler en tenant l’appareil à une distance de 8 cm (3 po) de soi. • Relâcher le bouton PUSH TO TALK (APPUYER POUR PARLER) pour recevoir une réponse. • MAINTENIR l’antenne en position verticale afin d’assurer une transmission et une réception adéquates de la voix. • Si le produit n’est pas utilisé pendant une période de temps prolongée, retirer les piles pour éviter de l’endommager. • Pour prolonger la durée de vie des piles, toujours glisser l’interrupteur à OFF (ARRÊT) lorsque le produit n’est pas utilisé. REMPLACEMENT DES PILES : • Requiert 4 piles AG13/LR44 (comprises). • Enlever le couvercle du compartiment à piles (situé à l’arrière de l’appareil) à l’a…

Text truncated - open the document above for the full version.

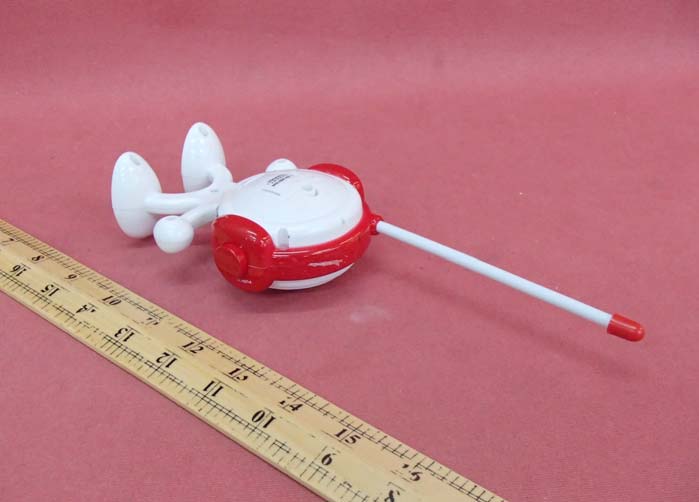

INTERTEK TESTING SERVICE Report No.: 14101201HKG-001 Equipment Photographs Model : F3922431 (External) FCC ID: 2AAJQF3922431

INTERTEK TESTING SERVICE Report No.: 14101201HKG-001 Equipment Photographs Model : F3922431 (Internal) FCC ID: 2AAJQF3922431 INTERTEK TESTING SERVICE Report No.: 14101201HKG-001 Equipment Photographs Model : F3922431 (Internal) FCC ID: 2AAJQF3922431 INTERTEK TESTING SERVICE Report No.: 14101201HKG-001 Equipment Photographs Model : F3922431 (Internal) FCC ID: 2AAJQF3922431 INTERTEK TESTING SERVICE Report No.: 14101201HKG-001 Equipment Photographs Model : F3922431 (Internal) FCC ID: 2AAJQF3922431

FCC ID: 2AAJQF3922431 Model: F3922431 The Equipment Under Test (EUT) is a Transceiver for a toy Push-to Talk (PTT) type Walkie-Talkie operating 27.145MHz The brief circuit description is listed as follows: - Q1 associated circuit act as Super regenerative receiver - IC LM386 act as audio amplifier - X1 and Q1 associated circuit act as 27.145MHz Oscillator and modulator - 7U5<0410> act as Antenna Matching Circuit Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 48.5dBμV/m at 3m Maximum allowed field strength of production tolerance: ±3dB

Analysis Report Report No.: 14101201HKG-001 The Equipment Under Test (EUT) is a transceiver for a toy Push-to-Talk operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 6.0 V DC source (4 x 1.5V AG13 batteries). After switched ON the EUT, the user can transmit voice to other transceiver by pressing the PTT button and speaking to the loudspeaker, while release the PTT button to listen voice of other transceiver from the loudspeaker. Antenna Type: External integral antenna Antenna Gain: 0dBi Nominal rated field strength: 48.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 51.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00004mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00004mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

lntertek \lâlud Quâfty. Dellwed, lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for spec¡f¡c laboratory activities as l¡sted ¡n the HOKLAS directory of accredited laboratories. Prepared and Checked by TEST REPORT Report No. : I 41 01201HKG-001 Rich Trend Enterprise Hong Kong Go. Ltd. Application For Certification (Original Grant) (FCC f D: 2AAJ QF39224311 Transceiver 4^ Approved by Ng Mei Nar, Chris Lead Engineer Tse Ying, Cathy Senior Lead Engineer Date: December 02,2014 lntêrtek's stândard Tems and Condit¡ons æn bê obtained at our website http://ww intêrtêk.com/tems/ This rêport shall not be reproducêd, oxcept ¡n full This report ¡s for the exclusive use of lntêrtek's Cliênt and ¡s provided pursuant to the agrêement between lntertek and its Client lntêrtêk's responsib¡lity and liability are l¡m¡ted to thê têms and conditions of the agrêemênt lntertek assumes no l¡ab¡l¡ty to any pârty, other than to the Client in acærdance w¡th the egrêement, for any loss, expense or dâmagê occasioned by the use of th¡s reporl Only the Cl¡ent is authorized to pemit copy¡ng or distribution of th¡s report and then only in its entirety Any use of the lnterlek name or one of its mârks for the sale or advertisement of the têstêd material, product or service must first be approved in writing by lntertek The obseryat¡ons and test results in this report ars relêvant only to the sample tested This report by itself does not ¡mply that the mâteriâ|, product, or seru¡ce ¡s or has ever beên under an lntertek certifi€tion program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Tel: (852) 2173 8888 Fex: (852) 2785 5487 Website: www.hk intertek-etlsemko com Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101201HKG-001 i FCC ID: 2AAJQF3922431 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Rich Trend Enterprise Hong Kong Co. Ltd. Grantee Address: Unit B, 12/F., Block A, Marvel Industrial Building, 25-31 Kwai Fung Crescent, Kwai Chung, N.T., Hong Kong. Contact Person: Joe Lam Tel: (852) 5802-2772 Fax: (852) 8169-9453 e-mail: [email protected] Manufacturer: Dongguan Yida Electric & Plastic Products Co. Ltd Manufacturer Address: Ai Ling Kan Village, Da Ling Shan Town, Dongguan City, Guangdong Province, China. Supplier: Rich Trend Enterprise Hong Kong Co. Ltd. Brand Name: AVON Model: F3922431 Type of EUT: Transceiver Description of EUT: Space Duo Walkie Talkie Set Serial Number: N/A FCC ID: 2AAJQF3922431 Date of Sample Submitted: October 31, 2014 Date of Test: October 31, 2014 to November 26, 2014 Report No.: 14101201HKG-001 Report Date: December 02, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101201HKG-001 ii FCC ID: 2AAJQF3922431 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14101201HKG-001 iii FCC ID: 2AAJQF3922431 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Measurement Uncertainty ............................................................................. 2 2.5 Support Equipment Lis…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14101201HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : F3922431 FCC ID: 2AAJQF3922431 INTERTEK TESTING SERVICE Report No: 14101201HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : F3922431 FCC ID: 2AAJQF3922431
