2AAKR-AV01RF2.4GHz ISM band spread spectrum transceiver module

Deadman Technologies, LLC
2.4GHz ISM band spread spectrum transceiver module - FCC ID 2AAKR-AV01RF - Deadman Technologies, LLC
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
Aug 18, 2013
Application Purpose
Original Equipment
Date of Application
Aug 18, 2013
Equipment Note
2.4GHz ISM band spread spectrum transceiver module
Frequency Range
2425.00000000 - 2425.00000000
Company
Deadman Technologies, LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

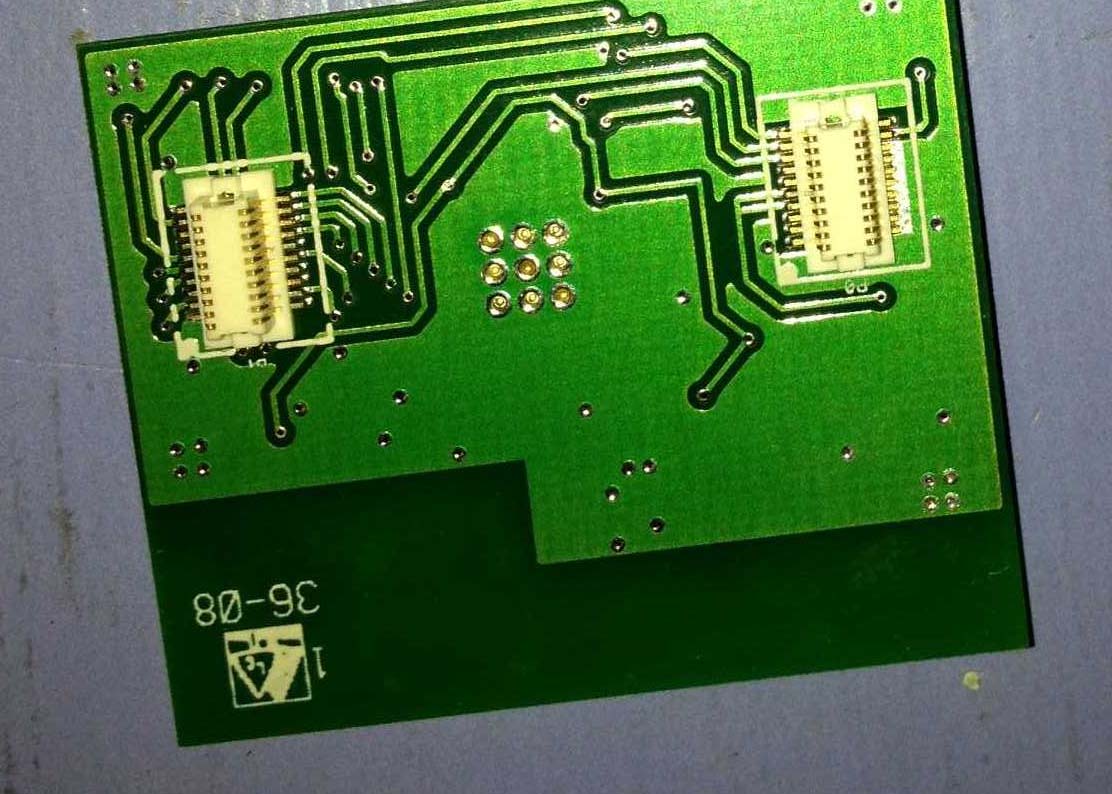

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

AV01-RF Manual Deadman Technologies, LLC Transceiver Module AV01-RF, version 0.1 AV01-RF is a wireless transceiver data module with reasonably small form factor, low power consumption, good stability and reliability. It has wide application uses in remote control, industry automation, wireless telemetry and remote consumer applications. This module has an embedded micro-controller and is highly versatile with several General Purpose Input and Output (GPIO) options for equipment and other devices’ connectivity. AV01-RF is designed with Texas Instruments CC2510F32 transceiver chip with embedded MCU. The module comes preprogrammed from the factory employing spread spectrum diversity and compliant to FCC 15.241 Changes or modifications not expressly approved by Deadman Technologies, LLC could void the user's authority to operate the equipment. FCC The following statement must be placed in the finish product users manual: Changes or modifications not expressly approved by Deadman Technologies, LLC could void the user's authority to operate the equipment. Or equivalently: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The following statement must be placed in the finish product users manual 1 : “This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.” The following statement is required to be placed on the product. If the product is too small, (defined by <4 x 4 inches) or if approved by the FCC, this statement may be placed in the manual. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” The finished product label must state the following: Contains FCC ID: 244KR-AV01RF Contains IC: 11230A-AV01RF The FCC ID and/or IC certification numbers must be placed on a non-removable portion of the exterior of the finished product. Contact Deadman Technologies, LLC for questions regarding placement of certification numbers. 1 For class B devices (intended for residential use), contact Deadman Technologies for changes to required statements. Industry Canada The following statements (both English and French versions of the text) must be placed in the finish product users manual: English French This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. For laboratory use wherein FCC and IC approvals are not required: The Texas Instruments CC2510 data sheet is appended in this users manual for detailed instructions on programming, register settings and all other performance specifications related to the GPIO, MCU programming and device performance. The IAR workbench is required to adjust and reprogram the product. Any adjustment or reprogramming voids the users authority to use the product outside the laboratory. The device comes with one IO assigned from the factory. If additional IO assignments are required, contact Deadman Technologies, LLC for firmware development of up to 21 GPIO with custom defined interrupt routines. The electrical specifications in the CC2510 data sheet are fully applicable to this module and must be adhered to (see the CC2510 data sheet). Summary technical specifications are: 1. Summary Technical Specifications PERFORMANCE Power Output: Programmable up to 0dBm RF Line-of-sight Range: 300m RF Effective Rate: Programmable up to 500kBaud Receiver Sensitivity: [email protected] NETWORKING Networking Topology: Point-to-point, point-to-multipoint POWER Supply Voltage: 3.3 VDC external Transmit Current: 26mA typical Receive Current: 19.7mA typical Sleep current: 0.220 mA typical GENERAL Communication Mode: Half-duplex Frequency Band: 2400Mhz – 2483.5Mhz; The module is programmed at the factory and certified with two hopping frequencies of 2405MHz and 2425MHz Any changes to the hopping frequencies voids the FCC certification unless recertified by the user or by Deadman Technologies, LLC. Channel: 2 – default; multiple programmable BW/spacing dependent Interface: I^2S, UART, USB PHYSICAL PROPERTIES Size: 30mm×36mm×7mm Weight: 20g Antenna Base: 50Ω, chip antenna with balun Operating Temperature: Industrial:-40°C~+85°C Frequency Stability: ±40ppm total tolerance including a) initial tolerance, b) crystal loading, c) aging, and d) temperature dependence. 2. AV01-RF Module Application Field * AMR (Automatic Meter Reading) * Wireless alarm and security systems * Building automation, wireless monitoring, Access Control System; * Wireless data transmission, automatic data collection system; * Wireless remote control, * Wireless LED display, * Industry automation, wireless te…

Text truncated - open the document above for the full version.

Cover Letter(s)

June 18, 2013 To Whom It May Concern: We hereby delegate CKC Certification Services, LLC (CKC CS) power of attorney to act on our behalf in matters pertaining to certification of products. The actions of CKC CS shall be considered the same as our own. Sincerely, Gino DiSimone Principal Deadman Technologies, LLC 400 Eagle Mountain Rd 866-436-4453

Cover Letter(s)

8/6/2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Permanent Confidentiality To whom it may concern: In accordance with 47CFR Section 0.457 and Section 0.459 pertaining to confidential material, we hereby request to hold permanently confidential all information contained within the below identified exhibits/document categories submitted pursuant to radio equipment certification requirements for FCC ID: 2AAKR-AV01RF 1. Block Diagram 2. Operational Description 3. Schematics 4. Parts List The above material contains trade secrets and proprietary information as specified by 47CFR 0.457(d) and technical data, which would customarily be guarded from competitors. The public disclosure of this information might be harmful to our company and provide unjustified benefits to our competitors. Sincerely, Gino DiSimone Principal Deadman Technologies, LLC

Cover Letter(s)

8/6/2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: This letter is to request Modular Approval in accordance with under FCC Rule Part 15.212 for the product certified under FCC ID: 2AAKR-AV01RF. I hereby declare that the following conditions have been met. a. The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. b. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over- modulation. c. The modular transmitter must have its own power supply regulation. d. The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. e. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). f. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. g. The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. h. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. I acknowledge on behalf of the applicant that compliance of a module in all final configurations is the responsibility of the applicant under the condition that the integrator follows all required installation instructions. Sincerely, Gino DiSimone Principal Deadman Technologies

ID Label/Location Info

Module Label MODEL: AV01-RF FCC ID: 2AAKR-AV01RF IC: 11230A-AV01RF This device complies with Part 15 of FCC Rules.
