2AAL3-LSD4RF2.4G module

LSD4RF-25410N15 2.4G Module User Manual FCC STATEMENT This device complies with part 15 of the FCC rules and Industry Canada Licence-exempt RSS standard(s). Operation is subject to the following to conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. DÉCLARATION DE LA FCC Cet appareil est conforme à la section 15 des réglementations de la FCC. Le fonctionnement de l’appareil est sujet aux deux conditions suivantes : 1) cet appareil ne doit pas provoquer d’interférences néfastes, et 2) cet appareil doit tolérer les interférences reçues, y compris celles qui risquent de provoquer un fonctionnement indésirable. Caution: This device complies with Part 15 of the FCC Rules / Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. MPE Reminding To satisfy FCC / IC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. Les antennes installées doivent être situées de facon à ce que la population ne puisse y être exposée à une distance de moin de 20 cm. Installer les antennes de facon à ce que le personnel ne puisse approcher à 20 cm ou moins de la position centrale de l’ antenne. La FCC des éltats-unis stipule que cet appareil doit être en tout temps éloigné d’au moins 20 cm des personnes pendant son functionnement. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. The antenna of the module has been printed on it. The frequency of the is 2400~2483.5MHz. And the required impedance is 50 ohm. Introduction LSD4RF-25410N15 Wireless Module is designed based on TI Transceiver CC2500and CC2590. It is a high performance 10mWSMD IOT wireless Transceiver that can be used in a wide range of short distance IOT communication. It has low power consumption, high resistance to disturbance ,small in size and low cost. The module adopts SMD wireless PCB antenna, providing a compact size. Functions Operating Voltage: 3.3VDC I/O interface level: 0~ 3.3VDC Operating Frequency: 2438.99 ~ 2458.98MHz 2-FSK modulation, enhance anti disturbance power lower power consumption: Tx 45mA Rx 25mA Sleep 3uA Rapid Channel Hopping: <90uS Hopping SPI Comm. interface: Programmable Programmable comm. rate: Max. 500Kbps Transmission range: 60m SMD interface High performance, compact size Antenna: PCB 2400~2483.5MHz 0dBi 50 ohm. Manufacture Guidance The label contained the FCC ID will be installed on the module as below method. And the module will be installed on the control panel as the method below. The Figure shows the temperature graph when manufacture by reflow soldering method. The final view: The Information of Antenna Electrical Specification The antenna is printed on the module. The antenna is installed inside the host unit and the final user can not install the antenna themselves. The module and antenna are installed with a distance over 20cm from the user during use. Test the VSWR of the antenna with the Network Analyzer E5071C. The yellow waveform in the figure below is the test result of this antenna. Frequency(MHz) Gain(dBi) VSWR 2433 -3 ~ 0 <2 Mechanical Size The Information of FCC ID The FCC ID of the module will be contented in the host unit. Robotic Housekeeper（3G+Wi-Fi） Model：F588 Input：14.5V DC 0.75A Charging Dock： CH1205B Battery：12VDC，2500mAh，Ni-MH Producing date: 11/2012 User Name: ××××××0001 Contains FCC ID:2AAL3-LSD4RF. Contains IC:12253A- LSD4RF MADE BY ECOVACS

Block Diagram Crystal(26MHz) Power(3.3VDC) Power(3.3VDC) Filter Circuit Control Logic SPI Interface Antenna PCB 0dBi 50ohm RF RF Frequency range: 2438.99~2458.98MHz CC2500 CC2590

ECOVACS Robotics Co., Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou City, 215168 Web Site: www.ecovacs.com.cn Tel: 886-0512-67072006 Email: genghongxia@ ecovacs.com.cn Fax: 886-0512-65274820 022311 – 6 Authority to Act as Agent Date: __2014-6-16______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Intertek Testing Services Ltd Shanghai______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____7 th ,June,2015_____ By: __________________________ _____GengHongxia_________________ (Signature 1 ) (Print name) Title: ________Certificate Engineer__________________ On behalf of: ___ ECOVACS Robotics Co., Ltd.__ (Company Name) Telephone: _______0512-67072006___________________ ECOVACS Robotics Co., Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou City, 215168 Web Site: www.ecovacs.com.cn Tel: 886-0512-67072006 Email: genghongxia@ ecovacs.com.cn Fax: 886-0512-65274820 022311 – 6 Request for Confidentiality Date: _____2014-6-16_________ Subject: Confidentiality Request for: 2AAL3-LSD4RF______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual *Note: ______NA ECOVACS Robotics Co.,Ltd.___ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ _____________ GengHongxia _____ (Signature/Title 2 ) (Print name)

ECOVACS Robotics Co., Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou City, 215168 Web Site: www.ecovacs.com.cn Tel: 886-0512-67072006 Email: genghongxia@ ecovacs.com.cn Fax: 886-0512-65274820 022311 – 6 Authority to Act as Agent Date: __2014-6-16______ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______Intertek Testing Services Ltd Shanghai______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ____7 th ,June,2015_____ By: __________________________ _____GengHongxia_________________ (Signature 1 ) (Print name) Title: ________Certificate Engineer__________________ On behalf of: ___ ECOVACS Robotics Co., Ltd.__ (Company Name) Telephone: _______0512-67072006___________________ ECOVACS Robotics Co., Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou City, 215168 Web Site: www.ecovacs.com.cn Tel: 886-0512-67072006 Email: genghongxia@ ecovacs.com.cn Fax: 886-0512-65274820 022311 – 6 Request for Confidentiality Date: _____2014-6-16_________ Subject: Confidentiality Request for: 2AAL3-LSD4RF______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent User’s Manual *Note: ______NA ECOVACS Robotics Co.,Ltd.___ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___180___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ _____________ GengHongxia _____ (Signature/Title 2 ) (Print name)

ECOVACS Robotics Co., Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou City, 215168 Web Site: www.ecovacs.com.cn Tel: 886-0512-67072006 Email: genghongxia@ ecovacs.com.cn Fax: 886-0512-65274820 Modular Approval Request Letter FCC ID: 2AAL3-LSD4RF Data: May. 18, 2014 Gentlemen: There’s an 2.4G module that would like to have your authorization as a modular approval. The specific product as below, 2.4G module, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice KDB996369 Released: June 26, 2000 by cross-reference list below. Company : ECOVACS Robotics Co., Ltd. Model Name : 2.4G module Model Number : LSD4RF-25410N15 FCC ID : 2AAL3-LSD4RF Requirement of Public Notice KDB996369/ Part 15.212 Reference to LSD4RF 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photo.pdf The RF circuit has been covered with the 2.4G module shielding which was connecter to GND. 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data input. It is integrated in chip CC2500. Please see schematic.pdf and datasheet of CC2500 for details. 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the LSD4RF. Please see schematic.pdf and datasheet of CC2500 for details. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The LSD4RF meets the FCC antenna requirements. The internal antenna was printed on the 2.4G module. Please see external photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The LSD4RF was tested in a stand-alone configuration. Please see set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of LSD4RF is clearly indicated. Please see the label.pdf The FCC ID number will be shown on the label outside the host. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The LSD4RF is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The LSD4RF comply with applicable RF exposure requirements. Please see Maximum Permissible Exposure.pdf Thank you. Sincerely, GengHongxia / Certificate Engineer ECOVACS Robotics Co., Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou City, 215168 Web Site: www.ecovacs.com.cn Tel: 886-0512-67072006 Email: genghongxia@ ecovacs.com.cn Fax: 886-0512-65274820 ECOVACS Robotics Co., Ltd. Tel: 86-0512-67072006 Fax: 86-0512-65274820 Email: [email protected]

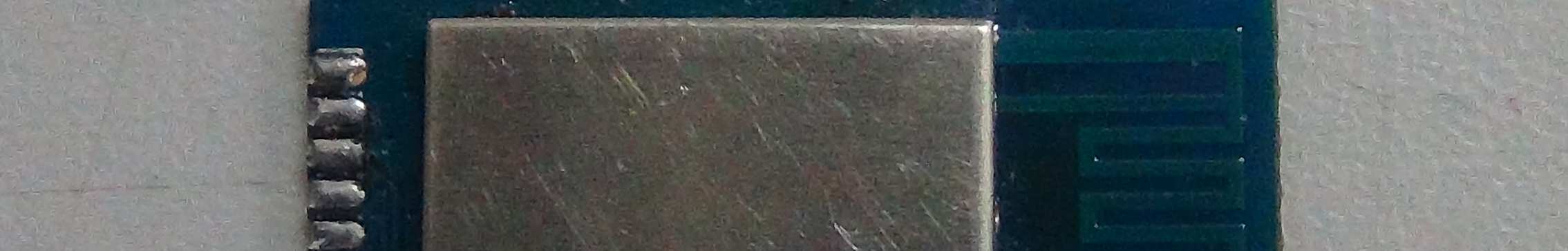

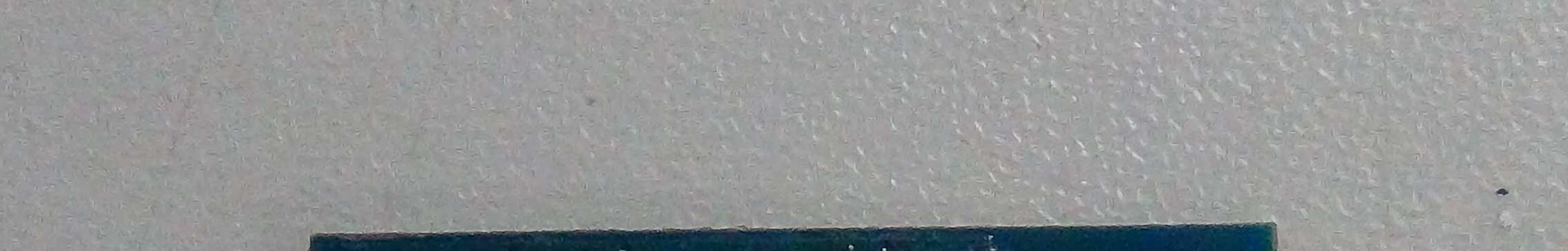

FCC ID: 2AAL3-LSD4RF Page 1 of 2 External Picture FCC ID: 2AAL3-LSD4RF Page 2 of 2

Model: LSD4RF-25410N15 IC: 12253A-LSD4RF FCC ID: 2AAL3-LSD4RF 12.2mm 17.2mm

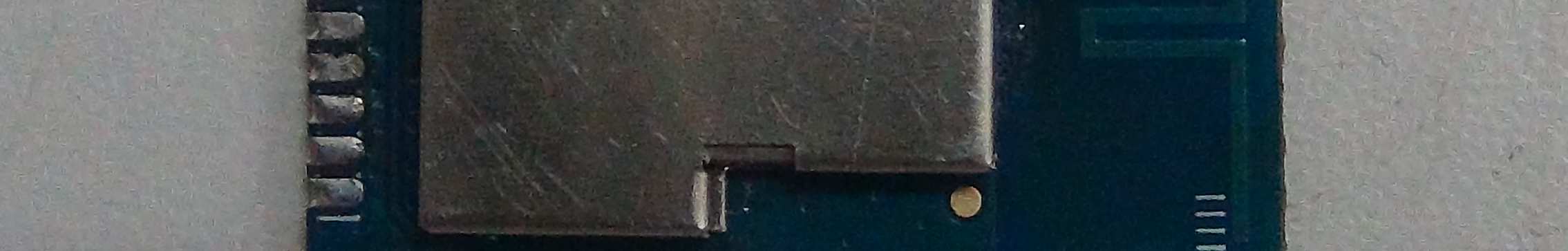

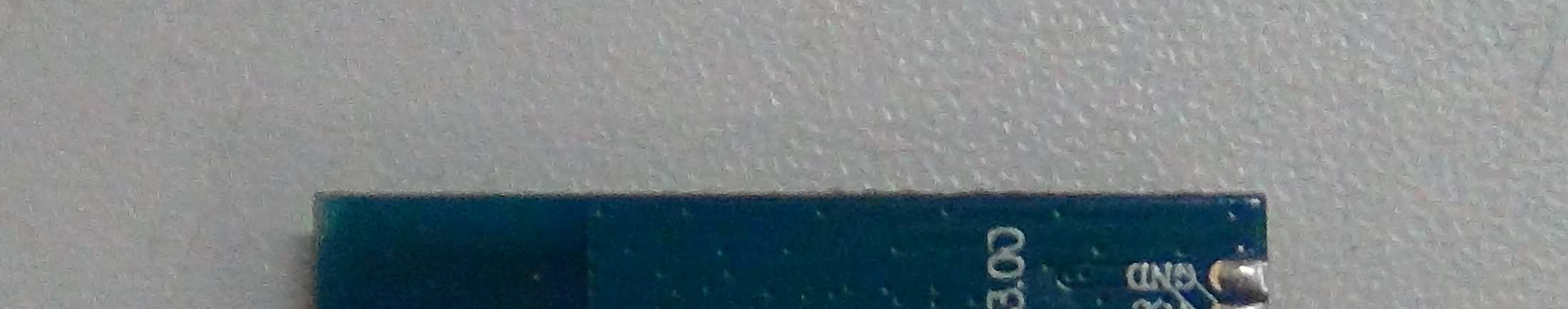

FCC ID: 2AAL3-LSD4RF Page 1 of 2 Internal Picture FCC ID: 2AAL3-LSD4RF Page 2 of 2

LSD4RF-25410N15_Operational Description 2.4G Module is designed based on TI Transceiver CC2500 and CC2590. The input and output buffer are both 64 Bytes with FIFO. The 3.3V DC power supply of the module is from the main board directly. And the main chip CC2500 contains several on-chip linear voltage regulators, which generate the supply voltage needed by low-voltage modules. There's no external power regulation circuit on the module. A 26MHz crystal is used on the module. It is a high performance 10mW SMD IOT wireless Transceiver that can be used in a wide range of short distance IOT communication. Transmission range is 60m. It's programmable with SPI interface. The frequency range is 2438.99~2458.98Mhz. It works with 2-FSK modulation on the control panel. The module is set default to Rx mode. Change the module to Idle mode and then change to Tx mode, the MCU can write the data to the cache of the module. Start the transmit in program, the data will be transmit from the module. After the transmit is completed, the PIN GDO0 of the module will set a pulse. When the MCU get the pulse, the program will set the module back to Rx mode. The frequency of the internal PCB antenna is 2400~2483.5MHz, the gain is -3 ~0 dBi, the impedance is 50ohm and the VSWR is less than 2. Power(3.3VDC) Power(3.3VDC) Filter Circuit Control Logic SPI Interface RF RF Frequency range: 2438.99~2458.98MHz CC2500 CC2590 Crystal(26MHz) Antenna PCB 0dBi 50ohm

CC2500 SWRS040CPage1of89 CC2500 Low-Cost Low-Power2.4 GHzRFTransceiver Applications 2400-2483.5 MHz ISM/SRD band systems Consumerelectronics Wireless game controllers Wireless audio Wireless keyboard and mouse RF enabled remote controls Product Description TheCC2500isa low-cost 2.4 GHz transceiver designed for very low-power wireless appli- cations. The circuit is intended for the2400- 2483.5 MHzISM (Industrial, Scientific and Medical) and SRD (ShortRange Device) frequency band. The RF transceiver is integrated witha highly configurable baseband modem. The modem supports various modulation formats and has a configurable data rate up to 500kBaud. CC2500provides extensive hardware support for packet handling, data buffering, burst transmissions, clear channel assessment, link quality indication,and wake-on-radio. The main operating parameters and the 64- byte transmit/receive FIFOs ofCC2500can be controlled via an SPI interface. In a typical system, theCC2500will be used together with a microcontroller and a few additional passive components. 67891 0 2 0 1 9 1 8 1 7 1 6 Key Features RF Performance High sensitivity (–104 dBm at 2.4 kBaud, 1% packet error rate) Low current consumption (13.3 mA in RX, 250kBaud, input well above sensitivity limit) Programmable output power up to +1 dBm Excellent receiver selectivity and blocking performance Programmable data rate from 1.2 to 500 kBaud Frequency range: 2400–2483.5 MHz Analog Features OOK, 2-FSK, GFSK, and MSK supported Suitable for frequency hopping and multi- channel systems due to a fast settling frequency synthesizer with 90 us settling time AutomaticFrequencyCompensation (AFC) can be used to align the frequency synthesizertothereceivedcentre frequency Integrated analog temperature sensor DigitalFeatures Flexiblesupportforpacketoriented systems: On-chip support for sync word detection, address check, flexible packet length, and automatic CRC handling Efficient SPI interface: All registers can be programmed with one “burst” transfer Digital RSSI output Programmable channel filter bandwidth ProgrammableCarrierSense(CS) indicator CC2500 SWRS040CPage2of89 Programmable Preamble Quality Indicator (PQI) for improved protection against false sync word detection in random noise Support for automatic Clear Channel Assessment (CCA) before transmitting (for listen-before-talk systems) Support for per-package Link Quality Indication (LQI) Optional automatic whitening and de- whitening of data Low-Power Features 400nASLEEPmode current consumption Fast startup time: 240us fromSLEEPto RX or TX mode (measured on EM design) Wake-on-radio functionality for automatic low-power RX polling Separate 64-byte RX and TX data FIFOs (enables burst mode data transmission) General Few external components: Complete on- chip frequency synthesizer, no external filters or RF switch needed Green package: RoHS compliant and no antimony or bromine Small size (QLP 4x4 mm package, 20 pins) Suited for systems compliant with EN 300 328 and EN 300 440 class 2 (Europe), FCC CFR47 Part 15 (US), and ARIB STD- T66 (Japan) Supportforasynchronousand synchronous serial receive/transmit mode for backwards compatibility with existing radio communication protocols CC2500 SWRS040CPage3of89 Abbreviations Abbreviations used in this data sheet are described below. ACPAdjacent Channel PowerMSBMost Significant Bit ADCAnalog to Digital ConverterMSKMinimum Shift Keying AFCAutomatic Frequency Offset CompensationNANot Applicable AGCAutomatic Gain ControlNRZNon Return to Zero (Coding) AMRAutomatic Meter ReadingOOKOn Off Keying ARIBAssociation of Radio Industries and BusinessesPAPower Amplifier BERBit Error RatePCBPrinted Circuit Board BTBandwidth-Time productPDPower Down CCAClear Channel AssessmentPERPacket Error Rate CFRCode of Federal RegulationsPLLPhase Locked Loop CRCCyclic Redundancy CheckPORPower-on Reset CSCarrier SensePQIPreamble Quality Indicator CWContinuous Wave (Unmodulated Carrier)PQTPreamble Quality Threshold DCDirect CurrentRCOSCRC Oscillator DVGADigital Variable Gain AmplifierQPSKQuadrature Phase Shift Keying ESREquivalent Series ResistanceQLPQuad Leadless Package FCCFederal Communications CommissionRCResistor-Capacitor FECForward Error CorrectionRFRadio Frequency FIFOFirst-In-First-OutRSSIReceived Signal Strength Indicator FHSSFrequency Hopping Spread SpectrumRXReceive, Receive Mode 2-FSKFrequency Shift KeyingSMDSurface Mount Device GFSKGaussian shaped Frequency Shift KeyingSNRSignal to Noise Ratio IFIntermediate FrequencySPISerial Peripheral Interface I/QIn-Phase/QuadratureSRDShort Range Device ISMIndustrial, Scientific and MedicalT/RTransmit/Receive LBTListen Before TransmitTXTransmit, Transmit Mode LCInductor-CapacitorVCOVoltage Controlled Oscillator LNALow Noise AmplifierWLANWireless Local Area Networks LOLocal OscillatorWORWake on Radio, Low power polling LQILink Quality IndicatorXOSCCrystal Oscillator LSBLeast Significant BitXTALCrystal MCUMicrocontroller Unit CC2500 SWRS040CPage4of89 Tableof Contents APPLICATIONS...........................................................................................................................................1 PRODUCT DESCRIPTION.........................................................................................................................1 KEY FEATURES..........................................................................................................................................1 RFPERFORMANCE...........................................................................................................................................1 ANALOGFEATURES..........................................................................................................................................1 DIGITALFEATURES..........................................................................................................................................1 LOW-POWERFEATURES.....................................…

Text truncated - open the document above for the full version.

FCC ID: 2AAL3-LSD4RF Page 1 of 2 Statement of compliance to Maximum Permissible Exposure (MPE) Applicant : Ecovacs Robotics Co.,Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou , China |215168 Manufacturer : Ecovacs Robotics Co.,Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou , China |215168 Product Name : 2.4G module Type/Model : LSD4RF-25410N15 According to §2.1091, §2.1093 and §1.1307(b), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. The S = PG / (4πR²) Where S = power density in mW/cm² P = transmit power in mW G = numeric gain of transmit antenna R = distance (cm) R is chosen to be 20cm, the gain of antenna G = 0dBi = 1 As we can see from the test reports 13100486SHA-002: The maximum output power = 3.84dBm = 2.421mW MPE = PG / (4πR²) = 2.421* 1 / (4 * 3.14 * 20 * 20) = 0.0005mW/cm² which is below the MPE limit (≤1.0) defined in §1.1310. Date of issue: December 2, 2014 Prepared by: Reviewed by: Jackson Huang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: 2AAL3-LSD4RF Page 2 of 2 Appendix I Definition below must be outlined in the User Manual: To satisfy FCC RF exposure requirements, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended.

11 22 33 44 D D C C B B A A Title Number Revision Size A4 Date: 2014-12-29 Sheet of File: C:\Documents and Settings\..\LSD4RMZJX0320V3.00.sch Drawn By: 11 VDD VCC GDO0GDO2CSnSCLKSISO SCLK 1 SO(GDO1) 2 DVDD 4 DCOUPL 5 XOSC_Q1 8 AVDD 9 XOSC_Q2 10 GDO2 3 CSn 7 RF_P 12 RF_N 13 AVDD 11 AVDD 14 RBIAS 17 DGUARD 18 SI 20 GND(PAD) 0 GDO0 6 AVDD 15 GND 16 GND 19 CC2500 GND 0 U1 CC2500RTKR VDD VDD VDD VDD VDD VCCGNDSISCLKSOGDO0CSn L251 BLM15HG102SN1D 56K±1% R171 220pFC181 220pF C91 100pF C111 100pF C141 0.1uF C151 1uF C251 15pF C81 15pF C101 4 4 3 3 1 1 2 2 26MHz X1 EXS00A-CS00030 NC C82 0.1uF C41 0.1uF C51 VDD RF_NRF_P AVDD_PA1 1 RF_N 2 RXTX 3 RF_P 4 PAEN 5 EN 6 HGM 7 GND 12 GND 14 AVDD_PA2 10 ANT 11 AVDD_LNA 13 PABIAS 15 AVDD_BIAS 16 GND 8 GND 9 GND 0 U2 CC2590RGV RX_EN TX_EN VCC_2591 100nF/16v C351 1uF C161 100nF C132 1nFC131 1nFC103 100nF C102 4.3K R151 0.8PC312 1.5pFC313 1.5nHL312 12 Antenna1 PCB_ANTENNA NC C2 220P L1 220pC311 0RR351 100nF C31 100nF C32 TX_ENRX_EN RF_PRF_N VCC_2591 VCC 2 GND 1 PA_EN 3 SI 4 SCLK 5 SO 6 GDO2 7 GDO0 8 CSn 9 LNA_EN 10 P1WM2500LP7 TX_ENRX_EN VCC: Typ Min Max 3.3V 2.0V 3.6V VDD: 3.3V 2.0V 3.6V VCC_2591: 3.3V 2.0V 3.6V Frequency range:2438.99-2458.98MHz CC2500 contains several on-chip linear voltageregulators, which generate the supply voltageneeded by low-voltage modules.

FCC ID: 2AAL3-LSD4RF IC: 12253A-LSD4RF Page 1 of 25 EMC TEST REPORT for Intentional Radiator No. 131000486SHA-002 Applicant : Ecovacs Robotics Co.,Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou , China |215168 Manufacturer : Ecovacs Robotics Co.,Ltd. No.108 Shihu Road (West), Wuzhong Zone, Suzhou , China |215168 Product Name : 2.4G module Type/Model : LSD4RF-25410N15 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2013): Radio Frequency Devices ANSI C63.4 (2009): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: November 27, 2014 Prepared by: Reviewed by: Jackson Huang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: 2AAL3-LSD4RF IC: 12253A-LSD4RF Page 2 of 25 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: 2AAL3-LSD4RF IC: 12253A-LSD4RF Page 3 of 25 Content SUMMARY .......................................................................................................................................................... 1 DESCRIPTION OF TEST FACILITY ......................................................................................................................... 2 1. GENERAL INFORMATION ............................................................................................................................ 4 1.1 Applicant Information ..................................................................................................... 4 1.2 Identification of the EUT ................................................................................................ 4 1.3 Technical specification ................................................................................................... 5 1.4 Mode of operation during the test / Test peripherals used .............................................. 5 2. TEST SPECIFICATION ...........................................................................................................................…
