2AALY-529GPLoRa and BLE Module

. PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. REFERENCE GUIDE: 60004KL KOLO™ Collector Device English Español pg. 20 pg. 39 Francés Welcome The KOLO™ Collector Device enables bi-directional data flow between KOLO™ dispensers and the KOLO™ Cloud Server. For questions regarding this device or for replacement components, please call: 1-800-890-0896. Visit gppro.com to learn more about all of our products and solutions. PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 2 Quick Links What’s In The Box General Specs Replacement Parts General Placement Guidelines Installation Battery Replacement Commissioning Operation User Manual & Regulatory Information 3 4 4 5 10 11 12 13 14 PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 3 What’s In The Box 1x 4x KOLO™ Collector Device D-Cell Battery PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 4 General Specifications Replacement Parts 1-866-435-5647 www.gppro.com 8.1” (20.57 cm) 4.0” (10.16 cm) 2.19” (5.56 cm) power supply # 50479 PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 5 General Placement Guidelines Number of Devices Required Each KOLO™ Collector Device can support dispenser data collection for up to 15 devices at a distance of up to 50’. Note: Quad tissue dispensers count as 2 devices. Note: KOLO™ Collector Devices may collect data up to 100’ in open-air usage areas without interference from significant building infrastructure. 50’ (15.24 m) Next PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 6 General Placement Guidelines Location The KOLO™ Collector Device should be installed in a location that is both secure from tampering or vandalism and also minimizes the visual impact of the unit on the usage area. Next Under-Counter Placement Wall Placement PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 7 General Placement Guidelines Location When the length of the room is up to 50’ –if 1 Collector is required, it can be placed at any length of the room where location is advantageous. –if 2 Collectors are required, place them equidistant across the span of the room or at each end of the room. Next < 50’ (< 15.24 m) < 15 devices 1 Collector Placement > 15 devices 2 Collector Placement PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 8 General Placement Guidelines Location When the length of the room is greater than 50’ –2 or more Collectors are required, place them equidistant across the span of the room. Next > 50’ (> 15.24 m) 2 Collector Placement PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 9 General Placement Guidelines Precautions When deciding on the placement location for the KOLO™ Collector Device, the following precautions should be considered: –Do not place below stored liquids or in close proximity to extreme heat, steam or water sources. –If using the AC Adapter, do not place where the cord is likely to be walked on or over posing a trip hazard. –Battery powered Collectors should not be ceiling mounted. AC-powered Collectors could be ceiling mounted with the appropriate hardware. PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 10 Installation KOLO™ Collector Devices must be mounted using 2 anchored screws (not included). Note: Install batteries before replacing cover. Note: For additional security against battery theft, a 4mm button cap screw (not included) can be added to the side of the unit. Note: A 4mm button cap screw (not included) should be added to the side of the unit in all ceiling-mount applications. PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 11 Battery Replacement Battery Handling and Disposal 1. Keep in original packaging until ready for use. 2. Remove battery from device when not in use for an extended period of time. 3. Never disassemble battery. Chemicals inside battery can be dangerous if swallowed or exposed to skin. 4. Avoid mechanical or electrical abuse. 5. Keep away from children. 6. Battery is not designed to be recharged. 7. Avoid extreme temperatures. 8. Do not incinerate, since battery may explode at excessive temperatures. 9. Do not dispose of large amounts of batteries as it creates a safety risk. 10. Dispose of accumulated batteries in accordance with appropriate federal, state, and local regulations. 11. Do not mix old and new batteries or nonrechargeable and rechargeable batteries. PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 12 Commissioning A collector must be installed and commissioned prior to commissioning any device(s) that will use the Collector to communicate it’s data to the KOLO™ Cloud Server. Details for Collector commissioning are provided in the support documentation built into the KOLO™ Connect Application. PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 13 Operation LED Reset Unit is Ready: Low Battery: Reset: after battery install, LED will blink and then remain solid for a moment. solid red indicates batteries need to be replaced. push and hold internal switch; LED will blink red; release switch when LED stops blinking. PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 14 User Manual IoT Gateway Module Note: The final assemblies using this module would each have an appropriate User Manual specific to their features/functions. Internet of Technology devices for bidirectional communication - Module Features: - Internet Technology Modem - 170 dB maximum link budget - +15 dBm high efficiency PA - Low RX current of 4.6 mA - Integrated DC-DC converter and LDO - High sensitivity: down to -148 dBm - 88 dB blocking immunity at 1 MHz offset - Co-channel rejection of 19 dB in LoRa mode - Internet Technology modulation - Built-in bit synchronizer for clock recovery - Automatic Channel Activity Detection (CAD) with ultra-fast AFC Next PRT-0000000165 REV B © 2020 GP Pro. All rights reserved. 15 User Manual IoT Gateway Module Wireless Technology Features: - Wireless Technology: single mode - Internal antenna - Rx sensitivity: -95 dBm - Ultra-low power consumption - Tx: 4.9…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: August 5, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Ryan Urness and Amanda Hauck of Laird Connectivity, LLC are authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Agency Agreement Expiration Date: August 5, 2021 Thank you, By: Tiffany Wade (Signature) (Print name) Title: Product Stewardship Manager On behalf of: Georgia-Pacific Consumer Products LP (Company Name) Telephone: 404-652-7309 Tiffany Wade Product Stewardship Manager Georgia-Pacific Consumer Products LP 1915 Marathon Ave Neenah, WI 54956 404-652-7309

Tiffany Wade Product Stewardship Manager Georgia-Pacific Consumer Products LP 1915 Marathon Ave Neenah, WI 54956 404-652-7309 Request for Confidentiality Date: July 31, 2020 Subject: Confidentiality Request for: 2AALY-529GP/21620-529GP Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual Georgia-Pacific Consumer Products LP has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ _ Tiffany Wade___________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Tiffany Wade Product Stewardship Manager Georgia-Pacific Consumer Products LP 1915 Marathon Ave Neenah, WI 54956 404-652-7309 053019-02a Request for Modular/Limited Modular Approval Date: August 10, 2020 Subject: Manufacturer’s Declaration for ☐ - Modular Approval ☐ - Split Modular Approval ☒ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: 2AALY-529GP 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) The modular radio has a Semtech 900MHz LoRa transceiver and a 2.4GHz Laird BL654 (BLE) radio module transceiver. Only the BL654 is under a pre-existing FCC Grant. Both radio solutions have separate and inherent RF shielding to comply with all FCC requirements as a standalone, complete modular radio. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) All data connectivity to this radio module are managed and connect to the Laird BL654 radio module. While both radio solutions have buffered I/O to meet the requirement, all host functionality is performed by, and only by, the BL654 radio module. 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) Both the Laird BL654 and the Semtech SX1261 implement on-board power supply regulation. 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) The Laird BL654, as its own radio module, has an integrated printed antenna. The 900MHz Lora Semtech SX1261 has its own chip antenna solution on the main carrier PCB. External or alternate antenna configurations are not available within this product as built or filed. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). ☒ - YES ☐ - NO(*) Tiffany Wade Product Stewardship Manager Georgia-Pacific Consumer Products LP 1915 Marathon Ave Neenah, WI 54956 404-652-7309 053019-02a 15.212(a)(1)(v) The module, with both radio solutions, was tested stand-alone. This includes both radiated and conducted measurements as exhibited in test setup photographs filed with this application. Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wor…

Text truncated - open the document above for the full version.

EXTERNAL PHOTOS Company Name Georgia Pacific FCC ID # 2AALY-529GP IC # 21620-529GP Page 1 of 3 EXTERNAL PHOTOS Company Name Georgia Pacific FCC ID # 2AALY-529GP IC # 21620-529GP Page 2 of 3 EXTERNAL PHOTOS Company Name Georgia Pacific FCC ID # 2AALY-529GP IC # 21620-529GP Page 3 of 3

1.00 .50 READABLE FCC INFO SERIAL NUMBER: SSSSLLYYYYMMDDHHMMSS SSSS: MANUFACTURING SITE CODE LL: MANUFACTURING LINE YYYY: YEAR MM: MONTH DD: DAY HH: HOUR MM: MINUTE SS: SECOND NOTES: 1. USE UTC TIMEZONE 2. TO PRESERVE TOTAL LENGTH, USE LEADING ZEROS FOR ANY SECTION WHERE ALL CHARACTERS ARE NOT USED FCC ID: 2AALY-529GP IC: 21620-529GP IoT LoRa Module A-101129 BAR CODE FORMAT: QR CODE QR CODE ON RIGHT SIDE• CONTENTS: TEXT STRING, COMMA DELIMITED BLE MAC ADDRESS (BLANK IF NOT APPLICABLE)• WiFi MAC ADDRESS (BLANK IF NOT APPLICABLE)• LoRa MAC ADDRESS(BLANK IF NOT APPLICABLE)• CELLULAR MAC ADDRESS (BLANK IF NOT APPLICABLE)• RESERVED MAC ADDRESS (BLANK IF NOT APPLICABLE)• SERIAL NUMBER• EXAMPLE LoRa QR CODE ON DRAWING: 1234567890AB,,00001234567890AB,,,SSSSLLYYYYMMDDHHMMSS B REV.ER DESCRIPTION BYDATE A291PRODUCTION RELEASETDS8/16/2019 B758ADDED BARCODE INFORMATIONRAG11/1/2019 NOTES: STOCK: POLYESTER1. STOCK COLOR: WHITE, GLOSSY ADHESIVE: ACRYLIC, PERMANENT PRINT: THERMAL TRANSFER MATERIAL DOES NOT NEED TO COMPLY TO UL LABEL STANDARDS2. SAMPLES MUST BE PROVIDED FOR GP APPROVAL3. CHANGES TO MATERIAL AND/OR SUPPLIER REQUIRE GP APPROVAL4. 2000000670 1 OF 1 SHEET: SCALE: 4:1 PAPER/LABEL 0.005 MATERIAL PART NO. PART VOLUME: REVISION: A PART DESCRIPTION: SHEET SIZE: X.X = ± 0.1 X.XX = ± 0.01 X.XXX = ± 0.005 ANGLES = ± 1 DEG. FRACTIONS = ± 1 /32 TOLERANCES: THIS DOCUMENT IS THE PROPERTY OF GEORGIA-PACIFIC CONSUMER PRODUCTS LP. THE CONTENTS ARE CONFIDENTIAL AND CONSTITUTE TRADE SECRETS PROPRIETARY TO GEORGIA-PACIFIC CONSUMERPRODUCTS LP. NEITHER THIS DOCUMENT NOR ITS CONTENTS SHALL BE DISCLOSED TO ANY UNAUTHORIZED PERSON, COPIED OR PUBLISHED WITHOUT GEORGIA-PACIFIC CONSUMER PRODUCTS LP PRIOR WRITTEN CONSENT. COPYRIGHT GEORGIA-PACIFIC CONSUMER PRODUCTS LP. GEORGIA-PACIFIC CONSUMER PRODUCTS LP GENERIC MATERIAL: JULY 2019 DIMENSIONS ARE IN INCHES UNLESS OTHERWISE SPECIFIED DRAWN PER MODIFIED ANSI STANDARDS. in 3 DATE:DRAWN BY: 11/1/2019 TDS B 3RD ANGLE PROJECTION DOCUMENT NO. PRT-0000000161 LABEL, QR, DAUGHTER CARD, LORA COLLECTOR

1.00 .50 READABLE FCC INFO SERIAL NUMBER: SSSSLLYYYYMMDDHHMMSS SSSS: MANUFACTURING SITE CODE LL: MANUFACTURING LINE YYYY: YEAR MM: MONTH DD: DAY HH: HOUR MM: MINUTE SS: SECOND NOTES: 1. USE UTC TIMEZONE 2. TO PRESERVE TOTAL LENGTH, USE LEADING ZEROS FOR ANY SECTION WHERE ALL CHARACTERS ARE NOT USED FCC ID: 2AALY-529GP IC: 21620-529GP IoT LoRa Module ASM-0000000435 BAR CODE FORMAT: QR CODE QR CODE ON RIGHT SIDE• CONTENTS: TEXT STRING, COMMA DELIMITED BLE MAC ADDRESS (BLANK IF NOT APPLICABLE)• WiFi MAC ADDRESS (BLANK IF NOT APPLICABLE)• LoRa MAC ADDRESS(BLANK IF NOT APPLICABLE)• CELLULAR MAC ADDRESS (BLANK IF NOT APPLICABLE)• RESERVED MAC ADDRESS (BLANK IF NOT APPLICABLE)• SERIAL NUMBER• EXAMPLE LoRa QR CODE ON DRAWING: 1234567890AB,,00001234567890AB,,,SSSSLLYYYYMMDDHHMMSS REV.ER DESCRIPTION BYDATE A3506PRODUCTION RELEASERAG9/9/2020 NOTES: STOCK: POLYESTER1. STOCK COLOR: WHITE, GLOSSY ADHESIVE: ACRYLIC, PERMANENT PRINT: THERMAL TRANSFER MATERIAL DOES NOT NEED TO COMPLY TO UL LABEL STANDARDS2. SAMPLES MUST BE PROVIDED FOR GP APPROVAL3. CHANGES TO MATERIAL AND/OR SUPPLIER REQUIRE GP APPROVAL4. 2000002429 1 OF 1 SHEET: SCALE: 4:1 PAPER/LABEL 0.005 MATERIAL PART NO. PART VOLUME: REVISION: A PART DESCRIPTION: SHEET SIZE: X.X = ± 0.1 X.XX = ± 0.01 X.XXX = ± 0.005 ANGLES = ± 1 DEG. FRACTIONS = ± 1 /32 TOLERANCES: THIS DOCUMENT IS THE PROPERTY OF GEORGIA-PACIFIC CONSUMER PRODUCTS LP. THE CONTENTS ARE CONFIDENTIAL AND CONSTITUTE TRADE SECRETS PROPRIETARY TO GEORGIA-PACIFIC CONSUMERPRODUCTS LP. NEITHER THIS DOCUMENT NOR ITS CONTENTS SHALL BE DISCLOSED TO ANY UNAUTHORIZED PERSON, COPIED OR PUBLISHED WITHOUT GEORGIA-PACIFIC CONSUMER PRODUCTS LP PRIOR WRITTEN CONSENT. COPYRIGHT GEORGIA-PACIFIC CONSUMER PRODUCTS LP. GEORGIA-PACIFIC CONSUMER PRODUCTS LP GENERIC MATERIAL: JULY 2019 DIMENSIONS ARE IN INCHES UNLESS OTHERWISE SPECIFIED DRAWN PER MODIFIED ANSI STANDARDS. in 3 DATE:DRAWN BY: 9/9/2020 TDS A 3RD ANGLE PROJECTION DOCUMENT NO. PRT-0000001150 LABEL, QR, DAUGHTER CARD, LORA, CHIP ANTENNA

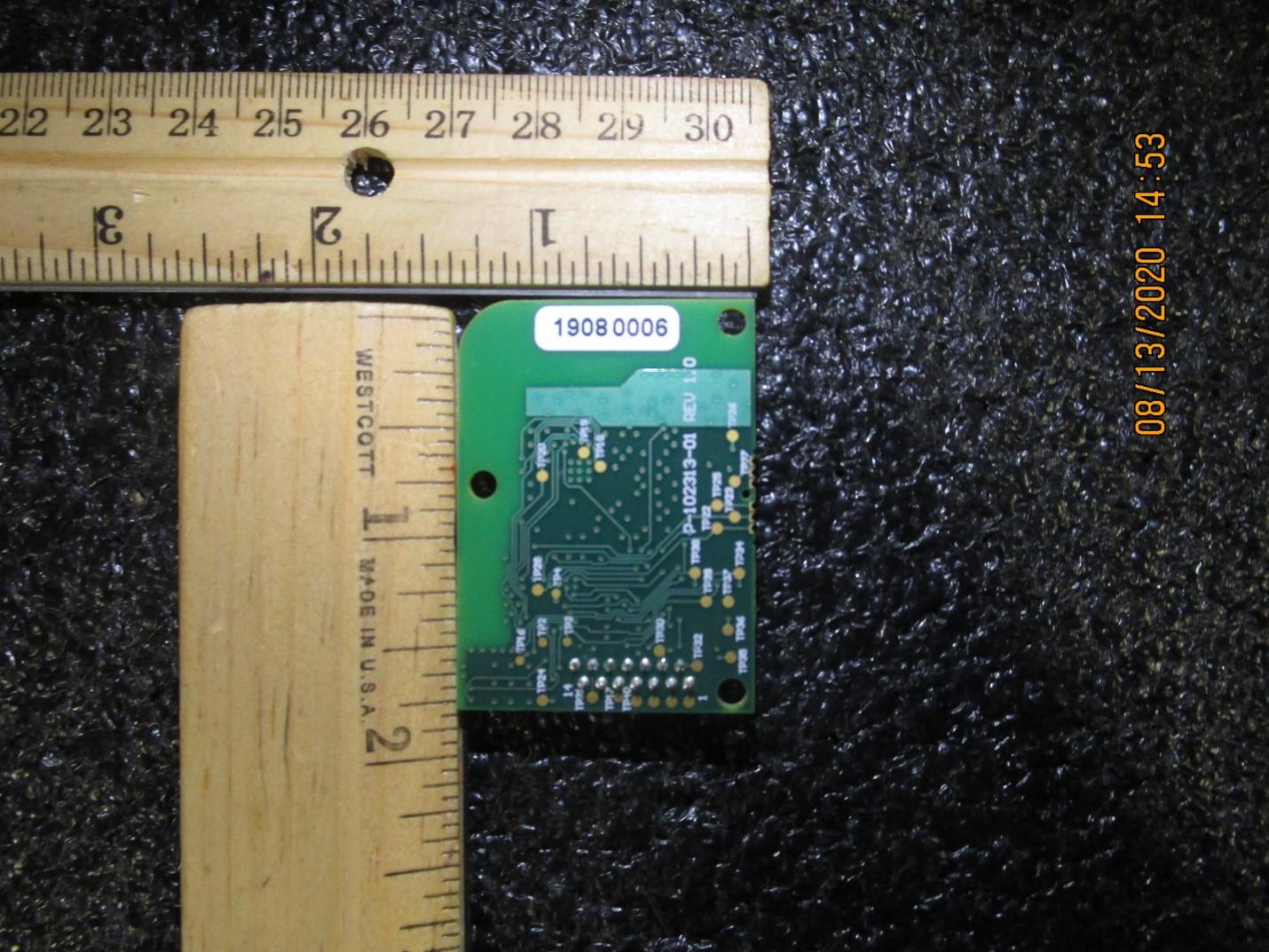

INTERNAL PHOTOS Company Name Georgia Pacific FCC ID # 2AALY-529GP IC # 21620-529GP Page 1 of 4 INTERNAL PHOTOS Company Name Georgia Pacific FCC ID # 2AALY-529GP IC # 21620-529GP Page 2 of 4 INTERNAL PHOTOS Company Name Georgia Pacific FCC ID # 2AALY-529GP IC # 21620-529GP Page 3 of 4 INTERNAL PHOTOS Company Name Georgia Pacific FCC ID # 2AALY-529GP IC # 21620-529GP Page 4 of 4

A Company: Georgia Pacific Page 1 of 17 Name: IoT LoRa Module Report: TR 318246 C Model: A-101129 Job: C-3164 Serial: Engineering Sample Test Report # 318246 C Equipment Under Test: IoT LoRa Module Test Date(s): May 25 th – July 11 th , 2019 Prepared for: Georgia Pacific Attn: Kim Cannon 1915 Marathon Avenue Neenah, WI 54956 Report Issued by: Adam Alger, Quality Manager Signature: Date: 9/18/2020 Report Reviewed by: Adam Alger, Quality Manager Signature: Date: 8/20/2020 Report Constructed by: Zach Wilson, EMC Engineer Signature: Date: 7/10/2019 This test report may not be reproduced, except in full, without approval of Laird Connectivity, Inc. Company: Georgia Pacific Page 2 of 17 Name: IoT LoRa Module Report: TR 318246 C Model:A-101129 Job: C-3164 Serial: Engineering Sample CONTENTS Contents ........................................................................................................................................................ 2 Laird Connectivity Test Services in Review ............................................................................................... 3 1 Test Report Summary ........................................................................................................................... 4 2 Client Information ................................................................................................................................. 5 2.1 Equipment Under Test (EUT) Information .................................................................................... 5 2.2 Product Description ...................................................................................................................... 5 2.3 Modifications Incorporated for Compliance ................................................................................. 5 2.4 Deviations and Exclusions from Test Specifications ..................................................................... 6 2.5 Radio Programming Information .................................................................................................. 7 2.6 Radio Power Information .............................................................................................................. 7 2.7 Distance to User and Use Environment ........................................................................................ 7 3 References ............................................................................................................................................ 8 4 Uncertainty Summary ........................................................................................................................... 9 5 Test Data ............................................................................................................................................. 10 5.1 LoRa Fundamental Emission ....................................................................................................... 10 5.2 BLE Fundamental Emission ......................................................................................................... 12 6 Exclusion Calculation........................................................................................................................... 14 6.1 Technical Brief ............................................................................................................................. 14 6.2 FCC – LoRa MPE Calculation ........................................................................................................ 14 6.3 FCC – BLE MPE Calculation .......................................................................................................... 15 6.4 FCC – Simultaneous Transmission MPE total .............................................................................. 15 6.5 Industry Canada .......................................................................................................................... 16 7 Revision History .................................................................................................................................. 17 Company: Georgia Pacific Page 3 of 17 Name: IoT LoRa Module Report: TR 318246 C Model:A-101129 Job: C-3164 Serial: Engineering Sample Laird Connectivity Test Services in Review The Laird Technologies, Inc. laboratory located at W66 N220 Commerce Court Cedarburg, Wisconsin, 53012 USA is recognized through the following organizations: A2LA – American Association for Laboratory Accreditation Accreditation based on ISO/IEC 17025:2017 with Electrical (EMC) Scope A2LA Certificate Number: 1255.01 Scope of accreditation includes all test methods listed herein unless otherwise noted Federal Communications Commission (FCC) – USA Accredited Test Firm Registration Number: 953492 Recognition of two 3 meter Semi-Anechoic Chambers Innovation, Science and Economic Development Canada Accredited U.S. Identification Number: US0218 Recognition of two 3 meter Semi-Anechoic Chambers Company: Georgia Pacific Page 4 of 17 Name: IoT LoRa Module Report: TR 318246 C Model:A-101129 Job: C-3164 Serial: Engineering Sample 1 TEST REPORT SUMMARY During May 25 th – July 11 th , 2019 the Equipment Under Test (EUT), IoT LoRa Module, as provided by Georgia Pacific was tested to the following requirements of the Federal Communications Commission and Innovation, Science and Economic Development Canada : Test Requirements Description Specification Method Compliant RSS-102 Radio Frequency Exposure Compliance of Radiocommunication Apparatus Reported RSS-102 Section 2.5.2 Reported FCC Part 1.1307, 2.1091, 2.1093 RF Exposure and equipment authorization requirements Reported FCC KDB 447498 D01 Reported Notice: The results relate only to the item tested as configured and described in this report. Any additional configurations, modes of operation, or modifications made to the equipment under test after the specified test date(s) are at the decision of the client and may not apply to the data seen in this test report. The decision …

Text truncated - open the document above for the full version.

PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915MHz Dipole Flexible Antenna Product Specification SHEET No. B EC No: 626150 1 of 9 DATE: 2019/10/23 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2067640100 Kang Cheng 2019/10/22 Colin Xu 2019/10/22 Stary Song 2019/10/22 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC TITLE 868/915MHZ DIPOLE FLEXIBLE ANTENNA TABLE OF CONTENTS 1.0 SCOPE 2.0 PRODUCT DESCRIPTION 3.0 APPLICABLE DOCUMENTS 4.0 GENERAL SPECIFICATION 5.0 ANTENNA SPECIFICATION 6.0 MECHANICAL SPECIFICATION 7.0 ENVIRONMENTAL SPECIFICATION 8.0 PACKING PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915MHz Dipole Flexible Antenna Product Specification SHEET No. B EC No: 626150 2 of 9 DATE: 2019/10/23 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2067640100 Kang Cheng 2019/10/22 Colin Xu 2019/10/22 Stary Song 2019/10/22 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 868/915MHZ DIPOLE FLEXIBLE ANTENNA 1.0 SCOPE This document covers the mechanical, electrical and environmental specification. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: 868/915MHz Dipole Flexible Antenna Series Number: 206764 2.2 DESCRIPTION Series 206764 is similar to series 105262, both series are flexible antenna with cable enable direct connection to host PCB, both cover a typical dual band ISM from 863 – 928MHz. The difference is 206764 is standard dipole type, the antenna size is a little larger but performance is better than 105262. 2.3 FEATURES  Ground plane independent, balanced dual band antenna for ISM band (863~870MHz and 902~928MHz)  Linear polarization, high efficiency over 65% on all bands (cable 100mm)  FPC size: 87.4x12.4mm  IPEX connector options: U.FL (IPEX MHF compatible)  Cable OD1.13mm, 6 standard length options (50-300mm)  Cable and connector can be customized  RoHS Compliant Molex 206764 868/915MHz Dipole Flexible Antenna 3D View PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915MHz Dipole Flexible Antenna Product Specification SHEET No. B EC No: 626150 3 of 9 DATE: 2019/10/23 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2067640100 Kang Cheng 2019/10/22 Colin Xu 2019/10/22 Stary Song 2019/10/22 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 2.4 PRODUCT STRUCTURE INFORMATION P/N 206764 Series Mechanical Structure Information for 206764 U.FL Series PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: 868/915MHz Dipole Flexible Antenna Product Specification SHEET No. B EC No: 626150 4 of 9 DATE: 2019/10/23 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-2067640100 Kang Cheng 2019/10/22 Colin Xu 2019/10/22 Stary Song 2019/10/22 TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 3.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTI…

Text truncated - open the document above for the full version.
