2AAM7-GHN86XG.hn Coax WiFi Gb Ethernet Bridge

G.hn over Coax Wi-Fi Gb Ethernet Bridge User’s Guide V1.0 - 1 - INTRODUCTION This G.hn to Wi-Fi Gb Ethernet bridge connects any wireless and Ethernet devices to a high speed connection of the coax network for Internet access. This bridge brings you the newest Ethernet compatible technology that uses the coaxial cable as the network's physical wiring thereby eliminating the need to install new wiring in a residential environments. It is designed to operate on the coaxial cable network. This bridge allows you to connect PCs, STB and wireless devices to Internet by simply plugging into the existing coaxial F-Type connector. Features  Plug & Play  Using existing coaxial TV cable to build a network  Shares Internet access and streaming video  1 port connection compliant with 2Gbps G.hn over Coax standard  2 Standard 100/1000BaseT Gigabit Ethernet ports for connecting to Ethernet or PC or STB  IEEE 802.11 b/g/n/a/ac Wi-Fi MIMO Interface  QoS Priority Mapping Support  Configurable WiFi SSID and Key/Password  Statistics and Status Information Support - 2 - HARDWARE INSTALLATION Parts Names and Functions LED Indicators on the Rear Panel Port LED Status ON FlashingOFF DC 12V PWR Powered by DC12V N/A Not powered LAN1 Link Act Link Receive or Transmit Disconnect or Link fail 1000 1000Mbps N/A 10Mbps or 100Mbps LAN2 Link Act Link Receive or Transmit Disconnect or Link fail 1000 1000Mbps N/A 100Mbps WiFi Link Receive or Transmit Disconnect or Link fail G.hn Link Act Quality Link Receive or Transmit Disconnect or Link fail Green:High Orange:Medium Red:Low - 3 - Ports on the Rear Panel Port Name TypeFunctions A DC 12V DC Connect to the power adapter plug. B LAN1/LAN2 RJ-45 Connect to PC or STB or other Ethernet devics. C R Factory Reset Button D TV F Connect to TV E G.hn F Connect to G.hn devices Essential Hardwares Items Included Description Purpose G.hn to WiFi GbE Bridge Main Unit Coaxial Cable (F-Type/ RG-59U or RG-6) Connects from G.hn port to coax F-Type connector on the wall outlet. - 4 - CAT5 Ethernet cable Connects from LAN port to Ethernet enabled devices as PC or STB DC12V Power adapter Connects from Power port of the main unit into a wall outlet Hardware Connections 1. Select a convenient location for the bridge near the PC or Ethernet device to which it will be connected. The bridge should be kept away from excessive heat. 2. Using one coaxial cable to connect the G.hn port to F-Type connector on the wall. Using another coaxial cable to connect the other F-type TV port to TV set (optional). Please make sure the coaxial network is well grounded. 3. Connect the LAN1/LAN2 port to your Ethernet- equipped device. 4. Connect the power adapter to the DC 12V port into a wall outlet. - 5 - The figure above shows the connection diagram of coax network. Follow the same steps to connect any Ethernet devices such as a STB or PC, and Wi- Fi devices to the coax network. Now you should have connected the LAN port, G.hn port and the DC 12V port to the appropriate devices or lines. LED will be as: PWR ON LAN Link/Act ON (WiFi) ON G.hn Link/Act ON (Green or Orange) For more information on LEDs, see section entitled " LED Indicators on the Rear Panel" - 6 - TROUBLESHOOTING The bridge has been designed to be a reliable and easy to use connection device. Please refer to the list below to aid in troubleshooting. The Power (green PWR) LED is off.  Make sure the power adapter is properly plugged into a live electrical outlet. The LAN(Ethernet) LED is off.  Make sure the connection to LAN port is secure.  The Ethernet device to which you are connected should be powered on and properly configured. The G.hn Link/Act/Quality LED is off or red  Make sure the connection to G.hn port is secure.  G.hn device to which you are connected should be powered on and properly configured.  Make sure the quality of coaxial connector and cable is good. The (WiFi) LED is off  Power off then power on the G.hn device. Cannot connect to the Wi-Fi Bridge.  Make sure if the settings are correct.  The default SSID and the default WPA/WPA2 pre-shared key are on the label of device.  Restore the default factory reset by pressing R button more than 3 sec (LED flashing), then release the button while LED steady ON. - 7 - SPECIFICATIONS Standards  IEEE 802.3u 100BaseT Fast Ethernet  IEEE 802.3ab 1000BaseT Gigabit Ethernet  IEEE 802.11b/g/n/a/ac compliant  ITU-T G.9960/G.9961 G.hn over Coax Data Rates  G.hn: 2Gbps (6-200MHz / Filter 216MHz)  Ethernet: 100 /1000 Mbps  Wi-Fi : 866M(5GHz)/300Mbps(2.4GHz) max Transmission Range  G.hn : Up to 80dB attenuation  Ethernet: 100 meters maximum Power Consumption  12V DC, 8 watt Certifications  CE, FCC Part 15, VCCI LEDs  Power  (WiFi) Link/Activity  Ethernet Link/Activity/Speed  G.hn Link/Activity/Quality Connectors  Two F-Type connectors, one for connecting with G.hn device, and one for TV Bypass  Two RJ-45 for 100/1000Mbps Ethernet - 8 - Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -I…

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 19-Oct-10 RF_501, Issue 7 Page 1 of 1 Company Name: SENDTEK CORPORATION Address : 11F-1, 27, Guanxin Road, City: Hsinchu 30072, Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AAM7-GHN86X Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5). If no date is given, 45 days from grant date will be used. Date: 2020/03/06 Name and signature of applicant: Felix Jeng Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

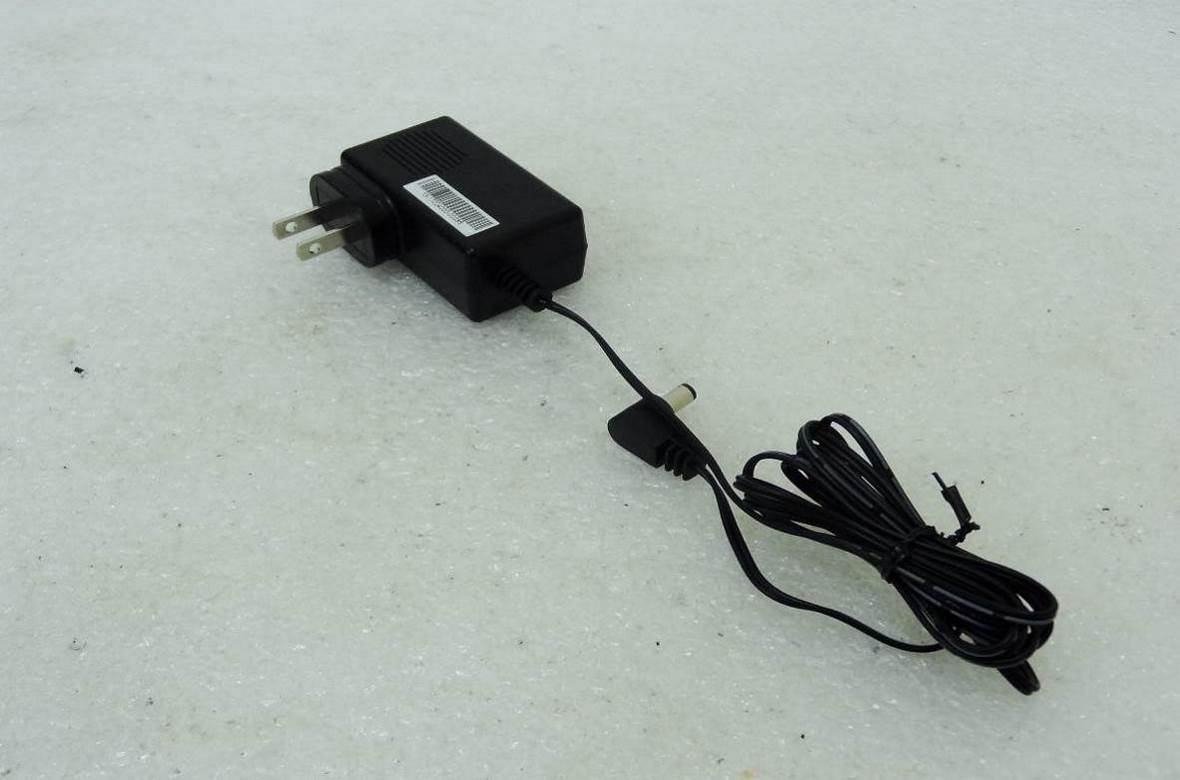

FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 1 EUT 2 FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 3 EUT 4 FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 5 EUT 6 FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 7 EUT 8

FCC ID LABEL FORMAT AND LOCATION Applicant: SENDTEK CORPORATION FCC ID: 2AAM7-GHN86X

FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 11 EUT 12 FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 13 EUT 14 FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 15 5G antenna 2 EUT 16 5G antenna 1 FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FCDTS EUT 17 2.4G antenna 2 EUT 18 2.4G antenna 1 ~ End of Report ~

FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. 1. Maximum Permissible Exposure (MPE) Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Mobile device, the MPE is required. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for Maximum Permissive Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / F/1500 30 1500-15000 / / 1.0 30 F = frequency in MHz * = Plane-wave equipment power density FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Maximum Permissible Exposure (MPE) Evaluation 2.4GHz mode: The worst case: refer to FCC test report for detail measurement date. Power measurement: Channel Output Chain (dBm) Combined Output Power (dBm) Limit(dBm) Chain 1 chain 2 802.11n HT20 Low 24.31 25.39 27.89 30.00 Mid 24.15 24.55 27.36 30.00 High 24.54 24.78 27.67 30.00 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum output power at antenna input terminal: 27.89 (dBm) Maximum output power at antenna input terminal: 615.1768727 (mW) Tune-Up power Tolerance: 1 dB Duty cycle: 100 (%) Maximum Pav : 774.4617978 (mW) Antenna gain (typical): 2.9 (dBi) Maximum antenna gain: 1.9498446 (numeric) Prediction distance: 20 (cm) MPE limit for uncontrolled exposure at prediction 1 (mW/cm^2) Power density at predication frequency at 20 (cm) 0.3005733 (mW/cm^2) Measurement Result: The predicted power density level at 20 cm is 0.3005733 mW/cm 2 .. This is below the uncontrolled exposure limit of 1 mW/cm 2 . FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. 5150MHz – 5250MHz Mode: The worst case of Average power a mode: refer to FCC test report for detail measurement date. Power measurement: 2*2 Mode Freq(MHz) Output Chain (dBm) Combine Output Power (dBm) Limit(dBm) chain 0 chain 1 802.11n HT20 5180 17.95 18.01 20.99 30 5200 17.65 18.12 20.90 30 5240 17.99 17.99 21.00 30 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum output power at antenna input terminal: 21 (dBm) Maximum output power at antenna input terminal: 125.8925412 (mW) Tune-Up power Tolerance: 1 dB Duty cycle: 100 (%) Maximum Pav : 158.4893192 (mW) Antenna gain (typical): 3.04 (dBi) Maximum antenna gain: 2.01372425 (numeric) Prediction distance: 20 (cm) MPE limit for uncontrolled exposure at prediction 1 (mW/cm^2) Power density at predication frequency at 20 (cm) 0.0635258 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.0635258mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 . FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. 5725MHz – 5850MHz Mode: The worst case of Average power a mode: refer to FCC test report for detail measurement date. Power measurement: 2*2 Mode Freq(MHz) Output Chain (dBm) Combine Output Power (dBm) Limit(dBm) chain 0 chain 1 5745 17.59 18.12 20.87 30 5785 17.98 18.03 21.02 30 5825 17.75 18.13 20.95 30 Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR 2 Where: S = Power density P = Power input to antenna G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = Distance to the center of radiation of the antenna Maximum output power at antenna input terminal: 21.02 (dBm) Maximum output power at antenna input terminal: 126.4736347 (mW) Tune-Up power Tolerance: 1 dB Duty cycle: 100 (%) Maximum Pav : 159.2208727 (mW) Antenna gain (typical): 3.04 (dBi) Maximum antenna gain: 2.01372425 (numeric) Prediction distance: 20 (cm) MPE limit for uncontrolled exposure at prediction 1 (mW/cm^2) Power density at predication frequency at 20 (cm) 0.0638191 (mW/cm^2) Measurement Result The predicted power density level at 20 cm is 0.0638191mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 . FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Simultaneous transmission mode 2.4GHz mode + (5150MHz – 5250MHz) Mode: Prediction frequency:2.4 (GHz) Power density at predication frequency at 20 (cm) 0.3005733 (mW/cm^2) Prediction frequency:5 (GHz) Power density at predication frequency at 20 (cm) 0.0635258 (mW/cm^2) 2.4GHz + 5GHz Power density at predication frequency at 20 (cm) distance 0.3640991 (mW/cm^2) MPE limit for uncontrolled exposure at prediction 1 (mW/cm^2) The predicted power density level at 20 cm is 0.3640991mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 . Simultaneous transmission mode 2.4GHz mode + (5725MHz – 5850MHz) Mode: Prediction frequency:2.4 (GHz) Power density at predication frequency at 20 (cm) 0.3005733 (mW/cm^2) Prediction frequency:5 (GHz) Power density at predication frequency at 20 (cm) 0.0638191 (mW/cm^2) 2.4GHz + 5GHz Power density at predication frequency at 20 (cm) distance 0.3643924 (mW/cm^2) MPE limit for uncontrolled exposure at prediction 1 (mW/cm^2) The predicted power density level at 20 cm is 0.3643924mW/cm 2 . This is below the uncontrolled exposure limit of 1 mW/cm 2 . - End of Report -

Page: 1 of 129 TEST REPORT of FCC PART 15 SUBPART E New Application; Class I PC; Class II PC Product : G.hn Coax WiFi Gb Ethernet Bridge Brand: SendTek Model: CES-862 Model Difference: N/A FCC ID: 2AAM7-GHN86X FCC Rule Part: §15.407, Cat:NII Applicant: SENDTEK CORPORATION Address: 11F-1, 27, Guanxin Road, Hsinchu 30072, Taiwan Test Performed by: International Standards Laboratory Corp. <LT Lab.> *Site Registration No. BSMI: SL2-IN-E-0013; MRA TW0997; TAF: 0997; IC: IC4067B-4; *Address: No. 120, Lane 180, Hsin Ho Rd., Lung-Tan Dist., Tao Yuan City 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-19LR292FE Issue Date : 2020/01/16 Test results given in this report apply only to the specific sample(s) tested and are tracea- ble to national or international standard through calibration of the equipment and evalu- ating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of In- ternational Standards Laboratory Corp. -2 of 129- FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FE VERIFICATION OF COMPLIANCE Applicant: SENDTEK CORPORATION Product Description: G.hn Coax WiFi Gb Ethernet Bridge Brand Name: SendTek Model No.: CES-862 Model Difference: N/A FCC ID: 2AAM7-GHN86X Date of test: 2019/10/09 ~ 2020/01/02 Date of EUT Received: 2019/10/09 We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards de- scribed above and performed by an independent electromagnetic compatibility consultant, Interna- tional Standards Laboratory Corp. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equip- ment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2020/01/16 Barry Lee / Senior Engineer Prepared By: Date: 2020/01/16 Elisa Chen / Senior Engineer Approved By: Date: 2020/01/16 Jerry Liu / Technical Manager -3 of 129- FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FE Version Version No. Date Description 00 2020/01/16 Initial creation of document Uncertainty of Measurement ISO/IEC 17025 requires that an estimate of measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Description Of Test Uncertainty Conducted Emission (AC power line) 2.586 dB Field Strength of Spurious Radiation ≤30MHz: 2.96dB 30-1GHz: 4.22 dB 1-40 GHz: 4.08 dB Conducted Power 2.412 GHz: 1.30 dB 5.805 GHz: 1.55 dB Power Density 2.412 GHz:1.30 dB 5.805 GHz: 1.67 dB Frequency 0.0032% Time 0.01% DC Voltage 1% -4 of 129- FCC ID: 2AAM7-GHN86X International Standards Laboratory Corp. Report Number: ISL-19LR292FE Table of Contents 1. General Information ................................................................................................................... 6 1.1. Product Description ............................................................................................................................ 6 1.2. Related Submittal(s) / Grant (s) .......................................................................................................... 9 1.3. Test Methodology ............................................................................................................................... 9 1.4. Test Facility ......................................................................................................................................... 9 1.5. Special Accessories ............................................................................................................................. 9 1.6. Equipment Modifications .................................................................................................................... 9 2. System Test Configuration ....................................................................................................... 10 2.1. EUT Configuration ........................................................................................................................... 10 2.2. EUT Exercise .................................................................................................................................... 10 2.3. Test Procedure ................................................................................................................................... 10 2.4. Configuration of Tested System ........................................................................................................ 11 2.5. Duty Cycle ........................................................................................................................................ 12 3. Summary of Test Results .......................................................................................................... 13 4. Description of Test Modes ........................................................................................................ 14 5. Conduced Emission Test .......................................................................................................... 15 5.1. Standard Applicable .......................................................................................................................... 15 5.2. Measurement Equipment Used: ........................................................................................................ 15 5.3. EUT Setup: ........................................................................................................................................ 15 5.4. Measurement Procedure: ..........................................................................…
