2AAMQ-ADT388Walkie Talkie

86(5,16758&7,216 7$/. 6&$1  AD-T388 Walkie Talkie Model: AD-T388 19.CTCSS / Menu option PIC 01 TALK SPK/MIC /CHG 8.Speaker /Mic /Charge Jack 15.Talk Button 12.Call Button 5.Monitor Button 6.Power Button 9.Speaker 11.MENU Button 4.Up Button 7.Down Button 10.Microphone 1.Antenna 21.Scan Button 20.Lamp Button 22.Lamp SCAN 18.Channel/Menu item 17.Scanning 16.Vox 14.Battery Level 13.Keypad Lock 2.TX/RX Icon 3.Volume 23 PIC 02 24 25 26 EN~ Instructions for use This set includes 2 walkie-talkie units: these are communication devices which operate on mobile radio frequencies. They come with 8/20/22(option) channels as well as a back-lit LCD screen, enabling you to communicate over several kilometres free-of-charge (up to 3 km in open areas) NOTE: Please read these user instructions carefully before using the equipment and retain for future consultation! SPECIFIC RECOMMENDATIONS · If you carry any kind of personal medical device, consult a doctor before use. · To avoid the risk of burns, do not use the device if the aerial is damaged in any way. · Do not use the device in a potentially explosive setting (e.g. around petrol pumps, on the lower deck of a boat or around a fuel storage installation or chemical products) · If travelling in a car or by bike, stop before using the device. Switch off the device if on an aeroplane or in a hospital. · Never use the device in close proximity to a radio to avoid interference. · Remove the batteries if the device is not in use for an extended period of time. Never mix used and new batteries. · Position the transmitter and antenna at least 25 cm from your face. Direct the antenna upwards and speak normally. · Clean the device with a damp cloth. Avoid the use of cleaning agents and solvents. · Do not modify the device in any way. In the event of damage occurring, ensure that the device is checked by a qualified professional. · The device cannot be used to contact the emergency services. ITEM DESCRIPTION (Pic 01,02) 1. Antenna 2. RX icon -Displayed when receiving TX icon -Displayed when transmitting 3. Volume level indicator 4. Adjustor button Up ( ) 5. Continued reception( ) 6. On /off button( ) 7. Adjustor button Down ( ) 8. Earphone socket 9. Loud speaker 10.Microphone 11. Menu: Enter the menu settings 12. Call button(CALL) 13. Keypad lock indicator 14. Battery level indicator 15. Push to talk (TALK)button 16. VOX indication 17. Scanning indication: Displayed during scan mode 18. Channel/Menu item indication 19. CTCSS / Menu option -value 23. Belt attachment clip 24. Belt attachment 25. Batteries (not supplied) 26. Battery compartment 20.Lamp Button 21.Scan Button 22.Lamp BEFORE USE (Pic 02) To insert batteries into the devices, first remove the belt attachment: lift the attachment clip (23) and press the belt attachment upwards (24). Open the battery compartment (26) and insert 4 AAA batteries (25) (not supplied), ensuring that the poles are correctly aligned. Then close the lid. USING THE TWINTALKER 1. Turning the device on/off: To turn the devices on or off, hold down the on/off button (6) for 3 seconds a BEEP sound will be played to confirm. 2. Adjusting the volume: To increase the volume, press the Up adjustor button (4) and press the Down (7) button to decrease volume. Note: The volume level (3) is displayed on the screen. 3. Battery Charge Level/Low Battery Indication The battery charge level is indicated by the number of squares present inside the battery icon on the LCD Screen. Battery Full Battery 2/3 charged Battery 1/3 charged Battery empty When the battery charge level is low, the battery icon will flash and a beep will be heard to indicate that the batteries need to be replaced or recharged. 4. Receiving/transmitting communications: The devices are in 'Reception' mode when lit up, i.e. they are ready to receive a call or sound transmitted on the activated frequency. · When you press the Call tone button (12), the device switches to 'Transmission' mode. You are then transmitting a sound signal to the other device. ·To send a voice message, press the TALK button (15) and speak into the microphone (10). Continue to press the button until you have finished transmitting your message. Hold the microphone a minimum of 5 cm from your face. Note: - The other device must be set to the same channel and have set the same CTCSS code(see point 7) - When the transmission is complete and the TALK button (15) is no longer held down, the other device will emit a sound (BEEP) to indicate that this device is ready to transmit. 5. Changing Channels • Press theMENU button (11)once, the current channel number flashes on the display. • Press the - button (4) or the - button (7) to change the channel. • Press theTALK- button to (15) confirm and return to stand-by Mode. Note:If no button is pressed within 15 seconds during setting, the unit will return to standby. 6.CTCSS (Continious Tone Coded Squelch System) License free radio's operating on the 462 MHz frequency band, like the Twintalker , have 22 available radio channels. If there are many radio's users in your neighborhood, there is a chance that some of these users are operating on the same radio channel. To prevent that you receive signals from other users, sub-channels have been integrated. Two radio's will only be able to communicate with each other when they are operating on the same radio channel and when they have selected exactly the same sub-channel.There are two kind of sub- channels : • Continuous Tone Coded Squelch System (CTCSS) When using CTCSS, a low frequency tone (between 67 and 250 Hz) will be transmitted along with the voice signal. There are 38 available tones to choose from. You are free to choose one of these 38 available tones. Due to filtering, these tones will generally not be audible so they will not disturb the communication. 7.CTCSS • Press theMENU-button(11) twice : The current CTCSS code flashes on the display. • Press the-button(4) or the-button(7) to change to another code. • Pr…

Text truncated - open the document above for the full version.

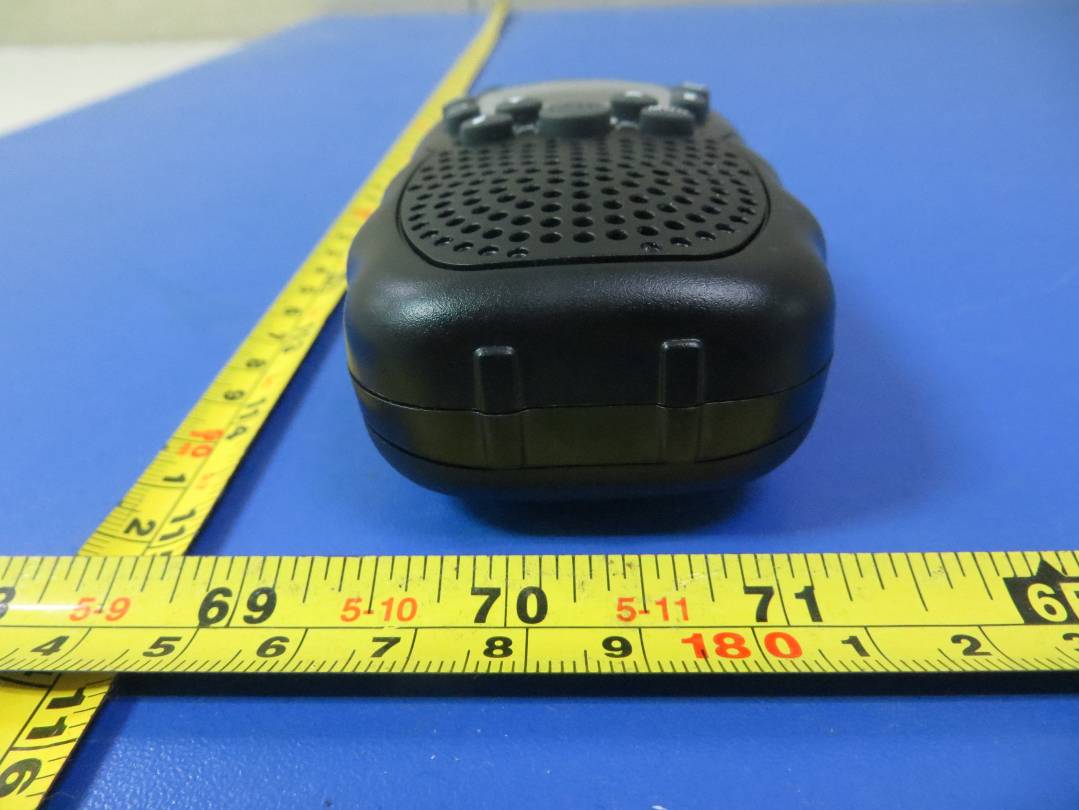

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L2.5cm*W1.0cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location AD-T388 Walkie Talkie FCC ID: 2AAMQ-ADT388

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.: LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 32 FCC Part 95 RF TEST REPORT For AdVantage Industries AD-T388 Walkie Talkie Model No.: AD-T388 Prepared for : AdVantage Industries Address : 3540 109th Street, Des Moines, lowa 50322, USA Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : July 08, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : July 08, 2013 – July 30, 2013 Date of Report : July 30, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.: LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 32 FCC Part 95 RF TEST REPORT FCC CFR 47 PART 2 AND PART 95 Report Reference No. .............. : LCS130708223TF Date of Issue ................................ : July 30, 2013 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : AdVantage Industries Address ........................................ : 3540 109th Street, Des Moines, lowa 50322, USA Test Specification Standard ....................................... : TIA-603-D, FCC CFR 47 PART 2 AND PART 95 Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : AD-T388 Walkie Talkie Trade Mark .................................. : N/A Model/ Type reference................. : AD-T388 Ratings ......................................... : DC 6.0V by 4*AAA batteries Result ......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang/ File administrators Fox Zhang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.: LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 32 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130708223TF July 30, 2013 Date of issue Type / Model........................... : AD-T388 EUT......................................... : AD-T388 Walkie Talkie Applicant............................... : AdVantage Industries Address.................................. : 3540 109th Street, Des Moines, lowa 50322, USA Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Sellers Union Co. Address................................... : 19F NO.1 Ningbo Research Dev., 399 Juxian Rd., National, Ningbo, China Telephone............................... : / Fax.......................................... : / Factory................................... : Sellers Union Co. Address................................... : 19F NO.1 Ningbo Research Dev., 399 Juxian Rd., National, Ningbo, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.: LCS130708233TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................................5 1.1. DESCRIPTION OF DEVICE (EUT) .....................................................................................................................................5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS.......................................................................................................6 1.3. EXTERNAL I/O CABLE....................................................................................................................................................6 1.4. DESCRIPTION OF TEST FACILITY.....................................................................................................................................6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY......................................................................................................6 1.6. MEASUREMENT UNCERTAINTY......................................................................................................................................6 1.7. TEST ENVIRONMENT.......................................................................................................................................................7 2. TE…

Text truncated - open the document above for the full version.

TEST REPORT OET 65C Report Reference No. ..................... : FCC ID. ............................................. : TRE13080010 R/C: 88484 2AAMQ-ADT388 Compiled by ( position+printed name+signature) .. : File administrators Jerome Luo Supervised by ( position+printed name+signature) .. : Test Engineer Yuchao Wang Approved by ( position+printed name+signature) .. : Manager Wenliang Li Date of issue ..................................... : Aug 15, 2013 Testing Laboratory Name .............. : Shenzhen Huatongwei International Inspection Co., Ltd Address............................................. : Keji Nan No.12 Road, Hi-tech Park, Shenzhen, China Applicant’s name ............................ : AdVantage Industries Address............................................. : 3540 109th Street, Des Moines, lowa 50322, USA Test specification: Standard ........................................... : OET 65C TRF Originator .................................. : Shenzhen Huatongwei International Inspection CO., Ltd Master TRF ....................................... : Dated 2006-06 Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: AD-T388 Walkie Talkie Trade Mark ....................................... : / Manufacturer .................................... : Sellers Union Co., Ltd. Model/Type reference ....................... : AD-T388 Listed Models .................................. : / Ratings.............................................. : DC 6.0V Modulation and Emission Type ........ : FM, F3E Channel Separation ........................... 25KHz Operation Frequency Range ............. GMSK:462.5500MHz to 462.7250MHz/FRS:From 467.5625MHz to 467.7125MHz Result ................................................ : Positive Report No.: TRE13080010 Page 2 of 52 Issued:2013-08-15 T E S T R E P O R T Test Report No. : TRE13080010 Aug 15, 2013 ______________________________________________________________________________________________ Date of issue Equipment under Test : AD-T388 Walkie Talkie Model /Type : AD-T388 Listed Models : / Applicant : AdVantage Industries Address : 3540 109th Street, Des Moines, lowa 50322, USA Manufacturer : Sellers Union Co., Ltd. Address : 19F NO.1 Ningbo Research Dev., 399 Juxian Rd., National, Ningbo, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TRE13080010 Page 3 of 52 Issued:2013-08-15 Contents 1. TEST STANDARDS 4 2. SUMMARY 5 2.1. General Remarks 5 2.2. Product Description 5 2.3. Equipment under Test 5 2.4. Short description of the Equipment under Test (EUT) 5 2.5. TEST Configuration 5 2.6. EUT operation mode 6 2.7. EUT configuration 6 2.8. Note 6 3. TEST ENVIRONMENT 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. SAR Limits 7 3.5. Equipments Used during the Test 8 4. SAR MEASUREMENTS SYSTEM CONFIGURATION 9 4.1. SAR Measurement Set-up 9 4.2. DASY5 E-field Probe System 10 4.3. Phantoms 11 4.4. Device Holder 11 4.5. Scanning Procedure 12 4.6. Data Storage and Evaluation 13 4.7. Tissue Dielectric Parameters for Head and Body Phantoms 14 4.8. Dielectric Performance 15 4.9. System Check 15 5. TEST CONDITIONS AND RESULTS 17 5.1. Conducted Power Results 17 5.2. Test reduction procedure 17 5.3. SAR Measurement Results 17 5.4. Measurement Uncertainty 18 5.5. System Check Results 19 5.6. SAR Test Graph Results 21 6. CALIBRATION CERTIFICATE 25 6.1. Probe Calibration Ceriticate 25 6.2. D450V3 Dipole Calibration Ceriticate 36 6.3. DAE4 Calibration Ceriticate 44 7. TEST SETUP PHOTOS 49 8. EUT PHOTOS 51 Report No.: TRE13080010 Page 4 of 52 Issued:2013-08-15 1. TEST STANDARDS The tests were performed according to following standards: IEEE Std C95.1, 1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 KHz to 300 GHz. IEEE Std 1528™-2003: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. SUPPLEMENT C Edition 01-01 to OET BULLETIN 65 Edition 97-01 June 2001 including DA 02-1438 June 19, 2002: Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields Additional Information for Evaluation Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions. KDB 447498 D01 Mobile Portable RF Exposure v04: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies Report No.: TRE13080010 Page 5 of 52 Issued:2013-08-15 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Aug 08, 2013 Testing commenced on : Aug 08, 2013 Testing concluded on : Aug 15, 2013 2.2. Product Description The AdVantage Industries’s Model: AD-T388 or the “EUT” as referred to in this report; more general information as follows, for more details, refer to the user’s manual of the EUT. Name of EUT AD-T388 Walkie Talkie Model Number AD-T388 Rated Output Power GMRS&FRS<0.5W Modilation Type FM Emission Type F3E Channel Separation 25KHz Antenna Type Built-in Antenna, 2.0dBi(Max.) Frequency range GMSK:462.5500MHz to 462.7250MHz/FRS:From 467.5625MHz to 467.7125MHz Maximum SAR Vaule 0.4936W/Kg (100% Duty Cycle)/0.2468W/Kg (50% Duty Cycle) 2.3. Equipment under Test Power supply sy…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAMQ-ADT388 Report No.:LCS130708233TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig.1 Fig.2
