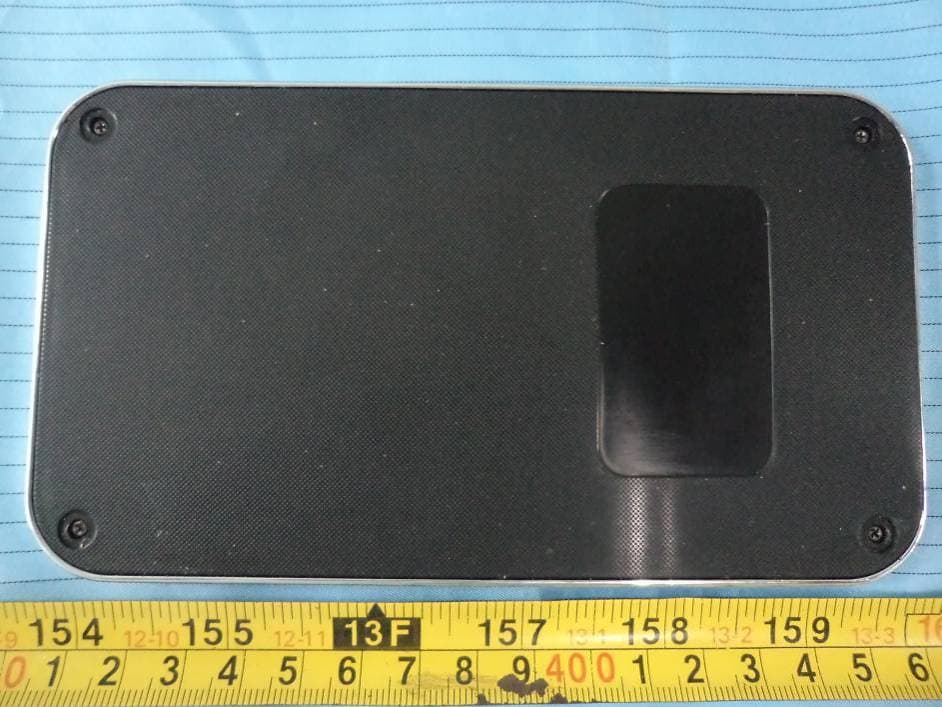

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Full View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View

EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View Antenna EUT – Main Board Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No. RSZ130717551-00 FCC Part 15C Page 8 of 18 FCC §1.1307&1.1310 – RF EXPOSURE Applicable Standard FCC §1.1307 & 1.1310 KDB 680106 D01 RF Exposure Wireless Charging Apps v02 According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307 Limits for Maximum Permissible Exposure (MPE) Note: f = frequency in MHz * = plane-wave equipment power density EUT Setup Bay Area Compliance Laboratories Corp. (Shenzhen) Report No. RSZ130717551-00 FCC Part 15C Page 9 of 18 Test Equipment List and Details Manufacturer Description Model Calibration Date Calibration Due Date Hioki Magnetic Field Test 3470 2013-03-10 2014-03-09 Test Result Test Mode: Charging mode 1) E-Filed Strength at 10 cm from the edges surrounding the EUT Frequency Range (MHz) Probe Position A (A/m) Probe Position B (A/m) Probe Position C (A/m) Probe Position D (A/m) Limits (A/m) 0.11-0.210 0.056 0.032 0.061 0.028 1.63 2) E-Filed Strength (calculated) at 10 cm from the edges surrounding the EUT Frequency Range (MHz) Probe Position A (V/m) Probe Position B (V/m) Probe Position C (V/m) Probe Position D (V/m) Limits (V/m) 0.11-0.210 21.112 12.064 22.997 10.556 614 Note: E= 377* H, E = electric field strength (V/m) H = magnetic field strength (A/m) According with KDB 680106 D01 RF Exposure Wireless Charging Apps v02, Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15C TEST REPORT For Shenzhen HaveMind Electronics Co., Ltd. 3rd Floor, B8 Xiufeng Industrial Building, Buji Town, Longgang Dist., Shenzhen , Guangdong, China FCC ID: 2AAN3Q800 Report Type: Original Report Product Type: Wireless Charger Test Engineer: Rocky Kang Report Number: RSZ130717551-00 Report Date: 2013-09-04 Reviewed By: Alvin Huang RF Leader Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No. RSZ130717551-00 FCC Part 15C Page 2 of 18 TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................3 OBJECTIVE...................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................3 TEST METHODOLOGY..................................................................................................................................................3 TEST FACILITY.............................................................................................................................................................3 SYSTEM TEST CONFIGURATION ..........................................................................................................................4 JUSTIFICATION.............................................................................................................................................................4 EUT EXERCISE SOFTWARE..........................................................................................................................................4 EQUIPMENT MODIFICATIONS.......................................................................................................................................4 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................4 EXTERNAL I/O CABLE..................................................................................................................................................4 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 FCC§15.203 - ANTENNA REQUIREMENT..............................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................7 FCC §1.1307&1.1310 – RF EXPOSURE .....................................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 EUT SETUP..................................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST RESULT...............................................................................................................................................................9 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS ....................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 MEASUREMENT UNCERTAINTY..................................................................................................................................10 EUT SETUP................................................................................................................................................................10 EMI TEST RECEIVER SETUP.......................................................................................................................................11 TEST PROCEDURE......................................................................................................................................................11 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 TEST RESULTS SUMMARY..........................................................................................................................................11 TEST DATA................................................................................................................................................................12 FCC§15.205 & §15.209 - FIELD STRENGTH AND RADIATED EMISSIONS ..................................................15 APPLICAB…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions – Front View Conducted Emissions – Side View Radiated Emissions – Front View (Below 30 MHz) Radiated Emissions – Rear View (Below 30 MHz) Radiated Emissions – Front View (30 MHz – 1 GHz) Radiated Emissions – Rear View (30 MHz – 1 GHz)
