2AANE-BTS700BLUETOOTH PORTABLE SPEAKER

BTS700 available and supports Bluetooth t
Make sure the Bluetooth Speaker is within range of your Bluetooth device. Audio is not coming out from the Bluetooth Speaker after Bluetooth device successfully paired. t
Make sure the Bluetooth device volume is set to a comfortable listening level. Audio is not coming out from the Bluetooth Speaker after the non-Bluetooth device connected with the Micro USB to USB and 3.5 mm splitter cable. t
Make sure the Micro USB to USB and 3.5 the Bluetooth Speaker and non-Bluetooth device. t
Make sure the non-Bluetooth device is set to a comfortable listening level. t
Audio is coming out with abnormal noise and sound quality. Try to change up the battery of Bluetooth speaker. Precautions 1. The radio waves emitted by the Bluetooth Speaker and Bluetooth electronics including medical devices. 2. Keep the unit in a cool, dry place. For more information, please visit www.yelltowin.com Designed by Ye!! in Hong Kong Assembled in China Package Contents - BTS700 Portable Bluetooth Speaker - Micro USB to USB and 3.5 mm splitter cable - User Manual Overview LED Indicators IndicatorStatus RED Charging GREEN Fully Charged AUX/Flashing Pairing Mode BTBLUE BLUE Connected / AUX IN Mode How to Charge BTS700 1. Plug micro USB Tip from the included cable to the micro USB slot from BTS700. 2. Plug USB Tip from the included cable to USB compatible wall charger with 0.5A current output(DC 5V, 500mA). 3. When the BTS700 is fully charged, disconnect the USB Cable. Note: Approximately 1-2 hours required for full charge. Battery will last up to 6 hours when connected wirelessly and up to 10 hours when connected through Line-in. Play Audio from Bluetooth Device 1. Switch the Bluetooth Speaker to the BT mode. The speaker is discoverable and ready for pairing. The status indicator blinds blue. 2. On your Bluetooth device, turn on Bluetooth and scan for devices in its Bluetooth menu. 3. When the “Ye!!-BTS” appears on the device list of your Bluetooth device, select “Ye!!-BTS”. (If a pass code is requested, enter 1234.) The status indicator turns solid blue after pairing is established. The speaker is ready to play music. Example: iP ad / iPhone / iPod Touch Press Settings > General > Bluetooth > Bluetooth ON > Ye!!-BTS > Enter PIN: 1234 > Pair Example: Android 4.03 Ice Cream Sandwich Smartphone Press Settings > Bluetooth ON > Scan > Ye!!-BTS > Enter PIN: 1234 > Settings > Check the Media audio box Reconnecting Bluetooth Device Keep in mind that the Bluetooth Speaker Bluetooth feature on your Bluetooth device, the Bluetooth Speaker will disconnect from your device. To reconnect, simply follow the instruction in the “Play Audio from Bluetooth Device” section. Changing Connected Bluetooth Device 1. Disable the Bluetooth function of your Bluetooth device. 2. The Bluetooth Speaker can now be device. 3. Following the instructions in the “Play Audio from Bluetooth Device” section Play Audio from Non-Bluetooth Device 1. Switch the Bluetooth Speaker to the AUX IN mode. The status indicator turns solid blue. 2. Connect the Bluetooth Speaker and your non-Bluetooth audio device with the included Micro USB to USB and 3.5 mm splitter cable. The speaker is ready to play music. Model No. BTS700 Ye!!-BTS Output Power 3W Power Capacity 1,000 mAh Input Voltage DC 5V / 1A Charge Time 1 – 2 hours Playback Time Up to 6 hours on Bluetooth Up to 10 hours on Line-in Operating Distance up to 33 feet (10 metres) Bluetooth Version Bluetooth 3.0 with EDR Dimensions 61 x 61 x 54 mm Net Weight 133 g Troubleshooting No connection between Bluetooth Speaker and your Bluetooth device. t
Make sure the Bluetooth Speaker is fully charged t
Make sure the BT mode is switched on. t
Make sure your Bluetooth device is BluetoothPortable Speaker LED Indicators Front ViewBack View Micro USB Power Input / Line-in Slide switch AUX IN mode; BT mode] Computer (not included) USB Compatible Wall charger (not included) or C M Y CM MY CY CMY K BPS700 IM OP.pdf 1 9/11/2012 11:53:16 811-BTS700-00-W FCC NOTE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID AND CHANGE ANNTENA WHICH THE MANUFACTURER PROVIDES. IT IS THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a resi dential installation. This equipment generates, uses and can radiate radio frequenc y energy and, if not installed and used in accordance with the in structions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular insta llation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to corr ect the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experien ced radio/TV technician for help. To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: Ju ly 28, 2013 SUBJECT: FCC Application for (FCC ID:2AANE-BTS700 ) To Whom It May Concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1.Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2.Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3.Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer . Regards, Signature: Felix.Chan/ General manage: Applicant: Advance Bright Limited Address: Room 1206, Tower 2, Silvercord, 30 Canton Road, Tsim Sha Tsui, Kowloon,HongKong, China

Advance Bright Limited Date: August 13, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AANE-BTS700 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description SCH.pdf BlockDiagram.pdf CircuitDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Room 1206, Tower 2, Silvercord, 30 Canton Road, Tsim Sha Tsui, China ................................................................................. Signature Felix.Chan/ General manage ................................................................................. Typed name and Title

Advance Bright Limited FCC ID: 2AANE-BTS700 POWER OF ATTORNEY Date: August 13, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Services (ShenZhen) Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on August 12, 2014. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Advance Bright Limited, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ................................................................................. Signature General manager ................................................................................. Typed name and Title

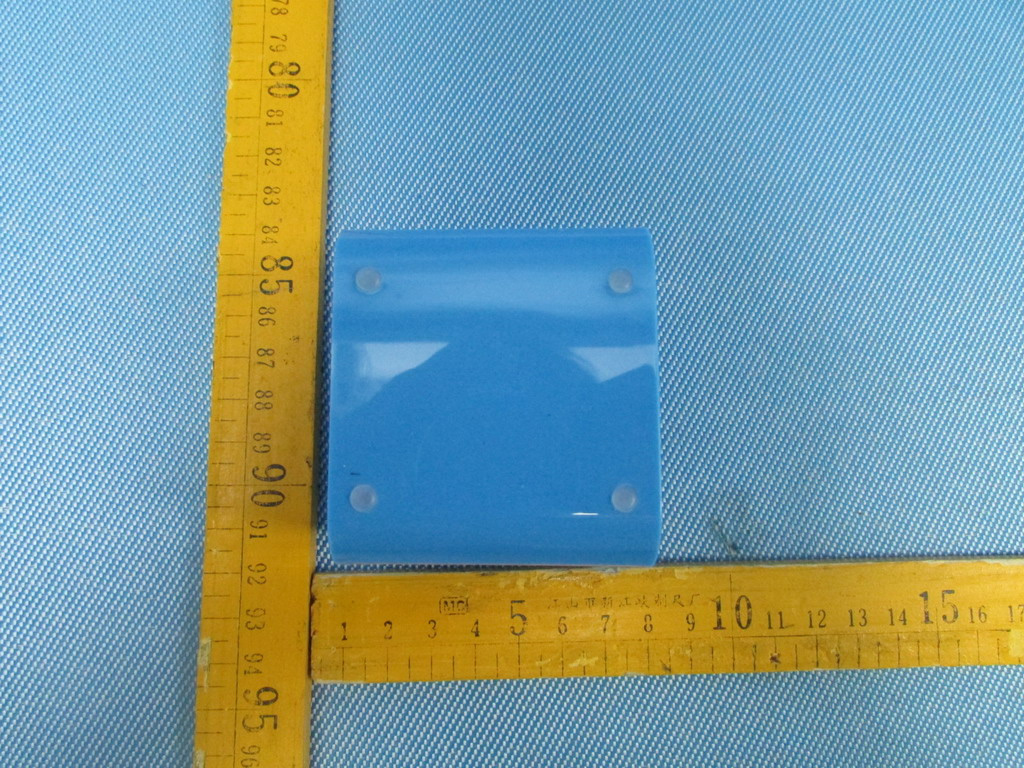

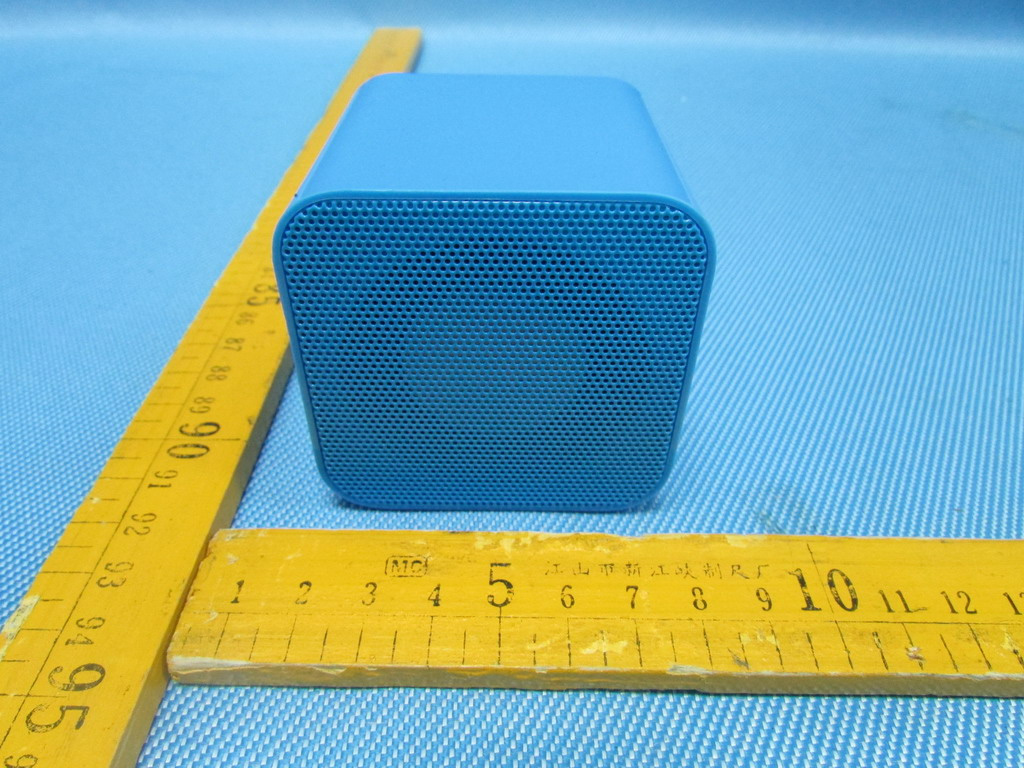

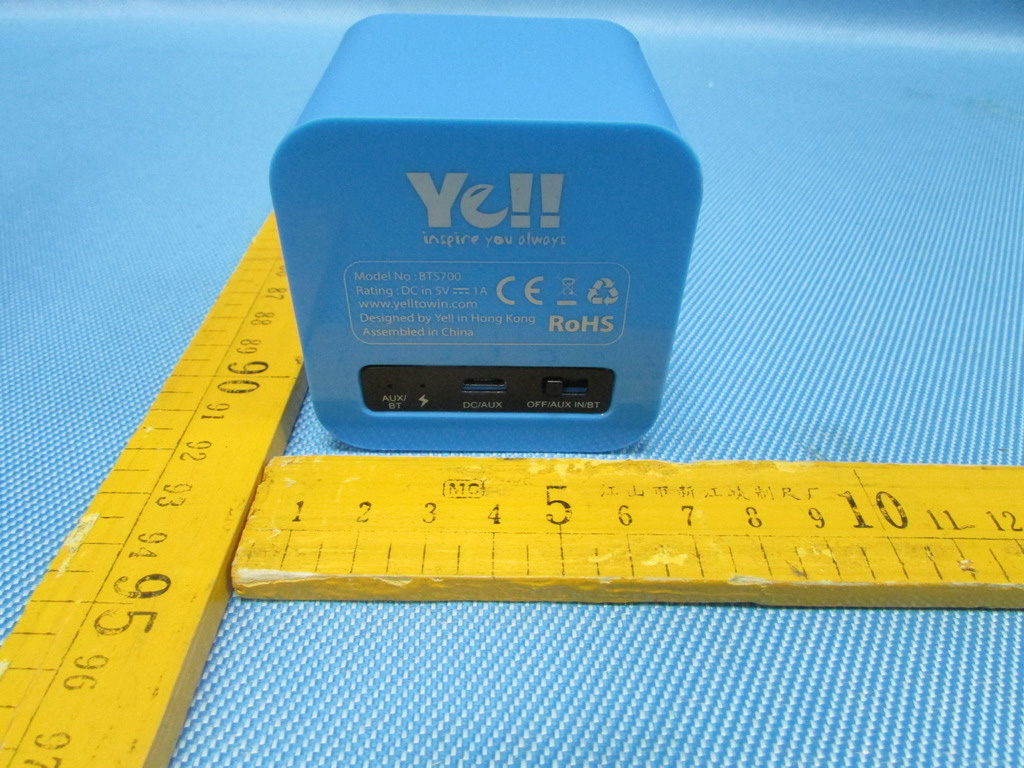

Reference No.: WTD13S0705590E Page 80 of 88 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 19 Photographs - Constructional Details 19.1 EUT – External View Reference No.: WTD13S0705590E Page 81 of 88 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTD13S0705590E Page 82 of 88 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Reference No.: WTD13S0705590E Page 83 of 88 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: BTS700 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable.

FCC Label FCC Label Sample for model: BTS700 FCC ID: 2AANE-BTS700 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Reference No.: WTD13S0705590E Page 84 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 19.2 EUT – Internal View Reference No.: WTD13S0705590E Page 85 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT Reference No.: WTD13S0705590E Page 86 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 19.3 EUT – RF ModuleView Reference No.: WTD13S0705590E Page 87 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn =End of test report==

Reference No.: WTD13S0705590E Page 1 of 87 FCC TEST REPORT Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn FCC ID : 2AANE-BTS700 Applicant : Advance Bright Limited Address : Room 1206, Tower 2, Silvercord, 30 Canton Road, Tsim Sha Tsui, Kowloon,HongKong Manufacturer : Fu Yuan Electronics Shenzhen Co., Ltd Address : Minzhu 99 Industrial City, Shajing Western Industrial Park, Ban An District, Shenzhen, China Equipment Under Test (EUT) : Product Name : Bluetooth Portable Speaker Model No. : BTS700 Standards : FCC Part15.247:2010 Date of Test : July 15~22, 2013 Date of Issue : Aug 14, 2013 Test Result : PASS Remark: * The sample described above has been tested to be in compliance with the requirements of ANSI C63.4:2003. The test results have been reviewed and comply with the rules listed above and found to meet their essential requirements. The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. 1/F, Fukangtai Building, West Baima Rd., Songgang Street, Baoan District, Shenzhen 518105, China Tel: +86-755-83551033 Fax: +86-755-83552400 Compiled by: Approved by: Maikou Zhang / Project Engineer Philo Zhong / Manager Reference No.: WTD13S0705590E Page 2 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Result Spurious Radiated Emissions 15.205(a) 15.209 15.247(d) PASS Band edge Emissions 15.247(d) PASS Spurious RF Conducted Emissions from out of band 15.247(d) PASS Duty Cycle 15.35 PASS Conducted Emissions 15.207 PASS 20dB Bandwidth 15.215c 15.247(a)(1) PASS Maximum Peak Output Power 15.247(b)(1) PASS Frequency Separation 15.247(a)(1) PASS Number of Hopping Frequency 15.247(a)(1)(iii) PASS Dwell time 15.247(a)(1)(iii) PASS Maximum Permissible Exposure (Exposure of Humans to RF Fields) 1.1307(b)(1) PASS Reference No.: WTD13S0705590E Page 3 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE .......................................................................................................................................... 1 2 TEST SUMMARY................................................................................................................................................... 2 3 CONTENTS............................................................................................................................................................. 3 4 GENERAL INFORMATION.................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T.................................................................................................................. 5 4.2 DETAILS OF E.U.T........................................................................................................................................... 5 4.3 CHANNEL LIST................................................................................................................................................. 5 4.4 DESCRIPTION OF SUPPORT UNITS.................................................................................................................. 5 4.5 TEST FACILITY................................................................................................................................................. 6 4.6 TEST LOCATION............................................................................................................................................... 6 5 EQUIPMENT USED DURING TEST................................................................................................................... 7 5.1 EQUIPMENTS LIST........................................................................................................................................... 7 5.2 MEASUREMENT UNCERTAINTY........................................................................................................................ 7 5.3 TEST EQUIPMENT CALIBRATION..................................................................................................................... 7 6 CONDUCTED EMISSION..................................................................................................................................... 8 6.1 E.U.T. OPERATION.......................................................................................................................................... 8 6.2 EUT SETUP..................................................................................................................................................... 8 6.3 CONDUCTED EMISSION TEST RESULT............................................................................................................ 9 7 SPURIOUS RADIATED EMISSIONS............................................................................................................... 11 7.1 EUT OPERATION :......................................................................................................................................... 11 7.2 TEST SETUP.................................................................................................................................................. 12 7.3 SPECTRUM ANALYZER SETUP...................................................................................................................... 13 7.4 TEST PROCEDURE......................................................................................................................................... 14 7.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..................................................................................... 14 7.6 SUMMARY OF TEST RESULTS.................................…

Text truncated - open the document above for the full version.

Reference No.: WTD13S0705590E Page 78 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 18 Photographs – Test Setup 18.1 Conducted Emissions 18.2 Radiated Emissions Below 30MHz Reference No.: WTD13S0705590E Page 79 of 87 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn From 30-1000MHz Above 1GHz
