2AANU-HTL2160VF7SoundBar Speaker

www.philips.com/welcome User manual Always there to help you Register your product and get support at           1EN 1 Important Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply. Help and support Philips provides extensive online support. Visit our website at www.philips.com/support to: download the user manual and the quick start guide watch video tutorials (available only for selected models)      questions (FAQs) email us a question chat with our support representative. Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Philips Consumer Care in your country. Before you contact Philips, note down the model number and     !"# $ "  % information on the back or bottom of your product. Important safety instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or % !! &"' !* % produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided !'      + " an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments/accessories !"  % "# Use only with the cart, stand, tripod, "0   !"  % manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storm or when unused for long periods of time. Refer all servicing   2" personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Battery usage CAUTION - To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: 2EN Install all batteries correctly, + and - as marked on the unit. Do not mix batteries (old and new or carbon and alkaline, etc.). Remove batteries when the unit is not used for a long time. The batteries shall not be exposed to 4"2 % "%  %+   the like. Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate. The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion. If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery. If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer. Apparatus shall not be exposed to dripping or splashing. Do not place any sources of danger on the apparatus & 4!#   objects, lighted candles). This apparatus may contain lead and mercury. Dispose according to local, State or Federal laws. For disposal or recycling information, please contact your local authorities. For additional assistance on recycling options, please contact www. mygreenelectronics.com or www.eiae.org or www.recycle.philips.com. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling apparatus can cause serious injury or even death. This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 7.8 inches (20cm) or more around this apparatus. Class II equipment symbol This symbol indicates that the unit has a double insulation system. This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING:  " % 0    electric shock, this apparatus should not be 4!      ;"  with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. 3EN Care for your product =  " "%  " % !"# Care of the environment Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. Please visit www.recycle.philips.com…

Text truncated - open the document above for the full version.

Feb. 28, 2014 To whom it may concern: We the undersigned, hereby authorize Neutron Engineering Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Neutron Engineering Inc. on our behalf shall have the same affect as acts of our own. This authorization is valid 2 months start from about mentioned date or written notice from WOOX Innovations Limited Sincerely, Benson Lai Lead Engineer, Safety and Compliance

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Sections 0.457 and 0.459 pertaining to confidential material. WOOX Innovations Limited. would like the following documents regarding this submission for FCC ID: 2AANU-HTL2160VF7 to be kept confidential. 1. Schematics. 2. Block diagram, 3. Operation description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Benson Lai / Lead Engineer, Safety and Compliance Date: 2014-02-19

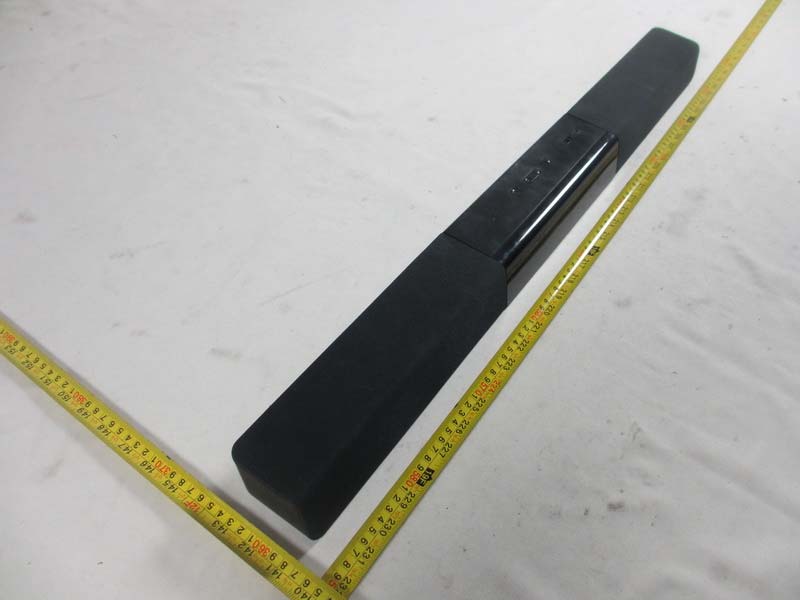

Neutron Engineering Inc. Project No.: 1401C102 Page 2 of 10 Neutron Engineering Inc. Project No.: 1401C102 Page 3 of 10

Neutron Engineering Inc. Project No.: 1401C102 Page 4 of 10 Neutron Engineering Inc. Project No.: 1401C102 Page 5 of 10 Neutron Engineering Inc. Project No.: 1401C102 Page 6 of 10 Neutron Engineering Inc. Project No.: 1401C102 Page 7 of 10 Neutron Engineering Inc. Project No.: 1401C102 Page 8 of 10 Neutron Engineering Inc. Project No.: 1401C102 Page 9 of 10 Neutron Engineering Inc. Project No.: 1401C102 Page 10 of 10

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: 2AANU-HTL2160VF7 Project No. : 1401C102 Equipment : SoundBar Speaker Model : HTL2160/F7 Applicant : WOOX Innovations Ltd. Address : 5/F., 5 Science Park East Avenue, Hon g Kong Science Park, Shatin, New Territories, Hon g Kong According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Field Antenna: Ant. Brand Model Name Antenna Type Connector Gain (dBi) Note 1 N/A N/A PIFA N/A 2.12 TX/RX Neutron Engineering Inc. TEST RESULTS EUT： SoundBar Speaker Model Name HTL2160/F7 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： CH00, CH39, CH78-1Mbps Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.12 1.6293 3.85 2.4266 0.000786961 Complies 2.12 1.6293 3.94 2.4774 0.000803431 Complies 2.12 1.6293 3.94 2.4774 0.000803431 Complies EUT： SoundBar Speaker Model Name HTL2160/F7 Temperature： 25 °C Relative Humidity： 58 % Pressure： 1016 hPa Test Voltage ： AC 120V/60Hz Test Mode ： CH00, CH39, CH78-3Mbps Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.12 1.6293 3.70 2.3442 0.000760241 Complies 2.12 1.6293 3.75 2.3714 0.000769041 Complies 2.12 1.6293 3.92 2.4660 0.000799741 Complies Note: 1) The calculation distance is 20 cm.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 1 of 94 FCC&IC Radio Test Report FCC ID: 2AANU-HTL2160VF7 IC: 11260A-HTL2160VF7 This report concerns (check one): Original Grant Class II Change Issued Date : Jan. 22, 2014 Project No. : 1401C102 Equipment : SoundBar Speaker Model Name : HTL2160/F7 Applicant : WOOX Innovations Ltd. Address : 5/F., 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 15, 2014 Date of Test: Jan. 15, 2014~ Jan. 21, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 2 of 94 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 3 of 94 Table of Contents Page REPORT ISSUED HISTORY 6 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS: 30MHZ - 1000MHZ 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . NUMBER OF HOPPING CHANNEL 46 5.1 APPLIED PROCEDURES 46 5.1.1 TEST PROCEDURE 46 5.1.2 DEVIATION FROM STANDARD 46 5.1.3 TEST SETUP 46 5.1.4 EUT OPERATION CONDITIONS 46 5.1.5 EUT TEST CONDITIONS 46 Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 4 of 94 Table of Contents Page 5.1.6 TEST RESULTS 47 6 . AVERAGE TIME OF OCCUPANCY 48 6.1 APPLIED PROCEDURES / LIMIT 48 6.1.1 TEST PROCEDURE 48 6.1.2 DEVIATION FROM STANDARD 48 6.1.3 TEST SETUP 48 6.1.4 EUT OPERATION CONDITIONS 49 6.1.5 EUT TEST CONDITIONS 49 6.1.6 TEST RESULTS 50 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 62 7.1 APPLIED PROCEDURES / LIMIT 62 7.1.1 TEST PROCEDURE 62 7.1.2 DEVIATION FROM STANDARD 62 7.1.3 TEST SETUP 62 7.1.4 EUT TEST CONDITIONS 62 7.1.5 TEST RESULTS 63 8 . BANDWIDTH TEST 67 8.1 APPLIED PROCEDURES 67 8.1.1 TEST PROCEDURE 67 8.1.2 DEVIATION FROM STANDARD 67 8.1.3 TEST SETUP 67 8.1.4 EUT OPERATION CONDITIONS 67 8.1.5 EUT TEST CONDITIONS 67 8.1.6 TEST RESULTS 68 9 . PEAK OUTPUT POWER TEST 72 9.1 APPLIED PROCEDURES / LIMIT 72 9.1.1 TEST PROCEDURE 72 9.1.2 DEVIATION FROM STANDARD 72 9.1.3 TEST SETUP 72 9.1.4 EUT OPERATION CONDITIONS 72 9.1.5 EUT TEST CONDITIONS 72 9.1.6 TEST RESULTS 73 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 77 10.1 APPLIED PROCEDURES / LIMIT 77 10.1.1 TEST PROCEDURE 77 10.1.2 DEVIATION FROM STANDARD 77 10.1.3 TEST SETUP 78 10.1.4 EUT OPERATION CONDITIONS 78 10.1.5 EUT TEST CONDITIONS 78 10.1.6 TEST RESULTS 79 Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 5 of 94 Table of Contents Page 11 . MEASUREMENT INSTRUMENTS LIST AND SETTING 89 12 . EUT TEST PHOTO 91 Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 6 of 94 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FICP-1-1401C102 Original Issue. Jan. 22, 2014 Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 7 of 94 1. CERTIFICATION Equipment : SoundBar Speaker Brand Name : PHILIPS Model Name : HTL2160/F7 Applicant : WOOX Innovations Ltd. Manufacturer : WOOX Innovations Ltd. Address : 5/F., 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Date of Test : Jan. 15, 2014~ Jan. 21, 2014 Test Item : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart C : 2012 (15.247) / ANSI C63.4 : 2009 / FCC Public Notice DA 00-705, March 30, 2000. Canada RSS-210: 2010 RSS-GEN Issue 3, Dec 2010 The above equipment has been tested and found compliance with the requirement of the relative standards by Neutron Engineering Inc. EMC Laboratory. The test data, data evaluation, and equipment configuration contained in our test re…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 91 of 94 12. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 92 of 94 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 93 of 94 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1401C102 Page 94 of 94 Radiated Measurement Photos Above 1000MHz
