2AANU-HTL2161SoundBar Speaker

User manual HTL2161B/F7 For product support, visit www.philips.com/support EN: For further assistance, call the customer support service in your country. • To obtain assistance in the U.S.A., Canada, Puer to Rico, or the U.S. Virgin Islands, contact Philips Customer Care Center at 1 (866) 226-6074 • To obtain assistance in Mexico, contact Philips Customer Care Center at 01 800 839 1989; Mexico city: 5887-9736 For Product recycling information, please visit - www.recycle.philips.com Question? Contact Philips 1EN Contents 1 Important 2 Help and support 2 Important safety instructions 2 Care for your product 4 Care of the environment 4 2 Your SoundBar 4 Main unit 4 Remote control 4 Connectors 5 3 Connect and set up 6 Placement 6 Connect to TV 7 Connect audio from TV and other devices 7 4 Use your SoundBar 8 Adjust the volume 8 Choose your sound 8 Play audio through Bluetooth 9 MP3 player 10 USB storage devices 10 Auto standby 10 Set display brightness 10 Apply factory settings 11 5 Update software 11 Check software version 11 Update software via USB 11 6 Wall mount 12 7 Product specifications 13 8 Troubleshooting 14 9 Notice 15 4EN Care for your product Use only microfiber cloth to clean the product. Care of the environment Disposal of your old product and battery Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or visit www.recycle.philips.com. This product contains batteries: • Dispose of batteries properly. Do not incinerate. Batteries may explode if overheated. • Do not wrap in metal or aluminum foil. Wrap in newspaper before discarding. • It is suggested that you contact your local town or city to determine proper battery redemption site(s) in your area. • Please visit www.call2recycle.org for additional information on a recycling center in your area for rechargeable batteries. 2 Your SoundBar Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your SoundBar at www.philips.com/welcome. Main unit This section includes an overview of the main unit. a (Standby-On/Standby indicator) • Switch the SoundBar on or to standby. • When the SoundBar is in standby, the standby indicator turns red. b SOURCE Select an input source for the SoundBar. c Display panel d +/- (Volume) Increase or decrease volume. Remote control This section includes an overview of the remote control. dabc 5EN a (Standby-On) Switch the SoundBar on or to standby. b Source buttons HDMI ARC: Switch your source to HDMI ARC connection. : Switch to Bluetooth mode. USB: Switch to USB mode. OPTICAL: Switch your audio source to the optical connection. COAX: Switch your audio source to the coaxial connection. AUDIO IN: Switch your audio source to the MP3 connection (3.5mm jack). AUX: Switch your audio source to the AUX connection. c / (Previous/Next) Skip to the previous or next track in USB mode. b a c d f g h i j el k d (Play/Pause) • Start, pause or resume play in USB mode. e BASS +/- Increase or decrease bass. f Volume control • +/-: Increase or decrease volume. • : Mute or restore volume. g SOUND Select a sound mode. h SURROUND ON/OFF Select surround or stereo sound. i AUDIO SYNC +/- Increase or decrease audio delay. j DIM Set the brightness of SoundBar display panel. k NIGHT Turn night mode on or off. l TREBLE +/- Increase or decrease treble. Connectors This section includes an overview of the connectors available on your SoundBar. ac h g f bde 6EN a DIGITAL IN-COAXIAL Connect to a coaxial audio output on the TV or a digital device. b AUX IN (L/R) Connect to an analog audio output on the TV or an analog device. c DIGITAL IN-OPTICAL Connect to an optical audio output on the TV or a digital device. d DC IN Connect to the power supply. e HDMI OUT (ARC) - TO TV Connect to the HDMI input on the TV. f SUBWOOFER Connect to the supplied subwoofer. g (USB) • Audio input from a USB storage device. • Upgrade software of this product. • Charge a USB device. h AUDIO IN • Audio input from, for example, an MP3 player (3.5mm jack). 3 Connect and set up This section helps you connect your SoundBar to a TV and other devices, and then set it up. For information about the basic connections of your SoundBar and accessories, see the quick start guide. Note •For identification and supply ratings, see the type plate at the back or bottom of the product. •Before you make or change any connections, make sure that all devices are disconnected from the power outlet. Placement Place the subwoofer at least 1 meter (3 feet) away from your SoundBar, and ten centimeters away from the wall. For best results, place your subwoofer as shown below. 7EN Connect to TV Connect your SoundBar to a TV. You can listen to audio from TV programs through your SoundBar. Use the best quality connection available on your SoundBar and TV. Connect to TV through HDMI (ARC) Your SoundBar supports HDMI with Audio Return Channel (ARC). If your TV is HDMI ARC compliant, you can hear the TV audio through your SoundBar by using a single HDMI cable. 1 Using a High Speed HDMI cable, connect the HDMI OUT (ARC)-TO TV connector on your SoundBar to the HDMI ARC connector on the TV. • The HDMI ARC connector on the TV might be labeled differently. For details, see the TV user manual. 2 On your TV, turn on HDMI-CEC operations. For details, see the TV user manual. Note •If your TV is not HDMI ARC compliant, connect an audio cable to hear the TV audio through your SoundBar (see 'Connect audio from TV and other devices' on page 8). •If your TV has a DVI connector, you can use an HDMI/ DVI adapter to connect to TV. However, some of the features may not be available. TV Connect audio from TV and other devices Play audio from TV or other devices through your Soundb…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: WOOX Innovations Limited Address: 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park City: Shatin, NT Country: Hong Kong Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: SoundBar Speaker Type designation: HTL2161B/F7, HTL2161X/**, (The “X” can be A to Z for colour, the “**” can be F7 or F8 for market use. Trademark: Philips on our behalf. Date: 2015-02-05 City: Shatin, NT Name: Benson Lai Function: Manager Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: WOOX Innovations Limited Address : 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park City: Shatin, NT Country: Hong Kong To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AANU-HTL2161 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-02-05 Name and signature of applicant: Benson Lai Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

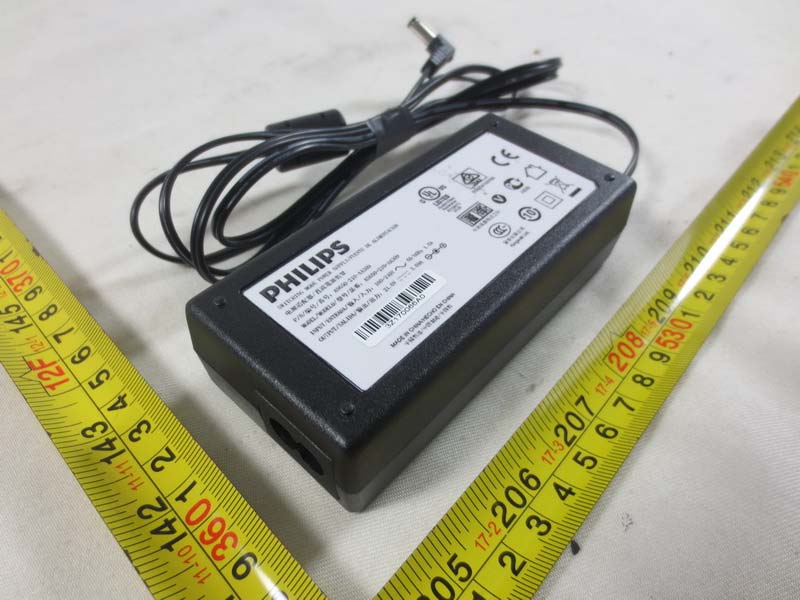

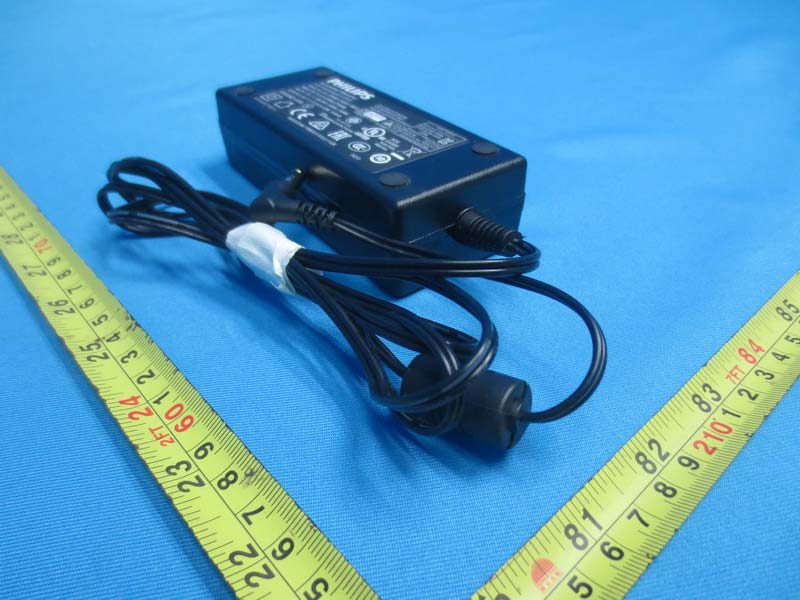

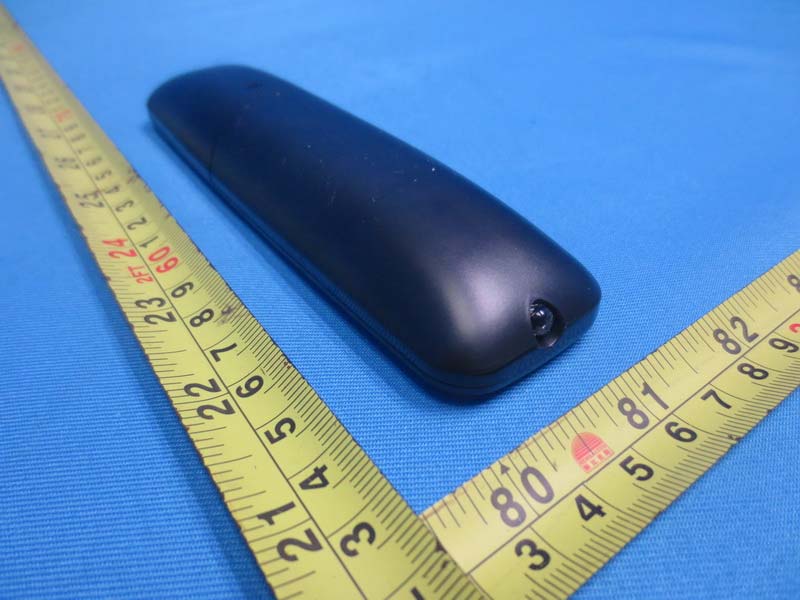

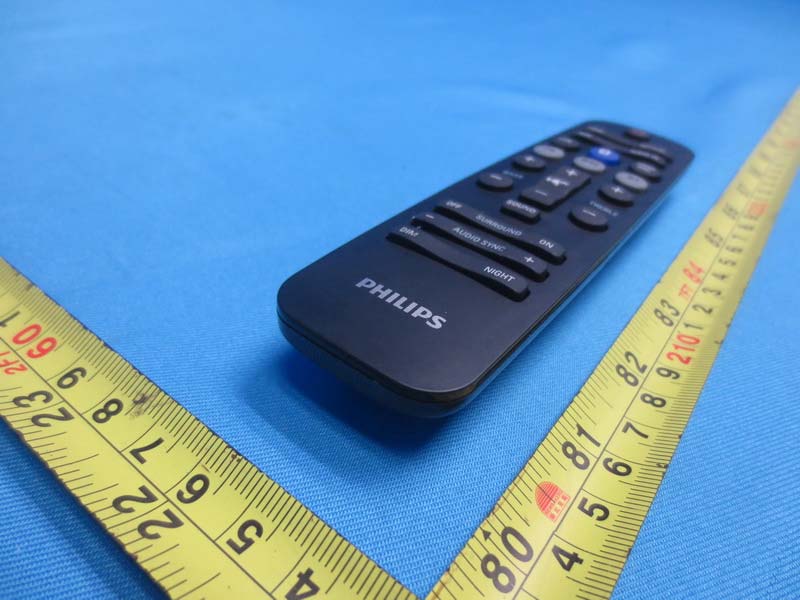

Project No.: 1312C260D Page 2 of 14 Project No.: 1312C260D Page 3 of 14 Project No.: 1312C260D Page 4 of 14 Adapter：DYS602-210309W Project No.: 1312C260D Page 5 of 14 Adapter：AS650-210-AA309 Project No.: 1312C260D Page 6 of 14

A YLB111002-1107 rating label print black words on white base rating label IC : 11260A-HTL2161 FCC ID: 2AANU-HTL2161 Model : HTL2161B/F7 Model : HTL2161B/F7 Serial No.: PT1A1507000001 4 4 CAN ICES(B)/NMB-3(B) D C 21.0V 3.09A 材质:PET February,2015 ABASB8321-9509 2015-01-22 HTL2161B/F7 Johnson Hsu Fu huan Chaoyu Yang rongchun Zhong xiayuanying xiayuanying PT1A1507000001 ODEHOORFDWLRQ

Project No.: 1312C260D Page 7 of 14 Project No.: 1312C260D Page 8 of 14 Project No.: 1312C260D Page 9 of 14 Project No.: 1312C260D Page 10 of 14 Project No.: 1312C260D Page 11 of 14 Project No.: 1312C260D Page 12 of 14 Project No.: 1312C260D Page 13 of 14 Project No.: 1312C260D Page 14 of 14

FCC RF EXPOSURE REPORT FCC ID: 2AANU-HTL2161 Project No. : 1312C262D Equipment : SoundBar Speaker Model : HTL2161B/F7; HTL2161X/**(The “X” can be A to Z for colour, the “**” can be F7 or F8 for market use.) Applicant : WOOX Innovations Limited Address : 5/F Philips Electronics Building,5 Science Park East Ave, HK Science Park According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Manufacturer Model NameAntenna TypeConnector Gain(dBi) 1 N/A N/A printed N/A 2.3 TEST RESULTS EUT： SoundBar Speaker Model Name : HTL2161B/F7 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX Mode _1Mbps Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.3 1.6982 1.41 1.3836 0.000467681 Complies 2.3 1.6982 0.7 1.1749 0.000397151 Complies 2.3 1.6982 0.25 1.0593 0.000358061 Complies EUT： SoundBar Speaker Model Name : HTL2161B/F7 Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX Mode _3Mbps Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.3 1.6982 2.75 1.8836 0.000636721 Complies 2.3 1.6982 0.93 1.2388 0.000418751 Complies 2.3 1.6982 0.51 1.1246 0.000380151 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FICP-1-1312C260D Page 1 of 109 FCC&IC Radio Test Report FCC ID: 2AANU-HTL2161 IC: 11260A-HTL2161 This report concerns (check one): Original Grant Class II Change Project No. : 1312C262D Equipment : SoundBar Speaker Model Name For FCC : HTL2161B/F7; HTL2161X/**(The “X” can be A to Z for colour, the “**” can be F7 or F8 for market use.) Model Name For IC : HTL2161B/F7 Applicant : WOOX Innovations Limited Address : 5/F Philips Electronics Building,5 Science Park East Ave, HK Science Park Date of Receipt : Jan. 28, 2015 Date of Test : Jan. 28, 2015~Feb. 04, 2015 Issued Date : Feb. 05, 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 Report No.: BTL-FICP-1-1312C260D Page 2 of 109 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. BTL’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-1-1312C260D Page 3 of 109 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TEST PROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9KHZ TO 30MHZ) 19 4.2.8 TEST RESULTS (BETWEEN 30MHZ TO 1000 MHZ) 20 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 20 5 . NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 Report No.: BTL-FICP-1-1312C260D Page 4 of 109 Table of Contents Page 6 . AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 23 6.1.5 EUT TEST CONDITIONS 23 6.1.6 TEST RESULTS 23 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.1.1 TEST PROCEDURE 24 7.1.2 DEVIATION FROM STANDARD 24 7.1.3 TEST SETUP 24 7.1.4 EUT TEST CONDITIONS 24 7.1.5 TEST RESULTS 24 8 . BANDWIDTH TEST 25 8.1 APPLIED PROCEDURES 25 8.1.1 TEST PROCEDURE 25 8.1.2 DEVIATION FROM STANDARD 25 8.1.3 TEST SETUP 25 8.1.4 EUT OPERATION CONDITIONS 25 8.1.5 EUT TEST CONDITIONS 25 8.1.6 TEST RESULTS 25 9 . PEAK OUTPUT POWER TEST 26 9.1 APPLIED PROCEDURES / LIMIT 26 9.1.1 TEST PROCEDURE 26 9.1.2 DEVIATION FROM STANDARD 26 9.1.3 TEST SETUP 26 9.1.4 EUT OPERATION CONDITIONS 26 9.1.5 EUT TEST CONDITIONS 26 9.1.6 TEST RESULTS 26 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 27 10.1 APPLIED PROCEDURES / LIMIT 27 10.1.1 TEST PROCEDURE 27 10.1.2 DEVIATION FROM STANDARD 27 10.1.3 TEST SETUP 27 10.1.4 EUT OPERATION CONDITIONS 27 10.1.5 EUT TEST CONDITIONS 27 10.1.6 TEST RESULTS 27 11 . MEASUREMENT INSTRUMENTS LIST 28 Report No.: BTL-FICP-1-1312C260D Page 5 of 109 Table of Contents Page 12 . EUT TEST PHOTO 30 ATTACHMENT A - CONDUCTED EMISSION 34 ATTACHMENT B - RADIATED EMISSION (9KHZ-30MHZ) 37 ATTACHMENT C - RADIATED EMISSION (30MHZ TO 1000MHZ) 39 ATTACHMENT D - RADIATED EMISSION (ABOVE 1000MHZ) 46 ATTACHMENT E - NUMBER OF HOPPING CHANNEL 71 ATTACHMENT F - AVERAGE TIME OF OCCUPANCY 73 ATTACHMENT G - HOPPING CHANNEL SEPARATION MEASUREMENT 86 ATTACHMENT H - BANDWIDTH 91 ATTACHMENT I - PEAK OUTPUT POWER 96 ATTACHMENT J - ANTENNA CONDUCTED SPURIOUS EMISSION 101 Report No.: BTL-FICP-1-1312C260D Page 6 of 109 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-1-1312C262D Original Issue. Feb. 05, 2015 Report No.: BTL-FICP-1-1312C260D Page 7 of 109 1. CERTIFICATION Equipment : SoundBar Speaker Brand Name : PHILIPS Model Name For FCC : HTL2161B/F7; HTL2161X/**(The “X” can be A to Z for colour, the “**” can be F7 or F8 for market use.) Model Name For IC : HTL2161B/F7 Applicant WOOX Innovations Limited Manufacturer : EASTECH ELECTRONICS (H K) LTD Address : UNIT 1703-7 17F HEWLETT CENTRE 54 HOI YUEN ROAD KOWLOON, HONG KONG Factory : Eastech Electronics ( Hui Y…

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1312C260D Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1312C260D Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1312C260D Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1312C260D Page 33 of 109 Radiated Measurement Photos Above 1000MHz
