2AANU-HTL2163SOUNDBAR SPEAKER

www.philips.com/welcome User manual Always there to help you Register your product and get support at Question? Contact Philips 1EN Contents 1 Important 2 Help and support 2 Important safety instructions 2 Care for your product 4 Care of the environment 4 2 Your SoundBar 5 Main unit 5 Remote control 5 Connectors 6 Wireless subwoofer 6 3 Connect and set up 8 Pair up with the subwoofer 8 Placement 8 Connect to TV 8 Connect audio from TV and other devices 9 4 Use your SoundBar 11 Adjust the volume 11 Choose your sound 11 Play audio through Bluetooth 11 Play music via NFC 12 USB storage devices 13 Auto standby 13 Set display brightness 13 Apply factory settings 13 5 Update software 14 Check software version 14 Update software via USB 14 6 Wall mount 15 7 Product specifications 16 8 Troubleshooting 17 9 Notice 19 Notice of compliance 19 23ENEN • Install all batteries correctly, + and - as marked on the unit. • Do not mix batteries (old and new or carbon and alkaline, etc.). • Remove batteries when the unit is not used for a long time. • The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. • Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate. • The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion. • If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. • When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery. • If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer. •Apparatus shall not be exposed to dripping or splashing. •Do not place any sources of danger on the apparatus (for example. liquid filled objects, lighted candles). •This apparatus may contain lead and mercury. Dispose according to local, State or Federal laws. For disposal or recycling information, please contact your local authorities. For additional assistance on recycling options, please contact www. mygreenelectronics.com or www.eiae.org or www.recycle.philips.com. •Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. •Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling apparatus can cause serious injury or even death. • This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 7.8 inches (20cm) or more around this apparatus. Class II equipment symbol This symbol indicates that the unit has a double insulation system. This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: To reduce the risk of fire or electric shock, this apparatus should not be exposed to rain or moisture and objects filled with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. 1 Important Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply. Help and support For extensive online support, visit www.philips. com/support to: • download the user manual and the quick start guide • watch video tutorials (available only for selected models) • find answers to frequently answered questions (FAQs) • email us a question • chat with our support representative. Follow the instructions on the website to select your language, and then enter your product model number. Alternatively, you can contact Consumer Care in your country. Before you contact, note down the model number and serial number of your product. You can find this information on the back or bottom of your product. Important safety instructions •Read these instructions. •Keep these instructions. •Heed all warnings. •Follow all instructions. •Do not use this apparatus near water. •Clean only with dry cloth. •Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. •Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. •Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. •Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. •Only use attachments/accessories specified by the manufacturer. •Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. •Unplug this apparatus during lightning storm or when unused for long periods of time. •Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such …

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name:WOOX Innovations Limited Address: 5/F Philips Electronics Building,5 Science Park East Ave, HK Science Park Shatin, NT Hong Kong City:Shatin, NT Country:Hong Kong Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: Neutron Engineering, Inc. Address: No.3 Jinshagang 1 st City: Dong Guan Road, Shixia, Dalang Town Country: China is authorized to apply for Certification of the following product(s), including the signing of the related documents such as 731 forms: Product description:SOUNDBAR SPEAKER Model:HTL2163B/F7; HTL21**X/F7 (The “X” can be A to Z for colour, The “**” can be 00 to 98 or F7 or F8 for market use.) Trademark:PHILIPS on our behalf. Date:2014-02-12 City: Shatin, NT Name:Hana Kim Function: Senior Manager Signature:

FCC, Request for non-disclosure Date: 10-AUG-09 RF_501, Issue 5 Page 1 of 1 Company Name: WOOX Innovations Limited Address: 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park City: Shatin, N.T. Country: Hong Kong To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AANU-HTL2163 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2014-1-2 7 Name and signature of applicant: Benson Lai Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

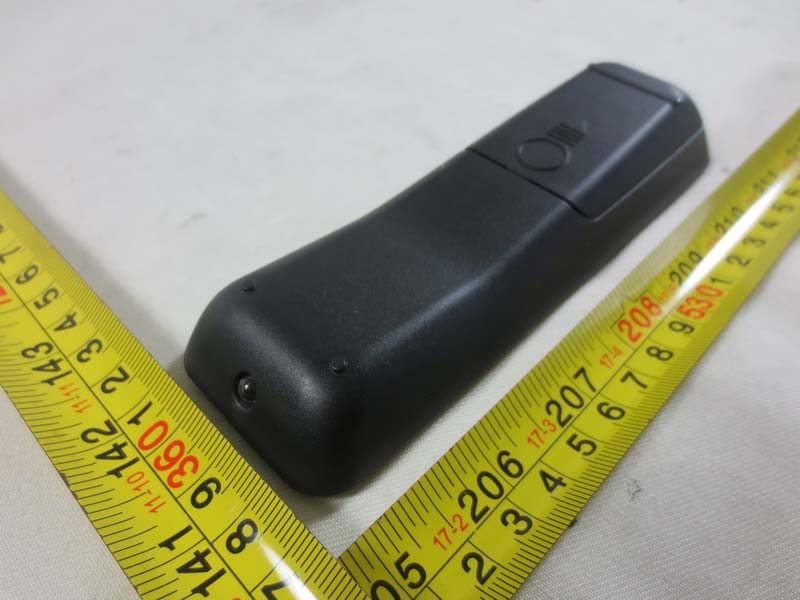

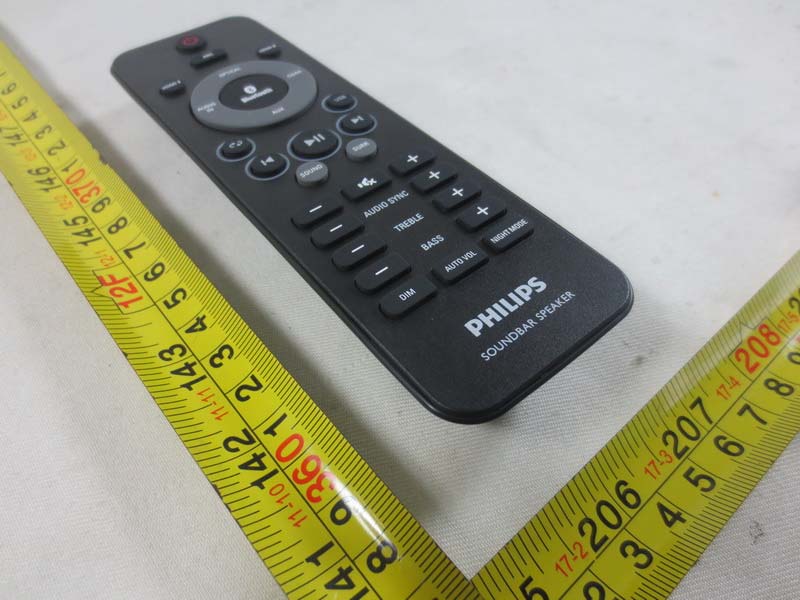

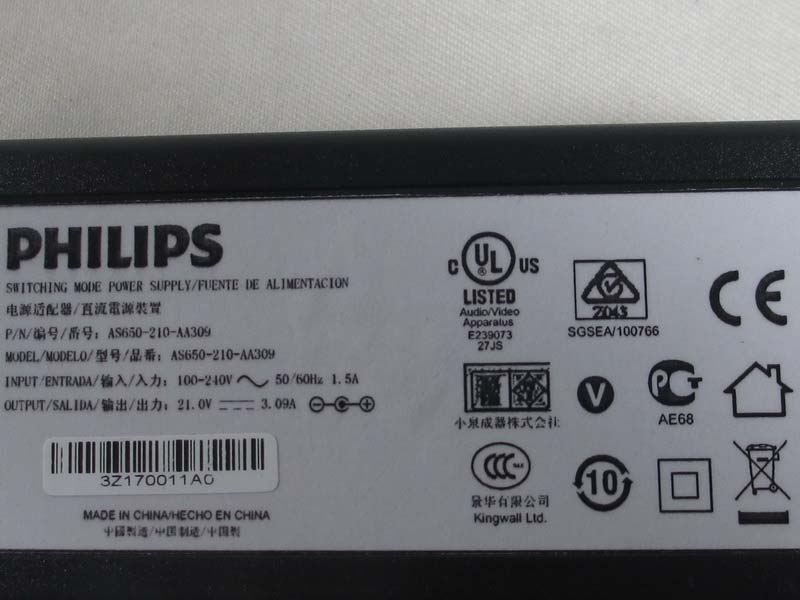

Neutron Engineering Inc. Project No.: 1312C260A Page 2 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 3 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 4 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 5 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 6 of 14

Rating label Model : HTL2153B/F7 Serial No.: PT1A1349000001 December,2013 Model : HTL2153B/F7 D C 21.0V 3.09A CAN ICES(B)/NMB-3(B) Rating label IC : 11260A-HTL2163 FCC ID: 2AANU-HTL2163 December,2013 Model : HTL2163B/F7 Model : HTL2163B/F7 Serial No.: PT1A1349000001 CAN ICES(B)/NMB-3(B) D C 21.0V 3.09A IC : 11260A-HTL2163 FCC ID: 2AANU-HTL2163 December,2013 Model : HTL2163B/F7 Model : HTL2163B/F7 Serial No.: PT1A1349000001 CAN ICES(B)/NMB-3(B) D C 21.0V 3.09A Model : HTL3110B/F7 January,2014 Model : HTL3110B/F7 Serial No.: PT1A1349000001 CAN ICES(B)/NMB-3(B) D C 21.0V 3.09A IC : 11260A-HTL3110 FCC ID: 2AANU-HTL3110 PT1A1349000001 Model No. : HTL3140B/12 WOOX Innovations NL5616LZ-400-SFH4 D C 21.0V 3.09A HTL3140B/12 Model : HTL3110B/F7 January,2014 Model : HTL3110B/F7 Serial No.: PT1A1349000001 CAN ICES(B)/NMB-3(B) D C 21.0V 3.09A IC : 11260A-HTL3110 FCC ID: 2AANU-HTL3110 PT1A1349000001 Model No. : HTL3140B/12 WOOX Innovations NL5616LZ-400-SFH4 D C 21.0V 3.09A HTL3140B/12

Neutron Engineering Inc. Project No.: 1312C260A Page 7 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 8 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 9 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 10 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 11 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 12 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 13 of 14 Neutron Engineering Inc. Project No.: 1312C260A Page 14 of 14

Neutron Engineering Inc. FCC RF EXPOSURE REPORT FCC ID: 2AANU-HTL3110 Project No. : 1312C260A Equipment : SOUNDBAR SPEAKER Model : HTL2163B/F7; HTL21**X/F7 (The “X” can be A to Z for colour, the “**” can be 00 to 98 or F7 or F8 for market use.) Applicant : WOOX Innovations Limited Address : 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park, Shatin, NT, Hong Kong According: : FCC Guidelines for Human Exposure IEEE C95.1 Neutron Engineering Inc. No.3, Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL : (0769) 8318-3000 FAX : (0769) 8319-6000 Neutron Engineering Inc. MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Ant. Brand name Model Name Antenna TypeConnector Gain (dBi) 1 N/A N/A Printed N/A 1.44 TEST RESULTS EUT： SOUNDBAR SPEAKER Model Name HTL2163B/F7 Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： 120V/60Hz Test Mode ： CH00/ CH39 /CH78 -1Mbps Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.44 1.3932 0.95 1.2445 0.000475281 Complies 1.44 1.3932 0.65 1.1614 0.000443561 Complies 1.44 1.3932 0.4 1.0965 0.000418751 Complies EUT： SOUNDBAR SPEAKER Model Name HTL2163B/F Temperature： 25 °C Relative Humidity： 55 % Test Voltage ： 120V/60Hz Test Mode ： CH00/ CH39 /CH78 -3Mbps Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.44 1.3932 0.47 1.1143 0.000425551 Complies 1.44 1.3932 0.25 1.0593 0.000404531 Complies 1.44 1.3932 -0.1 0.9772 0.000373211 Complies Note: the calculation distance is 20 cm.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 1 of 94 FCC&IC Radio Test Report FCC ID: 2AANU-HTL2163 IC: 11260A-HTL2163 This report concerns (check one): Original Grant Class II Change Issued Date : Jan. 17, 2014 Project No. : 1312C260A Equipment : SOUNDBAR SPEAKER Model Name for FCC : HTL2163B/F7; HTL21**X/F7 (The “X” can be A to Z for colour, the “**” can be 00 to 98 or F7 or F8 for market use.) Model Name for IC : HTL2163B/F7 Applicant : WOOX Innovations Limited Address : 5/F Philips Electronics Building,5 Science Park East Ave, HK Science Park Shatin, NT Hong Kong Tested by: Neutron Engineering Inc. EMC Laboratory Date of Receipt: Jan. 08, 2014 Date of Test: Jan. 08, 2014~ Jan. 16, 2014 Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory: (Steven Lu) Neutron Engineering Inc. No.3,Jinshagang 1st Road, ShiXia, Dalang Town, Dong Guan, China. TEL: 0769-8318-3000 FAX: 0769-8319-6000 Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 2 of 94 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of CHINA, or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's re ports apply only to the specific samples te sted unde r co nditions. It is manufa cture’s responsibility to ensure that additional production units of this mod el are manufactured with the identical electrical and mechanical components. Neutronshall have no liability for any declarations, inferences o r generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confide ntial property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s la boratory qua lity assuran ce pro cedures are in co mpliance wit h the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 3 of 94 Table of Contents Page REPORT ISSUED HISTORY 6 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEXT SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION LIMITS 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 19 4.2.1 RADIATED EMISSION LIMITS 19 4.2.2 TEST PROCEDURE 20 4.2.3 DEVIATION FROM TEST STANDARD 20 4.2.4 TEST SETUP 21 4.2.5 EUT OPERATING CONDITIONS 22 4.2.6 EUT TEST CONDITIONS 22 4.2.7 TEST RESULTS (BELOW 30MHZ) 23 4.2.8 TEST RESULTS: 30MHZ - 1000MHZ 24 4.2.9 TEST RESULTS (ABOVE 1000 MHZ) 31 5 . NUMBER OF HOPPING CHANNEL 46 5.1 APPLIED PROCEDURES 46 5.1.1 TEST PROCEDURE 46 5.1.2 DEVIATION FROM STANDARD 46 5.1.3 TEST SETUP 46 5.1.4 EUT OPERATION CONDITIONS 46 5.1.5 EUT TEST CONDITIONS 46 Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 4 of 94 Table of Contents Page 5.1.6 TEST RESULTS 47 6 . AVERAGE TIME OF OCCUPANCY 48 6.1 APPLIED PROCEDURES / LIMIT 48 6.1.1 TEST PROCEDURE 48 6.1.2 DEVIATION FROM STANDARD 48 6.1.3 TEST SETUP 48 6.1.4 EUT OPERATION CONDITIONS 49 6.1.5 EUT TEST CONDITIONS 49 6.1.6 TEST RESULTS 50 7 . HOPPING CHANNEL SEPARATION MEASUREMENT 62 7.1 APPLIED PROCEDURES / LIMIT 62 7.1.1 TEST PROCEDURE 62 7.1.2 DEVIATION FROM STANDARD 62 7.1.3 TEST SETUP 62 7.1.4 EUT TEST CONDITIONS 62 7.1.5 TEST RESULTS 63 8 . BANDWIDTH TEST 67 8.1 APPLIED PROCEDURES 67 8.1.1 TEST PROCEDURE 67 8.1.2 DEVIATION FROM STANDARD 67 8.1.3 TEST SETUP 67 8.1.4 EUT OPERATION CONDITIONS 67 8.1.5 EUT TEST CONDITIONS 67 8.1.6 TEST RESULTS 68 9 . PEAK OUTPUT POWER TEST 72 9.1 APPLIED PROCEDURES / LIMIT 72 9.1.1 TEST PROCEDURE 72 9.1.2 DEVIATION FROM STANDARD 72 9.1.3 TEST SETUP 72 9.1.4 EUT OPERATION CONDITIONS 72 9.1.5 EUT TEST CONDITIONS 72 9.1.6 TEST RESULTS 73 10 . ANTENNA CONDUCTED SPURIOUS EMISSION 77 10.1 APPLIED PROCEDURES / LIMIT 77 10.1.1 TEST PROCEDURE 77 10.1.2 DEVIATION FROM STANDARD 77 10.1.3 TEST SETUP 78 10.1.4 EUT OPERATION CONDITIONS 78 10.1.5 EUT TEST CONDITIONS 78 10.1.6 TEST RESULTS 79 Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 5 of 94 Table of Contents Page 11 . MEASUREMENT INSTRUMENTS LIST AND SETTING 89 12 . EUT TEST PHOTO 91 Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 6 of 94 REPORT ISSUED HISTORY Issued No. Description Issued Date NEI-FICP-1-1312C260A Original Issue. Jan. 17, 2014 Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 7 of 94 1. CERTIFICATION Equipment : SOUNDBAR SPEAKER Brand Name : PHILIPS Model Name for FCC : HTL2163B/F7; HTL21**X/F7 (The “X” can be A to Z for colour, the “**” can be 00 to 98 or F7 or F8 for market use.) Model Name for IC : HTL2163B/F7 Applicant : WOOX Inno vations Limited Manufacturer : WOOX Innovations Limited Address : 5/F Philips Electronics Building,5 Science Park East Ave, HK Science Park Shatin, NT Hong Kong Factory : 1) Eastech Electronics ( Hui Yang ) Co. Ltd. 2) Dixon Technologies (India) Pvt. Ltd. 3) Philips do Brasil Ltda 4) Fabrica Austral de Productos Elect…

Text truncated - open the document above for the full version.

Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 91 of 94 12. EUT TEST PHOTO Conducted Measurement Photos Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 92 of 94 Radiated Measurement Photos 9K~30MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 93 of 94 Radiated Measurement Photos 30~1000MHz Neutron Engineering Inc. Report No.: NEI-FICP-1-1312C260A Page 94 of 94 Radiated Measurement Photos Above 1000MHz
