English: Notice of compliance The device complies with the FCC rules, Part 15. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC rules This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Relocate the receiving antenna.  Increase the separation between equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. Warning: Any changes or modifications made to this device that are not expressly approved by Woox Innovations may void the user’s authority to operate the equipment. Canada: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following Two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAN ICES(B)/NMB-3(B) IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. French: Avis de conformité Cet appareil satisfait aux règlements de la FCC partie 15 du Code of Federal Regulations. Son fonctionnement est assujetti aux deux conditions suivantes : 1. Cet appareil ne doit pas causer d’interférence préjudiciable et 2. l’appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent causer un fonctionnement non désiré. Règlement de la FCC Cet équipement a été testé et jugé compatible avec les limites s’appliquant aux appareils numériques de la classe B, conformément à l’article 15 du règlement de la FCC. Ces limites ont été définies pour fournir une protection raisonnable contre les interférences nuisibles dans le cadre d’une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie radiofréquence et, s’il n’est pas installé ni utilisé conformément aux instructions, peut causer des interférences gênantes pour les communications radio. Rien ne garantit toutefois que des interférences ne surviendront pas dans une installation particulière. Si cet équipement cause des interférences nuisibles pour la réception de la radio ou de la télévision, ce qui peut être déterminé en mettant l’équipement hors tension puis sous tension, l’utilisateur devra essayer de corriger ces interférences en effectuant une ou plusieurs des opérations suivantes : Déplacez l’antenne de réception. Augmentez la distance entre l’équipement et le récepteur. Branchez l’équipement à une prise d’un circuit autre que celui sur lequel le récepteur est branché. Consultez le détaillant ou un technicien de radiotélévision expérimenté. Énoncé de la FCC sur l’exposition aux rayonnements radioélectriques : cet appareil est conforme aux limites d’exposition aux rayonnements radioélectriques de la FCC pour un environnement non contrôlé. Cet appareil doit être installé et utilisé en conservant une distance minimale de 20 centimètres entre le radiateur et votre corps. Cet émetteur ne doit pas être installé au même endroit qu’une autre antenne ou un autre émetteur, ni utilisé avec un tel dispositif. Avertissement : Toute modification apportée à cet appareil qui ne serait pas approuvée expressément par Woox Innovations peut invalider l'habilitation de l'utilisateur à utiliser l'appareil. Canada : Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES(B)/NMB-3(B) Déclaration d’IC sur l’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux radiations définies par le Canada pour des environnements non contrôlés. Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur.

Declaration We, WOOX Innovations Limited 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park, Shatin, NT, Hong Kong hereby declare that our product < Bluetooth Headset >, models < SHB7150, SHB7150/XX, SHB7150YY/XX (XX=00 to 99 for marketing purpose representing different countries, YY=AA to ZZ for different color)> have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction, the difference lies only in the model name of the different models. Sincerely, Lead Engineer, Benson Lai Telephone Number: (852) 3468-3267 Fax Number: (852) 2401-1482 E-mail: [email protected] file: declaration letter-template Page 1 of 1

Date (24/01/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, WOOX Innovations Limited 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park, Shatin, NT, Hong Kong hereby authorize TUV-SUD China Shenzhen Branch 6/F, H Hall, Century Craftwork Culture Square, No. 4001 Fuqiang Road, Futian District, Shenzhen 518048 P. R. China Felix.Li Phone: +86-755-88286998-3243 e-mail: [email protected] to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that neither we nor any party to this application are subject to denial of U.S Federal benefits, which include FCC benefits, pursuant to section 5301 of Anti-Drug Abuse Act of 1988, U.S.C 862 because of conviction for possession or distribution of controlled substance. This authorization is application to product: Type of equipment: Bluetooth headset Model name: SHB7150, SHB7150/XX, SHB7150YY/XX (XX=00 to 99 for marketing purpose representing different countries, YY=AA to ZZ for different color) FCC ID: 2AANUSHB7150 This authorization expires 2 months from the current date. Sincerely, Lead Engineer, Benson Lai Telephone Number: (852) 3468-3267 Fax Number: (852) 2401-1482 E-mail: [email protected]

Date (24/01/2014) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: 2AANUSHB7150 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Monster, LLC hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics Parts List PCB Layout Block Diagrams Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Lead Engineer, Benson Lai Telephone Number: (852) 3468-3267 Fax Number: (852) 2401-1482 E-mail: [email protected]

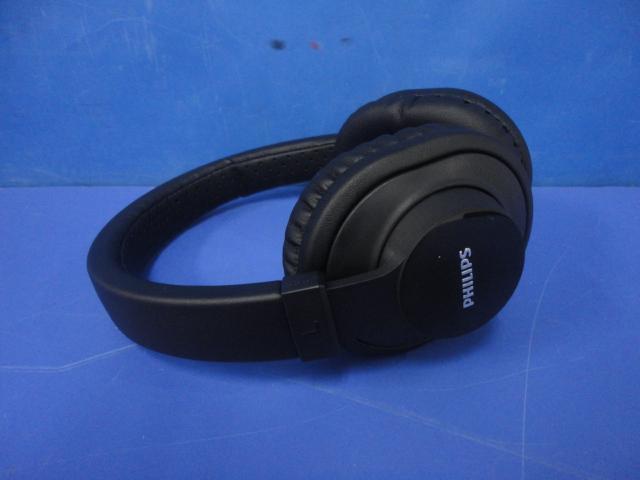

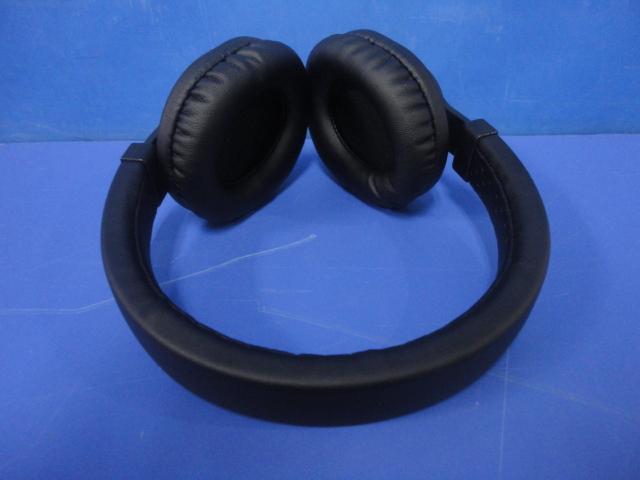

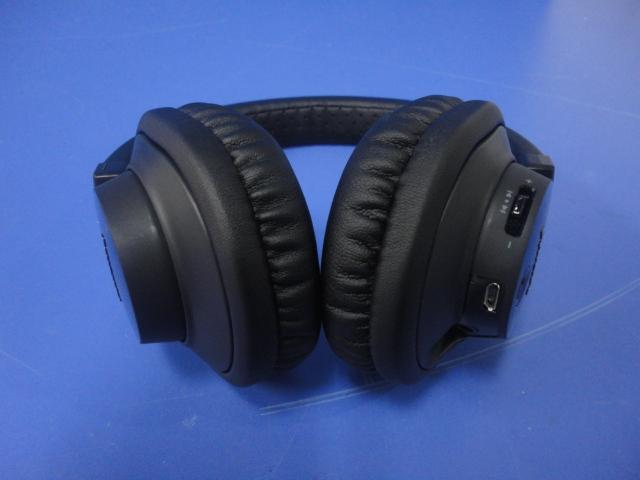

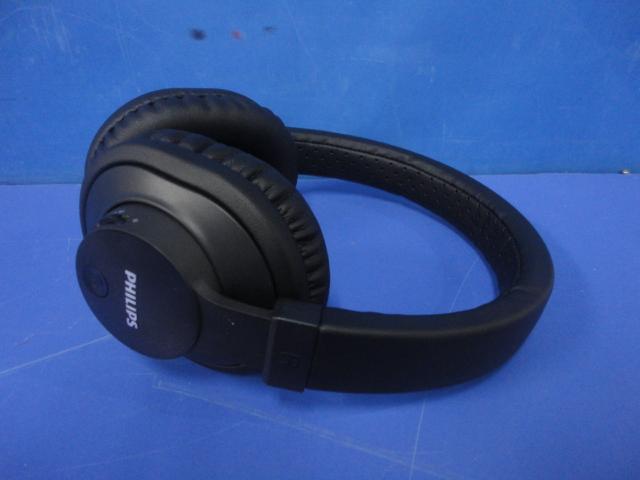

External Photos of SHB7150

Internal Photos of SHB7150 Bluetooth antenna NFC antenna

TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 RF exposure Estimation Report 1. Introduction SHB7150, SHB7150/XX, SHB7150YY/XX (XX=00 to 99 for marketing purpose representing different countries, YY=AA to ZZ for different color) are Bluetooth headset, which contain Bluetooth function inside. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v05r01, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Conducted Power + tune up tolerance = 2.96mW Distance = 5 mm f = 2.441 GHz [2.96/5] * SQRT(2.441) =0.92 0.92 ≤ 3.0 Therefore, excluded from SAR testing. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch Reviewed by: Prepared By: Phoebe Hu/ EMC Project Manager Felix Li/EMC Project Engineer Date: 2014-1-20 Date: 2014-1-20

Report Number: 68.920.13.004.02 Page 1 of 65 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 FCC - TEST REPORT Report Number : 68.920.13.004.02 Date of Issue: 20 January 2014 Model : SHB7150, SHB7150/XX, SHB7150YY/XX (XX=00 to 99 for marketing purpose representing different countries, YY=AA to ZZ for different color) Product Type : Bluetooth headset Applicant : WOOX Innovations Limited Address : 5/F, Philips Electronics Building 5 Science Park East Avenue, Hong Kong Science Park, Shatin, New Territories, Hong Kong Production Facility : Concord Electronic Factory. Address : 21, Ping’An Road, Shuikou, HuiCheng District, Huizhou, GuangDong, People’s Republic of China. Test Result :  Positive  Negative Total pages including Appendices : 65 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branchissued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval Report Number: 68.920.13.004.02 Page 2 of 65 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, Tel. +86 755 8828 6998, Fax: +86 755 8828 5299 1 Table of Contents 1 Table of Contents ................................................................................................................................................................... 2 2 Details about the Test Laboratory .......................................................................................................................................... 3 3 Description of the Equipment Under Test ............................................................................................................................. 4 4 Summary of Test Standards ................................................................................................................................................... 5 5 Summary of Test Results ....................................................................................................................................................... 6 6 General Remarks .................................................................................................................................................................... 7 7 Test Setups .......................................................................................................................................................................... 8 8 Technical Requirement .......................................................................................................................................................... 9 8.1 Conducted Emission...................................................................................................................................................... 9 8.2 Conducted peak output power ..................................................................................................................................... 12 8.3 Band edge compliance of RF emissions...................................................................................................................... 13 8.4 Spurious RF conducted emissions ............................................................................................................................... 30 8.5 Spurious radiated emissions for transmitter ................................................................................................................ 40 8.6 20 dB bandwidth and 99% Occupied Bandwidth........................................................................................................ 43 8.7 Carrier Frequency Separation...................................................................................................................................... 50 8.8 Number of hopping frequencies .................................................................................................................................. 52 8.9 Dwell Time ................................................................................................................................................................. 54 9 Test Equipment List ............................................................................................................................................................. 64 10 System Measurement Uncertainty ....................................................................................................................................... 65 Report Number: 68.920.13.004.02 Page 3 of 65 TÜV SÜD Certification and Testing (China) Co., Ltd. Shenzhen Branch 6 floor, H Hall, Century Craftwork Culture Square, No. 4001, Fuqiang Road, Futian District, Shenzhen 518048, P. R. China, T…

Text truncated - open the document above for the full version.

Page 1 of 2 Test setup photos 1. Conducted Emission Test setup Page 2 of 2 2. Radiated Emission Test Connect to PC Blow 1GHz Above 1GHz
