2AANUB5Soundbar Speaker

www.philips.com/support User manual Always there to help you Register your product and get support at Question? Contact Philips 1 EN Contents1 Important 2 Important safety instructions 2 Care for your product 3 Care of the environment 3 Help and support 4 2 Your SoundBar 5 Main unit 5 Remote control 5 Wireless portable speakers 6 Wireless subwoofer 7 Connectors 7 3 Connect and set up 9 Charge portable speakers 9 Pair up with subwoofer/speakers 9 Place speakers 10 Connect audio from TV 10 Connect audio from other devices 12 Connect digital devices through HDMI 13 4 Spatial calibration 14 Step 1: calibrate the listening zone 14 Step 2: calibrate the surround speaker position 14 5 Use your SoundBar 16 Adjust the volume 16 Choose your sound 16 MP3 player 17 Play music via Bluetooth 17 Connect Bluetooth via NFC 18 Auto standby 19 Set display brightness 19 Apply factory settings 19 6 Update software 20 Check software version 20 Update software via USB 20 7 Wall mount your SoundBar 21 Wall mount 21  3URGXFWVSHFLÀFDWLRQV 22 9 Troubleshooting 23 10 Notice 25 Notice of compliance 25 Trademarks 25 2 3 EN EN • If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. • When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery. • If the battery compartment cannot be completely secured, discontinue use of the product. Keep out of reach of children and contact the manufacturer. • Apparatus shall not be exposed to dripping or splashing. • Do not place any sources of danger on the apparatus IRUH[DPSOHOLTXLGÀOOHG objects, lighted candles). • This apparatus may contain lead and mercury. Dispose according to local, State or Federal laws. For disposal or recycling information, please contact your local authorities. For additional assistance on recycling options, please contact www.mygreenelectronics.com or www.eiae.org or www.recycle.philips.com. • Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. • Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling apparatus can cause serious injury or even death. • This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 7.8 inches (20cm) or more around this apparatus. Class II equipment symbol This symbol indicates that the unit has a double insulation system. This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING: 7RUHGXFHWKHULVNRIÀUHRU electric shock, this apparatus should not be H[SRVHGWRUDLQRUPRLVWXUHDQGREMHFWVÀOOHGwith liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, fully insert. Care for your product8VHRQO\PLFURÀEHUFORWKWRFOHDQWKHSURGXFWCare of the environmentDisposal of your old product and battery Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.This product may contain lead and mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact 1 ImportantRead and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply.Important safety instructions • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or RWKHUDSSDUDWXV LQFOXGLQJDPSOLÀHUV WKDWproduce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided SOXJGRHVQRWÀWLQWR\RXURXWOHWFRQVXOWan electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories VSHFLÀHGE\WKHPDQXIDFWXUHU • Use only with the cart, stand, tripod, EUDFNHWRUWDEOHVSHFLÀHGE\WKHmanufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. • Unplug this apparatus during lightning storm or when unused for long periods of time. • Refer all servicing WRTXDOLÀHGVHUYLFH personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. • Battery usage CAUTION - To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit:• Install all batteries correctly, + and - as marked on the unit. • Do not mix batteries ( old a nd new or carbon and alkaline , etc.). • Remove batteries when the unit is not used for a long time. • The batteries shall not be exposed to H[FHVVLYHKH…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Gibson Innovations Limited Address: 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park City: Shatin, NT Country: Hong Kong Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Soundbar Speaker Type designation: B5/37,B5/**(The “**”can be 37 or F7 for market use) Trademark: Philips on our behalf. Date: 2015-08-10 City: Shatin, NT Name: Benson Lai Function: Manager Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Gibson Innovations Limited Address : 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park City: Shatin, NT Country: Hong Kong To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AANUB5 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-08-10 Name and signature of applicant: Benson Lai Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

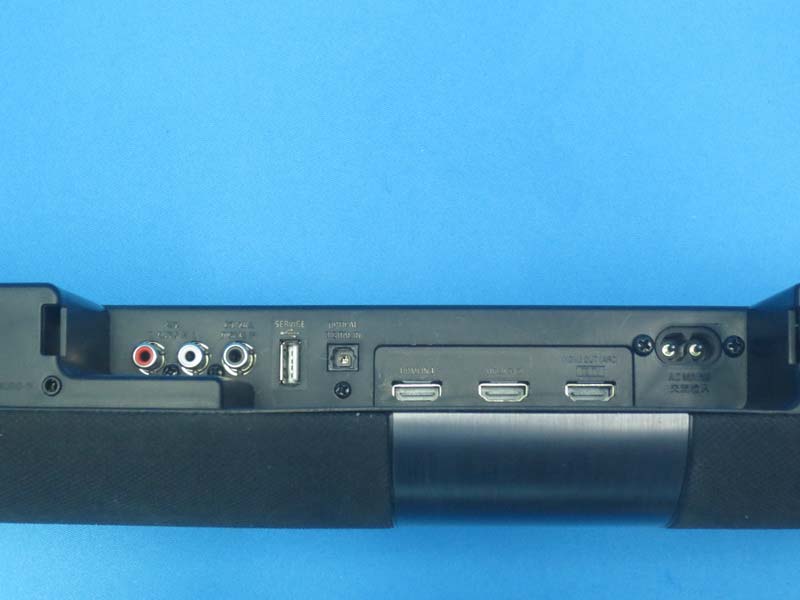

Project No.: 1407C051C Page 2 of 39 Project No.: 1407C051C Page 3 of 39 Project No.: 1407C051C Page 4 of 39

2 B5/37 PT1A1433000001 January,2015 B5/37 IC :11260A-B5 FCC ID: 2AANUB5 CA N IC ES -3 (B )/ NM B- 3( B) USA and Canada Importer / Importés par:Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 Importador: Ingram Micro México, S.A. de C.V. Laguna de Términos No. 249 Col. Anáhuac C.P. 11320 México, D.F. México Exportador: Gibson Innovations USA Inc. AC MAINS ~ 3(2) WSB5 WSB5 Serial No.: PT1A1503000001 SWB5/37 USA and Canada Importer / Importés par: Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 Importador: Ingram Micro México, S.A. de C.V. Laguna de Términos No. 249 Col. Anáhuac C.P. 11320 México, D.F. México Exportador: Gibson Innovations USA Inc. CAN ICES-3 (B)/NMB-3(B) PT1A1433000001 January,2015 B5/37 IC :11260A-B5 FCC ID: 2AANUB5 CAN ICES-3 (B)/NMB-3(B) USA and Canada Importer / Importés par:Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 Importador: Ingram Micro México, S.A. de C.V. Laguna de Términos No. 249 Col. Anáhuac C.P. 11320 México, D.F. México Exportador: Gibson Innovations USA Inc. Model No.: B5/37 Model No.:SWB5/37

Project No.: 1407C051C Page 5 of 39 Project No.: 1407C051C Page 6 of 39 Project No.: 1407C051C Page 7 of 39 Project No.: 1407C051C Page 8 of 39 Project No.: 1407C051C Page 9 of 39 Project No.: 1407C051C Page 10 of 39 Project No.: 1407C051C Page 11 of 39 Project No.: 1407C051C Page 12 of 39 Project No.: 1407C051C Page 13 of 39 Project No.: 1407C051C Page 14 of 39 Project No.: 1407C051C Page 15 of 39 Project No.: 1407C051C Page 16 of 39 Project No.: 1407C051C Page 17 of 39 Project No.: 1407C051C Page 18 of 39 Project No.: 1407C051C Page 19 of 39 Project No.: 1407C051C Page 20 of 39 Project No.: 1407C051C Page 21 of 39 Project No.: 1407C051C Page 22 of 39

FCC RF EXPOSURE REPORT FCC ID: 2AANUB5 Project No. : 1407C051C Equipment : Soundbar Speaker Model : B5/37, B5/** (The “**” can be F7 or 37 for market use.) Applicant : Gibson Innovations Limited Address : 5/F Philips Electronics Building,5 Science Park East Ave,HK Science Park, Shatin, NT, Hong Kong According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna TEST RESULTS EUT： Soundbar Speaker Model Name : B5/37, B5/** Temperature： 28 °C Relative Humidity: 60 % Test Voltage : AC 120V/60Hz Test Mode ： TX Mode Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 2.12 1.6293 6.39 4.3551 0.001412381 Complies 2.12 1.6293 5.4 3.4674 0.001124481 Complies 2.12 1.6293 3.5 2.2387 0.000726021 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FICP-3-1407C051C Page 1 of 70 FCC&IC Radio Test Report FCC ID: 2AANUB5 IC: 11260A-B5 This report concerns (check one): Original Grant Class II Change Project No. : 1407C051C Equipment : Soundbar Speaker Model Name for FCC : B5/37, B5/** (The “**” can be F7 or 37 for market use.) Model Name for IC : B5/37 Applicant : Gibson Innovations Limited Address : 5/F-6/F PHILIPS ELECTRONICS BLDG 5 SCIENCE PARK AVE HONG KONG SCIENCE PARK NT Date of Receipt : Jul. 13, 2015 Date of Test : Jul. 13, 2015 ~ Aug. 05, 2015 Issued Date : Aug. 06, 2015 Tested by : BTL Inc. Testing Engineer : (Shawn Xiao) Technical Manager : (David Mao) Authorized Signatory : (Steven Lu) BTL INC. No.3,Jinshagang 1st Road, Shixia,Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000FAX: +86-769-8319-6000 Report No.: BTL-FICP-3-1407C051C Page 2 of 70 Declaration BTLrepresents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTLshall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTLissued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement b y NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-3-1407C051C Page 3 of 70 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 11 3.3 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 3.5 DESCRIPTION OF SUPPORT UNITS 13 4 . EMC EMISSION TEST 14 4.1 CONDUCTED EMISSION MEASUREMENT 14 4.1.1 POWER LINE CONDUCTED EMISSION 14 4.1.2 TEST PROCEDURE 14 4.1.3 DEVIATION FROM TEST STANDARD 14 4.1.4 TEST SETUP 15 4.1.5 EUT OPERATING CONDITIONS 15 4.1.6 EUT TEST CONDITIONS 15 4.1.7 TEST RESULTS 15 4.2 RADIATED EMISSION MEASUREMENT 16 4.2.1 RADIATED EMISSION LIMITS 16 4.2.2 TESTPROCEDURE 17 4.2.3 DEVIATION FROM TEST STANDARD 17 4.2.4 TEST SETUP 17 4.2.5 EUT OPERATING CONDITIONS 18 4.2.6 EUT TEST CONDITIONS 18 4.2.7 TEST RESULTS (9K TO 30MHz) 19 4.2.8 TEST RESULTS (30 TO 1000 MHz) 19 4.2.9 TEST RESULTS (ABOVE1000 MHz) 19 5 .2 6dB SPECTRUM BANDWIDTH 20 5.1 APPLIED PROCEDURES / LIMIT 20 5.1.1 TEST PROCEDURE 20 5.1.2 DEVIATION FROM STANDARD 20 5.1.3 TEST SETUP 20 5.1.4 EUT OPERATION CONDITIONS 20 5.1.5 EUT TEST CONDITIONS 20 5.1.6 TEST RESULTS 20 6 . MAXIMUM CONDUCTED OUTPUT POWER 21 Report No.: BTL-FICP-3-1407C051C Page 4 of 70 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 21 6.1.1 TEST PROCEDURE 21 6.1.2 DEVIATION FROM STANDARD 22 6.1.3 TEST SETUP 22 6.1.4 EUT OPERATION CONDITIONS 22 6.1.5 EUT TEST CONDITIONS 22 6.1.6 TEST RESULTS 22 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.1.1 TEST PROCEDURE 23 7.1.2 DEVIATION FROM STANDARD 23 7.1.3 TEST SETUP 23 7.1.4 EUT OPERATION CONDITIONS 23 7.1.5 EUT TEST CONDITIONS 23 7.1.6 TEST RESULTS 23 8 . POWER SPECTRAL DENSITY TEST 24 8.1 APPLIED PROCEDURES / LIMIT 24 8.1.1 TEST PROCEDURE 24 8.1.2 DEVIATION FROM STANDARD 25 8.1.3 TEST SETUP 25 8.1.4 EUT OPERATION CONDITIONS 25 8.1.5 EUT TEST CONDITIONS 25 8.1.6 TEST RESULTS 25 9 . FREQUENCY STABILITY MEASUREMENT 26 9.1 APPLIED PROCEDURES / LIMIT 26 9.1.1 TEST PROCEDURE 26 9.1.2 DEVIATION FROM STANDARD 26 9.1.3 TEST SETUP 27 9.1.4 EUT OPERATION CONDITIONS 27 9.1.5 EUT TEST CONDITIONS 27 9.1.6 TEST RESULTS 27 10 . MEASUREMENT INSTRUMENTS LIST 28 11 . EUT TEST PHOTOS 30 ATTACHMENT A -CONDUCTED EMISSION 34 ATTACHMENT B -RADIATED EMISSION (9KHZ TO 30MHZ) 37 ATTACHMENT C -RADIATED EMISSION (30MHZ TO 1000MHZ) 39 ATTACHMENT D -RADIATED EMISSION (ABOVE 1000MHZ) 46 ATTACHMENT E -BANDWIDTH 59 Report No.: BTL-FICP-3-1407C051C Page 5 of 70 Table of Contents Page ATTACHMENT F - MAXIMUM OUTPUT POWER 62 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 64 ATTACHMENT H - POWER SPECTRAL DENSITY 66 ATTACHMENT I-FREQUENCY STABILITY 69 Report No.: BTL-FICP-3-1407C051C Page 6 of 70 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-3-1407C051C Original Issue. Aug. 06, 2015 Report No.: BTL-FICP-3-1407C051C Page 7 of 70 1. CERTIFICATION Equipment : Soundbar Speaker Brand Name : Philips Model Name for FCC : B5/37, B5/** (The “**” can be F7 or 37 for market use.) Model Name for IC : B5/37 Applicant : Gibson Innovations Limited Manufacturer : Gibson Innovations Limited Address : 5/F-6/F PHILIPS ELECTRONICS BLDG 5 SCIENCE PARK AVE HONG KONG SCIENCE PARK NT Factory : Eastech Electronics ( Hui Yang ) Co. Limited. Address : Dong Feng District Xinxu, Hui Yang, Hui Zhou,Guangdong,P.R.China Date of Test : Jul. 13, 2015 ~ Aug. 05, 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart E(15.407) / ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v01. Canada RSS-247 Issue 1, May 2015 RSS-…

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1407C051C Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1407C051C Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1407C051C Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1407C051C Page 33 of 109 Radiated Measurement Photos Above 1000MHz
