2AANUCSS5530Cinema Speaker

User manual Manual del usuario Manuel d’utilisation B5 Register your product and get support at www.philips.com/support Always there to help you Soundbar speaker wireless detachable speakers and subwoofer wireless music streaming with Bluetooth Question? Contact Philips 1 English EN Contents 1 Important 2 Important safety instructions 2 Care for your product 3 Care of the environment 3 Help and support 3 2 Your SoundBar 4 Main unit 4 Remote control 5 Wireless portable speakers 6 Wireless subwoofer 7 Connectors 7 3 Connect and set up 8 Charge portable speakers 8 Pair up with subwoofer/speakers 8 Place speakers 9 Connect audio from TV 9 Connect audio from other devices 11 Connect digital devices through HDMI 12 4 Spatial calibration 12 Step 1: calibrate the listening zone 13 Step 2: calibrate the surround speaker position 13 5 Use your SoundBar 14 Adjust the volume 14 Choose your sound 14 MP3 player 15 Play music via Bluetooth 15 Connect Bluetooth via NFC 16 Auto standby 17 Set display brightness 17 Apply factory settings 17 6 Update software 18 Check software version 18 Update software via USB 18 7 Wall mount your SoundBar 19 Wall mount 19       19 9 Troubleshooting 20 10 Notice 22 2EN 1 Important Read and understand all instructions before you use your product. If damage is caused by failure to follow instructions, the warranty does not apply. Important safety instructions •Read these instructions. •Keep these instructions. •Heed all warnings. •Follow all instructions. •Do not use this apparatus near water. •Clean only with dry cloth. •Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. •Do not install near any heat sources such as radiators, heat registers, stoves, or other     produce heat. •Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided         an electrician for replacement of the obsolete outlet. •Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. •Only use attachments/accessories     •Use only with the cart, stand, tripod, bracket or table     or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. •Unplug this apparatus during lightning storm or when unused for long periods of time. •Refer all servicing    personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. •Battery usage CAUTION - To prevent battery leakage which may result in bodily injury, property damage, or damage to the unit: • Install all batteries correctly, + and - as marked on the unit. • Do not mix batteries (old and new or carbon and alkaline  • Remove batteries when the unit is not used for a long time. • The batteries shall not be exposed to       the like. • Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/ hazardouswaste/perchlorate. • The product/remote control may contain a coin/button type battery, which can be swallowed. Keep the battery out of reach of children at all times! If swallowed, the battery can cause serious injury or death. Severe internal burns can occur within two hours of ingestion. • If you suspect that a battery has been swallowed or placed inside any part of the body, seek immediate medical attention. • When you change the batteries, always keep all new and used batteries out of reach of children. Ensure that the battery compartment is completely secure after you replace the battery. • If the battery compartment cannot be completely secured, discontinue use of the 3 English EN product. Keep out of reach of children and contact the manufacturer. •Apparatus shall not be exposed to dripping or splashing. •Do not place any sources of danger on the apparatus            •This apparatus may contain lead and mercury. Dispose according to local, State or Federal laws. For disposal or recycling information, please contact your local authorities. For additional assistance on recycling options, please contact www. mygreenelectronics.com or www.eiae.org or www.recycle.philips.com. •Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable. •Do not place this apparatus on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling apparatus can cause serious injury or even death. • This apparatus should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided. Make sure to leave a space of 7.8 inches "    Class II equipment symbol This symbol indicates that the unit has a double insulation system. This 'bolt of lightning' indicates uninsulated material within your unit may cause an electrical shock. For the safety of everyone in your household, please do not remove product covering. The 'exclamation point' calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance problems. WARNING:#  $ electric shock, this apparatus should not be       with liquids, such as vases, should not be placed on this apparatus. CAUTION: To prevent elect…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: Gibson Innovations Limited Address: 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park City: Shatin, NT Country: Hong Kong Declare that: Name Representative of agent: Ms. Cathy Wang Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related documents of the following product(s), including 731 form(s): Product description: Cinema Speaker Type designation: CSS5530B/37, CSS5530X/** (The “X”can be A to Z for colour, The “**” can be 37 or F7 for market use ） Trademark: PHILIPS on our behalf. Date: 2015-08-10 City: Shatin, NT Name: Benson Lai Function: Manager Signature: ............................... Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: Gibson Innovations Limited Address : 5/F Philips Electronics Building, 5 Science Park East Ave, HK Science Park City: Shatin, NT Country: Hong Kong To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: 2AANUCSS5530 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2015-08-10 Name and signature of applicant: Benson Lai Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

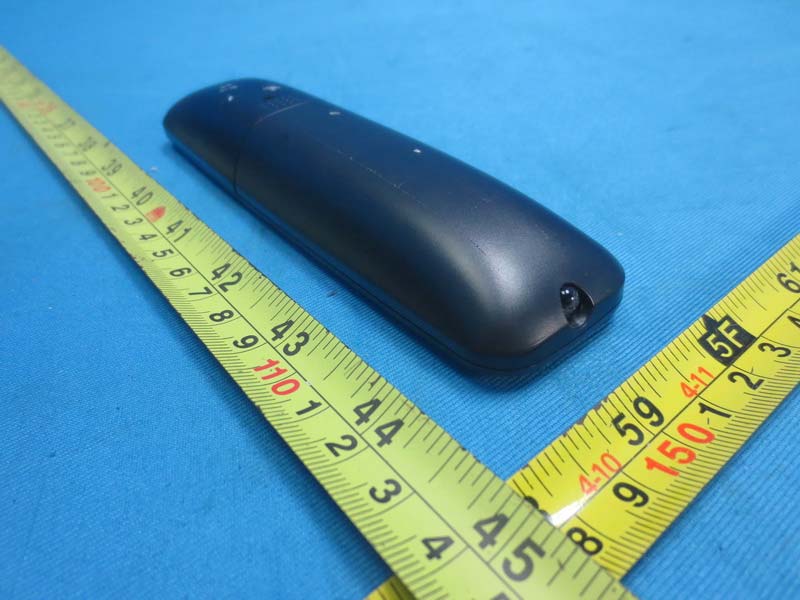

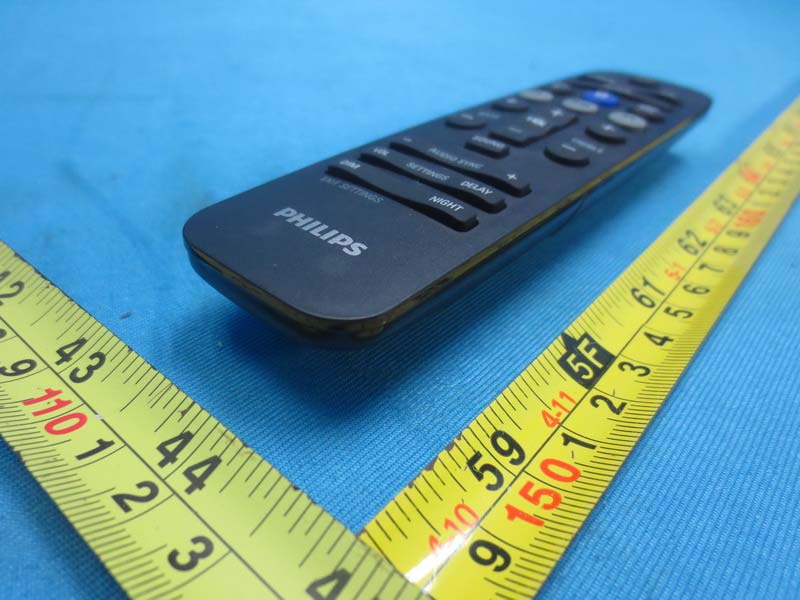

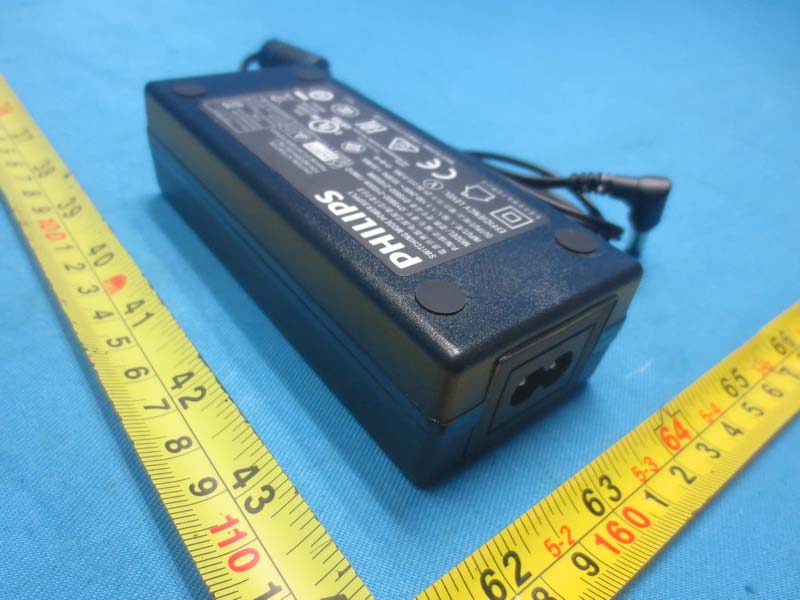

Project No.: 1507C061 Page 2 of 16 Project No.: 1507C061 Page 3 of 16 Project No.: 1507C061 Page 4 of 16 Project No.: 1507C061 Page 5 of 16 Project No.: 1507C061 Page 6 of 16

Center SPK_Bottom VIEW SUBWOOFER Metal panel Back _BOTTOM VIEW WIRELESS BOX 4 C B A K 87±1mm 1 9 0 ± 1 m m 88 8944600490 8670 001 31388 CSS5530B/37 CINEMA SPEAKER MADE IN CHINA Fabriqué en Chine Hecho en China Model: CSS5530B/37 Serial No.: PT1A1522000001 15.2 33.5 USA and Canada Importer / Importés par: Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 Manufactured under license from Dolby Laboratories. Dolby,Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. 4 4 Model : CSS5530B/37 Model : CSS5530B/37 Serial No.: PTPA1522000001 CAN ICES-3 (B)/NMB-3(B) June,2015 IC : 11260A-CSS5530 FCC ID: 2AANUCSS5530 247 Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 68+1mm DC 21.0V 3.09A 80±1mm 1 4 8 ± 1 m m Model No.:SW5530B/37 AC 110V-127V ~ 50-60Hz 60W Model: SW5530B/37 Serial No.: PT1A1522000001 Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 Model No.:SW5530B/37 AC 110V-127V ~ 50-60Hz 60W Model: SW5530B/37 Serial No.: PT1A1522000001 Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 Model No.: WB5530B/37 Serial No.: PT1A15XX000001 Cinema speaker Model No.: WB5530B/37 AC 110V-240V~ 50-60Hz 20W Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 PT1A1522000001 PT1A15XX000001 Model No.: WB5530B/37 Serial No.: PT1A15XX000001 Cinema speaker Model No.: WB5530B/37 AC 110V-240V~ 50-60Hz 20W Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 Manufactured under license from Dolby Laboratories. Dolby,Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories. Model : CSS5530B/37 Model : CSS5530B/37 Serial No.: PTPA1522000001 CAN ICES-3 (B)/NMB-3(B) June,2015 IC : 11260A-CSS5530 FCC ID: 2AANUCSS5530 247 Gibson Innovations USA Inc. 3070 Windward Plaza Suite F, Box 735 Alpharetta, GA 30005 DC 21.0V 3.09A

Project No.: 1507C061 Page 7 of 16 Project No.: 1507C061 Page 8 of 16 Project No.: 1507C061 Page 9 of 16 Project No.: 1507C061 Page 10 of 16 Project No.: 1507C061 Page 11 of 16 Project No.: 1507C061 Page 12 of 16 Project No.: 1507C061 Page 13 of 16 Project No.: 1507C061 Page 14 of 16 Project No.: 1507C061 Page 15 of 16 Project No.: 1507C061 Page 16 of 16

FCC RF EXPOSURE REPORT FCC ID: 2AANUCSS5530 Project No. : 1507C061 Equipment : Cinema Speaker Model : CSS5530B/37; CSS5530X/** Applicant : Gibson Innovations Limited Address : 5/F-6/F PHILIPS ELECTRONICS BLDG 5 SCIENCE PARK AVE HONG KONG SCIENCE PARK NT According: : FCC Guidelines for Human Exposure IEEE C95.1 BTL INC. No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, China. TEL: +86-769-8318-3000 FAX: +86-769-8319-6000 MPE CALCULATION METHOD: Calculation Method of RF Safety Distance: where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain(dBi) Note A N/A N/A Printed N/A 1.44 B N/A N/A Printed N/A 1.44 TEST RESULTS EUT： Cinema Speaker Model Name : CSS5530B/37; CSS5530X/** Temperature： 25 °C Relative Humidity: 55 % Test Voltage : AC 120V/60Hz Test Mode ： TX MODE Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm 2 ) Limit of Power Density (S) (mW/cm 2 ) Te s t Result 1.44 1.3932 6.83 4.8195 0.001336441 Complies 1.44 1.3932 6.42 4.3853 0.001216051 Complies 1.44 1.3932 7.88 6.1376 0.001701961 Complies Note: the calculated distance is 20 cm.

Report No.: BTL-FICP-2-1507C061 Page 1 of 71 FCC&IC Radio Test Report FCC ID: 2AANUCSS5530 IC: 11260A-CSS5530 This report concerns (check one): Original Grant Class II Change Project No. : 1507C061 Equipment : Cinema Speaker Model Name for FCC : CSS5530B/37; CSS5530X/** Model Name for IC : CSS5530B/37 Applicant : Gibson Innovations Limited Address : 5/F-6/F PHILIPS ELECTRONICS BLDG 5 SCIENCE PARK AVE HONG KONG SCIENCE PARK NT Date of Receipt : Jul, 07. 2015 Date of Test : Jul, 07. 2015~Jul, 16. 2015 Issued Date : Jul, 17. 2015 Tested by : BTL Inc. Testing Engineer : (David Mao) Technical Manager : (Leo Hung) Authorized Signatory : (Steven Lu) BTL INC. No.3,Jinshagang 1st Road, Shixia,Dalang Town, Dongguan, Guangdong, China. TEL: +86-769-8318-3000FAX: +86-769-8319-6000 Report No.: BTL-FICP-2-1507C061 Page 2 of 71 Declaration BTLrepresents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTLshall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTLissued reports. BTL’s report must not be used by the client to claim product certification, approval, or endorsement b y NVLAP, NIST, or any agency of the Federal Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and BTL-self, extracts from the test report shall not be reproduced except in full with BTL’s authorized written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO Guide17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Report No.: BTL-FICP-2-1507C061 Page 3 of 71 Table of Contents Page 1 . CERTIFICATION 7 2 . SUMMARY OF TEST RESULTS 8 2.1 TEST FACILITY 9 2.2 MEASUREMENT UNCERTAINTY 9 3 . GENERAL INFORMATION 10 3.1 GENERAL DESCRIPTION OF EUT 10 3.2 DESCRIPTION OF TEST MODES 12 3.3 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 13 3.4 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 14 3.5 DESCRIPTION OF SUPPORT UNITS 14 4 . EMC EMISSION TEST 15 4.1 CONDUCTED EMISSION MEASUREMENT 15 4.1.1 POWER LINE CONDUCTED EMISSION 15 4.1.2 TEST PROCEDURE 15 4.1.3 DEVIATION FROM TEST STANDARD 15 4.1.4 TEST SETUP 16 4.1.5 EUT OPERATING CONDITIONS 16 4.1.6 EUT TEST CONDITIONS 16 4.1.7 TEST RESULTS 16 4.2 RADIATED EMISSION MEASUREMENT 17 4.2.1 RADIATED EMISSION LIMITS 17 4.2.2 TESTPROCEDURE 18 4.2.3 DEVIATION FROM TEST STANDARD 18 4.2.4 TEST SETUP 18 4.2.5 EUT OPERATING CONDITIONS 19 4.2.6 EUT TEST CONDITIONS 19 4.2.7 TEST RESULTS (9K TO 30MHz) 20 4.2.8 TEST RESULTS (30 TO 1000 MHz) 20 4.2.9 TEST RESULTS (ABOVE1000 MHz) 20 5 .2 6dB SPECTRUM BANDWIDTH 21 5.1 APPLIED PROCEDURES / LIMIT 21 5.1.1 TEST PROCEDURE 21 5.1.2 DEVIATION FROM STANDARD 21 5.1.3 TEST SETUP 21 5.1.4 EUT OPERATION CONDITIONS 21 5.1.5 EUT TEST CONDITIONS 21 5.1.6 TEST RESULTS 21 6 . MAXIMUM CONDUCTED OUTPUT POWER 22 Report No.: BTL-FICP-2-1507C061 Page 4 of 71 Table of Contents Page 6.1 APPLIED PROCEDURES / LIMIT 22 6.1.1 TEST PROCEDURE 22 6.1.2 DEVIATION FROM STANDARD 23 6.1.3 TEST SETUP 23 6.1.4 EUT OPERATION CONDITIONS 23 6.1.5 EUT TEST CONDITIONS 23 6.1.6 TEST RESULTS 23 7 . ANTENNA CONDUCTED SPURIOUS EMISSION 24 7.1 APPLIED PROCEDURES / LIMIT 24 7.1.1 TEST PROCEDURE 24 7.1.2 DEVIATION FROM STANDARD 24 7.1.3 TEST SETUP 24 7.1.4 EUT OPERATION CONDITIONS 24 7.1.5 EUT TEST CONDITIONS 24 7.1.6 TEST RESULTS 24 8 . POWER SPECTRAL DENSITY TEST 25 8.1 APPLIED PROCEDURES / LIMIT 25 8.1.1 TEST PROCEDURE 25 8.1.2 DEVIATION FROM STANDARD 26 8.1.3 TEST SETUP 26 8.1.4 EUT OPERATION CONDITIONS 26 8.1.5 EUT TEST CONDITIONS 26 8.1.6 TEST RESULTS 26 9 . FREQUENCY STABILITY MEASUREMENT 27 9.1 APPLIED PROCEDURES / LIMIT 27 9.1.1 TEST PROCEDURE 27 9.1.2 DEVIATION FROM STANDARD 27 9.1.3 TEST SETUP 28 9.1.4 EUT OPERATION CONDITIONS 28 9.1.5 EUT TEST CONDITIONS 28 9.1.6 TEST RESULTS 28 10 . MEASUREMENT INSTRUMENTS LIST 29 11 . EUT TEST PHOTOS 31 ATTACHMENT A -CONDUCTED EMISSION 35 ATTACHMENT B -RADIATED EMISSION (9KHZ TO 30MHZ) 38 ATTACHMENT C -RADIATED EMISSION (30MHZ TO 1000MHZ) 40 ATTACHMENT D -RADIATED EMISSION (ABOVE 1000MHZ) 47 ATTACHMENT E -BANDWIDTH 60 Report No.: BTL-FICP-2-1507C061 Page 5 of 71 Table of Contents Page ATTACHMENT F - MAXIMUM OUTPUT POWER 63 ATTACHMENT G - ANTENNA CONDUCTED SPURIOUS EMISSION 65 ATTACHMENT H - POWER SPECTRAL DENSITY 67 ATTACHMENT I-FREQUENCY STABILITY 70 Report No.: BTL-FICP-2-1507C061 Page 6 of 71 REPORT ISSUED HISTORY Issued No. Description Issued Date BTL-FICP-2-1507C061 Original Issue. Jul, 17. 2015 Report No.: BTL-FICP-2-1507C061 Page 7 of 71 1. CERTIFICATION Equipment : Cinema Speaker Brand Name : PHILIPS Model Name for FCC : CSS5530B/37; CSS5530X/** Model Name for IC : CSS5530B/37 Applicant : Gibson Innovations Limited Manufacturer : Gibson Innovations Limited Address : 5/F-6/F PHILIPS ELECTRONICS BLDG 5 SCIENCE PARK AVE HONG KONG SCIENCE PARK NT Factory : Eastech Electronics ( Hui Yang ) Co. Ltd. Address : Dong Feng District,Xinxuu, Hui Yang,Huizhou, Guuangdong, China Date of Test : Jul, 07. 2015~Jul, 16. 2015 Test Sample : ENGINEERING SAMPLE Standard(s) : FCC Part15, Subpart E(15.407) / ANSI C63.10-2013 FCC KDB 789033 D02 General UNII Test Procedures New Rules v01. Canada RSS-247 Issue 1, May 2015 RSS-GEN Issue 4, Nov 2014 The above equipment has been tested and fou…

Text truncated - open the document above for the full version.

Report No.: BTL-FICP-1-1507C061 Page 30 of 109 12. EUT TEST PHOTO Conducted Measurement Photos Report No.: BTL-FICP-1-1507C061 Page 31 of 109 Radiated Measurement Photos 9KHz to 30MHz Report No.: BTL-FICP-1-1507C061 Page 32 of 109 Radiated Measurement Photos 30MHz to 1000MHz Report No.: BTL-FICP-1-1507C061 Page 33 of 109 Radiated Measurement Photos Above 1000MHz
