2AANUH500BTBluetooth Headphones

QUICK START GUIDE H500BT Quick start guide EN www.onkyo.com [ 1.0 Charge the battery ] 1. Plug one end of USB cable into the charger (or into the USB port of a computer). 2. Plug the other end of the cable into the micro USB charging slot on the headset. 3. When the headset is charging, a white indicator light will be displayed. 4. When the headset is fully charged, the white light goes o. 1. Turn the headset on. Press and hold for 2 sec. 2. Turn the headset o. Press and hold for 4 sec. A white indicator light turns on for 1.5 sec. and then the headset will turn o. Pair the headset with your phone manually or by using NFC. After successful pairing, the headset connects automatically to the phone once the headset is turned on and within range. Manual Pairing 1. Make sure your headset is turned on. 2. Press and hold until an alternating blue and white light flashes. 3. Turn on the Bluetooth function on your phone. 4. Your phone will start searching for Onkyo H500BT. 5. Follow the on-screen instructions to pair your phone. (Check your phone’s user manual for details) NFC Pairing 1. Make sure your headset is turned on. 2. Press and hold until an alternating blue and white light flashes. 3. Make sure you turn on the NFC function on your phone and that your phone’s screen remains active. 4. Place your phone over the headset so that the NFC detection area of each device touch each other. 5. Follow the pairing instructions of your phone. If a passcode is required, enter ‘0000’. Remarks: • Make sure your mobile phone has the NFC feature and that the NFC function has been switched on and your phone is not in standby mode. • Pairing with NFC is suitable only for Android mobile operating system 4.2 or above. [ 2.0 Turning the headset on and o ] [ 3.0 Pair the headset with your phone ] You can also use this headset with the audio cable provided when the battery is low. Make sure the headset is turned o before using the audio cable. Please refer to www.onkyo.com/welcome for the full user manual A white light flashes slowly. An alternating white and blue light flashes. A blue light flashes at every 8 seconds interval. A blue light flashes rapidly. The battery is low. The headset is in pairing mode. The headset is switched on but not connected. If no connection can be made, the headset will turn itself o after 5 minutes. The headset is both paired & connected. [ 5.0 LED Indicator light ] [ 6.0 Corded audio connection ] MUSIC CONTROLSVOICE/CALL CONTROLS [ 4.0 Using music and call controls ] Play/PauseTap once Volume up Slide up or slide up and hold Volume down Slide down or slide down and hold Skip forwardSlide forward Skip backward Slide backward Siri/Google Now*Press once Pick up call/Hang up Tap once Reject incoming callTap and hold Mute/unmute the mic while in a call Press once Switch caller while in a call Slide forward Micro USB charging slot Audio jack (Left side) Pairing additional devices A total of 4 bluetooth devices can be paired with your headphones. (See step 3 for pairing). Two devices can be connected simultaneously allowing you to switch between them both. Switching between devices The multipoint feature allows you to connect and switch between two devices simultaneously. Simply pause your music or video on one device and press play on your second device, the headphone will automatically connect to the playing device. When you receive a phone call the audio on the first device automatically pauses to receive the phone call on the second device, with the audio resuming when the call has finished. (See step 4 for call controls) [ 7.0 Multipoint ] NFC detection area 2015 © Gibson Innovations Limited. All rights reserved. This product has been manufactured by, and is sold under the responsibility of Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Gibson Innovations Netherlands B.V. Building A A B B ‘0000’ not required for some mobile phones Settings Select Back Connectivity 10:32 Enter Password **** 0000 Settings Devices Found Select Back 10:31 Onkyo H500BT Settings Bluetooth Select Back Connectivity 10:30 Add Bluetooth device A B * To use the voice control feature on your phone via Bluetooth please refer to the user manual for the correct settings for your device. LED indicator light Power On/O Microphone Touch panel for: Music/Call/Volume/ Track controls Pairing/Mute (call) A A

English: Notice of compliance The device complies with the FCC rules, Part 15. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. FCC rules This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Relocate the receiving antenna. • Increase the separation between equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Canada: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following Two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operati on. CAN ICES-3 (B)/NMB-3(B) IC Radiation Exposure Statement: This equi pment com plies with Canada radi ation ex posure limits set forth for uncontrolled environm ents. This transmitter must not be co-located or operating i n conjunction with any other antenna or transmitter. Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. French: Avis de conformité Cet appareil satisfait aux règlements de la FCC partie 15 du Code of Federal Regulations. Son fonctionnement est assujetti aux deux conditions suivantes : 1. Cet appareil ne doit pas causer d’interférence préjudiciable et 2. l’appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent causer un fonctionnement non désiré. Règlement de la FCC Cet équipement a été testé et jugé compatible avec les limites s’appliquant aux appareils numériques de la classe B, conformément à l’article 15 du règlement de la FCC. Ces limites ont été définies pour fournir une protection raisonnable contre les interférences nuisibles dans le cadre d’une installation résidentielle. Cet équipement génère, utilise et peut émettre de l’énergie radiofréquence et, s’il n’est pas installé ni utilisé conformément aux instructions, peut causer des interférences gênantes pour les communications radio. Rien ne garantit toutefois que des interférences ne surviendront pas dans une installation particulière. Si cet équipement cause des interférences nuisibles pour la réception de la radio ou de la télévision, ce qui peut être déterminé en mettant l’équipement hors tension puis sous tension, l’utilisateur devra essayer de corriger ces interférences en effectuant une ou plusieurs des opérations suivantes : Déplacez l’antenne de réception. Augmentez la distance entre l’équipement et le récepteur. Branchez l’équipement à une prise d’un circuit autre que celui sur lequel le récepteur est branché. Consultez le détaillant ou un technicien de radiotélévision expérimenté. Canada : Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. CAN ICES-3 (B)/NMB-3(B) Déclaration d’IC sur l’exposition aux radiations: Cet équipement est conforme aux limites d’exposition aux radiati ons défini es par le Canada pour des envi ronnements non contrôlés. Cet émetteur ne doit pas être installé au m ême endroit ni utilisé avec une autre antenne ou un autre émetteur.

Authority to Act as Agent Date: 2015.8.16 To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Vicky Yuan in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___Nov 30, 2015_____ By: Joseph Lau (Signature) (Print name) Title: ASSISTANT MANAGER On behalf of: Gibson Innovations Limited (Company Name) Telephone: +852 3468 3269

Request for Confidentiality Date: _2015/08/16____ Subject: Confidentiality Request for: _ FCC ID: 2AANUH500BT Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Gibson Innovations Limited has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: / ASSISTANT MANAGER ___Joseph Lau____________ (Signature/Title 3 ) (Print name)

Model Difference Letter We, the undersigned hereby declare, that the following equipment: Product name: Bluetooth Headphones Model : H500BT/XX, H500BTY/XX('X'= 0 to 9;'Y'= A to Z) is electrically equal to: Model : H500BT () Their difference is the Model number and Marketing prupose JOSEPH LAU, +852 3468 3269 HONG KONG, AUGUST 12, 2015 (Place, date of issue) (Signature / stamp) JOSEPH LAU, ASSISTANT MANAGER (Name and title in block letters)

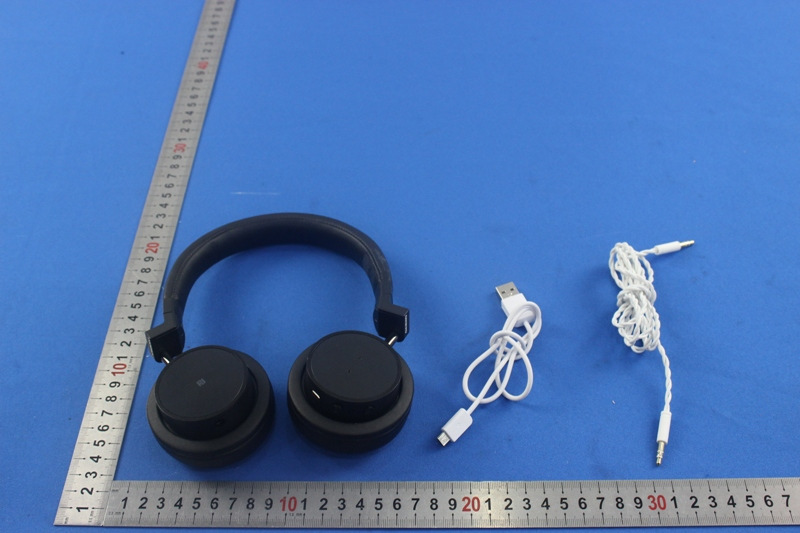

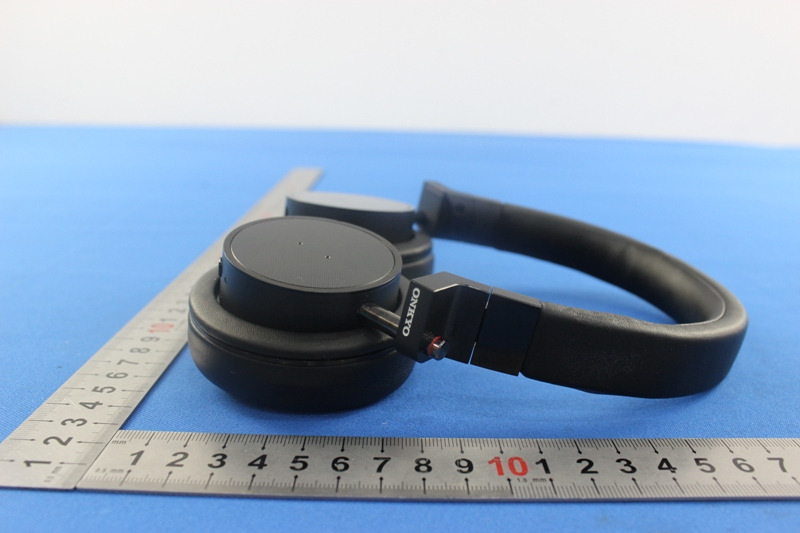

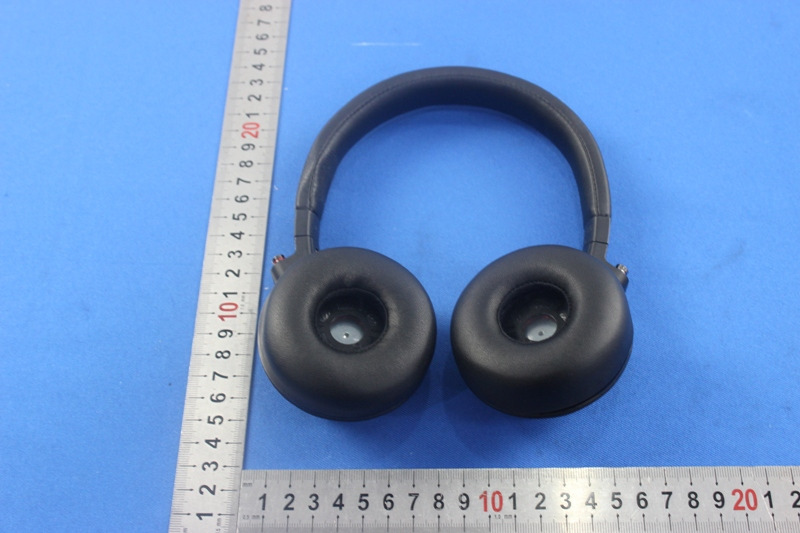

1 Photographs - EUT Constructional Details Test model No.: H500BT

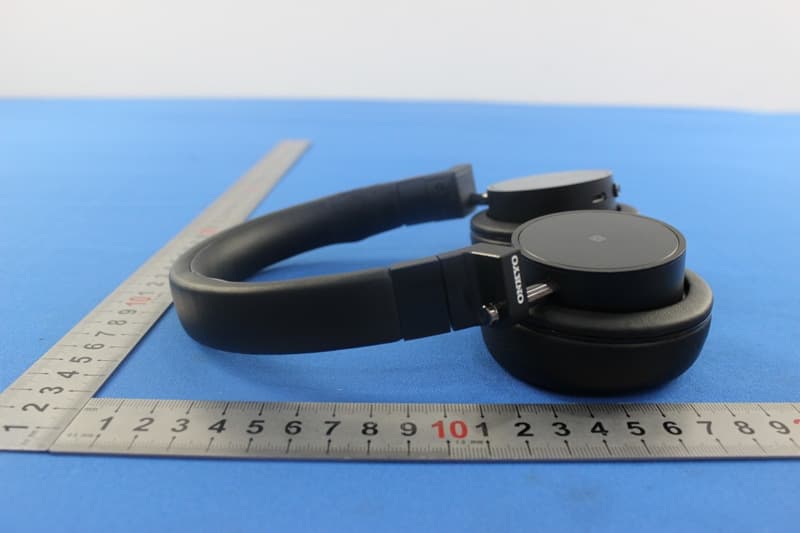

1 Photographs - EUT Constructional Details Test model No.: H500BT

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150700475103 Page: 1 of 7 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No: SZEM1507004751CR Applicant: Gibson Innovations Limited Manufacturer: Gibson Innovations Limited Factory: CommTech Technology Macao Commercial Offshore Ltd Product Name: Bluetooth Headphones Model No.(EUT): H500BT Add Model No.: H500BT/XX, H500BTY/XX('X'= 0 to 9;'Y'= A to Z) Trade Mark: Onkyo FCC ID: 2AANUH500BT Standards: 47 CFR Part 1.1307 (2014) 47 CFR Part 2.1093 (2014) KDB447498D01 General RF Exposure Guidance v05r02 Date of Receipt: 2015-08-07 Date of Test: 2015-08-13 to 2015-08-20 Date of Issue: 2015-08-24 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150700475103 Page: 2 of 7 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-08-24 Original Authorized for issue by: Tested By 2015-08-20 (Owen Zhou) /Project Engineer Date Prepared By 2015-08-24 (Vivi Zhou) /Clerk Date Checked By 2015-08-24 (Eric Fu) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150700475103 Page: 3 of 7 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150700475101 Page: 1 of 63 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page FCC REPORT Application No: SZEM1507004751CR Applicant: Gibson Innovations Limited Manufacturer: Gibson Innovations Limited Factory: CommTech Technology Macao Commercial Offshore Ltd Product Name: Bluetooth Headphones Model No.(EUT): H500BT Add Model No.: H500BT/XX, H500BTY/XX('X'= 0 to 9;'Y'= A to Z) Trade Mark: Onkyo FCC ID: 2AANUH500BT Standards: 47 CFR Part 15, Subpart C (2014) Date of Receipt: 2015-08-07 Date of Test: 2015-08-13 to 2015-08-20 Date of Issue: 2015-08-24 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150700475101 Page: 2 of 63 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-08-24 Original Authorized for issue by: Tested By 2015-08-20 (Owen Zhou) /Project Engineer Date Prepared By 2015-08-24 (Vivi Zhou) /Clerk Date Checked By 2015-08-24 (Eric Fu) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM150700475101 Page: 3 of 63 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Test Summary Test Item Test R…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup Test model No.: H500BT 1.1 Conducted Emission 1.2 Radiated Emission 1.3 Radiated Spurious Emission
