2AANUPHBT2600Wireless Portable Speaker

www.philips.com/support User manual Always there to help you Register your product and get support at Question? Contact Philips 1EN Contents 1 Safety 2 2 Your Portable Speaker 3 Introduction 3 What's in the box 3 Overview of the speaker 4 3 Get started 5 Charge the built-in battery 5 Turn on the speaker 5 4 Use Bluetooth devices 6 Connect a device 6 Play audio via Bluetooth 7 5 Listen to an external device 8 6 Adjust volume 9 7 Product information 10 General information 10 Bluetooth 10 Amplifier 10 8 Troubleshooting 11 General 11 About Bluetooth device 11 9 Notice 12 Compliance 12 Care of the environment 12 Trademark notice 12 Copyright 12 2EN 1 Safety • Do not use this apparatus near water. • Do not place near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Only use attachments/accessories specified by the manufacturer. • The product shall not be exposed to dripping or splashing. • Do not place any sources of danger on the product (e.g. liquid filled objects, lighted candles). • Battery shall not be exposed to excessive heat such as sunshine, fire or the like. • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. • Batteries contain chemical substances, so they should be disposed of properly. Caution • Removal of the built-in battery invalidates the warranty and may destroy the product. •These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Always bring your product to a professional to remove the built-in battery. Note • Rechargeable batteries have a limited number of charge cycles. Battery life and number of charge cycles vary by use and settings. Warning • Never remove the casing of this product. •Never lubricate any part of this product. •Never place this product on other electrical equipment. •Keep this product away from direct sunlight, naked flames or heat. 3EN 2 Your Portable Speaker Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With this speaker, you can • listen to audio from an external device via Bluetooth connection, • listen to audio from an external device through an audio input cable, and • make phone calls. What's in the box Check and identify the contents of your package: • Main unit • USB cable • Short user manual • Safety sheet • 4EN Overview of the speaker a /MULTIPAIR • In Bluetooth mode, press and hold to enter pairing mode. • Press to answer an incoming call. • Press to end the current call. • Press and hold to reject an incoming call. b • Turn on the product. c Bluetooth and power indicator d AUDIO IN • Connect external audio devices. e DC IN • Charge the speaker via USB cable. a b c d e 5EN 3 Get started Always follow the instructions in this chapter in sequence. Charge the built-in battery The speaker is powered by a built-in rechargeable battery. Note • Before use, fully charge the built-in battery. •The micro USB socket is for charging only. Connect the USB cable between • the micro USB socket on the speaker, and • a USB socket on your computer. Battery indicator The LED indicator indicates the battery status. IndicatorBattery Solid redUnder charging OffFully charged Blinking red in Bluetooth mode Low power Turn on the speaker Rotate the knob to turn on or turn off this speaker. • Bluetooth mode: Listen to an external Bluetooth device through Bluetooth connection. • OFF: Turn off this product. ON OFF 6EN 4 Use Bluetooth devices With this speaker, you can listen to audio from a player and make a call through Bluetooth. Note • WOOX Innovations does not guarantee the compatibility with all Bluetooth devices. •Before pairing a device with this product, read its user manual for Bluetooth compatibility. Make sure that the connected Bluetooth device supports the Advanced Audio Distribution Profile (A2DP) and the Audio Video Remote Control Profile (AVRCP). •The product can memorize a maximum of 4 paired devices. •Make sure that Bluetooth function is enabled on your device, and your device is set as visible to all other Bluetooth devices. •The operational range between this product and a Bluetooth device is approximately 10 meters (30 feet). •Any obstacle between this product and a Bluetooth device can reduce the operational range. •Keep away from any other electronic device that may cause interference. Connect a device 1 Rotate the knob to turn on the speaker. »The Bluetooth indicator flashes blue. 2 On your device, search for Bluetooth devices. 3 In the device list, select Philips BT2600. • If a message prompts for the permission for Bluetooth connection with Philips BT2600, confirm it. • If a password is required, enter 0000 and then confirm. »The speaker beeps twice and the Bluetooth indicator turns to solid blue when the Bluetooth connection is successful. • If you fail to search for Philips BT2600, press and hold /MULTIPAIR to enter pairing mode. Bluetooth indicator The LED indicator on the top indicates the status of Bluetooth connection. IndicatorBluetooth connection Flashing blue quickly Pairing Flashing blue slowly Connecting or waiting for connection Solid blueConnected Pair and connect a second device You can pair and connect a maximum of two Bluetooth-enabled devices to this product actively at the same time. 1 Press and hold /MULTIPAIR to enter pairing mode. »The Bluetooth indicator flashes blue quickly. »The speaker beeps twice. 2 Pair and connect a second device to the speaker. • If two devices are connected with speaker, you can play music from any of the connected devices, music playback from another device will be paused. Note • If you want to pair a third device, press and hold /MULTIPAIR until you hear a double beep t…

Text truncated - open the document above for the full version.

Authority to Act as Agent Date: _2015.5.22_______ To Whom It May Concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Vicky Yuan in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all matters relating to all processes required in FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___July, 21 2015_____ By: Benson Lai (Signature) (Print name) Title: Manager, Safety and Compliance On behalf of: Gibson Innovations Limited (Company Name) Telephone: 852-3468 3267

Request for Confidentiality Date: _2015-5- 22___ Subject: Confidentiality Request for: FCC ID: 2AANUPHBT2600 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _Gibson Innovations Limited has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: _______________________________ Benson Lai Manager, Safety and Compliance (Print name)

Model Confirmation Letter We, Gibson Innovations Limited certify the product: Wireless portable speaker and item No.:BT2600X/37(X can be letter A to Z or nil) Their electrical circuit design, layout, components used and internal wiring are identical, Only the color is different. Agency Agreement Expiration Date: __ July 21, 2015_____ By: ____________________ ______ Benson Lai (Signature 1 ) (Print name) Title: Manager, Safety and Compliance On behalf of: _ Gibson Innovations Limited _ Telephone: __852 3468-3267

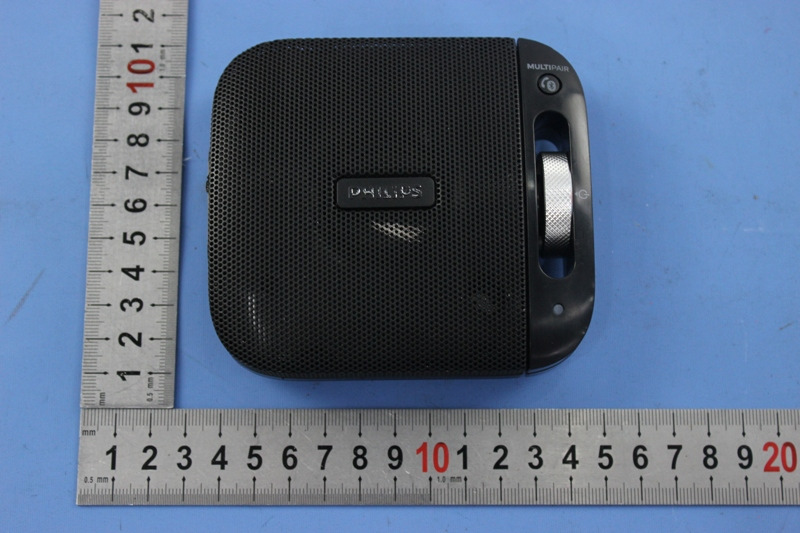

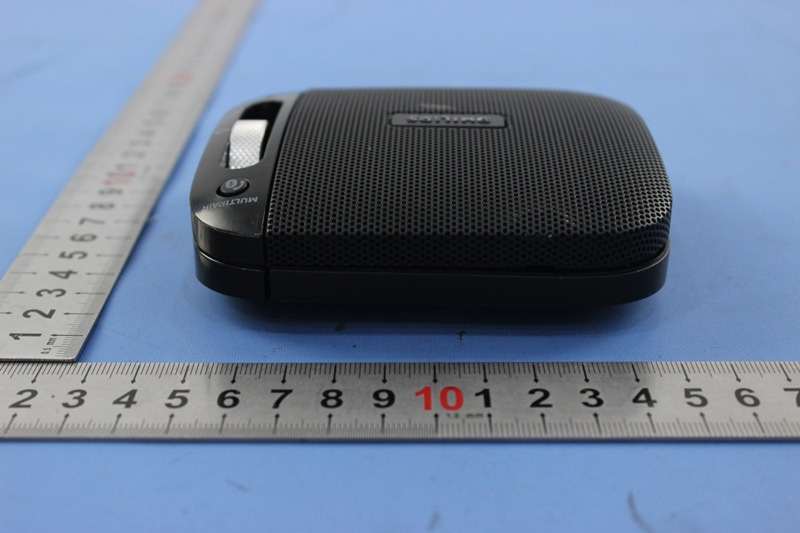

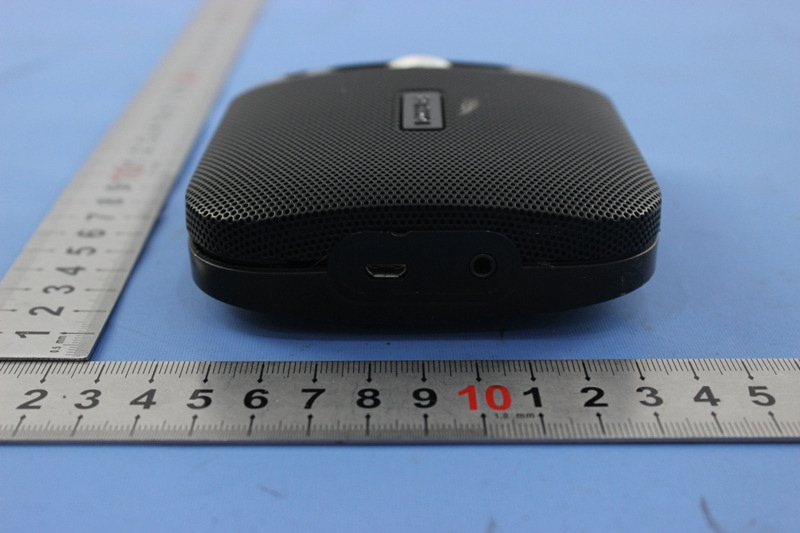

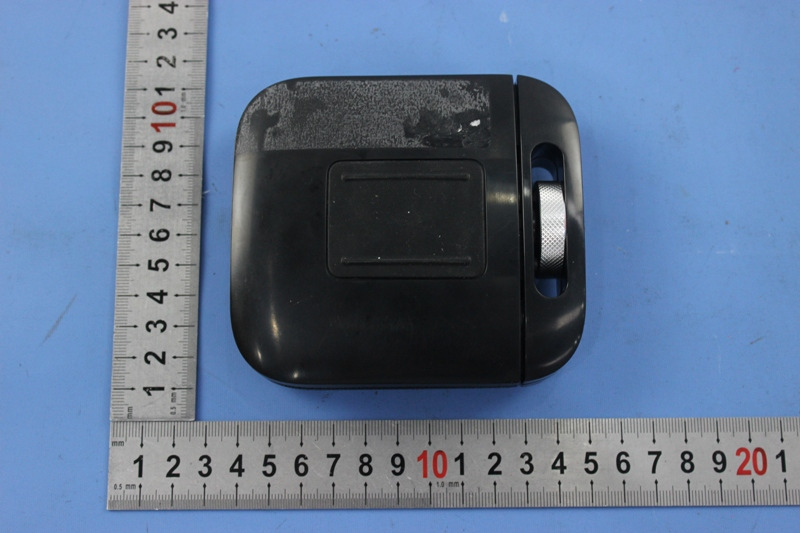

1 Photographs - EUT Constructional Details Test model No.: BT2600B/37

BT2600B/37 FCC ID: 2AANUPHBT2600 IC11260A-PHBT2600 Manufactured: Mar / 2015 AUDIO EQUIPMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

BT2600W/37 FCC ID: 2AANUPHBT2600 IC11260A-PHBT2600 Manufactured: Mar / 2015 AUDIO EQUIPMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150400174003 Page: 1 of 6 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 Cover page SAR Evaluation Report Application No.: SZEM1504001740CR Applicant/ Manufacturer: Gibson Innovations Limited Factory: Yusan Technology(Shenzhen) Limited Product Name: Wireless Portable Speaker Model No.(EUT): BT2600B/37 Add Model No.: BT2600W/37, BT2600x/37 x can be letter A to Z or nil Trade mark: PHILIPS FCC ID: 2AANUPHBT2600 Standards: 47 CFR Part 1.1307 (2014) 47 CFR Part 2.1093 (2014) KDB447498D01 General RF Exposure Guidance v05r02 Date of Receipt: 2015-04-13 Date of Test: 2015-04-17 to 2015-05-05 Date of Issue: 2015-05-08 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM150400174003 Page: 2 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-05-08 Original Authorized for issue by: Tested By 2015-05-05 (Eric Fu) /Project Engineer Date Prepared By 2015-05-08 (Vivi Zhou) /Clerk Date Checked By 2015-05-08 (Owen Zhou) /Reviewer Date SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM150400174003 Page: 3 of 6 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 3 Contents Page 1 COVER PAG…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Nanshan District, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM150400174002 Page: 1 of 112 1 Cover page FCC REPORT Application No: SZEM1504001740CR Applicant/ Manufacturer: Gibson Innovations Limited Factory: Yusan Technology(Shenzhen) Limited Product Name: Wireless Portable Speaker Model No.(EUT): BT2600B/37 Add Model No.: BT2600W/37, BT2600x/37 x can be letter A to Z or nil Trade mark: PHILIPS FCC ID: 2AANUPHBT2600 Standards: 47 CFR Part 15, Subpart C (2014) Date of Receipt: 2015-04-13 Date of Test: 2015-04-17 to 2015-05-05 Date of Issue: 2015-05-07 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM150400174002 Page: 2 of 112 2 Version Revision Record Version Chapter Date Modifier Remark 00 2015-05-07 Original Authorized for issue by: Tested By 2015-05-05 (Eric Fu) /Project Engineer Date Prepared By 2015-05-07 (Vivi Zhou) /Clerk Date Checked By 2015-05-07 (Owen Zhou) /Reviewer Date “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd. Report No.: SZEM150400174002 Page: 3 of 112 3 Test Summary Test Item Test Requirement Test method Result Antenna Requirement 47 CFR Part 15, Subpart C Section 15.203/15.247 (c) ANSI C63.10 (2009) PASS AC Power Line Conducted Emission 47 CFR Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) PASS Conducted Peak Output Power 47 CFR Part 15, Subpart C Section 15.247 (b)(1) ANSI C63.10 (2009) PASS 20dB Occupied Bandwidth 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Carrier Frequencies Separation 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Hopping Channel Number 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Dwell Time 47 CFR Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15, Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10 (2009) PASS Band-edge for RF Conducted Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS RF Conducted Spurious Emissions 47 CFR Part 15, Subpart C Section 15.247(d) ANSI C63.10 (2009) PASS Radiated Spurious emissions 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Restricted bands around fundamental frequency (Radiated Emission) 47 CFR Part 15, Subpart C Section 15.205/15.209 ANSI C63.10 (2009) PASS Remark: Model No.: BT2600B/37,…

Text truncated - open the document above for the full version.

1 Photographs - EUT Test Setup Test model No.: BT2600B/37 1.1 Conducted Emission 1.2 Radiated Emission 1.3 Radiated Spurious Emission
