2AANZ-HYLSOBBLKLED Speaker Bar

Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Jan. 26, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2AANZ-HYLSOBBLK DGL Group LTD. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Amy Chao Title: N/A Address: 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Tel.: 001-732-692-5180 Email: [email protected]

DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States 1 | P a g e Attestation Statements To: Federal Communications Commission Date: Jan. 26, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: 2AANZ-HYLSOBBLK Product Name: LED Speaker Bar This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Amy Chao Title: N/A Address: 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Tel.: 001-732-692-5180 Email: [email protected] DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: DGL Group LTD. Address: 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States FCC ID: 2AANZ-HYLSOBBLK 2.911(d)(7) USA Designated Agent for Service of Process We, [DGL Group LTD.] (“the applicant”) designate [DGL Group LTD.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: DGL Group LTD. USA Address: 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey 08817, United States FRN Number: 0024048670 Contact Name: Amy Chao Telephone No: 001-732-692-5180 Email: [email protected] Applicant Company name: DGL Group LTD. Address: 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Grantee FRN Number: 0024048670 FCC Grantee Code: 2AANZ Contact Name: Amy Chao Telephone No: 001-732-692-5180 Email: [email protected] DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States 2.911 (d)(7)USA Agent v1.5 Signature: Title: Signature: Title: Date: 2026-1-11 Date: 2026-1-11 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Date: 2026/1/26 Dear Sir/Madam, We, DGL Group LTD., Hereby declares the following statement, the model and exterior color differences, and the internal circuitry is completely identical for these model: Product name: LED Speaker Bar FCC ID: 2AANZ-HYLSOBBLK Model no.: HY-LSOB-BLK, HY-LSOB, HY-LSOB-XXX Sincerely, Name/Title： Amy Chao / N/A Company: DGL Group LTD. Address: 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Phone: 001-732-692-5180 Fax: 001-732-692-5000 E-Mail: [email protected]

DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States January 26, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2AANZ-HYLSOBBLK Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Sincerely, Title: N/A Address: 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Tel.: 001-732-692-5180 Email: [email protected]

DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States January 26, 2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2AANZ-HYLSOBBLK I, the undersigned, hereby authorize Shenzhen Tongzhou Testing Co.,Ltd. to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by Shenzhen Tongzhou Testing Co.,Ltd. shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with DGL Group LTD.. We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Amy Chao N/A Tel: 001-732-692-5180 Fax: 001-732-692-5000 Email: [email protected]

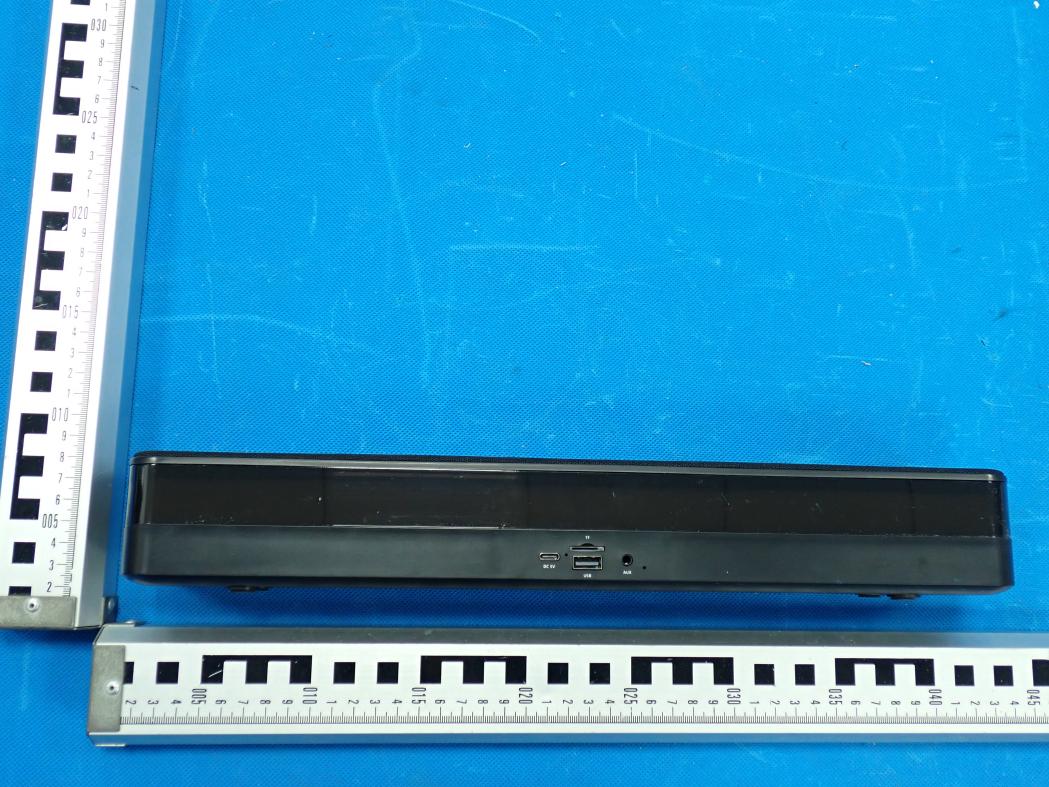

Report No.: TZ0035250703PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0035250703PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.: TZ0035250703PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.: TZ0035250703PH02 Page 4 of 4 External Photo 7

The size of the label is 30mm*25mm with White forecolor. The size of the logo is 5mm*5mm. Label Location FCC ID: 2AANZ-HYLSOBBLK

Report No.: TZ0035250703PH03 Page 1 of 5 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.: TZ0035250703PH03 Page 2 of 5 Internal Photo 3 Internal Photo 4 Report No.: TZ0035250703PH03 Page 3 of 5 Internal Photo 5 Internal Photo 6 Bluetooth antenna Report No.: TZ0035250703PH03 Page 4 of 5 Internal Photo 7 Internal Photo 8 Report No.: TZ0035250703PH03 Page 5 of 5 Internal Photo 9

FCC ID: 2AANZ-HYLSOBBLK Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2AANZ-HYLSOBBLK Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] DH5 Ant1 2402 0.56 0 1 -0.58 1 1.26 2.79 DH5 Ant1 2441 1.15 0.5 1 -0.58 1.5 1.41 2.75 DH5 Ant1 2480 1.03 0.5 1 -0.58 1.5 1.41 2.72 2DH5 Ant1 2402 1.29 1 1 -0.58 2 1.58 2.79 2DH5 Ant1 2441 1.91 1.5 1 -0.58 2.5 1.78 2.75 2DH5 Ant1 2480 1.66 1 1 -0.58 2 1.58 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Address: No. 333, Kexing Road, Nanping Town, Zhuhai City, Guangdong Province, China Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 1 of 38 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: LED Speaker Bar Trade Mark: HYPE Test Model: HY-LSOB-BLK FCC ID: 2AANZ-HYLSOBBLK Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 20db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 1.071 2401.391 2402.462 --- --- DH5 Ant1 2441 1.053 2440.403 2441.456 --- --- DH5 Ant1 2480 1.050 2479.409 2480.459 --- --- 2DH5 Ant1 2402 1.341 2401.265 2402.606 --- --- 2DH5 Ant1 2441 1.332 2440.271 2441.603 --- --- 2DH5 Ant1 2480 1.356 2479.262 2480.618 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 2 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 3 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 4 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 5 of 38 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.96659 2401.4461 2402.4127 --- --- DH5 Ant1 2441 0.97860 2440.4418 2441.4204 --- --- DH5 Ant1 2480 0.98429 2479.4402 2480.4245 --- --- 2DH5 Ant1 2402 1.2348 2401.3215 2402.5563 --- --- 2DH5 Ant1 2441 1.2549 2440.3088 2441.5637 --- --- 2DH5 Ant1 2480 1.2472 2479.3128 2480.5600 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 6 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 7 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 8 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 9 of 38 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict DH5 Ant1 2402 0.56 ≤20.97 PASS DH5 Ant1 2441 1.15 ≤20.97 PASS DH5 Ant1 2480 1.03 ≤20.97 PASS 2DH5 Ant1 2402 1.29 ≤20.97 PASS 2DH5 Ant1 2441 1.91 ≤20.97 PASS 2DH5 Ant1 2480 1.66 ≤20.97 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 10 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 11 of 38 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 12 of 38 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 13 of 38 Appendix D: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 1.032 ≥0.714 PASS 2DH5 Ant1 Hop 1.024 ≥0.904 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 14 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 15 of 38 Appendix E: Time of occupancy Test Result Test Mode Antenna Frequency [MHz] Burst Width [ms] TotalHops [Num] Result [s] Limit [s] Verdict DH5 Ant1 Hop 2.878 100 0.288 ≤0.4 PASS 2DH5 Ant1 Hop 2.885 100 0.289 ≤0.4 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 16 of 38 Test Graphs DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 17 of 38 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 18 of 38 Appendix F: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 19 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 20 of 38 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch.Name Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 0.09 -48.36 ≤-19.91 PASS DH5 Ant1 High 2480 0.53 -47.61 ≤-19.47 PASS DH5 Ant1 Low Hop_2402 -1.09 -49.34 ≤-21.09 PASS DH5 Ant1 High Hop_2480 0.02 -48.67 ≤-19.98 PASS 2DH5 Ant1 Low 2402 -0.03 -48.85 ≤-20.03 PASS 2DH5 Ant1 High 2480 0.27 -48.55 ≤-19.73 PASS 2DH5 Ant1 Low Hop_2402 -3.38 -48.99 ≤-23.38 PASS 2DH5 Ant1 High Hop_2480 -3.93 -48.43 ≤-23.93 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 21 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 22 of 38 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 23 of 38 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 24 of 38 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0035250703FRF01 Page 25 of 38 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -0.46 -0.46 --- PASS DH5 Ant1 2402 30~1000 -0.46 -52.77 ≤-20.46 PASS DH5 Ant1 2402 1000~26500 -0.46 -34.74 ≤-20.46 PASS DH5 Ant1 2441 0~Reference 0.14 0.14 --- PASS DH5 Ant1 2441 30~1000 0.14 -52.3 ≤-19.86 PASS DH5 Ant1 2441 1000~26500 0.14 -35.44 ≤-19.86 PASS DH5 Ant1 2480 0~Reference -0.02 -0.02 --- PASS DH5 Ant1 2480 30~1000 -0.02 -52.97 ≤-20.02 PASS DH5 Ant1 2480 1000~26500 -0.02 -35.06 ≤-20.02 PASS 2DH5 Ant1 2402 0~Reference -0.70 -0.70…

Text truncated - open the document above for the full version.

Report No.: TZ0035250703FRF01 Page 1 of 35 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0035250703FRF01 Product Name : LED Speaker Bar Model/Type reference : HY-LSOB-BLK, HY-LSOB, HY-LSOB-XXX FCC ID : 2AANZ-HYLSOBBLK Prepared for : DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey, 08817, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020 Date of Test : 2025-07-03 ~ 2025-07-31 Date of Issue : 2026-01-21 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0035250703FRF01 Page 2 of 35 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-01-21 Valid Initial release Report No.: TZ0035250703FRF01 Page 3 of 35 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ................................................ 10 5. M E A S U R E M E N T R E S U L T S ...................................................... 11 5.1. Maximum Peak Conducted Output Power ......................................................................... 11 5.2. Frequency Separation and 20 dB Bandwidth .................................................................... 12 5.3. Number of Hopping Frequency ........................................................................................... 13 5.4. Time of Occupancy (Dwell Time) ......................................................................................... 14 5.5. Conducted Spurious Emissions and Band Edges Test .................................................... 16 5.6. Restricted Band Emission Limit .......................................................................................... 17 5.7. AC Power line conducted emissions .................................................................................. 26 5.8. Band-edge measurements for radiated emissions ........................................................... 29 5.9. Pseudorandom frequency hopping sequence ................................................................... 32 5.10. Antenna requirement ............................................................................................................ 33 6. S U M M A R Y O F T E S T E Q U I P M E N T ............................................ 34 7. T E S T S E T U P P H O T O G R A P H S ................................................. 35 8. E X T E R N A L P H O T O S O F T H E E U T ............................................ 35 9. I N T E R I O R…

Text truncated - open the document above for the full version.

Report No.: TZ0035250703PH01 Page 1 of 2 Test Setup Photos of the EUT Conducted Emission Radiated Emission Below 1GHz Report No.: TZ0035250703PH01 Page 2 of 2 Radiated Emission Above 1GHz RF Conducted Test
