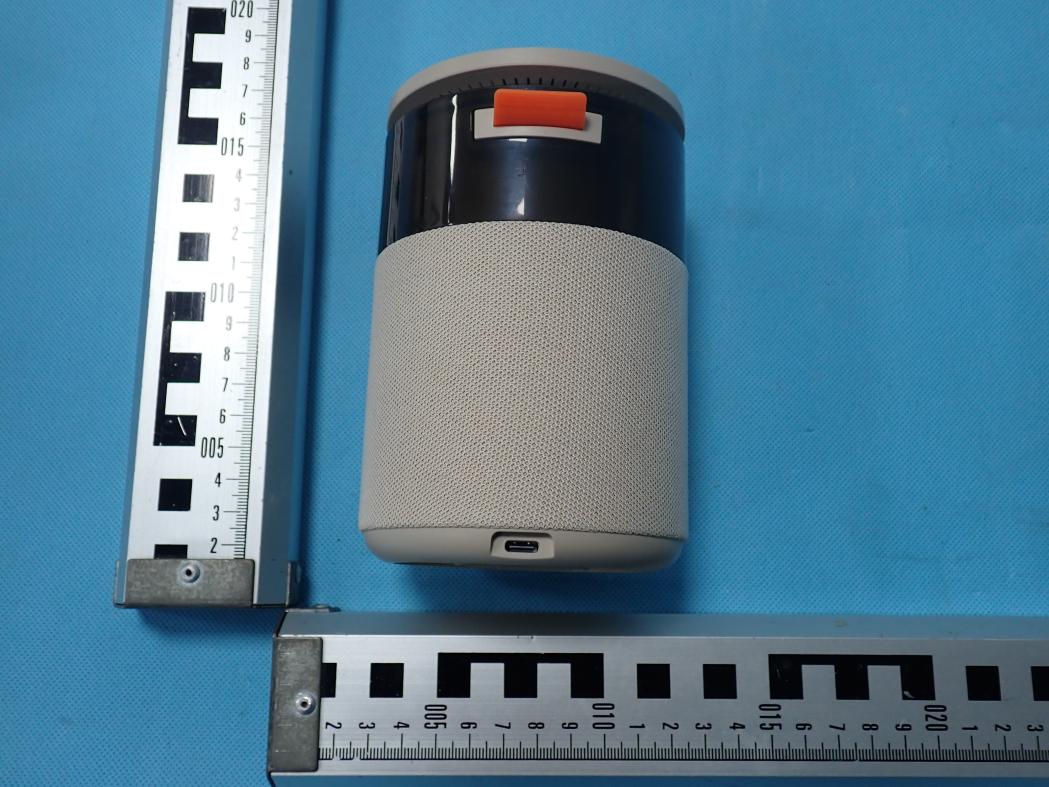

Report No.: TZ0035250942PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0035250942PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.: TZ0035250942PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.: TZ0035250942PH02 Page 4 of 4 External Photo 7

Label Location FCC ID: 2AANZSPCH

Report No.: TZ0035250942PH03 Page 1 of 11 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.: TZ0035250942PH03 Page 2 of 11 Internal Photo 3 Internal Photo 4 Report No.: TZ0035250942PH03 Page 3 of 11 Internal Photo 5 Internal Photo 6 Report No.: TZ0035250942PH03 Page 4 of 11 Internal Photo 7 Internal Photo 8 Bluetooth antenna Report No.: TZ0035250942PH03 Page 5 of 11 Internal Photo 9 Internal Photo 10 Report No.: TZ0035250942PH03 Page 6 of 11 Internal Photo 11 Internal Photo 12 Report No.: TZ0035250942PH03 Page 7 of 11 Internal Photo 13 Internal Photo 14 Report No.: TZ0035250942PH03 Page 8 of 11 Internal Photo 15 Internal Photo 16 Wireless charging for mobile phone with WPT Antenna 1 Report No.: TZ0035250942PH03 Page 9 of 11 Internal Photo 17 Internal Photo 18 Wireless charging for wireless Buds with WPT Antenna 3 Report No.: TZ0035250942PH03 Page 10 of 11 Internal Photo 19 Internal Photo 20 Wireless charging for smart watch with WPT Antenna 2 Report No.: TZ0035250942PH03 Page 11 of 11 Internal Photo 21

FCC ID: 2AANZSPCH Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2AANZSPCH Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] DH5 Ant1 2402 -6.09 -6.5 1 -0.58 -5.5 0.28 2.79 DH5 Ant1 2441 -5.75 -6 1 -0.58 -5 0.32 2.75 DH5 Ant1 2480 -5.84 -6.5 1 -0.58 -5.5 0.28 2.72 2DH5 Ant1 2402 -5.51 -6 1 -0.58 -5 0.32 2.79 2DH5 Ant1 2441 -5.06 -5.5 1 -0.58 -4.5 0.35 2.75 2DH5 Ant1 2480 -5.3 -6 1 -0.58 -5 0.32 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 1 of 38 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Speaker Trade Mark: FOREVER SUNDAYS Test Model: SUN-SPCH FCC ID: 2AANZSPCH Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 20db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.978 2401.445 2402.423 --- --- DH5 Ant1 2441 1.032 2440.391 2441.423 --- --- DH5 Ant1 2480 1.011 2479.412 2480.423 --- --- 2DH5 Ant1 2402 1.290 2401.289 2402.579 --- --- 2DH5 Ant1 2441 1.329 2440.256 2441.585 --- --- 2DH5 Ant1 2480 1.290 2479.286 2480.576 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 2 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 3 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 4 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 5 of 38 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.91388 2401.4690 2402.3829 --- --- DH5 Ant1 2441 0.91306 2440.4672 2441.3803 --- --- DH5 Ant1 2480 0.90427 2479.4720 2480.3763 --- --- 2DH5 Ant1 2402 1.2082 2401.3200 2402.5282 --- --- 2DH5 Ant1 2441 1.1879 2440.3267 2441.5146 --- --- 2DH5 Ant1 2480 1.2035 2479.3235 2480.5270 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 6 of 38 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 7 of 38 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 8 of 38 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 9 of 38 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict DH5 Ant1 2402 -6.09 ≤20.97 PASS DH5 Ant1 2441 -5.75 ≤20.97 PASS DH5 Ant1 2480 -5.84 ≤20.97 PASS 2DH5 Ant1 2402 -5.51 ≤20.97 PASS 2DH5 Ant1 2441 -5.06 ≤20.97 PASS 2DH5 Ant1 2480 -5.30 ≤20.97 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 10 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 11 of 38 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 12 of 38 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 13 of 38 Appendix D: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 0.976 ≥0.688 PASS 2DH5 Ant1 Hop 1.028 ≥0.886 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 14 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 15 of 38 Appendix E: Time of occupancy Test Result Test Mode Antenna Frequency [MHz] Burst Width [ms] TotalHops [Num] Result [s] Limit [s] Verdict DH5 Ant1 Hop 2.879 90 0.259 ≤0.4 PASS 2DH5 Ant1 Hop 2.885 130 0.375 ≤0.4 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 16 of 38 Test Graphs DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 17 of 38 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 18 of 38 Appendix F: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 19 of 38 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 20 of 38 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch.Name Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -6.97 -47.69 ≤-26.97 PASS DH5 Ant1 High 2480 -6.85 -48.93 ≤-26.85 PASS DH5 Ant1 Low Hop_2402 -8.38 -48.9 ≤-28.38 PASS DH5 Ant1 High Hop_2480 -6.97 -47.56 ≤-26.97 PASS 2DH5 Ant1 Low 2402 -7.80 -49.01 ≤-27.8 PASS 2DH5 Ant1 High 2480 -6.70 -48.45 ≤-26.7 PASS 2DH5 Ant1 Low Hop_2402 -10.67 -48.08 ≤-30.67 PASS 2DH5 Ant1 High Hop_2480 -7.71 -48.21 ≤-27.71 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 21 of 38 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 22 of 38 DH5-Ant1-Hop_2402-PASS DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 23 of 38 2DH5-Ant1-2402-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 24 of 38 2DH5-Ant1-Hop_2402-PASS 2DH5-Ant1-Hop_2480-PASS Appendix Test Data of the Report No.: TZ0035250942FRF01 Page 25 of 38 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 0~Reference -7.05 -7.05 --- PASS DH5 Ant1 2402 30~1000 -7.05 -62.43 ≤-27.05 PASS DH5 Ant1 2402 1000~26500 -7.05 -45.46 ≤-27.05 PASS DH5 Ant1 2441 0~Reference -7.17 -7.17 --- PASS DH5 Ant1 2441 30~1000 -7.17 -59.64 ≤-27.17 PASS DH5 Ant1 2441 1000~26500 -7.17 -45.33 ≤-27.17 PASS DH5 Ant1 2480 0~Reference -7.13 -7.13 --- PASS DH5 Ant1 2480 30~1000 -7.13 -61.88 ≤-27.13 PASS DH5 Ant1 2480 1000~26500 -7.13 -45.18 ≤-27.13 PASS 2DH5 Ant1 2402 0~Reference -10.3…

Text truncated - open the document above for the full version.

Inverted F Antenna Specification Summary ITEMANT SPEC Model Name 2.4G ANT HorizontalVertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26-0.76-0.58-5.25-2.46-1.86 MAX. Gain -0.58dB PolarizationHorizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Report No.: TZ0035250942FRF01 Page 1 of 35 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0035250942FRF01 Product Name : Speaker Model/Type reference : SUN-SPCH, SUN-SPCH-BLK, SUN-SPCH-BLSH, SUN-SPCH-CRM, SUN-SPCH-XXX FCC ID : 2AANZSPCH Prepared for : DGL Group LTD. 2045 Lincoln Highway, 3rd Floor, Edison, New Jersey 08817, United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020 Date of Test : 2025-09-28 ~ 2025-10-23 Date of Issue : 2025-10-24 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0035250942FRF01 Page 2 of 35 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2025-10-24 Valid Initial release Report No.: TZ0035250942FRF01 Page 3 of 35 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ................................................ 10 5. M E A S U R E M E N T R E S U L T S ...................................................... 11 5.1. Maximum Peak Conducted Output Power ......................................................................... 11 5.2. Frequency Separation and 20 dB Bandwidth .................................................................... 12 5.3. Number of Hopping Frequency ........................................................................................... 13 5.4. Time of Occupancy (Dwell Time) ......................................................................................... 14 5.5. Conducted Spurious Emissions and Band Edges Test .................................................... 16 5.6. Restricted Band Emission Limit .......................................................................................... 17 5.7. AC Power line conducted emissions .................................................................................. 26 5.8. Band-edge measurements for radiated emissions ........................................................... 29 5.9. Pseudorandom frequency hopping sequence ................................................................... 32 5.10. Antenna requirement ............................................................................................................ 33 6. S U M M A R Y O F T E S T E Q U I P M E N T ............................................ 34 7. T E S T S E T U P P H O T O G R A P H S ................................................. 35 8. E X T E R N A L P H O T O S O F T H E E U T ............................................ 35 9…
