2AAO3C12TXfireplace remote controller

BlueRF fireplace rmote controller http:// www.bluerf.com C12 C12 is the thermostat remote control brand under Changsha Micro Control software Technology Co., LTD. C12 is the best partner to enhance the value of the fireplace products. Features > Compatibility with most types of fireplaces >Novel appearance >Large size LCD >Touch-key > Manual and automatic control mode > Room and thermostat temperature display >Childproof >Low battery alarm (transmitter and receiver) >Shutdown in case of overheating or loss of signal within 24 hours >Low consumption Parameters >Power supply: 1.5 V 2 AAA >Standby current: 35μA >Operation rang: 20~40 m >Operating temperature: -20~60°C°C >Measurement range: 0~32°C°C >Frequency: 303.825 MHz >Learning: Automatic identification and matching >Size: 160 mm×59 mm×12 mm >Weight: 65 g FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 ChangSha Micro-control software technology Co.,LTD 2013-7-18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _____ ChangSha Micro-control software technology Co.,LTD __ ___hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product description: fireplace remote controller model name: C12 We affirm that between SIEMIC and ___ ChangSha Micro-control software technology Co.,LTD ___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : lei rusha / product mangaer Contact information / address : Room 14021,89# Tianxin Plaza,East Jiefang Road,Changsha,Hunan,China. 2AAO3C12TX FCC ID

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 ChangSha Micro-control software technology Co.,LTD 2013-7-18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AAO3C12TX We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title : lei rusha / product mangaer Contact information / address : Room 14021,89# Tianxin Plaza,East Jiefang Road,Changsha,Hunan,China.

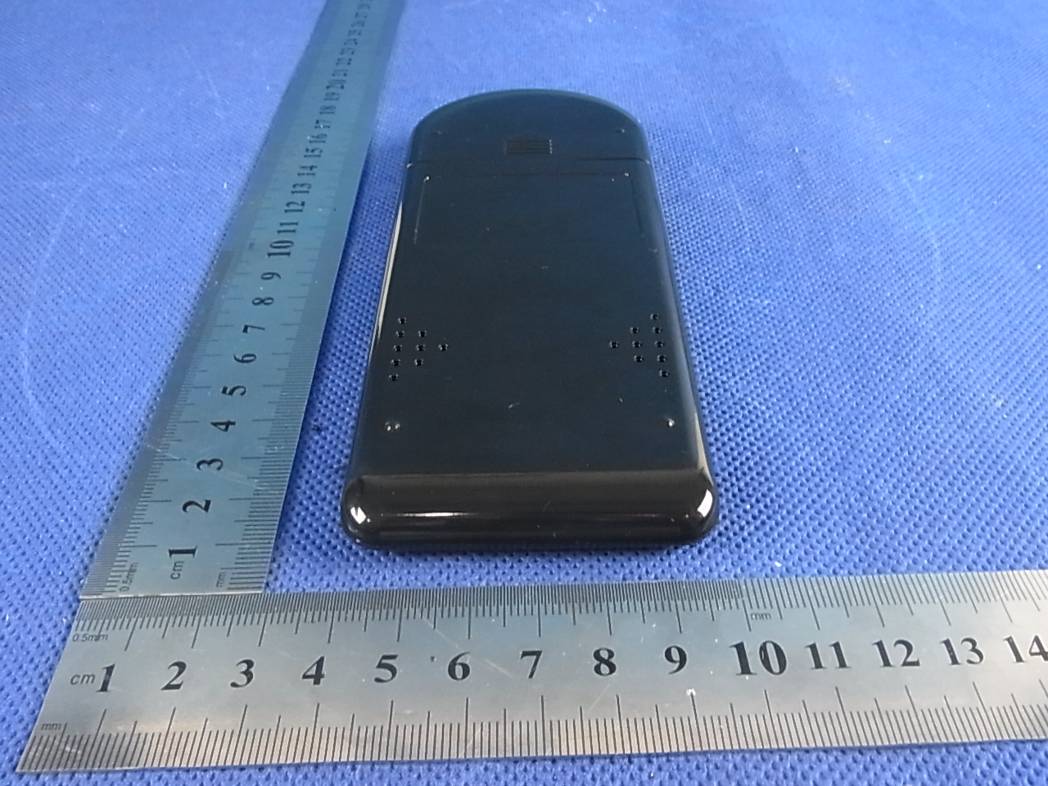

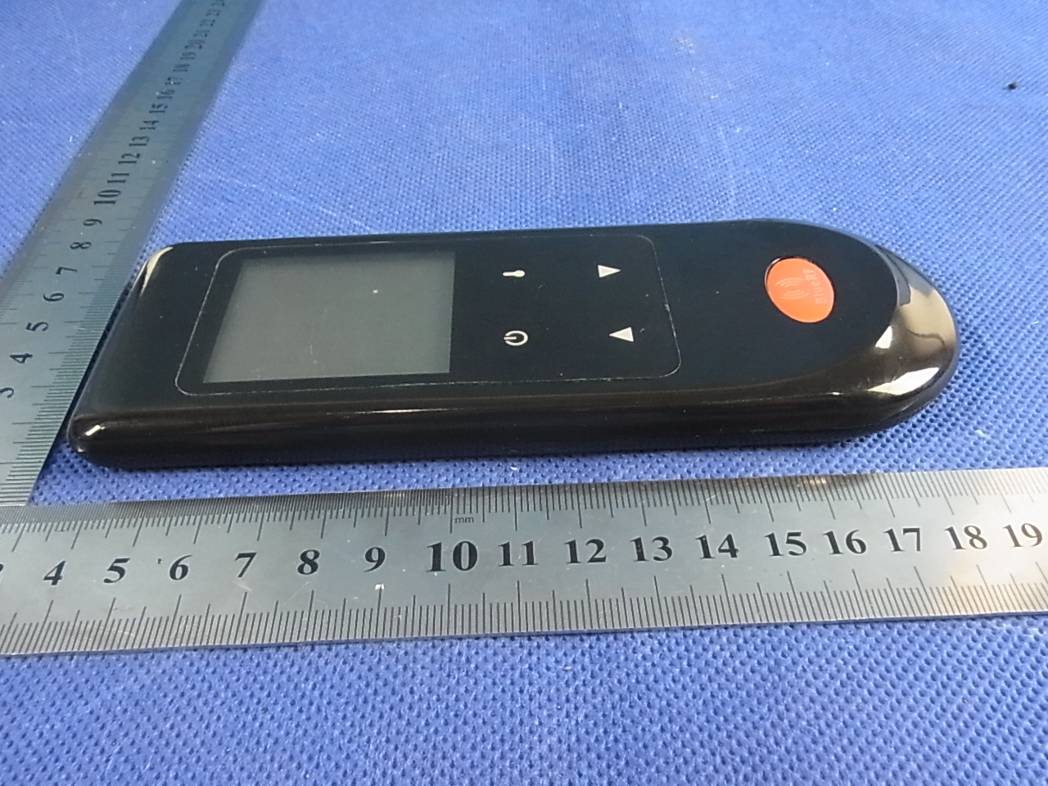

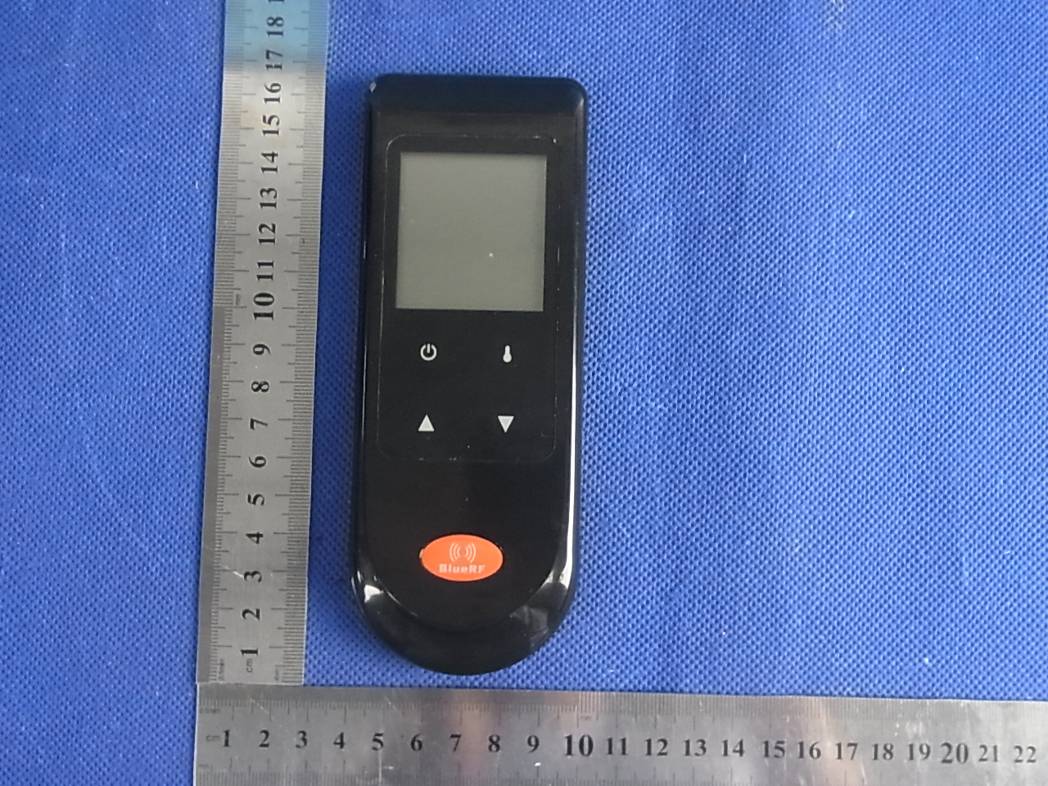

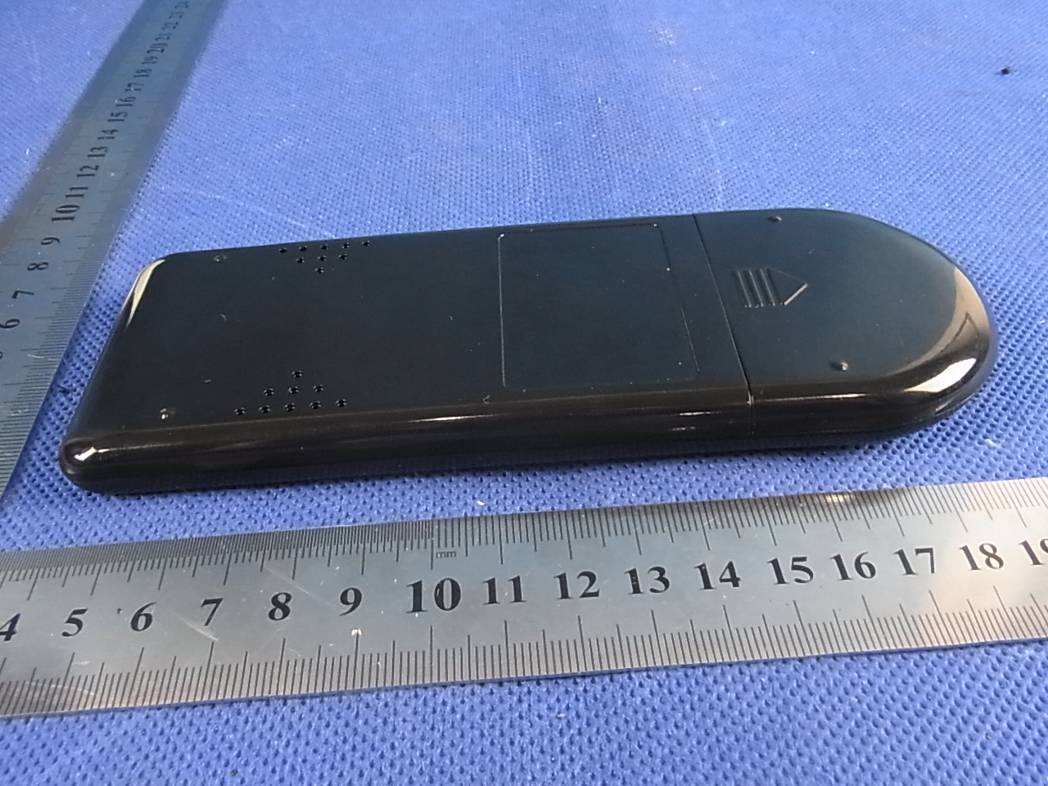

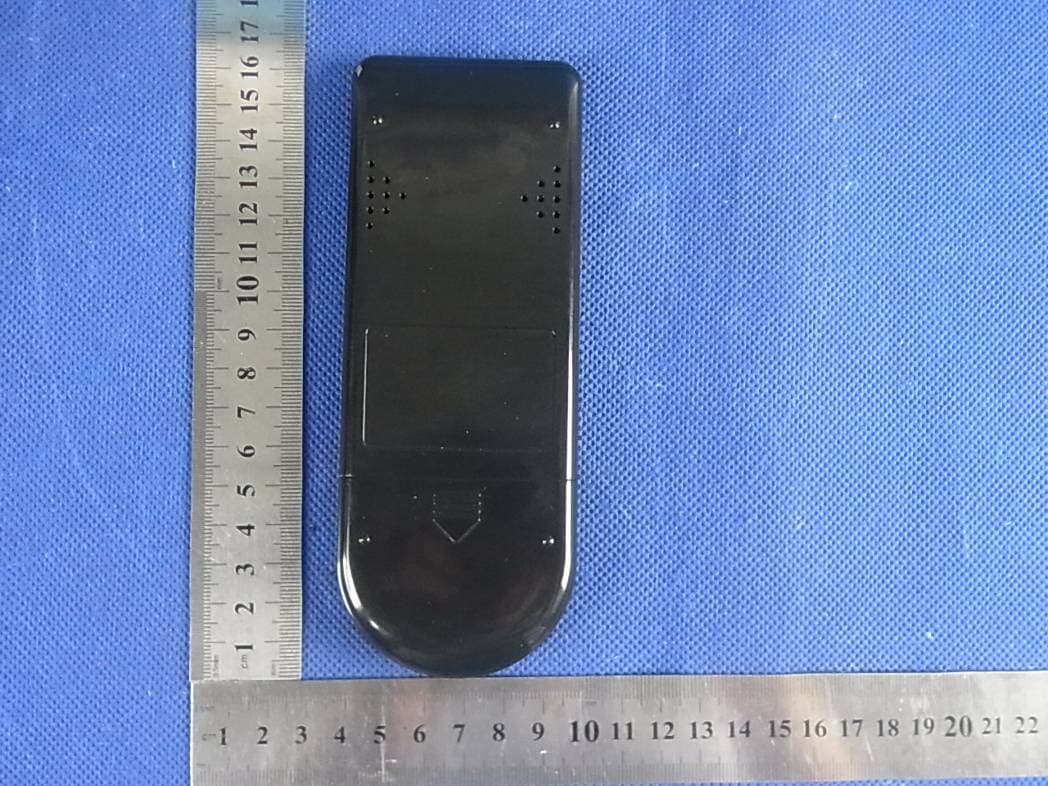

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

fireplace remote controller Model Name：C12 FCC ID: 2AAO3C12TX

Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13

FCC RADIO TEST REPORT FCC ID: 2AAO3C12TX Product： fireplace rmote controller Trade Name： N/A Model Name： C12 Serial Model： N/A Report No.： 2013DG0720221F Prepared for Changsha Micro-control Software Technology Co.,Ltd. Room 14021, 89# Tianxin Plaza, East Jiefang Road, Changsha, Hunan, China. Prepared by NTEK Testing Technology Co., Ltd 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. Page 2 of 26 Report No.: 2013DG0720221F ` TEST RESULT CERTIFICATION Applicant’s name................. : Changsha Micro-control Software Technology Co.,Ltd. Address ................................. : Room 14021, 89# Tianxin Plaza, East Jiefang Road, Changsha, Hunan, China. Manufacture's Name............ : Changsha Yuanben Technology Development Co.,Ltd. Address ................................. : Room 14021, 89# Tianxin Plaza, East Jiefang Road, Changsha, Hunan, China. Product description Product Name ........................... : fireplace rmote controller Model and/or type reference : C12 Serial Model： N/A Standards............................. : FCC Part15.231:2012 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 17 Jul. 2013 ~26 Jul. 2013 Date of Issue...........................................: 26 Jul. 2013 Test Result...............................................: Pass Testing Engineer : (Eric Wang) Technical Manager : (Jerry You) Authorized Signatory : (Jack yu) Page 3 of 26 Report No.: 2013DG0720221F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BELOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 23 4.1 TEST PROCEDURE 23 4.2 DEVIATION FROM STANDARD 23 4.3 TEST SETUP 23 4.4 TEST RESULTS 24 5 . TRANSMITTER TIMEOUT 25 5.1 REQUIREMENTS 25 6 . EUT TEST PHOTO 26 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 26 Report No.: 2013DG0720221F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 26 Report No.: 2013DG0720221F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 26 Report No.: 2013DG0720221F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment fireplace rmote controller Trade Name N/A Model Name C12 Serial Model N/A Model Difference N/A Product Description The EUT is a fireplace rmote controller Product Type Remote Control Operation Frequency: 303.825MHz Modulation Type: ASK Number Of Channel 1CH. Antenna Designation: Printed antenna Antenna Gain(Peak) 0 dBi Output Power: 72.42 dBuV/m (AV Max.) Channel List N/A Adapter N/A Battery DC 3V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Antenna NA 0 Antenna Page 7 of 26 Report No.: 2013DG0720221F ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 N/A For Radiated Emission Final Test Mode Description Mode 1 TX Page 8 of 26 Report No.: 2013DG0720221F ` 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED Radiated Spurious Emission Test E-1 EUT Page 9 of 26 Report No.: 2013DG0720221F ` 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) The EUT has been tested as an independent unit together with other necessary accessories or support units. The foll…
