2AAOQ-IFOUNDKEYiFOUND Key

2013, June 1 www.i-to-mo.com iTOMO / iFOUND K ey USER GUIDE 2013, June 2 www.i-to-mo.com 1.)Quick Start Guide Use a coin to open IFOUND case easily Assemble battery with iFOUND case Load CR2032 battery into iFOUND top case , then assemble bottom case (black) by hands without any tool. (please hear “click” to ensure the assembling is completed) Download the iFOUND APP for your iOS device Installing the iFOUND APP *compatible with iPhone 4S/5, iPad 3 rd /4 th gen, iPad mini, iPod Touch 5 th gen. On your iOS device, go to the App Store and serch for “iFOUND” as below icon. Download and install the free APP onto your iOS devicse. o r you may scan below QR code pattern to down. Open the iFOUND App on your iOS device. If the Bluetooth setting on your iOS device is not turn on, a pop-up window will ask to turn on the Bluetooth. Tap the settings button and turn on the Bluetooth. Once the Bluetooth is on, go back the iFOUND App. Pairing the iFOUND to your iOS device 2013, June 3 www.i-to-mo.com Turn on the iFOUND by pressing and holding the trigger button for 3 seconds until you hear the music and the LED light is flashing. This puts your iFOUND into pairing mode. Put iFOUND near to your iOS device to start pairing Ta p “searching device”, you will find paired “iFOUND” in the list Ta p “ Add” button to confirm the iFOUND connected with your iOS device you will find the signal bar with green  iFOUND tracking setting: ON The default setting of iFOUND products are:  iFOUND alert setting of sound and vibration: ON  iFOUND range alert: FAR (distance approximately 100 feet (30M))  iFOUND move alert: OFF NOTE: Actual performance in distance depends on user’s environment 2013, June 4 www.i-to-mo.com 2) iFOUND alert indication 3) Start to using iFOUND Attached iFOUND to your target subjects, such as Key ring, backpack, Pets,.... Press the trigger button of iFOUND, your iPhone/iPad/iPod Touch will get a pup-on window with alert source continuously, you can stop alert by pressing trigger button of iFOUND Find your iPhone/iPad/iPod Touch: iFOUND calls your iOS device. Moving alert Out of Range Alert Bluetooth disconnected A lert 2013, June 5 www.i-to-mo.com open iFOUND A P P, tap picture button, the iFOUND gives out “beep” sounds and lighting continuously, you can stop alert either by tapping picture button or pressing the trigger button of iFOUND Find the iFOUND device Ta p picture button to enter below page: How to rename and change picture for your iFOUND Tap picture button Tap picture button to change picture you want from “Photo Gallery” or “Photo Album” Tap here to rename iFOUND device as your want 2013, June 6 www.i-to-mo.com Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC conformity Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada conformity Statement This device complies with Industry Canada licence-exempt RSS-210 standard. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le manuel d'utilisation des appareils radio exempts de licence doit contenir l'énoncé qui suit, ou l'équivalent, à un endroit bien en vue et/ou sur les appareils : Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

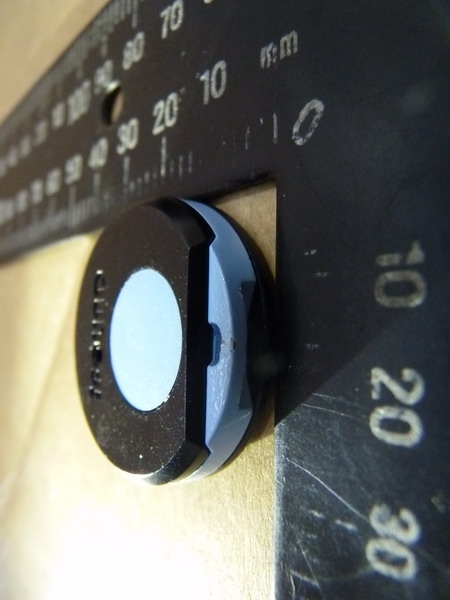

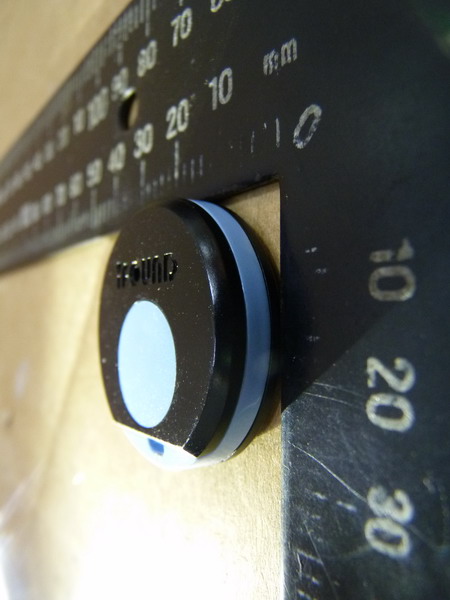

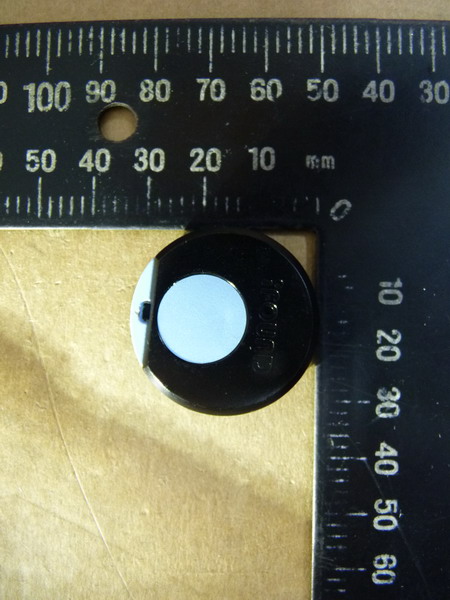

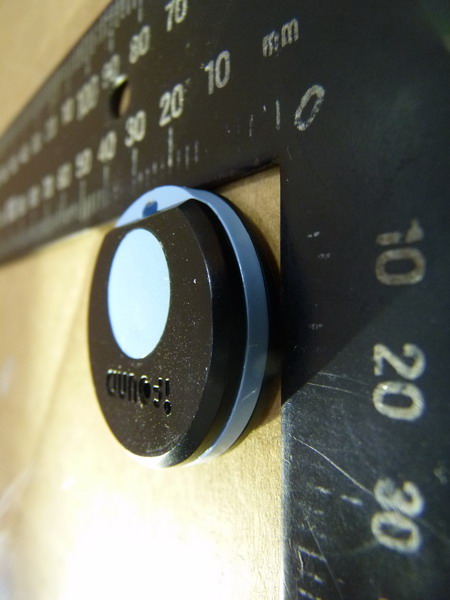

Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 17 External Photos Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 17

Name:iFOUND Key Made in Taiwan www.i-to-mo.com FCC ID:2AAOQ-IFOUNDKEY IC :11228A-IFOUNDKEY Battery:CR2032 3V CCAJ13LP2040T2 Arial Bold Arial Bold Name:iFOUND Key Battery:CR2032 3V Made in Taiwan FCC ID:2AAOQ-IFOUNDKEY IC :11228A-IFOUNDKEY CCAJ13LP2240T2 3.5 pt SizeFont 5 pt www.i-to-mo.com Name:iFOUND Key Made in Taiwan www.i-to-mo.com FCC ID:2AAOQ-IFOUNDKEY IC :11228A-IFOUNDKEY Battery:CR2032 3V CCAJ13LP2040T2 Deltron Technology Inc. iFOUND Key 2013/07/23 Rev:B

Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 17 Internal Photos Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 17 Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 17

Registration number: W6M21305-13248-C-1 FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Page 15 of 30 3.2 Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = -3.14 dBm + 2.8093 dBi = -0.3307 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 3.3 RF Exposure Compliance Requirements Conclusion: No Evaluation required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Conducted Power -3.14 dBm (0.4853mW) EIRP Power -0.3307 dBm (0.9267mW) z The antenna is PCB antenna, antenna gain is -2.8093 dBi. Threshold for no SAR evaluation is 24.58 mW. Conclusion: No SAR evaluation required since Transmitter output power is below FCC threshold.

of Applicant: Deltron Technology Inc. Address: 8F-3, No. 125, Lane 235, Pao Chiao Rd., Hsin Tien Dist., New Taipei City 231, Taiwan . R.O.C. Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21305-13248-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for iFOUND Key Model No.: 1804726 FCC ID: 2AAOQ-IFOUNDKEY Registration number: W6M21305-13248-C-1 FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 30 TABLE OF CONTENTS 1 GENERAL INFORMATION ..........................................................................................................2 1.1 NOTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 TEST STANDARDS.........................................................................................................................5 2 TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 TEST ENVIRONMENT....................................................................................................................6 2.3 TEST EQUIPMENT LIST.................................................................................................................7 2.4 G ENERAL TEST PROCEDURE........................................................................................................9 3 TEST RESULTS (ENCLOSURE) ................................................................................................11 3.1 PEAK OUTPUT POWER (TRANSMITTER) ......................................................................................12 3.2 EQUIVALENT ISOTROPIC RADIATED POWER................................................................................15 3.3 RF EXPOSURE COMPLIANCE REQUIREMENTS............................................................................15 3.4 T RANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS....................................................16 3.5 SPURIOUS EMISSIONS (TX) .........................................................................................................17 3.6 RADIATED EMISSION ON THE BAND EDGE..................................................................................21 3.7 MINIMUM 6 DB BANDWIDTH.....................................................................................................23 3.8 P EAK POWER SPECTRAL DENSITY.............................................................................................26 3.9 P OWER LINE CONDUCTED EMISSION.........................................................................................29 APPENDIX.............................................................................................................30 Registration number: W6M21305-13248-C-1 FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 30 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: June 21, 2013 Spencer Yang Date WTS-Lab. Name Signature Technical responsibility for area of testing: June 21, 2013 Danny Sung Date WTS Name Signature Registration number: W6M21305-13248-C-1 FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 30 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) 3 meter …

Text truncated - open the document above for the full version.

Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 17 Set Up Photo of Radiated Emission EMI Below 1GHz Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 17 Above 1GHz Registration number: W6M21305-13248-FCC FCC ID: 2AAOQ-IFOUNDKEY Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 17 RF
