2AAOR20080125Remote Control

1 / 2 REMOTE CONTROL INSTRUCTIONS: Tech Spec: 1. Model Name: ZY16-12 2. Operating voltage: DC12V (12V/23A battery, shown as picture above) 3. Operating frequency: 433.92MHz 4. Frequency deviation: ± 0.2MHz How to use: 1. The 1-12 buttons are all for the on/off power switch for the lights, one channel is for one light, total could control 12 lights on/off. Press button 1 one time, the light on, press button 1 again, the light off. 2. Press one button, the remote control will transmitter a rf signal. 3. The remote control could not work in a sealed metal box. 4. When there is strong interference, you could pull straight the antenna of the remote control to reach better function. 2 / 2 If the remote control does not work, check whether the battery of the remote control is out of power. To replace the remote control battery: 1. Open the back cover of the remote control. 2. Replace with a new alkaline “12V 23A” (12 volt) battery (included) into the compartment. WARNING: A. This is not a toy and is not intended for use by children. B. Do not dispose of the battery in fire as the battery may leak and explode. C. Do not mix old and new batteries and do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. D. Exhausted batteries are to be removed from the product. E. Use type “12V 23A” (12 volt) batteries. F. Safe for indoor use. G. For this device, A transmitter activated automatically shall cease transmission within 5 seconds after activation. FCC warning: Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Minleon International (USA) Limited LLC Add: 4902 Carlisle Pike - Box 195, Mechanicsburg, Pennsylvania 17050, United States Tel: 717 991 1432 Fax: / 2013-07-27 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: 2AAOR20080125 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Dean Stiteler / CEO Contact information / address : 4902 Carlisle Pike - Box 195, Mechanicsburg, Pennsylvania 17050, United States Tel: 717 991 1432 Fax: / E-Mail: [email protected]

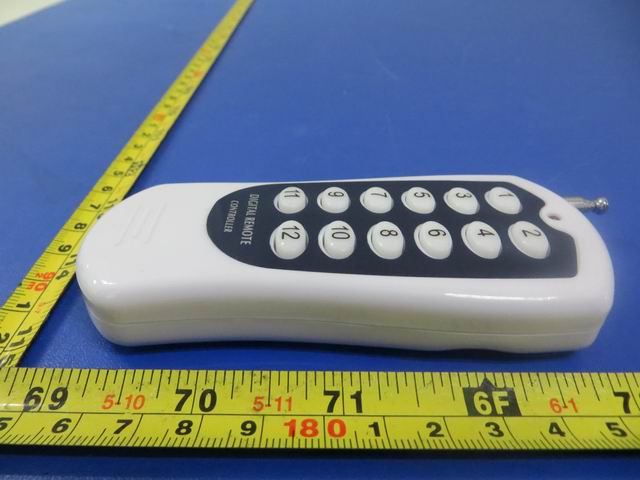

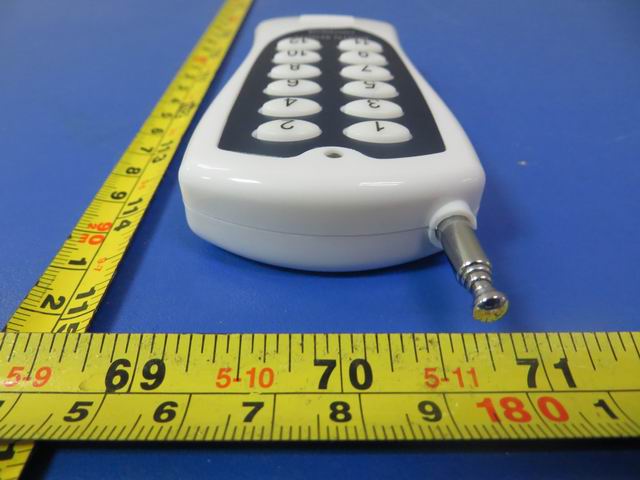

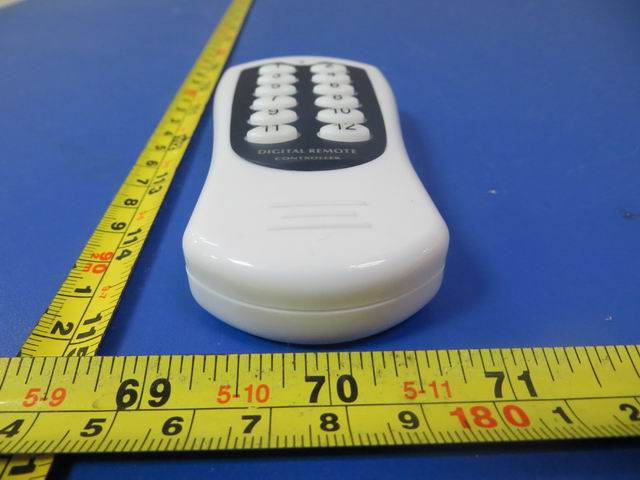

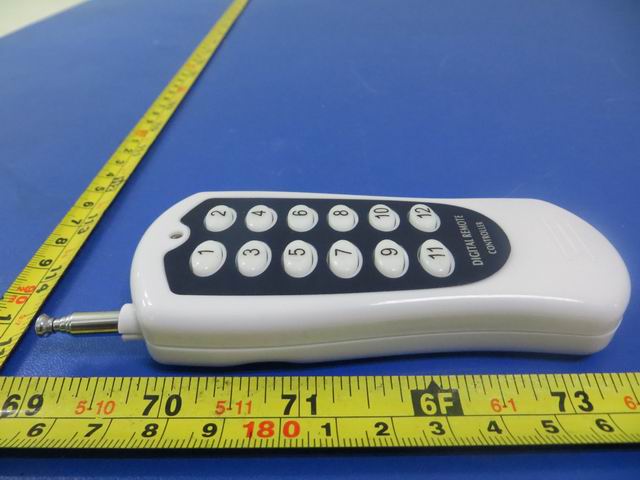

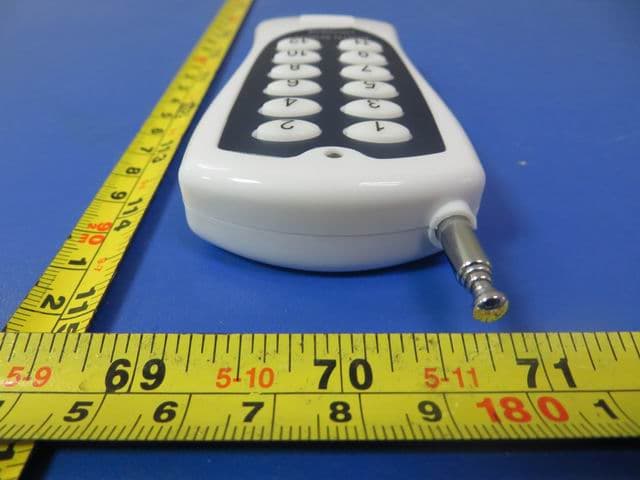

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7 Fig.8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION Size: L2.7cm*W1.4cm Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Minleon International (USA) Limited LLC REMOTE CONTROL Model No.: ZY16-12 FCC ID: 2AAOR20080125 Made in China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 24 FCC TEST REPORT For Minleon International (USA) Limited LLC REMOTE CONTROL Model No.: ZY16-12 Prepared for : Minleon International (USA) Limited LLC Address : 4902 Carlisle Pike - Box 195, Mechanicsburg, Pennsylvania 17050, United States Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : July 15, 2013 Number of tested samples : 1 Serial number : Prototype Date of Test : July 15, 2013 – July 29, 2013 Date of Report : July 29, 2013 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 24 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2012 Report Reference No. .............. : LCS130715348TF Date of Issue ................................ : July 29, 2013 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : Minleon International (USA) Limited LLC Address ........................................ : 4902 Carlisle Pike - Box 195, Mechanicsburg, Pennsylvania 17050, United States Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2012, ANSI C63.4-2003 Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : REMOTE CONTROL Trade Mark .................................. : ZANBO Model/ Type reference................. : ZY16-12 Ratings ......................................... : DC 12V by battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Yoyo Wang / File administrators Fox Zhang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 24 FCC--TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS130715348TF July 29, 2013 Date of issue Type / Model........................... : ZY16-12 EUT......................................... : REMOTE CONTROL Applicant............................... : Minleon International (USA) Limited LLC Address.................................. : 4902 Carlisle Pike - Box 195, Mechanicsburg, Pennsylvania 17050, United States Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Zhianbao Electronics Co., Ltd. Address................................... : 5th Floor, Building A1, Donghua Industrial Area, Sanwei Xixiang, Bao'an District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Zhianbao Electronics Co., Ltd. Address................................... : 5th Floor, Building A1, Donghua Industrial Area, Sanwei Xixiang, Bao'an District, Shenzhen, Guangdong, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAOR20080125 Report No.: LCS130715348TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 24 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................................................5 1.1. DESCRIPTION OF DEVICE (EUT) .....................................................................................................................................5 1.2. OBJECTIVE......................................................................................................................................................................5 1.3. ENVIRONMENTAL CONDITIONS.......................................................................................................................................5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS.......................................................................................................6 1.5. EXTERNAL I/O PORT.......................................................................................................................................................6 1.6. EUT OPERATION..............................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID:2AAOR20080125 Report No.: LCS130715348TF _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1 Photo Of Radiated Emission Measurement（X Position） Fig.1 Fig.2
