2AAP4-AMTGGL1RGAME Golf Live

PAR 5 SCORE 48 YDS DASHBOARD SCORECARD END ROUND JUMP TO HOLE PLAY GOLF MY ROUNDINSIGHTS ME DASHBOARD PLAY GOLF Courses Nearby Presidio Golf Course GPS and real-time scoring, with just a few taps! Select a course to get started. *Not compatible with GAME GOLF devices panel size: 4.5"x 3.5" overall size: 27" x 3.5" (6 panels front & back) FRONT SIDE BACK SIDE 950-00011 Rev A QUICK START GUIDE Step 1Install GAME GOLF App Step 2Create AccountStep 3Install TAGs Into Clubs Congratulations! For help videos and to learn more visit: http://www.gamegolfsupport.com Step 7Play Golf & Select Course Step 10End Round, Edit & Sign gamegolf Apps GAME GOLF - GPS Tracker Active Mind Technology Inc. INSTALL username password forgot password Create Account Log in Step 4Set Up Online Golf Bag Presidio Golf Course 4 PUTTS - + 2 EDIT Edit Round Sign Round LOCK SIGN ROUND? Signing generates your club performance, statistics and more. Monday 30th Presidio Golf Course Skip This Step +0 1HOLE Create Account Connect Bluetooth Contents: GAME GOLF Device, 18 TAGs, USB Cable and Pouch Step 6Power On Power on outside 2 min. before you play. Step 9TAG Each Shot Tag at your golf ball location. GPS must be connected. DASHBOARD Welcome to GAME GOLF! Set Up Clubs Match Online Clubs to Actual Clubs Harding Park Gol... Tees White Tees Back Starting Hole Hole 1 Connect Live Device Start Round Please make sure your device is powered on and in pairing mode. Learn more... Step 8 Charging Fully Charged Provides 10 hours of play Step 5Charge Device & Go Play Golf! Charge for 2 hours Set up On Course Set up On Course Set up On Course Set up On Course Set up On Course On Course Set up On Course Set up On Course Set up On Course Set up On Course Set up On Course

Users Manual

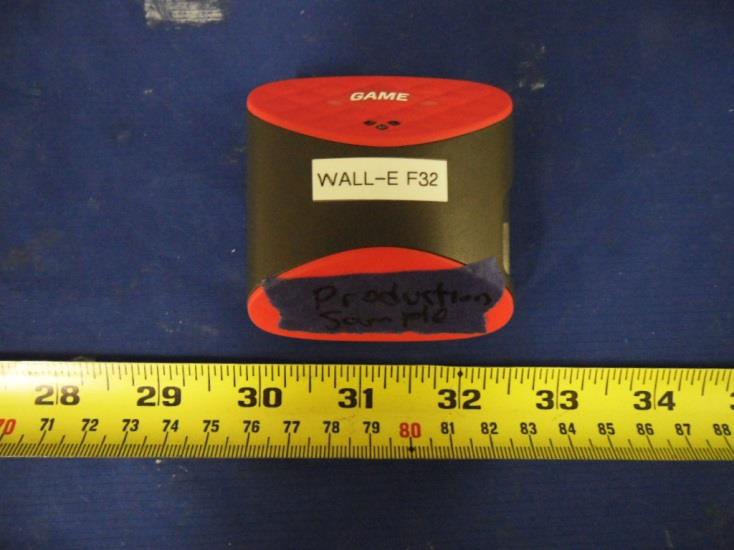

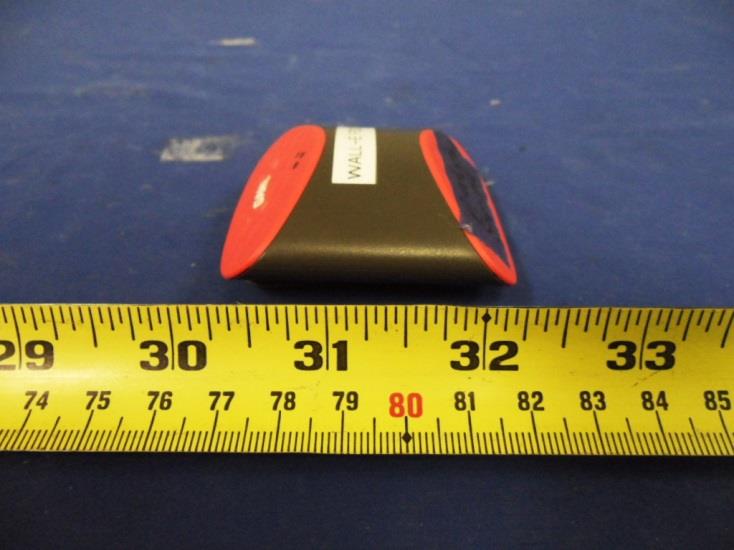

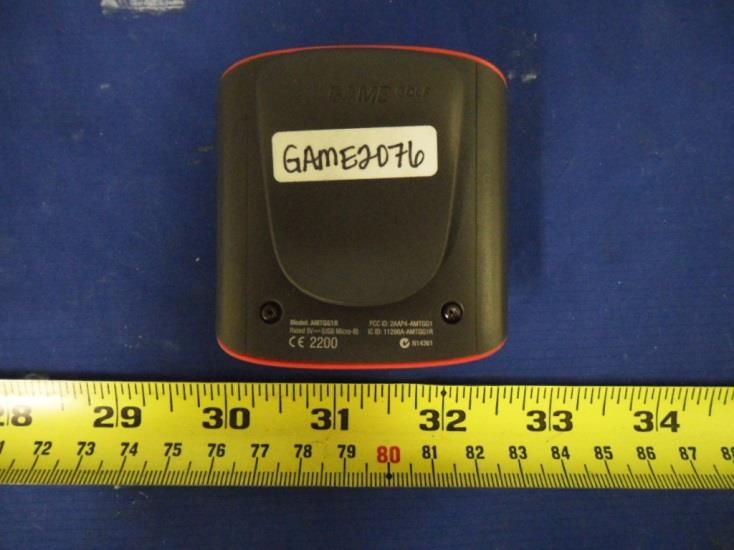

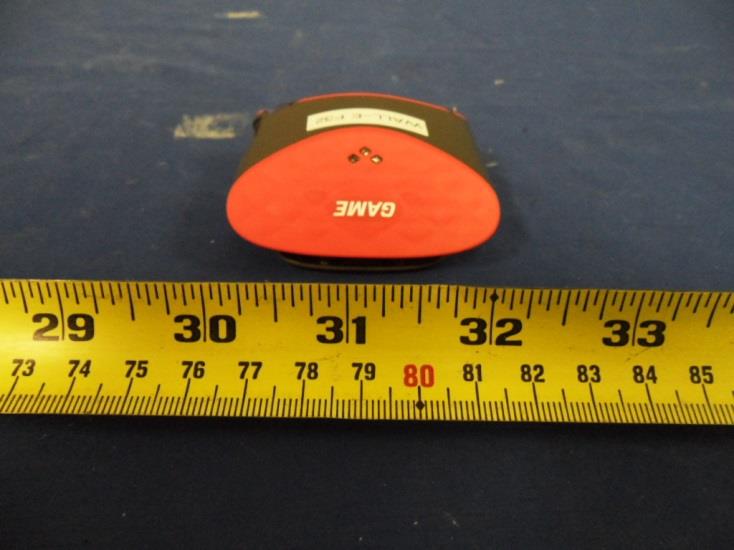

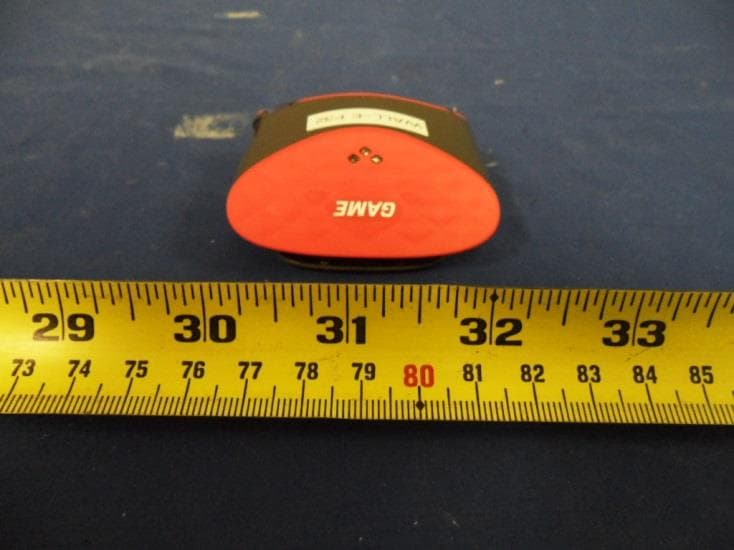

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: EUT Photos - External EUT – Front View EUT – Rear View EUT – Left View EUT – Right View EUT – Top View EUT – Bottom View

Label and Location Label

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: EUT Photos - Internal EUT with Cover EUT without Cover Main PCB – Top View Main PCB – Rear View Battery – Top View Battery – Bottom View

RF EXPOSURE FCC ID: 2AAP4-AMTGGL1R RF EXPOSURE CALCULATION ______________________________________________________________________________________________________________________ According to § 15.247(e)(i) and § 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to TCB Exclusions list, no SAR required if power is lower than the flowing threshold: Frequency Range Center frequency (MHz) 60/f SAR Limitation (mW) Low Frequency (MHz) High Frequency(MHz) 2400 2483.5 2441 25 Maximum measured transmitter power: Mode Conducted Power (dBm) Max Antenna Gain (dBi) EIRP (mW) EDR 4.73 5.3 10.07 Threshold at which no SAR required is 25 mW. Maximum Tx power is 10.07mW EIRP. Conclusion: No SAR is required. Completed By: Cipher Chu SIEMIC, Inc 775 Montague Expressway, Milpitas, CA 95035 Phone: (408) 526-1188 Date: May 7th, 2015

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Report No.: FCC-IC_RF_SL15010901-SFE-001-BT Supersede Report No.: NONE Applicant : Active Mind Technology, Inc. Product Name : GAME Golf Live Model No. : AMTGGL1R Test Standard : 47 CFR 15.247 RSS 210 Issue8: 2010 Test Method : ANSI C63.10:2013 FCC Public Notice DA 00-705 RSS Gen issue4 FCC ID : 2AAP4-AMTGGL1R IC ID : 11296A-AMTGGL1R Dates of test : 06/29/2015 to 07/03/2015 Issue Date : 07/21/2015 Test Result : ☒ Pass ☐ Fail Equipment complied with the specification [X] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: Cipher chu Nima Molaei Test Engineer Engineer Reviewer Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT Test report No. FCC-IC_RF _SL15010901-SFE-001-BT Page 2 of 33 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC, RF/Wireless, Telecom Canada IC, A2LA, NIST EMC, RF/Wireless, Telecom Taiwan BSMI, NCC, NIST EMC, RF, Telecom, Safety Hong Kong OFTA, NIST RF/Wireless, Telecom Australia NATA, NIST EMC, RF, Telecom, Safety Korea KCC/RRA, NIST EMI, EMS, RF, Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC, RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom, Safety Israel MOC, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC, RF, Telecom Canada IC FCB, NIST EMC, RF, Telecom Singapore iDA, NIST EMC, RF, Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF, Telecom Hong Kong OFTA (US002) RF, Telecom Test report No. FCC-IC_RF _SL15010901-SFE-001-BT Page 3 of 33 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 MODIFICATION ............................................................................................................................................................. 5 6 EUT INFORMATION ...................................................................................................................................................... 6 6.1 EUT Description ........................................................................................................................................................ 6 6.2 Radio Description ...................................................................................................................................................... 6 6.3 EUT test modes/configuration Description.................................................................................................................... 6 6.4 EUT Photos - External ............................................................................................................................................... 7 6.5 EUT Photos - Internal ................................................................................................................................................ 8 6.6 EUT Test Setup Photos ............................................................................................................................................. 9 7 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 10 7.1 Supporting Equipment ............................................................................................................................................. 10 7.2 Test Software Description ........................................................................................................................................ 10 8 TEST SUMMARY ......................................................................................................................................................... 11 9 MEASUREMENT UNCERTAINTY ................................................................................................................................. 12 10 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS .................................................................................. 13 10.1 Conducted Emissions .......................................................................................................................................... 13 10.2 Channel Separation (EDR) ....................................................…

Text truncated - open the document above for the full version.

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Report No.: FCC-IC_RF_SL15010901-SFE-001-Co-location Supersede Report No.: NONE Applicant : Active Mind Technology, Inc. Product Name : GAME Golf Live Model No. : AMTGGL1R Test Standard : 47 CFR 15.247 RSS 210 Issue8: 2010 Test Method : ANSI C63.10:2013 FCC Public Notice DA 00-705 RSS Gen issue4 FCC ID : 2AAP4-AMTGGL1R IC ID : 11296A-AMTGGL1R Dates of test : 06/29/2015 to 07/03/2015 Issue Date : 07/21/2015 Test Result : ☒ Pass ☐ Fail Equipment complied with the specification [X] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: Cipher chu Nima Molaei Test Engineer Engineer Reviewer Issued By: SIEMIC Laboratories 775 Montague Expressway, Milpitas, 95035 CA RF TEST REPORT Test report No. FCC-IC_RF_SL15010901-SFE-001-Co-location Page 2 of 21 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC, RF/Wireless, Telecom Canada IC, A2LA, NIST EMC, RF/Wireless, Telecom Taiwan BSMI, NCC, NIST EMC, RF, Telecom, Safety Hong Kong OFTA, NIST RF/Wireless, Telecom Australia NATA, NIST EMC, RF, Telecom, Safety Korea KCC/RRA, NIST EMI, EMS, RF, Telecom, Safety Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC, RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom, Safety Israel MOC, NIST EMC, RF, Telecom, Safety Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC, RF, Telecom Canada IC FCB, NIST EMC, RF, Telecom Singapore iDA, NIST EMC, RF, Telecom EU NB EMC & R&TTE Directive Japan MIC (RCB 208) RF, Telecom Hong Kong OFTA (US002) RF, Telecom Test report No. FCC-IC_RF_SL15010901-SFE-001-Co-location Page 3 of 21 775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: CONTENTS 1 REPORT REVISION HISTORY ....................................................................................................................................... 4 2 EXECUTIVE SUMMARY ................................................................................................................................................. 5 3 CUSTOMER INFORMATION .......................................................................................................................................... 5 4 TEST SITE INFORMATION ............................................................................................................................................ 5 5 EUT INFORMATION ...................................................................................................................................................... 6 5.1 EUT Description ........................................................................................................................................................ 6 5.2 Radio Description ...................................................................................................................................................... 6 5.3 EUT test modes/configuration Description.................................................................................................................... 7 5.4 EUT Photos - External ............................................................................................................................................... 8 5.5 EUT Photos - Internal ................................................................................................................................................ 9 5.6 EUT Test Setup Photos ........................................................................................................................................... 10 6 SUPPORTING EQUIPMENT/SOFTWARE AND CABLING DESCRIPTION ....................................................................... 11 6.1 Supporting Equipment ............................................................................................................................................. 11 6.2 Test Software Description ........................................................................................................................................ 11 7 TEST SUMMARY ......................................................................................................................................................... 12 8 MEASUREMENT UNCERTAINTY ................................................................................................................................. 13 9 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ....................................................................................... 14 9.1 Radiated Emissions below 1GHz .............................................................................................................................. 14 9.2 Radiated Spurious Emissions above 1GHz & Restricted band ..................................................................................... 16 ANNEX A. TEST INSTRUMENT .........................................................…

Text truncated - open the document above for the full version.

775 Montague Expressway, Milpitas, CA 95035, USA • Phone: (+1) 408 526 1188 • Facsimile (+1) 408 526 1088 Visit us at: www.siemic.com; Follow us at: Test Setup Photos Radiated Emissions (<1GHz) – Front View Radiated Emissions (<1GHz) – Rear View Radiated Emissions (>1GHz) – Front View Radiated Emissions (>1GHz) – Rear View Note: The spurious emission in different EUT orientation was investigated, including the EUT standing up position and the laying down position. The EUT orientation shown in above setup photo is the worst case position.
