2AAPS-WB102Wireless Charging Pad

Please Read Before Use Wireless Pad x 1 User Manual x 1 SIZE WEIGHT 30g 70mm x 70mm*10mm Mini USB Cable x 1 INPUT OUTPUT ≤8mm DC 5 V/1A , 5W DC 5 V , 1.2 A TRANSMISSION DISTANCE FREQUENCY User Manual • WIRELESS MINI PAD Mini USB Port Non - Slip Pads LED Indicator Package Contents Charge your Qi wireless compatible devices without the use of cables. Simply place your phone on top of the wireless pad and enjoy an easy charge. Our Qi wireless charger will work with any Qi/Wireless enabled devices; simply plug the included Micro-USB cable into the pad and you’re ready to go! Using Your Wireless Pad Note: All devices must be QI compatible 1. Insert one end of USB charging cable into CERTIFIED adapter or computer. 2. Insert the other end of the USB cable into the wireless pad. 3. A small red LED will light up once the pad has been plugged in 4. Place your phone on the centre of the charging pad. When the phone is connected and being charged, the LED indicator will light up Blue to indicate charging has started. 5. Just remove the phone from the pad to end charging. Important Safety Information 3. items, water, rain, damp places, high voltage devices and corrosive materials. . 4. Ensure product is not covered by anything that could stop the heat from dissipating from the device. Wireless Charging Pad 115K-205KHZ 1. Please avoid dropping, hitting, crushing, throwing, immersing or puncturing the product. 2. Do not disassemble the product. 5. For safe and fast charging, use original 12. Please keep the wireless pad away from children and ensure all persons who use the pad read and follow the correct instruction. 13. We do not recommend using the wireless pads with in car chargers. 6. The maximum ambient temperature during use of the product must not exceed 40°C. 7. Please keep the wireless pad away from direct sunlight, extreme heat or cold. 8. placed on the pad. 9. To clean your pad, unplug the pad and use a dry brush or cloth. 10. While charging and after charging, the pad and product may be warm. This is normal. 11. Please stop using the wireless pad immediately if it is damaged, emits a smell or becomes abnormally hot. How do I know if my pad is ready to charge and charging? •The LED indicator of the pad blinks shortly and lights up red when connected to power, charging standby. •When the phone is connected and charging, the LED indicator blinks blue, and will keep light on blue when fully charged. •When comes to Foreign Body Detection, the blue light keeps blinking. What if my wireless pad isn’t charging my phone? • Double check there is nothing obscuring the connection between your phone and pad. • Ensure the input voltage is within the recommended allowance. • Make sure your device is compatible with QI wireless charging. • Try removing your phones protective case. How can I double check the voltage information for my wireless pad? • Refer to the user manual that comes with the product and/or refer to information on the packaging, and product itself. Where should I use the wireless pad? • We recommend placing the wireless pad down device and allow for good circulation to prevent overheating. FAQ FCC Warning This device complies with part 15 of the FCC Rules . Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC RF exposure statement: The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.

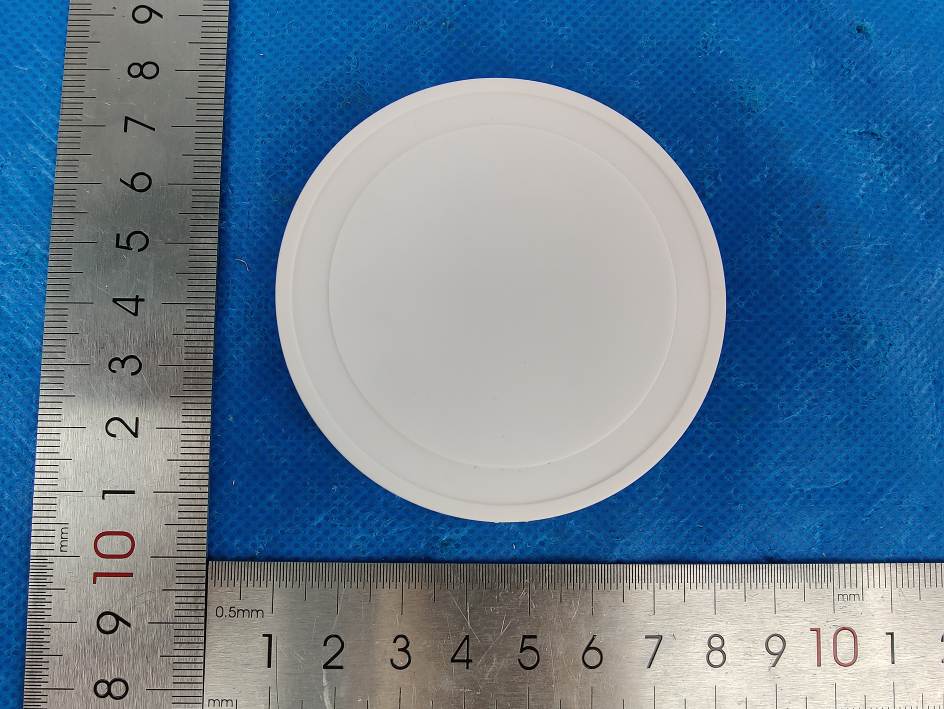

1 - Page 1 of 4 - Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. APPENDIX 1: EUT PHOTO Photo 1 (For model WC10B) Photo 2 1 - Page 2 of 4 - Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 1 - Page 3 of 4 - Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 1 - Page 4 of 4 - Tel:(86-755)88850135 Fax: (86-755) 88850136 Web: http://www.mtitest.com E-mail: [email protected] Address: 101, No. 7, Zone 2, Xinxing Industrial Park, Fuhai Avenue, Xinhe Community, Fuhai Street, Bao’ an District, Shenzhen, Guangdong, China. Photo 7 ----END OF REPORT----

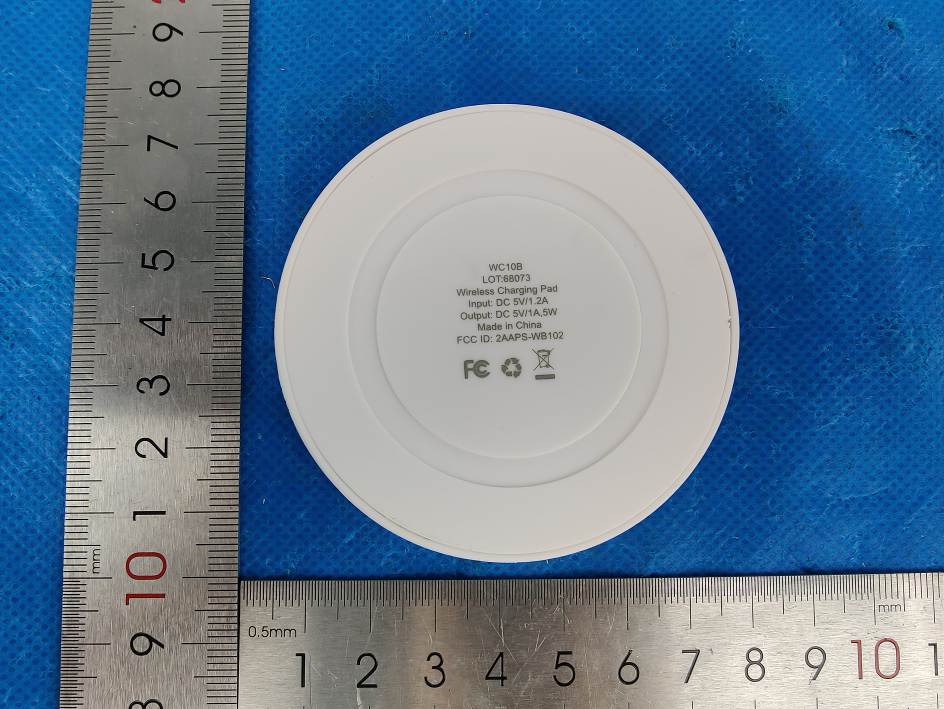

ZQY-Date:December-30rd-20 IMPRINTING METHOD: Screen Pninting Product size: 70*70*10mm Product color: White FRONT SIDE: REVERSE SIDE: Details: Version No.:WLGI200006 Logo size:17.8*15.8mm LED Micro port Screen printing WC10B LOT:68073 Wireless Charging Pad Input: DC 5V/1.2A Output: DC 5V/1A,5W Made in China FCC ID: 2AAPS-WB102 Pantone 423 C
