2AAQFQ8BLUETOOTH SPEAKER

Q8 Product Specification: Main parameter: •Bluetooth version: V4.1 •output power：3W •frequency response：150hz-18khz •drive：2’ •power supply：USB, DC 5V 500mA •distortion：≦1% •S / N：≥ 75dB •battery capacity：2000mAh/3.7V •battery working time：3-5 hours (play as the max Volume) •battery charging time：10 hours •size：L152 *w65 * h75mm •N.W.：390g Packing Contents: 1、the quake blue-tooth speaker 2、user’s manual 3、USB charging cable 4、3.5mm stereo cable Charging the Speaker: Before using the speaker for the first time, charging it for at least 4 hours. 1、Plug the USB cable into the port on the speaker, plug the other end into the USB port on the adapter(DC 5V). 2、Red LED will turn on to indicate that the unit is charging. 3、Red LED will turn off when fully charged. Start-up& Shutdown Functions: 1、Long press POWER to start the blue-tooth speaker. 2、Blue LED flashes, waiting for pairing 3、Long press POWER to shutdown the blue-tooth speaker. 4、LED off if shutdown the speaker. Pairing the Device: 1、Place the speaker near the Blue-tooth-enabled device. 2、Long press POWER to start the blue-tooth speaker, blue LED flashes, the speaker is now in pairing mode.Follow the instructions of your device to search for the speaker. 2、The speaker is called “Q8”, enter the PIN”0000” if need. 3、Blue LED light, the completion of the pairing, while the voice prompts. The speaker is in the state of pairing the last device default in the first 3 seconds after starting. If failing to pair, the speaker will be in state of pairing automatically. LED Indicator 1、Charging: Red LED on 2、Fully charged: Red LED off 3、Pairing Mode: Blue LED flashes. 4、Connected: Blue LED slow flashes 5、Line IN Mode: Blue LED on 6、Low battry: Red LED flashes Safety and General Information: 1、Do not expose the device to water or attempt to disassemble the device. If the device is exposed to water or disassembled, the user may be risking an electronic short. 2、Do not use this products in an aircraft or in hospital. 3、Do not expose the device to direct sunlight, heat and flame. 4、Device may be warm while charging. It is normal. 5、Changes or modifications to this equipment not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. Key’s Sketch Map: ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ Functions: 1、 Power Long press POWER to start or off. 2、 VOL+ *Long press to skip to next track *Quick press to increase volume 3、Play/Pause, Phone answer, *When playing music, press the button to pause or play. *When you receive a call, press the button to answer. When the call ends, music will resume playing. 4、VOL- *Long press to skip to previous track *Quick press to decrease volume 5、LED Red/Blue 6、Microphone 7、Micro USB: Use a computer USB port/AC power adapter with USB 8、RESET 9、3.5mm audio input (line-in) FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information The device has been evaluated to meet general RF exposure requirement. The device can be us ed in portable exposure condition without restriction.

CHINA ELECTRONICS SHENZHEN COMPANY Agent Authorization Company: CHINA ELECTRONICS SHENZHEN COMPANY Address: 33F, ELECTRONICS SCIENCE AND TECHNOLOGY BUILDING, SHENNANZHONG ROAD, SHENZHEN, CHINA Product Name: BLUETOOTH SPEAKER Trade Mark: / Model Number(s): Q8, Q801 FCC ID: 2AAQFQ8 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2019-12-25 Name: Xuning XIE Title: Certification Engineer Company: CHINA ELECTRONICS SHENZHEN COMPANY

CHINA ELECTRONICS SHENZHEN COMPANY Add: 33F, ELECTRONICS SCIENCE AND TECHNOLOGY BUILDING, SHENNANZHONG ROAD, SHENZHEN, CHINA Tel: 0755-83783780 Fax: 0755-83783961 Date: 2019-12-24 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, CHINA ELECTRONICS SHENZHEN COMPANY Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only model name and shell color is different for these models.. Product name: BLUETOOTH SPEAKER Trade Mark: / Model No.: Q8, Q801 Sincerely, Client’s name / title : Xuning XIE / Certification Engineer Address: 33F, ELECTRONICS SCIENCE AND TECHNOLOGY BUILDING, SHENNANZHONG ROAD, SHENZHEN, CHINA Tel: 0755-83783780 Fax: 0755-83783961 E-mail: [email protected]

CHINA ELECTRONICS SHENZHEN COMPANY Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2019-12-25 Subject; Request for Confidentiality FCC ID: 2AAQFQ8 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Xuning XIE Title: Certification Engineer

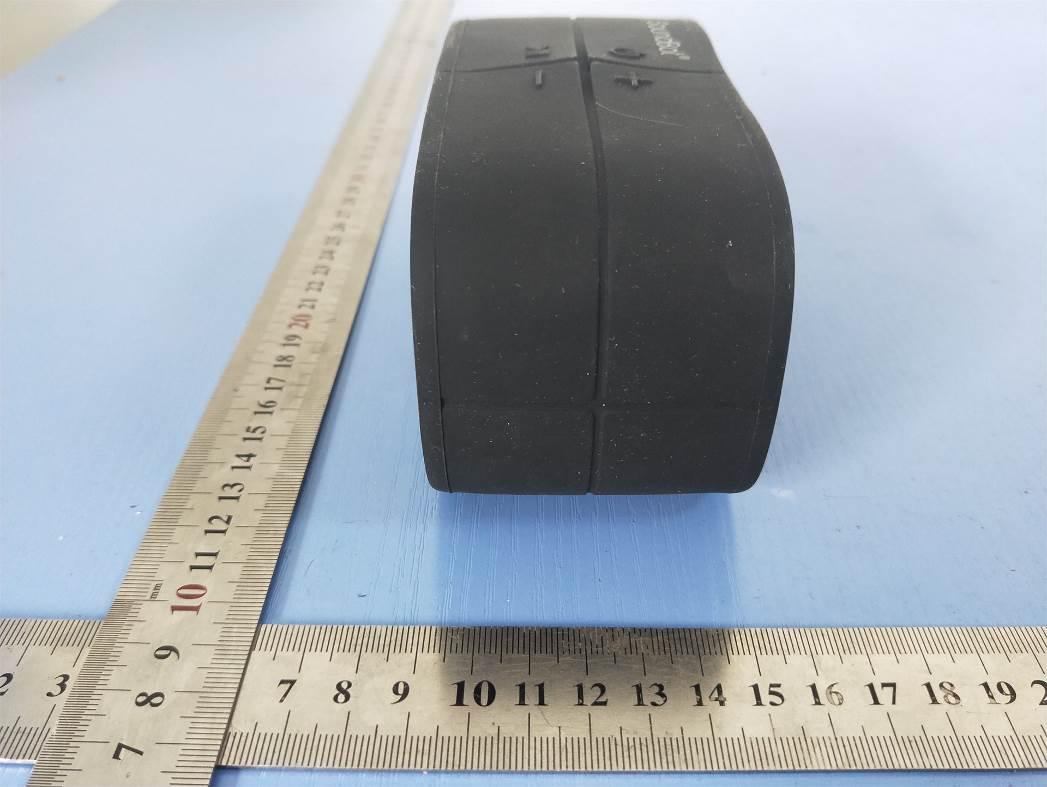

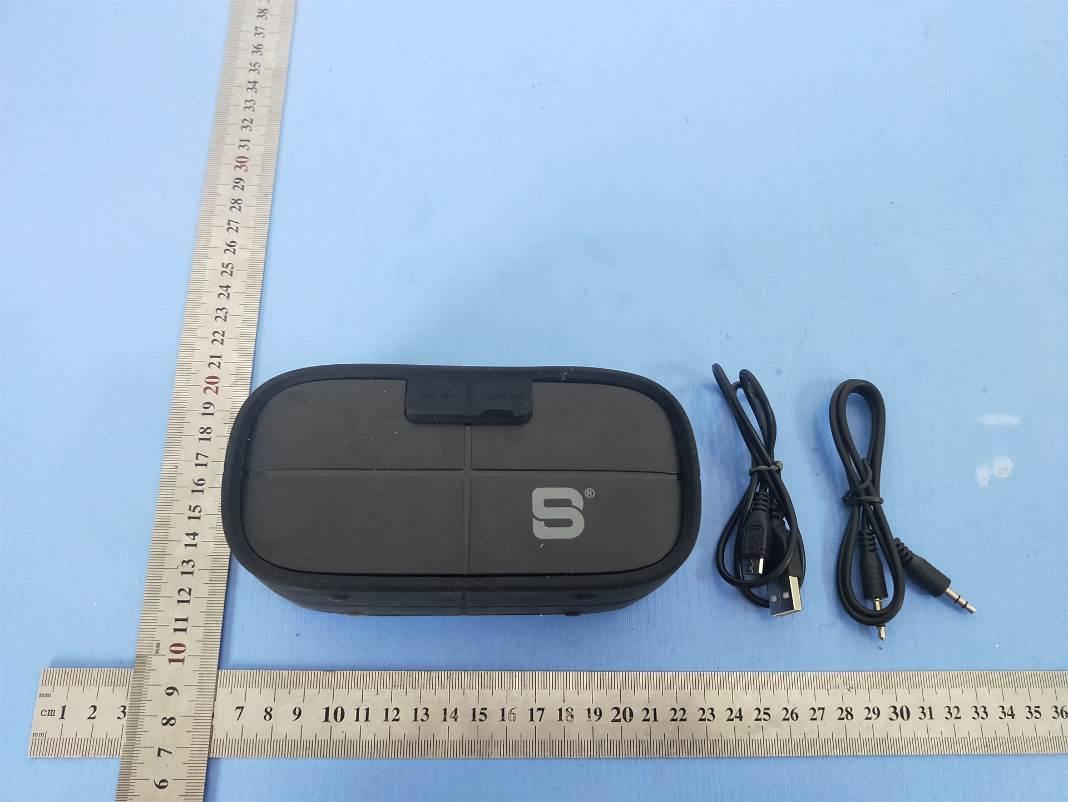

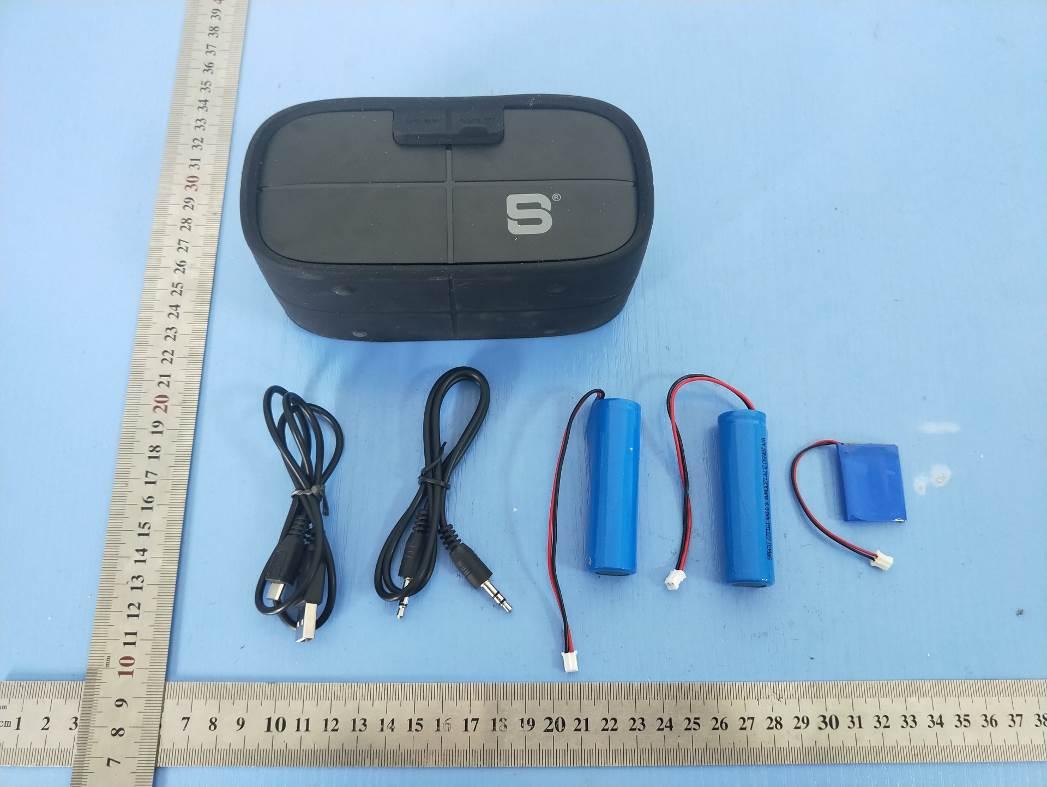

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA Fig. 9

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location BLUETOOTH SPEAKER Model No.: Q8 FCC ID: 2AAQFQ8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 Report No.: LCS191203081AEA Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID 2AAQFQ8 Product name BLUETOOTH SPEAKER Model number Q8, Q801 Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply Input: DC 5V, 1A (Battery1: 3.7V, 2000mAh, 7.4Wh; Battery2: 3.7V, 1500mAh, 5.55Wh; Battery3: 3.7V, 1200mAh, 4.44Wh; Battery4: 3.7V, 400mAh, 1.48Wh;) Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.1 (DSS) Channel Number 79 Channels for Bluetooth V4.1 (DSS) Channel Spacing 1MHz for Bluetooth V4.1 (DSS) Antenna Type PCB Antenna Antenna Gain 0 dBi Hardware version / Software version / Bluetooth Operation frequency 2402MHz-2480MHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Portable Device Model Declaration / 2. Evaluation Method and Limit According to KDB447498 D01 General RF Exposure Guidance v06Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b) The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.719 39 2441 -1.216 78 2480 0.076 π/4DQPSK 0 2402 -0.085 39 2441 -1.896 78 2480 -0.575 8DPSK 0 2402 0.186 39 2441 -1.628 78 2480 -0.430 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AAQFQ8 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Cha…
