BitWise Controls BW-RREMOTE- 1 Room Remote Operating Manual The BitWise Controls Room Remote is designed to be installed by qualified integration professionals in conjunction with BitWise Controls automation controllers. As such, no user programming is necessary with the rare exception of setting the remote address. **Please Note ** Do not change the address unless instructed to do so by your dealer. Setting the Remote Address: 1. Hold “OK” and “B” for three seconds 2. LED will turn ON 3. Enter 3 digit code for ID 000-255 4. LED will blink one time after each key press 5. Push “OK” to exit mode 6. LED will blink two times to confirm Code change 7. LED will blink 5 times if there is any error (time out, out of ID range, etc.) FCC Statement: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Part 15.19(a)(3) Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Part 15.21 Statement: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Industry Canada Statement: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

8/29/2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Permanent Confidentiality To whom it may concern: In accordance with 47CFR Section 0.457 and Section 0.459 pertaining to confidential material, we hereby request to hold permanently confidential all information contained within the below identified exhibits/document categories submitted pursuant to radio equipment certification requirements for FCC ID: 2AARO-BWRREMOTE1 1. Block Diagram 2. Operational Description 3. Schematics 4. Parts List The above material contains trade secrets and proprietary information as specified by 47CFR 0.457(d) and technical data, which would customarily be guarded from competitors. The public disclosure of this information might be harmful to our company and provide unjustified benefits to our competitors. Sincerely, Michael Griswold Vice President, Sales and Business Development Celadon, Inc.

This report contains a total of 54 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Celadon, Inc. ADDENDUM TO TEST REPORT 94142-11A SR52C Remote Control with 433.92MHz Radio Model: FGSR52C-BWC-01 Tested To The Following Standards: FCC Part 15.231 and RSS 210 Issue 8 Report No.: 94142-11B Date of issue: October 22, 2013 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 54 Report No.: 94142-11B TABLE OF CONTENTS Administrative Information .......................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Revision History ......................................................................................................................................................... 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Software Versions ...................................................................................................................................................... 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 6 FCC Part 15.231 ............................................................................................................................................. 7 15.231(a) Restricted To Periodic Operation .............................................................................................................. 7 15.231(b) RF Power Output ..................................................................................................................................... 11 15.31(e) Voltage Variations ..................................................................................................................................... 18 15.231(c) -20dBc Occupied Bandwidth ................................................................................................................... 20 RSS-210 99 % Bandwidth ......................................................................................................................................... 23 15.231(b) Field Strength of Spurious Emissions ...................................................................................................... 26 Supplemental Information .......................................................................................................................... 53 Measurement Uncertainty ...................................................................................................................................... 53 Emissions Test Details .............................................................................................................................................. 53 Page 3 of 54 Report No.: 94142-11B ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Celadon, Inc. 500 Tamal Plaza, Ste. 520 Corte Madera, CA 94925 Joyce Walker CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Representative: Michael Griswold Project Number: 94142 Customer Reference Number: 4944 DATE OF EQUIPMENT RECEIPT: May 29, 2013 DATE(S) OF TESTING: May 29- August 12, 2013 Revision History Original: Testing of the SR52C Remote Control with 4333.92MHz Radio, FGSR52C-BWC-01 to FCC Part 15 Subpart C Sections 15.231 and RSS-210 Issue 8. Addendum A: To make corrections to the test conditions in all test sections except section 15.231(a). Addendum B: Additional detailed clarification was added to test conditions, Report Authorization The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 4 of 54 Report No.: 94142-11B Test Facility Information Our laboratories are configured to effectively test a wide variety of product types. CKC utilizes first class test equipment, anechoic chambers, data acquisition and information services to create accu…

Text truncated - open the document above for the full version.

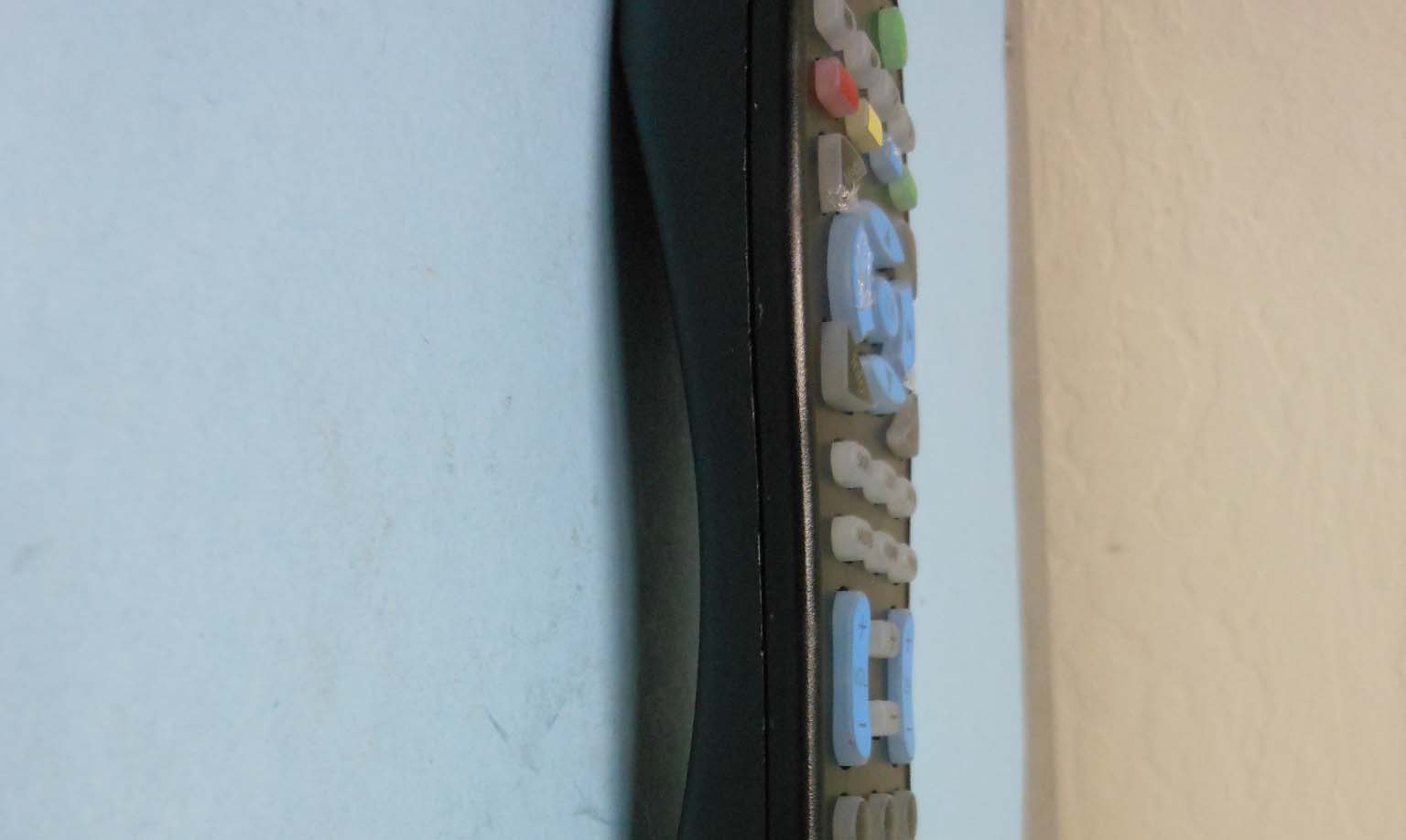

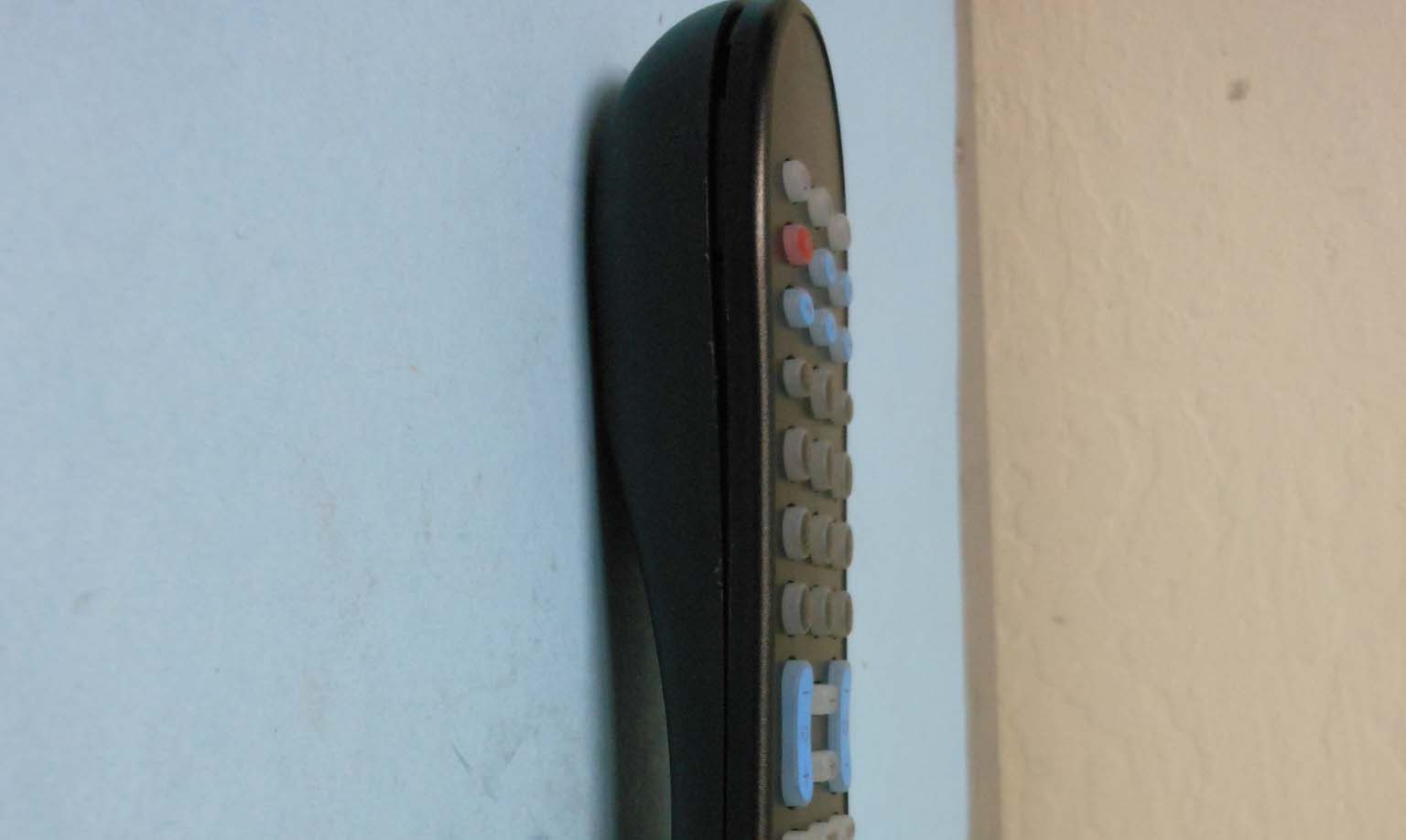

TEST SETUP, FRONT VIEW TEST SETUP, BACK VIEW X AXIS Y AXIS Z AXIS 30MHz-1GHz 30MHz-1GHz 1-4.5GHz 1-4.5GHz
