2AARW-IS5000DIGITAL DOOR LOCK

THE IS-5000 USER MANUAL 2 2 TABLE OF CONTENTS 1. Getting Started ............................................................................................................ ......................... 3 2. Basic Functions ............................................................................................................ ........................ 9 3. The Schedule Mode .......................................................................................................... ................... 13 4. Function Manual – Basic User Management .................................................................................... .. 18 6. Other Functions ............................................................................................................ ..................... 24 7. Buzzer Sounds .............................................................................................................. ...................... 25 8. The RFID Card (For Use With The Is-5000 RF Only) ...................................... Error! Bookmark not defined. 3 3 1. GETTING STARTED The IS-5000 standalone electronic door lock is an advanced-design electronic door lock that is ideal for high-security, medium-sized installations. It has been designed to ensure that the building or office is safe from unauthorized entry. This User guide is meant to help the user get the most from this amazing product. a.) Default Factory Settings & clock setting When the IS 5000 is new, it is se t on default. The factory default mode is “Normal Mode-No Schedule Is Programmed.” To install and use one needs to check whether the IS-5000 is on factory default mode. To do this, power it on by in serting 5 AA batteries. If it is on factory default mode it shall: - Blink 5 times in alternating green and red lights If it is not on factory default mode, it will blink 5 times in red light. If this happens, the user will need to restore the factory mode by executing the function 358. Please make sure to set the cl ock ( RTC) while setting IS - 5000 for the first time. - When the Clock ( RTC) is not set , melody ( No.8) will sound with Red light flashing. b.) The Basics i.) User IDs and position numbers  For anyone to work with the IS-5000, one must have an ID.  The IS 5000 has 4 categories of IDs: the Master ID, the Manager ID, the Basic User ID, and the Service ID.  Generally, each ID has a positi on number that ranges from 00 – 99. Position 1 is reserved for the Master ID, positions 00,10,20,30,40,50,60,70,80 , and 90 are reserved for the Manager IDs, and the rest of the positions that fall within the range of 00 -99 are reserved for the basic Users.  The position numbers for the Service/Visitor IDs are: 251 , 252, and 253.  The length of Master ID and the Manager ID is fixed at 7 digits and the default ID for th e Master ID is 1234567; there is no default Manager ID. 4 4 ii.) User authority Each of the three main categories of Users has a specific authority. The basic user can only gain access but cannot conduct any programming functions. The Mana ger has access authority, and can also program with authority that is limited to some functions and to the corresponding group. For example, a Manager with a position number 00 , can only program for basic Users with position numbers that fall within the 00-09 range. On the other hand, a Manager with a position number 50 can only program for basic Users with position numbers that fall within the 51-59 range. iii.) Access A.) By the use of an ID code: the person who wants to get access will enter the ID, and press “,” to unlock. Remember that the Master and the Manager ID are made up of 7 digits whereas that of the basic User is made up of 4 to 7 digits. B. ) By the use of proximity card (IS 5000 RF): the person who wants to gain access by use of a card will need to touch the antenna area of the IS-5000 with registered proximity card. iv.) Programming A.) When a person is required to press the “ ” button during programming, the person must ma ke sure that the time it takes to press it is not more than 1 second , unless the user guide expressly states that the button should be pressed for 4 seconds to enter the programming mode. B.) Programming can be also cond ucted through computer the software provided. Please refer to the IS 5000 PC manager program. v.) Record keeping Always keep user ID records for futu re reference. A separate page for this has been provided. C.) Startup Programming Functions The following programming functions need to be executed before proceeding with anything else.  Note: Duplicated ID cannot be registered! ( error sounds when attempt) Tas k Function Numbe r Procedure Restore factory settings and clear all data ( Skip this step if you checked and found that IS -5000 is on factory default mode ) Fn358 (Authorized To MASTER ID ONLY) Enter “1234567”-> “ ” for 4 seconds-> “ 358” -> “ ” ( Note: 1234567 is the default master ID. Ple ase use your ID in case you have already changed it. ) To set the date (The date format is (MM/DD/YY) and the default date is 01/01/11.) Fn350 (Authorized To MASTER and MANAGER ID) Enter the “MASTER or MANAGER ID”-> “ ” for 4 seconds-> “350”-> “MMDDYY” -> “” Example : Current date is 21st May, 2012 Enter “1234567” ->“ ” for 4 seconds->”350”-> “052112” -> “ ” Set the time (The time format is (HHMM) and the default time is 12:00 (24hr clock.) Fn351 (Authorized To MASTER and MANAGER ID) Enter the “MASTER or MANAGER ID”-> “ ” for 4 seconds->“351”-> “MMDDYY” -> “” Example: Current time is 13:00 Enter “1234567” ->“ ” for 4 seconds -> “35 1 ”-> “1300” -> “ ". To set the start of the daylight saving mode (The format is MMWD, where: MM = month, W= week (The week’s place in the month) D= day (1=MON 2=THU 3=WED 4=THU 5=FRI Fn337 (Authorized To MASTER and MANAGER ID) Enter the “MASTER or MANAGER ID”-> “ ” fo r 4 seconds-> “337”, Key in day to begin the daylight saving mode in the format” MMWD”-> “ ” For North America region: Please note th…

Text truncated - open the document above for the full version.

Secuway Inc. Suite 207, 4860 Irvine Blvd., Irvine, CA 92620, +1(650)922-7376 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 21 August 2013 SUBJECT: FCC Application for 2AARW-IS5000 To Whom It May Concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, Nicholas Lee Director Secuway Inc.

Secuway Inc. Suite 207, 4860 Irvine Blvd., Irvine, CA 92620, +1(650)922-7376 August 21, 2013 LETTER OF AUTHORIZATION To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel. Jeong (or Logan. Lee) and of SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel. Jeong (or Logan. Lee) of SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Secuway Inc. Suite 207, 4860 Irvine Blvd., Irvine, CA 92620, +1(650)922-7376 Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours __________________________ Nicholas Lee Director Secuway Inc.

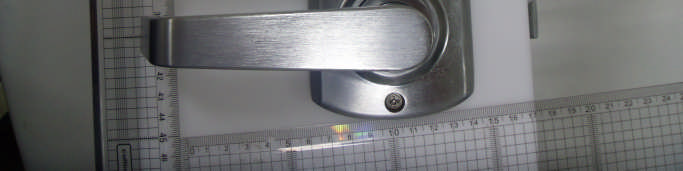

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Bottom view of EUT Side view of EUT

Secuway Inc.Model: IS5000 Series FCC ID: 2AARW ‐ IS5000 FCC ID: 2AARW ‐ IS5000 IC: 11315A ‐ IS5000 Made in Korea This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: ( 1 ) This device ma y not cause harmful interference , () y , and (2) this device must accept any interference received, including interference that may cause undesired operation. Inside of Door

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Top view of Sub PCB 1 Bottom view of Sub PCB 1 Top view of Sub PCB 2 Bottom view of Sub PCB 2

Report Number: F690501/RF-RTL006854-1 Page: 2 of 12 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ---------------------------------------------------------- 5 3. Spurious Emission-------------------------------------------------------------------------- 9 4. Occupied Bandwidth----------------------------------------------------------------------- 11 Report Number: F690501/RF-RTL006854-1 Page: 3 of 12 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 400-2, Gomae-Dong, Giheung-Gu, Yongin-Shi, Kyungki-Do, South Korea 446-901 - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Secuway Inc. Address : 4860 Irvine Blvd, Suite 207, Irvine, CA 92620 Contact Person : Lee, Nicholas Phone No. : +1 650 922 7376 1.3. Description of EUT Kind of Product Digital Door Lock Model Name FCC: IS5000 SERIES Serial Number N/A Power Supply DC 7.5 V Frequency Range 125.00 ㎑ Modulation Technique ASK Number of Channels 1 Operating Conditions -20 °C ~ 60 °C Antenna Type Internal type (Loop Antenna) 1.4. Declarations by the manufacturer - Operation temperature: -20 °C ~ 60 °C Report Number: F690501/RF-RTL006854-1 Page: 4 of 12 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due. Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2013 Annual Jul. 05, 2014 Loop Antenna SCHWARZBECK FMZB 1519 1519-039 Jul. 09, 2013 Biennial Jul. 09, 2015 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 9163-390 Apr. 19, 2013 Biennial Apr. 19, 2015 DC Power Supply Agilent U8002A MY48490027 Jan. 08, 2013 Annual Jan. 08, 2014 Test Receiver R&S ESCI7 100778 Feb. 15, 2013 Annual Feb. 15, 2014 Antenna Master INN-CO MM4000 N/A N/A N/A N.C.R. Turn Table INN-CO DS 1200 S N/A N/A N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N.C.R. N.C.R. N.C.R. 1.6. Test Report Revision Revision Report number Description 0 F690501/RF-RTL006854 Initial 1 F690501/RF-RTL006854-1 Modified manufacturer information 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15 Subpart B&C 15.209/ IC RSS-210 Issue8, RSS-Gen Issue3 Section in FCC 15 Subpart B&C §15.209 Section in IC RSS-210 Issue8, RSS-Gen Issue 3 Test Item Result 15.209(a) RSS-210 Issue8, 2.5.1 RSS-Gen Issue3, 7.2.5 Table 6 Radiated emission, Spurious Emission and Field Strength of Fundamental Complied - RSS-Gen Issue3, 4.6.1 Occupied Bandwidth Complied Report Number: F690501/RF-RTL006854-1 Page: 5 of 12 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. Report Number: F690501/RF-RTL006854-1 Page: 6 of 12 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 RTT5041-20(2013.07.27)(1) Tel. +82 31 428 5700 / Fax. +82 31 427 2371 A4(210mmx297mm) 2.2. Limit 2.2.1. Radiated emission limits, general requirements Except as provided elsewhere in this Subpart, the emissions from an intentional radiator shall not exceed the field strength levels specified in the following table: Frequency (㎒) Field Strength (microvolts/meter) Measurement Distance (meter) 0.009 – 0.490 2400/F(㎑) 300 0.490 – 1.705 24000/F(㎑) 30 1.705 – 30.0 30 30 30 -88 100** 3 88 -216 150** 3 216 - 960 200** 3 Above 960 500 3 ** Except as provided in paragraph (g), fundamental emissions from intentional radiators operating under this Section shall not be located in the frequency bands 54-72 ㎒, 76-88 ㎒, 174-216 ㎒ or 470-806 ㎒. However, operation within these frequency bands is permitted under other sections of this Part, e.g., Sections 15.231 and 15.241 Report Number: F690501/RF-RTL006854-1 Page: 7 o…

Text truncated - open the document above for the full version.

Test setup photos of EUT Photo of Field Strength & Spurious Emission Test
