2AASIYD2289827Remote control car

27.145MHz Transmitter Block Diagram IC 1 ANT

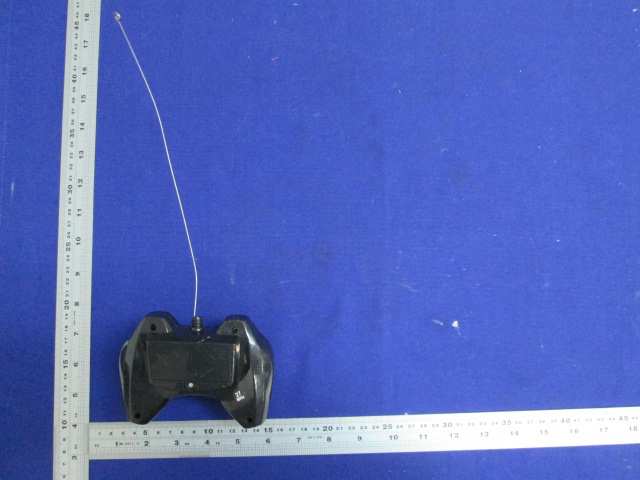

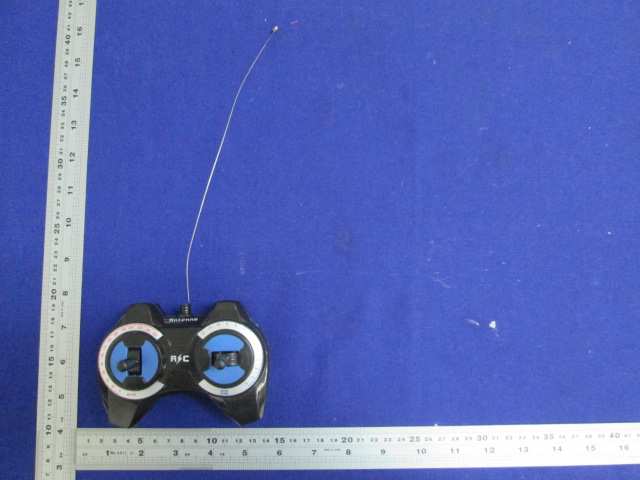

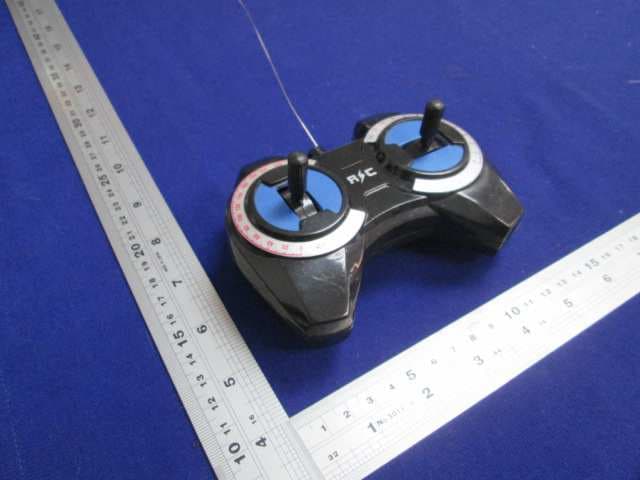

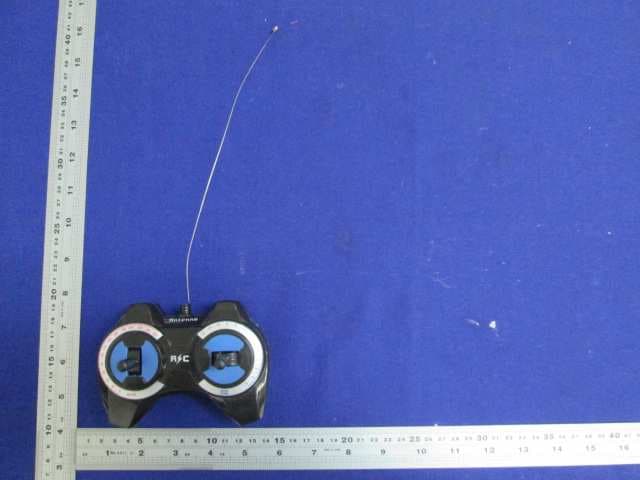

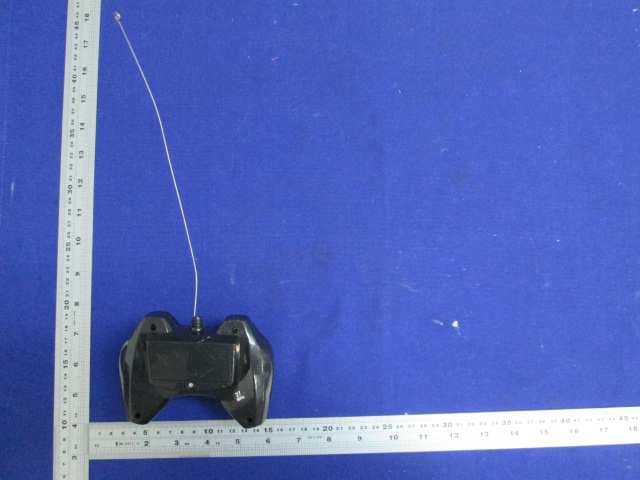

External Photos

Label Artwork and Location SIZE: 50mm (W) x 20mm (H) FCC ID: 2AASIYD2289827 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: 2AASIYD2289827 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

Technical description Description Function Component Antenna Transmit modulated RF signal ANT Filter Suppression of spurious emissions L1, C1 RF IC Generate code signal to modulator IC1 Oscillator Generate 27.145 MHz carrier Y1, Q2 RF power amplifier and modulator Modulate the carrier and amplify the modulated RF signal Q1 Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -29.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -31.15dBm (+/- 3dB) Modulation Type: Pulse modulation

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a Remote control car operating at 27.145 MHz which is controlled by a crystal. The EUT is powered by one 9.0V 6F22 size battery. For more detail information pls. refer to the user manual. Antenna Type: Integral antenna Antenna Gain: 0dBi The nominal conducted output power specified: -29.0dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -31.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: The w orst-case peak radiated emission for the EUT is 65.7d BμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -29.53dBm The ERP = EIRP – 2.15 = -31.68 dBm which is within the production variation. The maximun conducted output power specified is -26dBm =0 .0025mW The source- based time-averaging conducted output power = 0.0025* Duty Cycle mW < 0.1 mW (Duty Cycle<100%) The S AR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 26.9565ms Effective period of the cycle = 782.6μs x 10 + 2.2609ms x 4 = 16.8696ms DC = 16.8696ms / 26.9565ms = 0.6258 or 62.58% FCC ID: 2AASIYD2289827

Q2 C1815 Q1 R6 560R R5 120-220K R7 2.2K R3 10K 1 2 3 4 56 7 8 9 10 IC1 TX-2 ANT 9V C1 C3 68PF C4 471PF Y1 27.145 MHz LED C11 0.1uF L1 L2 L3 2.2uH C7 0.1uF SF1 200K k3 k4 k5 K2 k1 8.2uH 501PF 6.8-7.5uH C8050/J3Y D5 3.9V C10 0.1uF C5 47P R4 10-100R D1 4148 D2 4148 D3 4148 D4 4148

Date: 13.AUG.2014 09:33:03 Date: 13.AUG.2014 09:35:40 Date: 13.AUG.2014 09:36:41 Date: 13.AUG.2014 09:37:41

Date: 13.AUG.2014 09:29:57
