2AASIYD85722898R/C Car

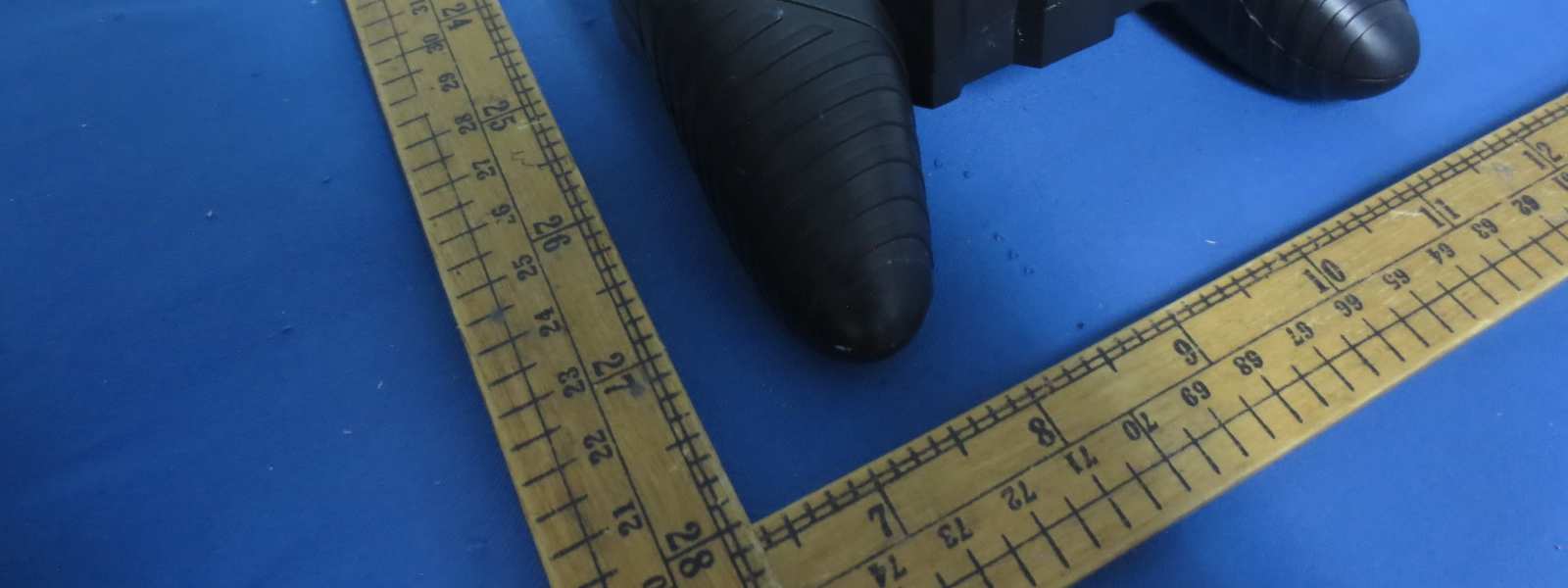

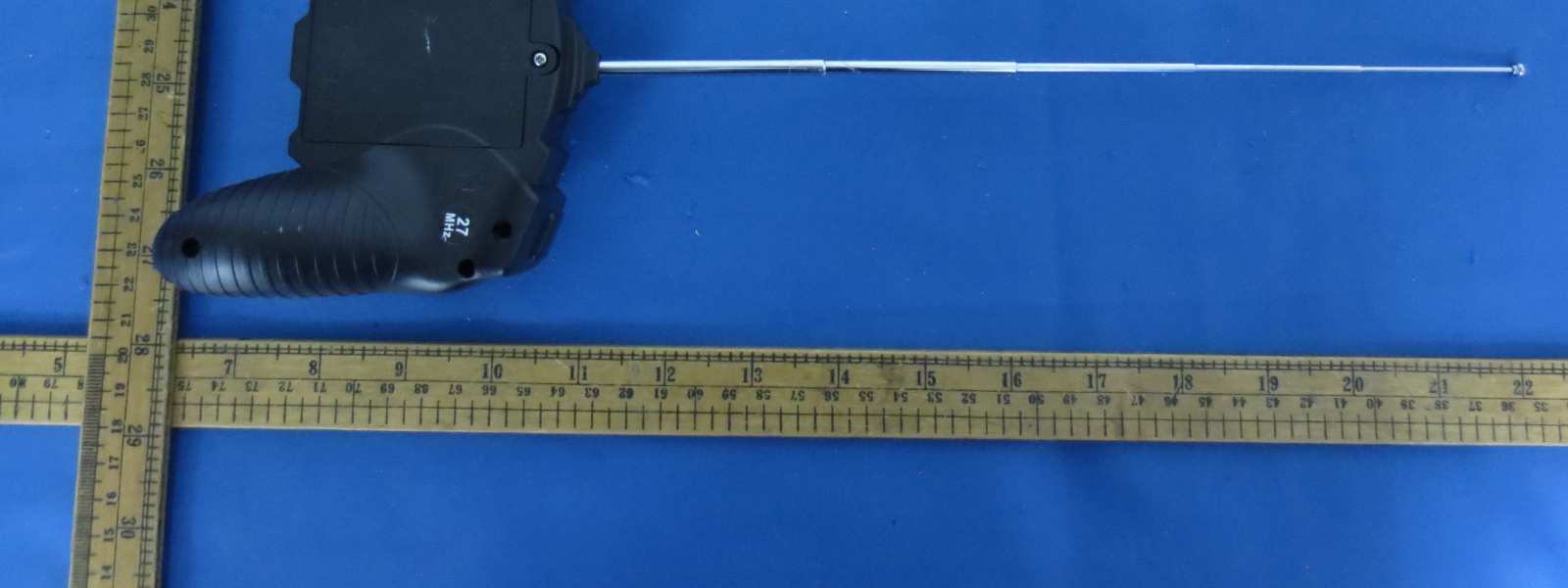

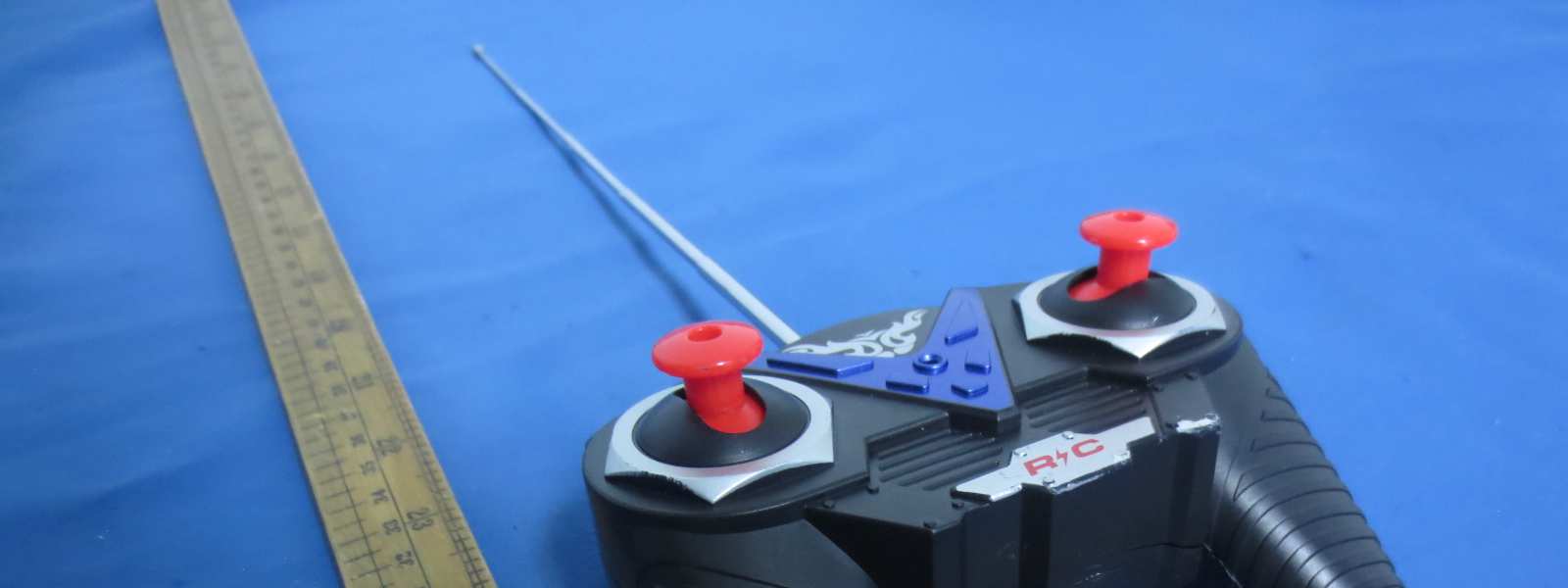

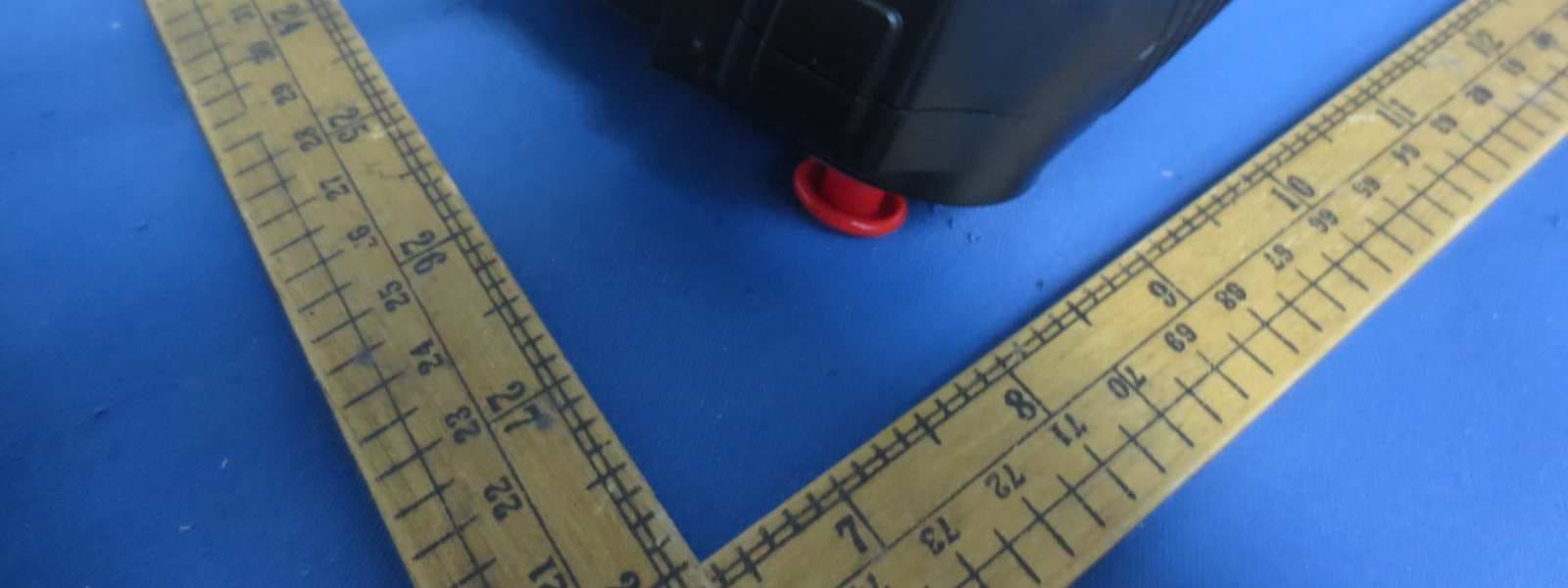

External Photos

Label Artwork and Location Label Size: 7.5cm(W) x 3.0cm(H) FCC ID: 2AASIYD85722898 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

1 INTERTEK TESTING SERVICES Analysis Report The equipment under test (EUT) is a portable transmitter for a R/C Car operating at 27.145 MHz which is controlled by a crystal oscillator. The EUT is powered by three 1.5V AA size batteries. For more detail information pls. refer to the user manual. Antenna Type: telescope antenna with unique antenna connector Antenna Gain: 0dBi The nominal conducted output power specified: -11.00dBm (+/- 3dB) The nominal radiated output power (e.r.p) specified: -13.15dBm (+/- 3dB) Modulation Type: Pulse modulation According to the KDB 447498: Th e worst-case peak radiated emission for the EUT is 83.40dBμV/m at 3m in the frequency 27.145MHz The EIRP = [(FS*D) ^2 / 30] mW= -11.83dBm The ERP = EIRP – 2.15 = -13.98 dBm which is within the production variation. The maximun conducted output power specified is -8dBm = 0.16mW The source- based time-averaging conducted output power = 0.16 * Duty Cycle mW= 0.096 mW < 0.1 mW T he SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = 474 * [1 + log(100/f(MHz)]/2 = 371.2 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. Transmitter Duty Cycle Calculation The duration of one cycle = 17.52ms Effective period of the cycle = 480μsx 10 + 1.44ms x 4 = 10.56ms DC = 10.56ms / 17.52ms = 0.6027 or 60.27% FCC ID: 2AASIYD85722898

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF No.: FCC 15C_TX_b Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 YUAN DI TOYS FACTORY Application For Certification FCC ID: 2AASIYD85722898 R/C Car Model: MJ1100 Additional Models: See Page1 Transmitter Report No.: 130708034SZN-003 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-12] Prepared and Checked by: Approved by: S ign on file Jimmy Wen Assistant Engineer Andy Yan P roject Engineer Date: September 10, 2013 INTERTEK TESTING SERVICES Report No.:130708034SZN-003 FCC ID: 2AASIYD85722898 TRF No.: FCC 15C_TX_b i GENERAL INFORMATION YUAN DI TOYS FACTORY MODEL: MJ1100 Additional Models: See Page 1 FCC ID: 2AASIYD85722898 Grantee: YUAN DI TOYS FACTORY Grantee Address: SHANGDAI INDUSTRIAL DISTRICT, CHENGHAI DISTRICT, SHANTOU CITY, GUANGDONG PROVINCE, CHINA Contact Person: LAI XIONG JIE Tel: 86-754-85722898 Manufacturer: YUAN DI TOYS FACTORY Manufacturer Address: SHANGDAI INDUSTRIAL DISTRICT, CHENGHAI DISTRICT, SHANTOU CITY, GUANGDONG PROVINCE, China Model: MJ1100 Type of EUT: Transmitter Description of EUT: R/C Car Serial Number: N/A FCC ID : 2AASIYD85722898 Date of Sample Submitted: July 8, 2013 Date of Test: September 9, 2013 Report No.: 130708034SZN-003 Report Date: September 10, 2013 Environmental Conidtions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.:130708034SZN-003 FCC ID: 2AASIYD85722898 TRF No.: FCC 15C_TX_b ii SUMMARY OF TEST RESULT YUAN DI TOYS FACTORY MODEL: MJ1100 Additional Models: See Page 1 FCC ID: 2AASIYD85722898 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a telescope antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.:130708034SZN-003 FCC ID: 2AASIYD85722898 TRF No.: FCC 15C_TX_b iii Table of Contents 1.0 General Description ....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology ............................................................................................. 2 1.4 Test Facility ...................................................................................................... 2 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software .......................................................................…

Text truncated - open the document above for the full version.

Radiated Photos
