Art Guard MAP Sensor Magnetic Asset Protection Overview AG MAP sensors, using Enhanced Magnetic Technology, are able to detect small Neodymium (rare earth) magnets at extended distances. When properly installed, neither the sensor nor the magnetic tag (or the object it’s on) can be moved without alarm. MAP utilizes a wireless transmitter (door/window) compatible with DSC 433 MHz control panels. Neodymium magnets are shipped separately. Visit our website for more information www.artguard.net Install or Replace BatteriesThe model .013.1 AG MAP sensor uses only Panasonic or Maxell Lithium Battery CR2450and is shipped to save battery life. To ease opening run your thumbnail around the space between the top and the bottom of the case. Use a coin inserted into the notch on the side of the MAP case to twist and open (fig.1). Insert two lithium batteries plus (+) side up (fig.2). Note: the red LED should light when the batteries are installed. Use the cupping of your hands to view the light through the closed case. It lights to indicate transmission only. Remove batteries when not in use. Use care when closing the case. The case must be fully close to activate the tamper switch. Warning! Battery may explode if mistreated. Do not recharge, disassemble, or dispose of in fire. Mount MAP Sensor and Magnet The sensor may be discreetly mounted horizontally, on a wall behind artwork, or mounted vertically under shelving, or similar installation surfaces, either with double sided tape. It may be placed in or under any as- set that will hide it from view. Magnets (Mtags) can then be discreetly placed in, or taped on any valuable asset that the sensor is to secure. See website for further instructions www.artguard.net Caution: Magnetic tags should be kept at a distance from watches, credit cards, heart monitors, etc. they are powerful sources of magnetism and may disable magnetically sensitive products. Enrolling: This transmitter auto enrolls similar to DSC 433MHz based wireless products. Art Guard 24 Old Rock Rd. Weston, CT 06883 Model 013.1 Technical Support 212.989.1594 www.artguard.net fig. 1 fig. 2 Limited Warranty: Art Guard warrants that for a period of 12 months from the date of purchase, the product shall be free of defects in materials and workmanship under normal use and that in fulfillment of any breach of such warranty, Art Guard shall, at its option, repair or replace the defective equipment upon return of the equipment to its repair depot. This warranty applies only to defects in parts and workmanship and not to damage incurred in shipping or handling, or damage due to caus- es beyond the control of Art Guard such as lightning, excessive voltage, mechanical shock, water damage, or damage arising out of abuse, alteration or improper application of the equipment. The foregoing warranty shall apply only to the original buyer, and is and shall be in lieu of any and all other warranties, whether expressed or implied and of all other obligations or liabilities on the part of Art Guard. Art Guard neither assumes responsibility for, nor authorizes any other person purporting to act on its behalf to modify or to change this warranty, nor to assume for it any other warranty or liability concerning this product. This warranty is void if the sensor is not used as specified in the instructions. In no event shall Art Guard be liable for any direct, indirect or consequential damages, loss of anticipated profits, loss of time or any other losses incurred by the buyer in connection with the purchase, installation or operation or failure of this product. Warning: Art Guard recommends that the entire system be completely tested on a regular basis. However, despite frequent testing, and due to, but not limited to, criminal tampering or electrical disruption, it is possible for this product to fail to perform as expected. Important Information: Changes or modifications not expressly approved by Art Guard could void the user’s authority to operate this equipment. FCC COMPLIANCE STATEMENT: CAUTION: Changes or modifications not expressly approved by Art Guard could void your authority to use this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications Dimensions 7mm x 50mm x 50mm Frequency 433 MHz Battery Panasonic or Maxell Lithium CR2450 3Volt Battery Life 4-5 years Compatible with DSC 433 Systems IC COMPLIANCE STATEMENT: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’ex- ploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

MAP.013.1 Exterior PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 1 of 2 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 Exterior Photos Top of EUT MAP.013.1 Exterior PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 2 of 2 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 Bottom of EUT END OF REPORT

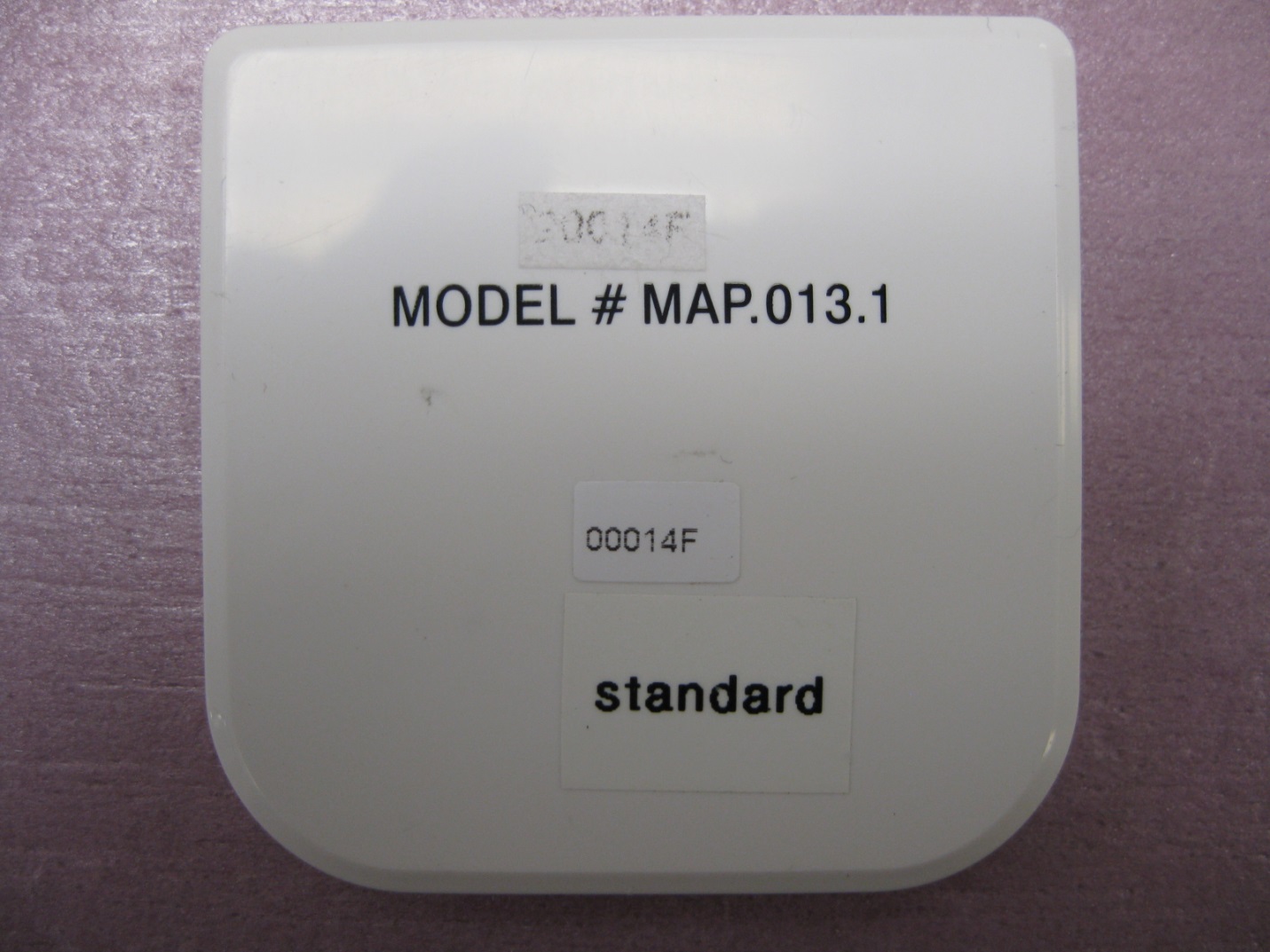

MAP.013.1 CASE ARTWORK ( BACK )

MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 1 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 INTERIOR PHOTOS EUT PCB In Enclosure (Top of PCB) MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 2 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 EUT PCB In Enclosure (Top of PCB) MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 3 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 EUT PCB In Enclosure – Batteries Removed (Top of PCB) MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 4 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 PCB Beside Enclosure (Top of PCB) MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 5 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 Top of PCB MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 6 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 Top of PCB (Zoomed In) MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 7 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 Bottom of PCB MAP.013.1 INTERIOR PHOTOS FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 8 of 8 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 Bottom of PCB (Zoomed In) END OF REPORT

NVLAP LAB CODE 200246-0 FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS-210 ISSUE 8 CERTIFICATION TEST REPORT FOR 433 MHz TRANSMITTER MODEL NUMBER: MAP.013.1 FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 REPORT NUMBER: R10092698-RF ISSUE DATE: 2013-12-05 Prepared for INNOVATIVE INDUSTRIAL DESIGN LLC PO BOX 189 NOLENSVILLE, TN 37135 USA Prepared by UL LLC 12 LABORATORY DR. RESEARCH TRIANGLE PARK, NC 27709 USA TEL: (919) 549-1400 REPORT NO: R10092698-RF DATE: 2013-12-05 FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 2 of 27 UL LLC FORM NO: CCSUP4701I 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. Revision History Rev. Issue Date Revisions Revised By -- 2013-12-05 Initial Issue Jeff Moser REPORT NO: R10092698-RF DATE: 2013-12-05 FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 3 of 27 UL LLC FORM NO: CCSUP4701I 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 5 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 5 4.2. SAMPLE CALCULATION ............................................................................................ 5 4.3. MEASUREMENT UNCERTAINTY ............................................................................... 5 5. EQUIPMENT UNDER TEST ............................................................................................... 6 5.1. DESCRIPTION OF EUT .............................................................................................. 6 5.2. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 6 5.3. SOFTWARE AND FIRMWARE .................................................................................... 6 5.4. WORST-CASE CONFIGURATION AND MODE .......................................................... 6 5.5. MODIFICATIONS ........................................................................................................ 6 5.6. DESCRIPTION OF TEST SETUP ................................................................................ 7 6. TEST AND MEASUREMENT EQUIPMENT ....................................................................... 8 7. ANTENNA PORT TEST RESULTS .................................................................................... 9 7.1. 20 dB AND 99% BW .................................................................................................... 9 7.2. DUTY CYCLE .............................................................................................................13 7.3. TRANSMISSION TIME ...............................................................................................17 8. RADIATED EMISSION TEST RESULTS...........................................................................19 8.1. TX RADIATED SPURIOUS EMISSION ......................................................................19 REPORT NO: R10092698-RF DATE: 2013-12-05 FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 4 of 27 UL LLC FORM NO: CCSUP4701I 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 1. ATTESTATION OF TEST RESULTS COMPANY NAME: INNOVATIVE INDUSTRIAL DESIGN, LLC PO BOX 189 NOLENSVILLE, TN 37135 USA EUT DESCRIPTION: 433.93 MHz Transmitter MODEL: MAP.013.1 SERIAL NUMBER: 00014F (standard unit); 0001CC (continuous transmit unit); 0001CD (worst-case on-time unit) DATE TESTED: 2013-10-11, 2013-11-11, 2013-11-13, and 2013-11-26 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C Pass INDUSTRY CANADA RSS-210 Issue 8, Annex 1 Pass INDUSTRY CANADA RSS-GEN Issue 3 Pass UL LLC tested the above equipment in accordance with the requirements set forth in the above standards. All indications of Pass/Fail in this report are opinions expressed by UL LLC based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. This document may not be altered or revised in any way unless done so by UL LLC and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by UL LLC will constitute fraud and shall nullify the document. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, any agency of the Federal Government, or any agency of any government. Approved & Released For UL LLC By: Prepared By: Mike Antola Jeff Moser EMC Project Lead EMC Program Manager UL - WiSE UL - WiSE Wireless, Interoperability, Security/Payments & EMC REPORT NO: R10092698-RF DATE: 2013-12-05 FCC ID: 2AATU-AG-TX433 IC: 11336A-AGTX433 Page 5 of 27 UL LLC FORM NO: CCSUP4701I 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 This report shall not be reproduced except in full, without the written approval of UL LLC. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4-2003, FCC CFR 47 Part 2, FCC CFR 47 Part 15, RS…
