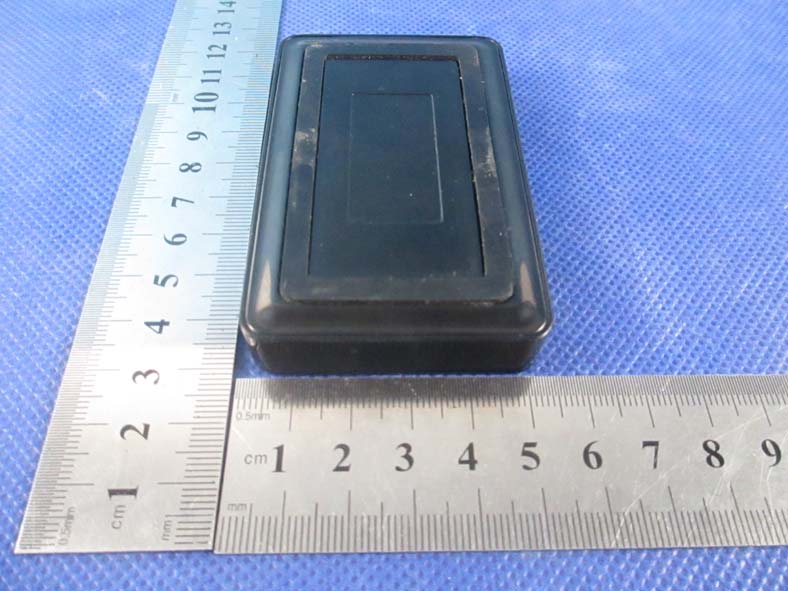

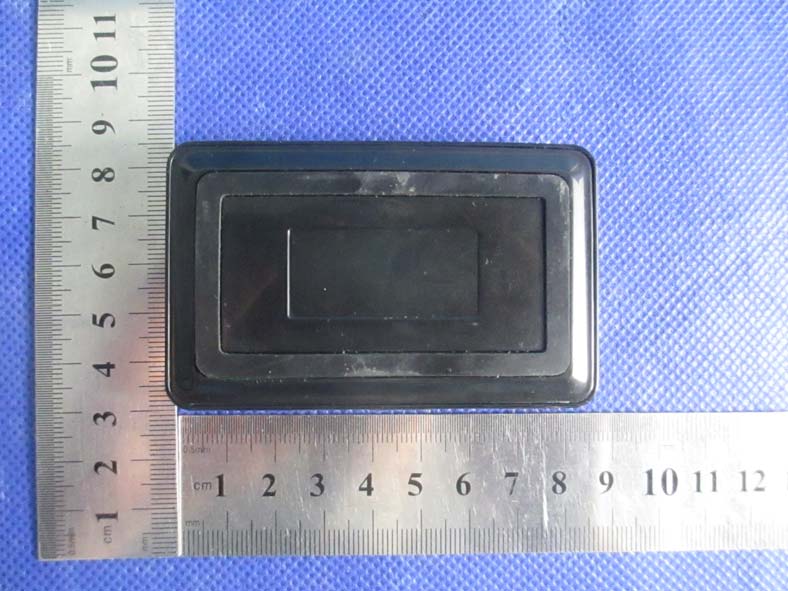

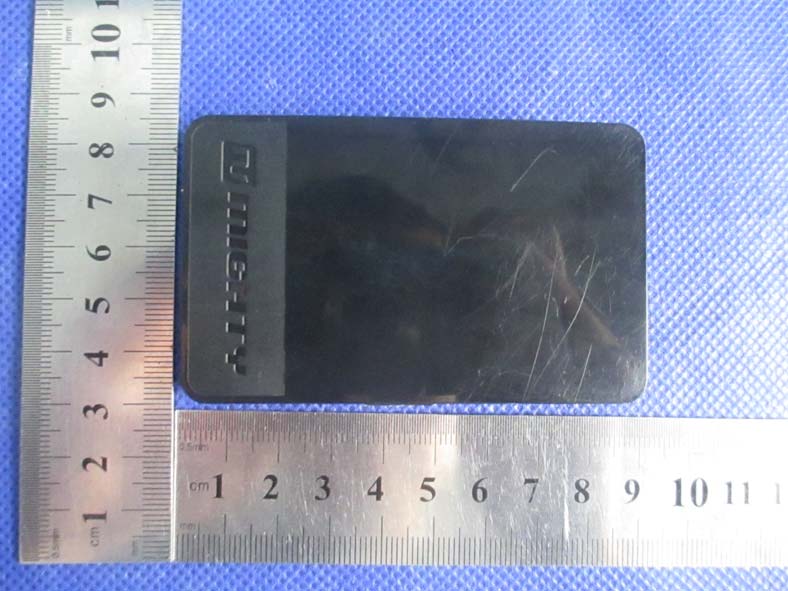

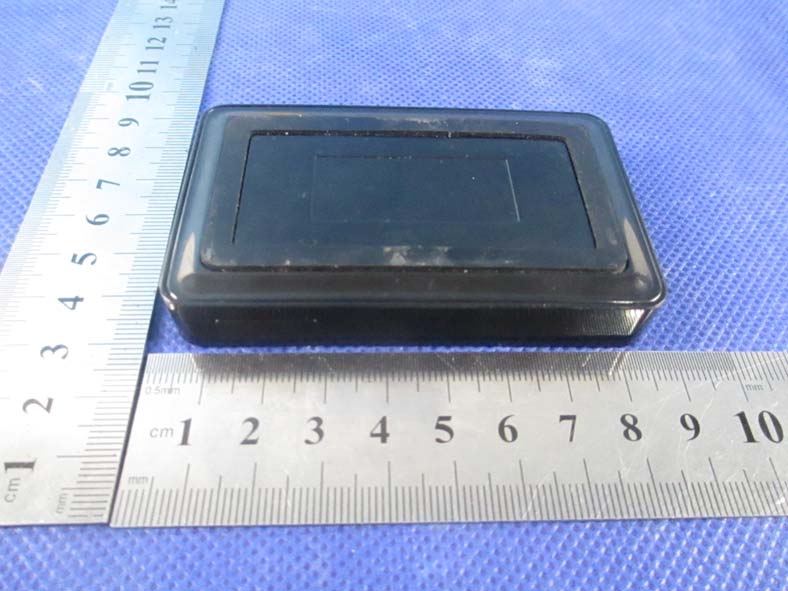

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Wifi antenna Photo 3 Photo 4 Photo 5

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2AAUG-AC19N370FB Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna TEST RESULTS Mode Maximum peak output power (dBm) Output power to antenna (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm 2 ) Limit of Power Density (S) (mW/ cm 2 ) Result 802.11b 16.73 47.10 1.26(1.0dBi) 0.0118 1 Pass 802.11g 14.86 30.62 1.26(1.0dBi) 0.0077 1 Pass 802.11n-HT20 12.41 17.42 1.26(1.0dBi) 0.0044 1 Pass 802.11n-HT40 10.91 12.33 1.26(1.0dBi) 0.0031 1 Pass

FCC RADIO TEST REPORT FCC ID: 2AAUG-AC19N370FB Product： Wireless Media Player Trade Name： NUMIGHTY Model Name： AC19N370FB Serial Model： N/A Report No.： NTEK- 2013NT0914219F Prepared for Golden Supreme International Trading(Shanghai)Co.,Ltd. Room A,25 Floos,Huamin Empire Plaza,No.726, Yan An Road(W),Shanghai,China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.ntek.org.cn Page 2 of 66 Report No.: NTEK-2013NT0914219F TEST RESULT CERTIFICATION Applicant’s name................. : Golden Supreme International Trading(Shanghai)Co.,Ltd. Address ................................. : Room A,25 Floos,Huamin Empire Plaza,No.726, Yan An Road(W),Shanghai,China Manufacture's Name............ : Taiguen Technology（ShenZhen） Co., Ltd. Address ................................. : No.23,The Third Industrial Park of Xia village, Gongming,Guangmin new District, Shenzhen City, Guangdong Province,P.R.China Product description Product name ........................... : Wireless Media Player Model and/or type reference : AC19N370FB Serial Model .............................. : N/A Standards............................. : FCC Part15.247 Test procedure .............................. ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test............................................: Date (s) of performance of tests .............: 14 Sep. 2013 ~ 08 Oct. 2013 Date of Issue...........................................: 08 Oct. 2013 Test Result...............................................: Pass Testing Engineer : (Polo Cha) Technical Manager : (Brown Lu) Authorized Signatory : (Bovey Yang) Page 3 of 66 Report No.: NTEK-2013NT0914219F Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 11 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 12 3 . EMC EMISSION TEST 13 3.1 CONDUCTED EMISSION MEASUREMENT 13 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.1.2 TEST PROCEDURE 14 3.1.3 DEVIATION FROM TEST STANDARD 14 3.1.4 TEST SETUP 14 3.1.5 EUT OPERATING CONDITIONS 14 3.1.6 TEST RESULTS 15 3.2 RADIATED EMISSION MEASUREMENT 17 3.2.1 RADIATED EMISSION LIMITS 17 3.2.2 TEST PROCEDURE 18 3.2.3 DEVIATION FROM TEST STANDARD 18 3.2.4 TEST SETUP 19 3.2.5 EUT OPERATING CONDITIONS 20 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 21 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 22 3.2.8 TEST RESULTS (ABOVE 1000 MHZ) 24 4 . POWER SPECTRAL DENSITY TEST 37 4.1 APPLIED PROCEDURES / LIMIT 37 4.1.1 TEST PROCEDURE 37 4.1.2 DEVIATION FROM STANDARD 37 4.1.3 TEST SETUP 37 4.1.4 EUT OPERATION CONDITIONS 37 4.1.5 TEST RESULTS 38 5 . BANDWIDTH TEST 46 5.1 APPLIED PROCEDURES / LIMIT 46 5.1.1 TEST PROCEDURE 46 Page 4 of 66 Report No.: NTEK-2013NT0914219F Table of Contents Page 5.1.2 EUT OPERATION CONDITIONS 46 5.1.3 TEST RESULTS 47 6 . PEAK OUTPUT POWER TEST 55 6.1 APPLIED PROCEDURES / LIMIT 55 6.1.1 TEST PROCEDURE 55 6.1.2 DEVIATION FROM STANDARD 55 6.1.3 TEST SETUP 55 6.1.4 EUT OPERATION CONDITIONS 55 6.1.5 TEST RESULTS 56 7 . 100 KHZ BANDWIDTH OF FREQUENCY BAND EDGE 57 7.1 DEVIATION FROM STANDARD 57 7.2 TEST SETUP 57 7.3 EUT OPERATION CONDITIONS 57 7.4 TEST RESULTS 58 8 . ANTENNA REQUIREMENT 64 8.1 STANDARD REQUIREMENT 64 8.2 EUT ANTENNA 64 9 . EUT TEST PHOTO 65 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 66 Report No.: NTEK-2013NT0914219F 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247 (a)(2) 6dB Bandwidth PASS 15.247 (b) Peak Output Power PASS 15.247 (c) Radiated Spurious Emission PASS 15.247 (d) Power Spectral Density PASS 15.205 Band Edge Emission PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Page 6 of 66 Report No.: NTEK-2013NT0914219F 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add.:1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.:238937; IC Registration No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 7 of 66 Report No.: NTEK-2013NT0914219F 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Wireless Media Player Trade Name NUMIGHTY Model Name AC19N370FB Serial Model N/A Model Difference N/A Product Description The EUT is a Wireless Media Player. Operation Frequency: 802.11b/g/n(20MHz):2412~2462 MHz 802.11n(40MHz):2422~2452 MHz Modulation Type: CCK/OFDM/DBPSK/DAPSK Bit Rate of Transmitter 802.11b:11/5.5/2/1 Mbps 802.11g:54/48/36/24/18/12/9/6Mbps 802.11n(20/40MHz):150/144.44/130/1 17/115.56/104/86.67/78/52/6.5Mbps Number Of Channel 802.11b/g/n20MHz:11CH 802.11n40MHz:7CH Antenna Designation: Please see Note 3. Output Power(Conducted): 802.11b: 16.73 dBm (Max.) 802.11g: 14.8…

Text truncated - open the document above for the full version.

Page 64 of 65 Report No.: NTEK-2013NT0914219F 9. EUT TEST PHOTO Radiated Measurement Photos Page 65 of 65 Report No.: NTEK-2013NT0914219F Conducted Measurement Photo
