2AAUI-GDIEXYMHSUB01Subwoofer

UNDERSEAT BLUETOOTH ® SUBWOOFER Model : GDI-EXYMHSUB01 User Guide Quick Start Connect your subwoofer to a 12VDC power supply.Power on your Marine FX Speakers and allow the two FX speakers to complete the EcoConnect pairing process (see Marine FX Speaker user guide for details).Press the Power Button on top of your subwoofer to power it on.Connect your subwoofer to your Marine FX Speakers.Connect your subwoofer to your Smart Device.Play. 1 2 3 4 Control Buttons Bass and Volume Levels LCD Display Waterproof Compartment 5 6 CARE, MAINTENANCE, & PRECAUTIONS: 1) The unit is waterproof only when the cap is properly closed. 2) Close the cap properly before use. If the unit is placed in a water environment without the cap properly closed, water may enter into the unit and void your warranty. 3) Dry unit completely before opening the cap. Do NOT open the cap if wet or in a wet environment. 4) Do NOT apply excessive force to any surfaces of the unit when wet or in a wet environment. 5) Do NOT use or store the unit in places with high temperature. 6) AVOID prolonged exposure to ultraviolet radiation (UV sunlight) and strong magnetic fields. 7) Periodically check the rubber seal for premature wear. 8) Periodically clean the rubber with a soft moist cloth and ensure no objects such as dirt, hair, or sand are on the rubber seal ring. Do NOT use any oily solvent or chemicals for cleaning. 9) Rinse off the unit with tap water after use in salt water. 10) Power the unit by attaching the 12V Power In SAE Connector to the 30” Power Cable intended for use with the unit. The unit must be connected to a 12VDC power source. If the battery terminal voltage is not 12V, you will need a DC–DC converter with output 12V/10A . Connecting the unit to a non-12VDC power source will lead to a malfunction or damage to the unit. LIMITED MANUFACTURER’S WARRANTY: The Underseat Bluetooth Subwoofer is covered by a 1-year limited warranty that covers defects in workmanship and / or materials for a period of 1 year from original purchase date with the exception of the unit’s battery. The unit’s battery is covered by a conditional 6-month warranty.This warranty does not apply to any products which have been abused, neglected, modified, or used for a purpose other than the one for which they were manufactured. Please refer to the above care and maintenance instructions for suggested care details. The warranty is valid only for the original owner who purchases the unit from an authorized dealer. Transfers do not qualify for warranty protection. Grace Digital reserves the right to replace any out-of-stock or discontinued product with a comparable product. Discontinued products may not be available for warranty replacement. Any contents are NOT covered by the limited manufacturer’s warranty. Warranty terms may be revised without notification at the discretion of the manufacturer. Please visit www.ecoxgear.com for additional product & warranty information. Underseat Bluetooth Subwoofer by ECOXGEAR, a division of Grace Digital Inc., San Diego, California. Designed and Engineered in the USA. Made in China. Patent Pending. SAFETY ADVISORY & WARNING:Read and follow all instructions. Use only as intended.CAUTION: Do NOT open to repair. A qualified technician must carry out repair work. ATTENTION: Do NOT connect to a 12VDC power supply while the unit is wet. Make sure all connections are dry BEFORE connecting to a power source. Failure to do so may result in electrical damage to the unit and may void the warranty. PROPOSITION 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ATTENTION: Do NOT dispose of in a landfill. Contact Grace Digital at www.gracesupport.com or a certified recycling agent to dispose of the unit. SAFETY:This product has a limited life span of use and should be replaced when it shows obvious signs of wear. Do not modify or remove any original component parts of the subwoofer. Doing so could cause damage to the unit allowing water to ingress. A unit with water ingress should not be charged due to potential risk of fire or shock.Please exercise care and good judgment when using your subwoofer. Audio levels should be appropriate to your environment, comply with all local regulations, and always ensure that you can hear and be aware of any potential hazards around you.You should always 1) Use the subwoofer in accordance with any music or noise rules and regulations. 2) Properly seal the unit prior and after each use when in humid or water environments to avoid water damage to the internal components. Salt water / air is particularly corrosive. Always make sure that the gaskets are sealed when in salt water environment and the unit properly rinsed off after use. 3) Properly clean the ECOXGEAR and ensure the gaskets have no sand, dirt, or water on them prior to storage or removing the back cover. 4) Store your unit with all caps properly sealed to avoid long term internal moisture damage inside your unit. 5) Return the ECOXGEAR to Grace Digital if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected the integrity of the unit to take on water. You should never 1) Never power your ECOXGEAR unit if you suspect water has entered the device. Powering a device with water inside could be potentially hazardous and cause fire or a spark. 2) Never use your ECOXGEAR if you have dropped it or thrown it against a hard surface which may have destroyed the integrity of the subwoofers, housings, or gaskets. In the event of a severe impact to your unit please return the unit to Grace Digital to review for potential damage. 3) Never open the cap in a water environment. This could cause water to ingress into the unit which could potentially be hazardous and cause a fire or a spark. 4) Never attempt to fix, repair your ECOXGEAR unit. Please send it back to Grace Digital for any assessments and repairs. Connecting to 12VDC Power Supply The Underseat Bluetooth Subwoofer does n…

Text truncated - open the document above for the full version.

Grace Digital Inc. Date: Jan21, 2021 FCC ID:2AAUI-GDIEXYMHSUB01 Model Number: GDI-EXYMHSUB01 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We,Grace Digital Inc.declare that this EUT (FCC ID:2AAUI-GDIEXYMHSUB01)will conduct FCC compliance testing, the SDOC part recognized test lab(Shenzhen NTEK Testing Technology Co., Ltd.(ShenZhen Lab.). 1/F, Building E, Fenda Science Park, SanweiCommunity,Xixiang Street Bao’an District, Shenzhen 518126 P.R. China) Please contact me if you have any question. Sincerely, (Signed) Name / Title:Jamie Florczak/ Manager Company: Grace Digital Inc. Address:Grace Digital Inc. 10531 4S Commons Drive#166 Suite#430, San Diego, CA 92127, USA

Grace Digital Inc. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021/01/21 Subject; Request for Confidentiality FCC ID: 2AAUI-GDIEXYMHSUB01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Jamie Florczak Title: Manager Email:[email protected]

Letter of Authorization Company:Grace Digital Inc. Address:Grace Digital Inc. 10531 4S Commons Drive#166 Suite#430, San Diego, CA 92127, USA Product Name:Subwoofer Model Number:GDI-EXYMHSUB01 FCC Identifier: 2AAUI-GDIEXYMHSUB01 We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name:Jamie Florczak Date: Jan. 21.2021 Title:Manager Signature of applicant:

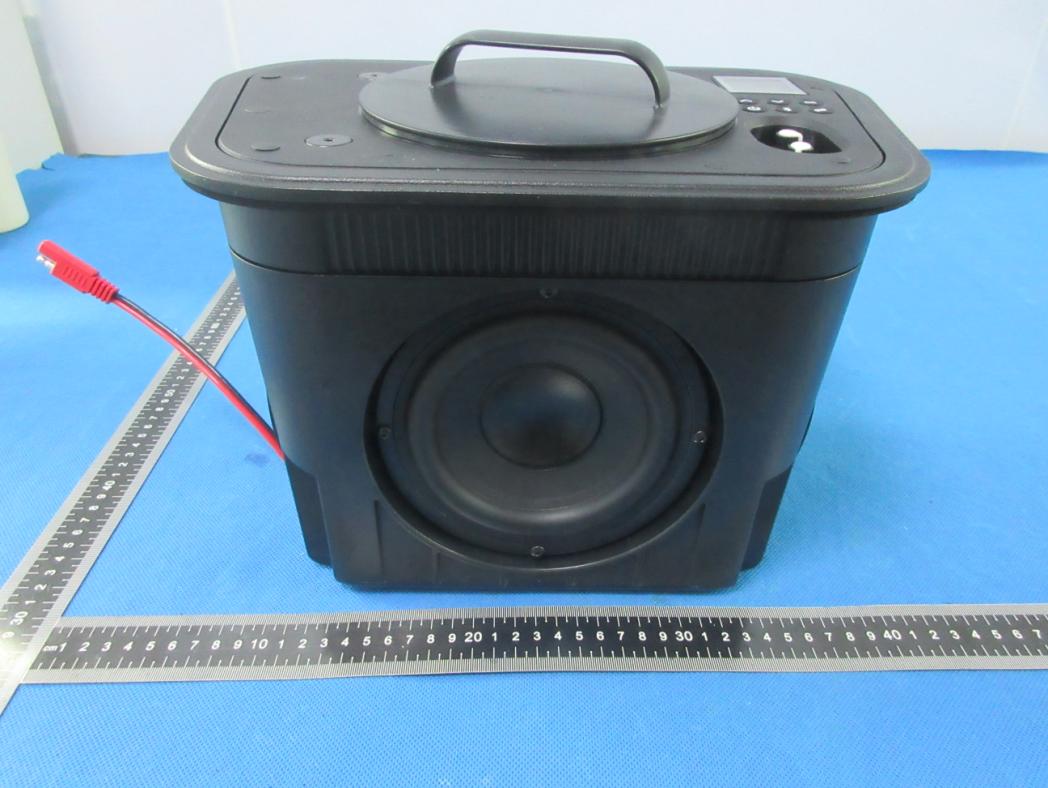

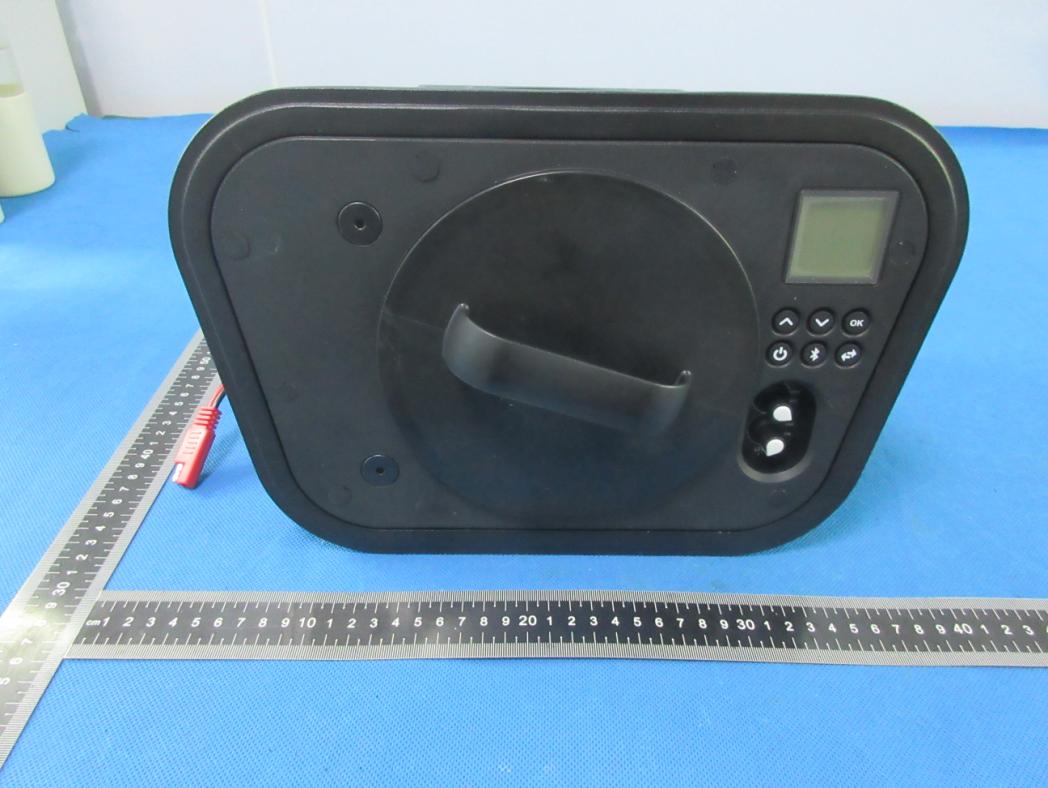

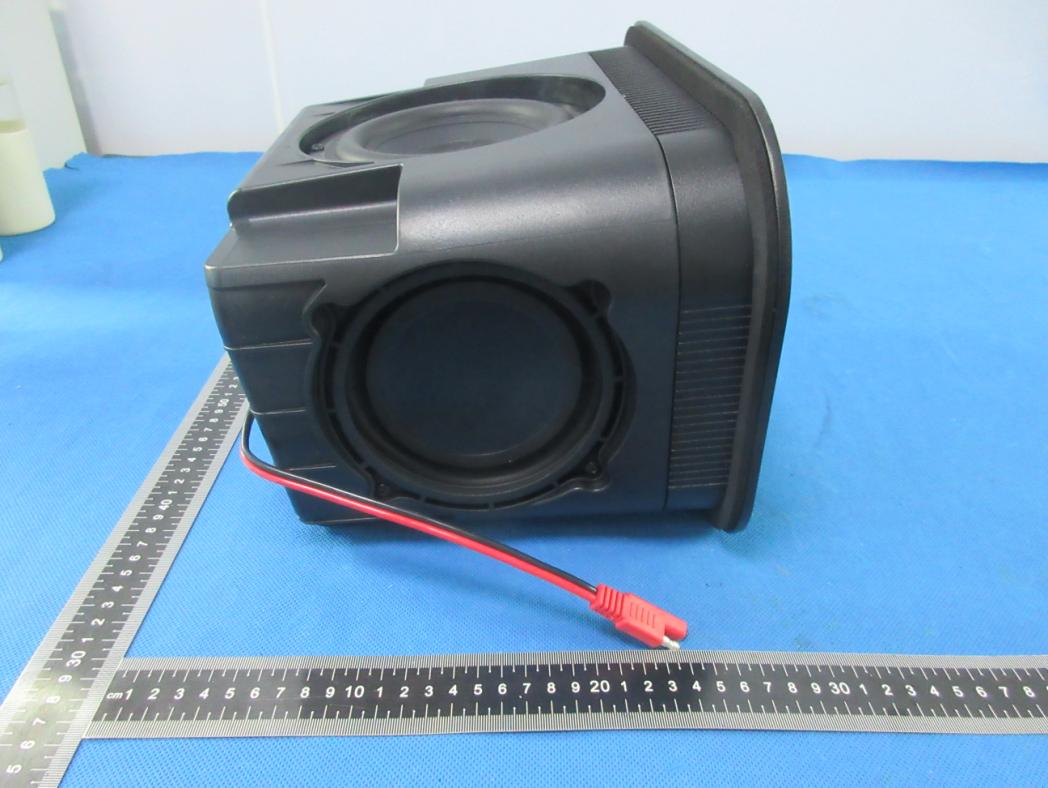

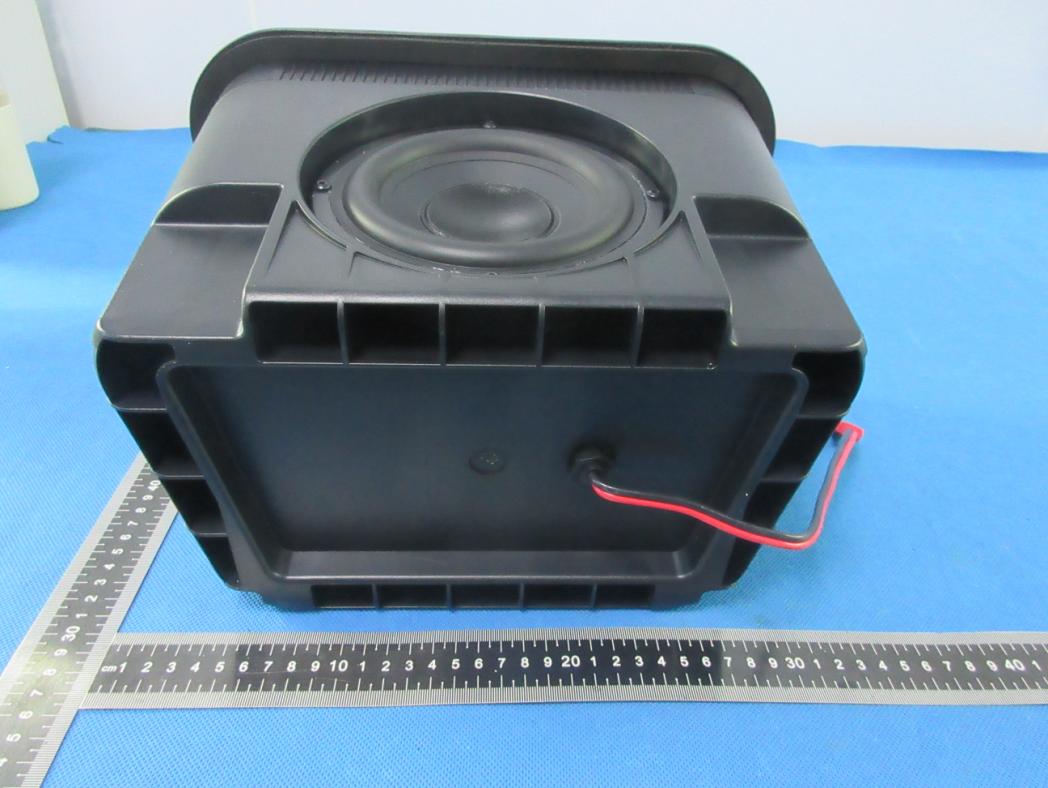

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 BT ANT Module 2 Photo 5 Photo 6 BT Ant Module 1 Photo 7 Photo 8 Photo 9 Photo 10

FCC ID: 2AAUI-GDIEXYMHSUB01 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 24028.703 8±197.9430.001.000.00161 24408.98 8±197.9430.001.000.00161 24808.654 8±197.9430.001.000.00161 24029.011 9±11010.0000.001.000.00201 24419.236 9±11010.0000.001.000.00201 24808.931 9±11010.0000.001.000.00201 24027.5388±19 7.9430.001.000.00161 24418.42 8±197.9430.001.000.00161 24807.568 8±197.9430.001.000.00161 24027.816 8±197.9430.001.000.00161 24418.663 8±197.9430.001.000.00161 24807.895 8±197.9430.001.000.00161 8-DPSK Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) BLE-GFSK (mW/cm2) Antenna Gain Max tune-up pow er π/4-DQPSK (mW/cm2 ) GFSK conducted pow er Evaluation result Pow er density Limits (dBm)(mW)(dBi)Numeric 24028.171 8±197.9430.001.000.00161 24408.962 8±197.9430.001.000.00161 24808.249 8±197.9430.001.000.00161 24028.61 9±11010.0000.001.000.00201 24419.379 9±11010.0000.001.000.00201 24808.452 9±11010.0000.001.000.00201 240210.34311±112 15.8490.001.000.00321 244111.599 11±11215.8490.001.000.00321 248010.823 11±11215.8490.001.000.00321 240210.842 11.5±112.517.7830.001.000.00351 244112.095 11.5±112.517.7830.001.000.00351 248011.25 11.5±112.517.7830.001.000.00351 (mW/cm2) Antenna Gain Max tune-up pow er π/4-DQPSK (mW/cm2 ) GFSK 8-DPSK Channel Freq. (MHz) modulation Tune-up pow er (dBm) (dBm) BLE-GFSK Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: PCB antenna Antenna gain: 0dBi, R=20cm Module 1: Module 2: Conclusion: For the max result : 0.0035≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 2021-01-21 NAME AND TITLE (Please print or type): Alex li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S20120901501001 Version.1.3 Page 1 of 135 RADIO TEST REPORT FCC ID: 2AAUI-GDIEXYMHSUB01 Product: Subwoofer Trade Mark: ECOXGEAR Model No.: GDI-EXYMHSUB01 Family Model: N/A Report No.: S20120901501001 Issue Date: 07 Jan. 2021 Prepared for Grace Digital Inc. Grace Digital Inc.10531 4S Commons Drive#166 Suite#430,San Diego,CA 92127,USA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel:400-800-6106 , 0755-3699-5508 Website:http://www.ntek.org.cn Report No.: S20120901501001 Version.1.3 Page 2 of 135 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 28 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 29 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 30 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 32 7.7 PEAK OUTPUT POWER .............................................................................................................................. 33 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 34 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 35 7.10 ANTENNA APPLICATION .......................................................................................................................... 36 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS .............................................. 37 8 TEST RESULTS ................................................................................................................................................... 38 MODULE 1: .................................................................................................................................................................. 38 8.1 DWELL TIME ............................................................................................................................................... 38 8.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................... 43 8.3 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 48 8.4 CARRIER FREQUENCIES SEPARATION .................................................................................................. 58 8.5 NUMBER OF HOPPING CHANNEL ........................................................................................................... 63 8.6 BAND EDGE ................................................................................................................................................. 64 8.7 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 77 MODULE 2: .................................................................................................................................................................. 87 8.8 DWELL TIME ................................................................................................................................................... 87 8.9 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 92 8.10 OCCUPIED CHANNEL BANDWIDTH ...............................................................................................…

Text truncated - open the document above for the full version.

Report No.: S20120901501001 Version.1.3 Page 101 of 135 -20 dB BW NVNT 2-DH5 2402MHz Ant1 OBW NVNT 2-DH5 2441MHz Ant1 Report No.: S20120901501001 Version.1.3 Page 102 of 135 -20 dB BW NVNT 2-DH5 2441MHz Ant1 OBW NVNT 2-DH5 2480MHz Ant1 Report No.: S20120901501001 Version.1.3 Page 103 of 135 -20 dB BW NVNT 2-DH5 2480MHz Ant1 OBW NVNT 3-DH5 2402MHz Ant1 Report No.: S20120901501001 Version.1.3 Page 104 of 135 -20 dB BW NVNT 3-DH5 2402MHz Ant1 OBW NVNT 3-DH5 2441MHz Ant1 Report No.: S20120901501001 Version.1.3 Page 105 of 135 -20 dB BW NVNT 3-DH5 2441MHz Ant1 OBW NVNT 3-DH5 2480MHz Ant1 Report No.: S20120901501001 Version.1.3 Page 106 of 135 -20 dB BW NVNT 3-DH5 2480MHz Ant1 Report No.: S20120901501001 Version.1.3 Page 107 of 135 8.11 CARRIER FREQUENCIES SEPARATION Condition Mode Hopping Freq1 (MHz) Hopping Freq2 (MHz) HFS (MHz) Limit (MHz) Verdict NVNT 1-DH5 2402.047 2403.049 1.002 0.952 Pass NVNT 1-DH5 2440.996 2441.998 1.002 0.954 Pass NVNT 1-DH5 2479.047 2480.049 1.002 0.95 Pass NVNT 2-DH5 2401.996 2402.998 1.002 0.896 Pass NVNT 2-DH5 2441.158 2442.16 1.002 0.891 Pass NVNT 2-DH5 2478.999 2479.998 0.999 0.889 Pass NVNT 3-DH5 2402.158 2403.157 0.999 0.877 Pass NVNT 3-DH5 2441.158 2442.157 0.999 0.867 Pass NVNT 3-DH5 2479.158 2480.16 1.002 0.867 Pass CFS NVNT 1-DH5 2402MHz Report No.: S20120901501001 Version.1.3 Page 108 of 135 CFS NVNT 1-DH5 2441MHz CFS NVNT 1-DH5 2480MHz Report No.: S20120901501001 Version.1.3 Page 109 of 13 5 CFS NVNT 2-DH5 2402MHz CFS NVNT 2-DH5 2441MHz Report No.: S20120901501001 Version.1.3 Page 110 of 135 CFS NVNT 2-DH5 2480MHz CFS NVNT 3-DH5 2402MHz Report No.: S20120901501001 Version.1.3 Page 111 of 135 CFS NVNT 3-DH5 2441MHz CFS NVNT 3-DH5 2480MHz Report No.: S20120901501001 Version.1.3 Page 112 of 135 8.12 NUMBER OF HOPPING CHANNEL Condition Mode Hopping Number Limit Verdict NVNT 1-DH5 79 15 Pass Hopping No. NVNT 1-DH5 2402MHz Report No.: S20120901501001 Version.1.3 Page 113 of 135 8.13 BAND EDGE Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 No-Hopping -49 -20 Pass NVNT 1-DH5 2402 Ant 1 Hopping -49.09 -20 Pass NVNT 1-DH5 2480 Ant 1 No-Hopping -52.07 -20 Pass NVNT 1-DH5 2480 Ant 1 Hopping -50.87 -20 Pass NVNT 2-DH5 2402 Ant 1 No-Hopping -47.91 -20 Pass NVNT 2-DH5 2402 Ant 1 Hopping -49.29 -20 Pass NVNT 2-DH5 2480 Ant 1 No-Hopping -49.2 -20 Pass NVNT 2-DH5 2480 Ant 1 Hopping -51.13 -20 Pass NVNT 3-DH5 2402 Ant 1 No-Hopping -48.25 -20 Pass NVNT 3-DH5 2402 Ant 1 Hopping -48.69 -20 Pass NVNT 3-DH5 2480 Ant 1 No-Hopping -50.73 -20 Pass NVNT 3-DH5 2480 Ant 1 Hopping -51.29 -20 Pass Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Report No.: S20120901501001 Version.1.3 Page 114 of 135 Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Report No.: S20120901501001 Version.1.3 Page 115 of 135 Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Report No.: S20120901501001 Version.1.3 Page 116 of 135 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Report No.: S20120901501001 Version.1.3 Page 117 of 135 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Report No.: S20120901501001 Version.1.3 Page 118 of 135 Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Report No.: S20120901501001 Version.1.3 Page 119 of 135 Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Report No.: S20120901501001 Version.1.3 Page 120 of 135 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Report No.: S20120901501001 Version.1.3 Page 121 of 135 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Report No.: S20120901501001 Version.1.3 Page 122 of 135 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Report No.: S20120901501001 Version.1.3 Page 123 of 135 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Report No.: S20120901501001 Version.1.3 Page 124 of 135 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Report No.: S20120901501001 Version.1.3 Page 125 of 135 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: S20120901501001 Version.1.3 Page 126 of 135 8.14 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 -59.38 -20 Pass NVNT 1-DH5 2441 Ant 1 -64.27 -20 Pass NVNT 1-DH5 2480 Ant 1 -62.78 -20 Pass NVNT 2-DH5 2402 Ant 1 -59.38 -20 Pass NVNT 2-DH5 2441 Ant 1 -63.46 -20 Pass NVNT 2-DH5 2480 Ant 1 -61.22 -20 Pass NVNT 3-DH5 2402 Ant 1 -57.96 -20 Pass NVNT 3-DH5 2441 Ant 1 -63.78 -20 Pass NVNT 3-DH5 2480 Ant 1 -62.67 -20 Pass Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Report No.: S20120901501001 Version.1.3 Page 127 of 135 Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Report No.: S20120901501001 Version.1.3 Page 128 of 135 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Report No.: S20120901501001 Version.1.3 Page 129 of 135 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Report No.: S20120901501001 Version.1.3 Page 130 of 135 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Report No.: S20120901501001 Version.1.3 Page 131 of 135 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Report No.: S20120901501001 Version.1.3 Page 132 of 135 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Rep…

Text truncated - open the document above for the full version.

Radiated Measurement Photos
