2AAUI-GDIVXYMHFTWYamaha VX Footwell Speakers/Yamaha EX Footwell Speakers

Y amaha VX Footwell Speakers/Yamaha EX Footwell Speakers M odel:GDI-VXYMHFTWL01 User Guide Quick Start Press and hold the Power Button on top of your speaker to power on one of the two VX Footwell speakers. Search your Bluetooth Connection on your Smart Device. Choose ‘FW-ECOXGEAR’ to pair. Select and play your music. Press the EcoCast Button to cycle through to EcoCast Transmitting Mode. Press and hold the Power Button on the other speaker. Press the EcoCast Button to cycle through to EcoCast Receiving Mode. The speakers will automatically pair to each other & play music. 1 2 3 4 5 Control Buttons Speakerphone Mic USB-C Input Waterproof Cap LIMITED MANUFACTURER’S WARRANTY: The VX Footwell speakers are covered by a 1-year limited warranty that covers defects in workmanship and / or materials for a period of 1 year from original purchase date with the exception of the unit’s battery. The unit’s battery is covered by a conditional 6-month warranty. This warranty does not apply to any products which have been abused, neglected, modified, or used for a purpose other than the one for which they were manufactured. Please refer to the above care and maintenance instructions for suggested care details. The warranty is valid only for the original owner who purchases the unit from an authorized dealer. Transfers do not qualify for warranty protection. Grace Digital reserves the right to replace any out-of-stock or discontinued product with a comparable product. Discontinued products may not be available for warranty replacement. Any contents are NOT covered by the limited manufacturer’s warranty. Warranty terms may be revised without notification at the discretion of the manufacturer. Please visit www.ecoxgear.com for additional product & warranty information. VX Footwell speakers by ECOXGEAR, a division of Grace Digital Inc., San Diego, California. Designed and Engineered in the USA. Made in China. Patent Pending. WARNING: Please read and understand these instructions completely before installation to avoid possible injury, or damage to the accessory or vehicle. NOTICES: This installation should be performed by an authorized Yamaha dealer or other qualified technician. WARRANTY INFORMATION: In the United States, see your Yamaha dealer for a copy of the Genuine Yamaha Accessories Limited Warranty statement. DEALER OR INSTALLER: These instructions contain important information for future reference and must be given to the customer. 6) Completely dry and clean your ECOXGEAR prior to attempting to charge the unit. 7) Return the ECOXGEAR to Grace Digital if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected the integrity of the unit to take on water. You should never 1) Never charge your ECOXGEAR if you suspect water has entered the device. Charging a device with water inside could be potentially hazardous and cause fire or a spark. 2) Never use your ECOXGEAR if you have dropped it or thrown it against a hard surface which may have destroyed the integrity of the speakers, housings, or gaskets. In the event of a severe impact to your unit please return the unit to Grace Digital to review for potential damage. 3) Never open the auxiliary door in a water environment. This could cause water to ingress into the unit which could potentially be hazardous and cause a fire or a spark. 4) Never connect a device to the auxiliary input jack when in a water environment. The auxiliary jack should only be used in a dry environment. 5) Never attempt to fix, repair your ECOXGEAR unit. Please send it back to Grace Digital for any assessments and repairs. CARE, MAINTENANCE, & PRECAUTIONS: 1) The unit is waterproof only when the cap is properly closed. 2) Close the cap properly before use. If the unit is placed in water without the cap properly closed, water may enter into the unit and void your warranty. 3) Dry unit completely before opening the cap. Do NOT open the cap if wet or in a wet environment. 4) Do NOT apply excessive force to any surfaces of the unit when wet or in a wet environment. 5) Do NOT use or store the unit in places with high temperature. 6) AVOID prolonged exposure to ultraviolet radiation (UV sunlight) and strong magnetic fields. 7) Periodically check the rubber seal for premature wear. 8) Periodically clean the rubber with a soft moist cloth and ensure no objects such as dirt, hair, or sand are on the rubber seal ring. Do NOT use any oily solvent or chemicals for cleaning. 9) Rinse off the unit with tap water after use in salt water or swimming pool. 10) Power and / or charge the built-in rechargeable battery for portable use by connecting the USB cord to a computer USB connection or to an AC outlet using the AC-to-USB cord 5V, 1A power adapter intended for use with the unit. 11) Noise and audio distortion may occur when the batteries are nearing end of charge. 12) Do NOT remove the built-in battery. Do NOT remove the grill covers. Control Buttons & Operations On/Off PRESS AND HOLD the Power Button to power ON/OFF. Bluetooth When turned ON, the VX Footwell speakers will power on and search for your Bluetooth. Refer to Set Up Recommendations 1-2-3 part for details. EcoCast Use this button to cycle through Speaker Mode, EcoCast Transmitting Mode, and Receiving Mode. Refer to Set Up Recommendations 1-2-3 part and EcoCast – Broadcast Your Music to Multiple Speakers for details. Speaker Volume Press button once to decrease or to increase Speaker Volume. NOTE: Some Bluetooth devices may require to be manually set for maximum audio level. Track Selection PRESS AND HOLD to select Previous Song track & Next Song track . Play/Pause/Answer Press button once to pause or play song tracks. When receiving an incoming phone call, press button once to answer. Press button again to hang up. You can also PRESS AND HOLD to reject an incoming call. Speakerphone Mic The integrated Speakerphone Mic on the Top Panel allows you to answer mobile calls. LED Status In…

Text truncated - open the document above for the full version.

Grace Digital Inc. Agent Authorization Company:Gr ace Digital Inc. Address: Grace Digital Inc. 10531 4S Commons Drive #166 Suite #430,San Diego, CA 92127 Product Name: Yamaha VX Footwell Speakers/Yamaha EX Footwell Speakers Model Number(s): GDI-VXYMHFTWL01, GDI-VXYMHFTWL08, GDI-EXYMHFTWLCST01, GDI-EXYMHFTWLCST08 Product Description: Yamaha VX Footwell Speakers/Yamaha EX Fo otwell Speakers We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2022.08.09 Name: Jamie Florczak Title: EVP, Operations Company: Grace Digital Inc.

Grace Digital Inc. Family models declaration letter. 2022-08-09 We Company: Grace Digital Inc. Address: Grace Digital Inc. 10531 4S Commons Drive #166 Suite #430,San Diego, CA 92127 Product: Yamaha VX Footwell Speakers/Yamaha EX Footwell Speakers Model Name: GDI-VXYMHFTWL01 Family Mo del: GDI-VXYMHFTWL08, GDI-EXYMHFTWLCST01, GDI-EXYMHFTWLCST08 All models are the same circuit and RF module, except the colour and holder. Thanks Sincerely, S ignature [Name] Jamie Florczak [Title] EVP, Operations Grace Digital Inc.

Grace Digital Inc. O ffice of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2022/08/09 Subject; Request for Confidentiality FCC ID:2AAUI-GDIVXYMHFTW T o Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 dayspursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name:Jamie Florczak Title:EVP, Operations Email:[email protected]

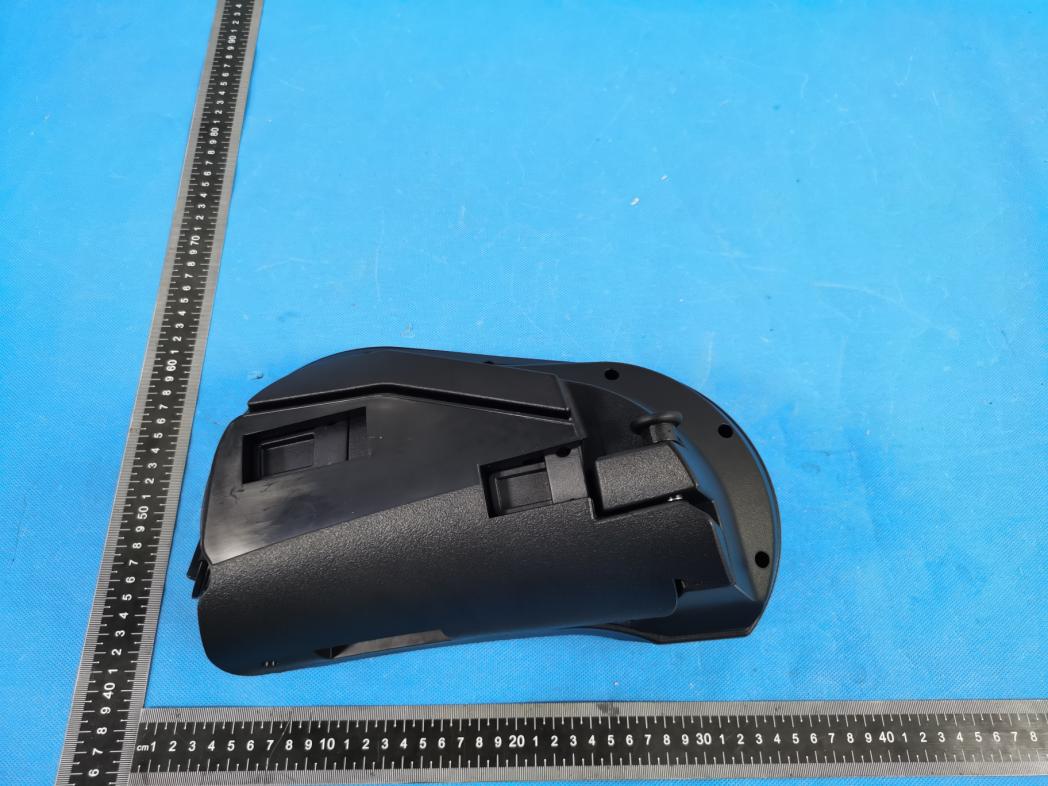

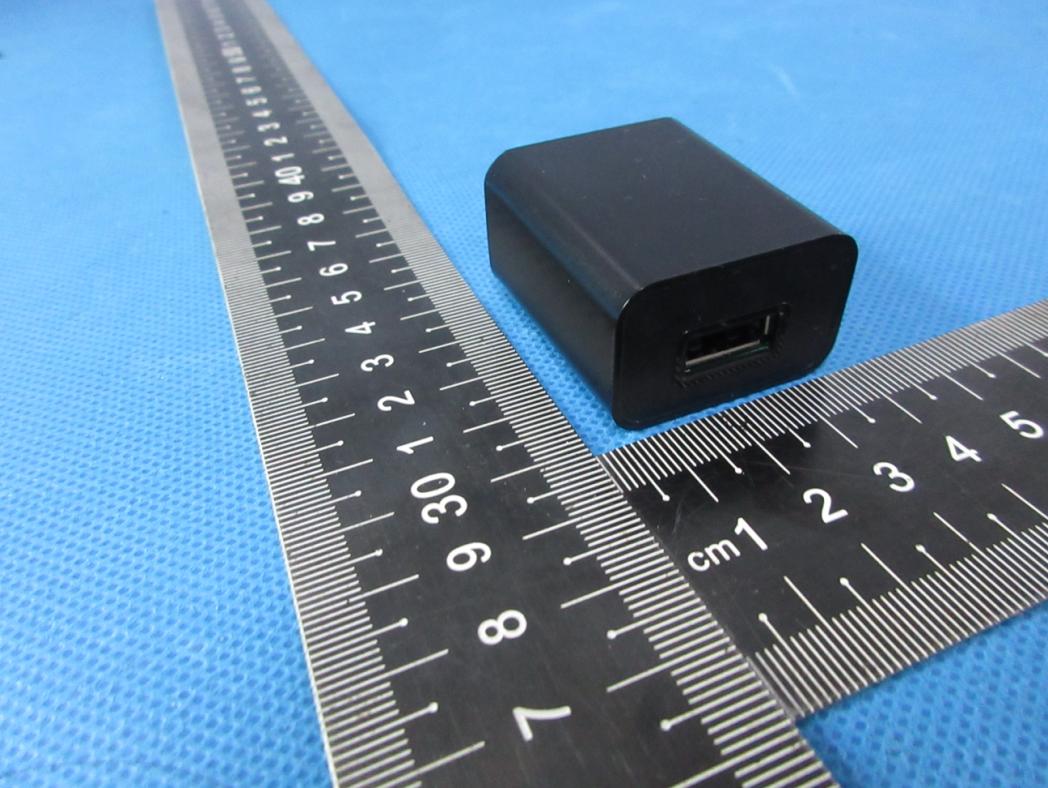

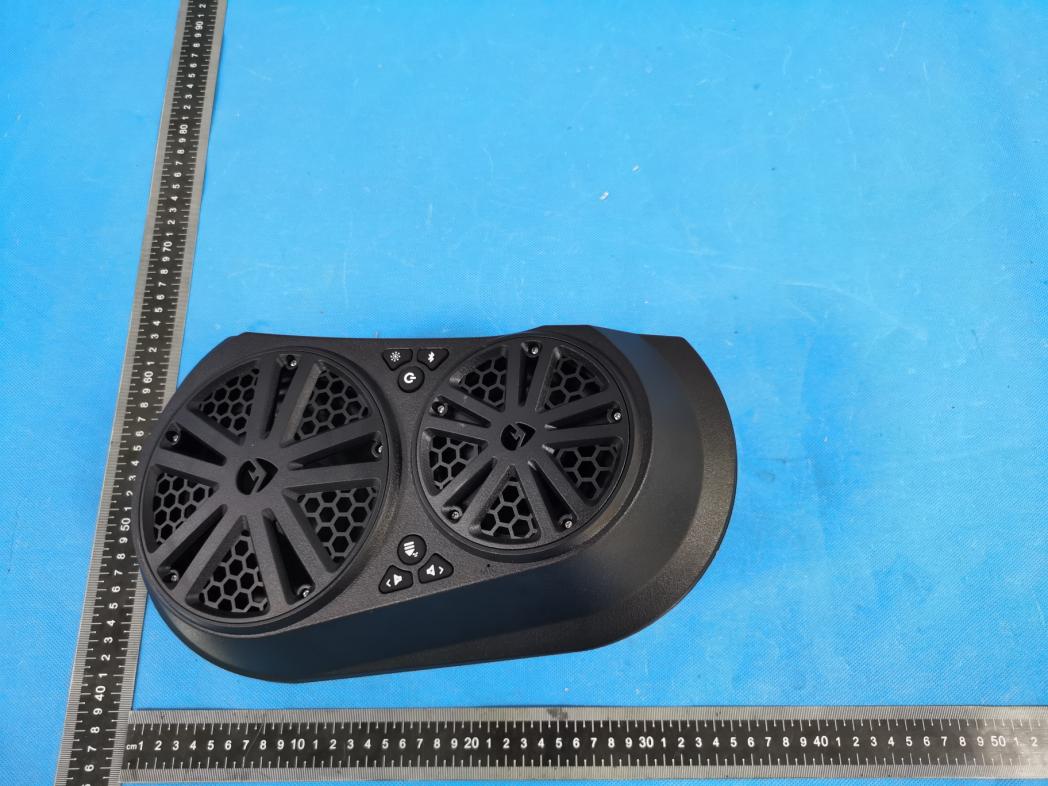

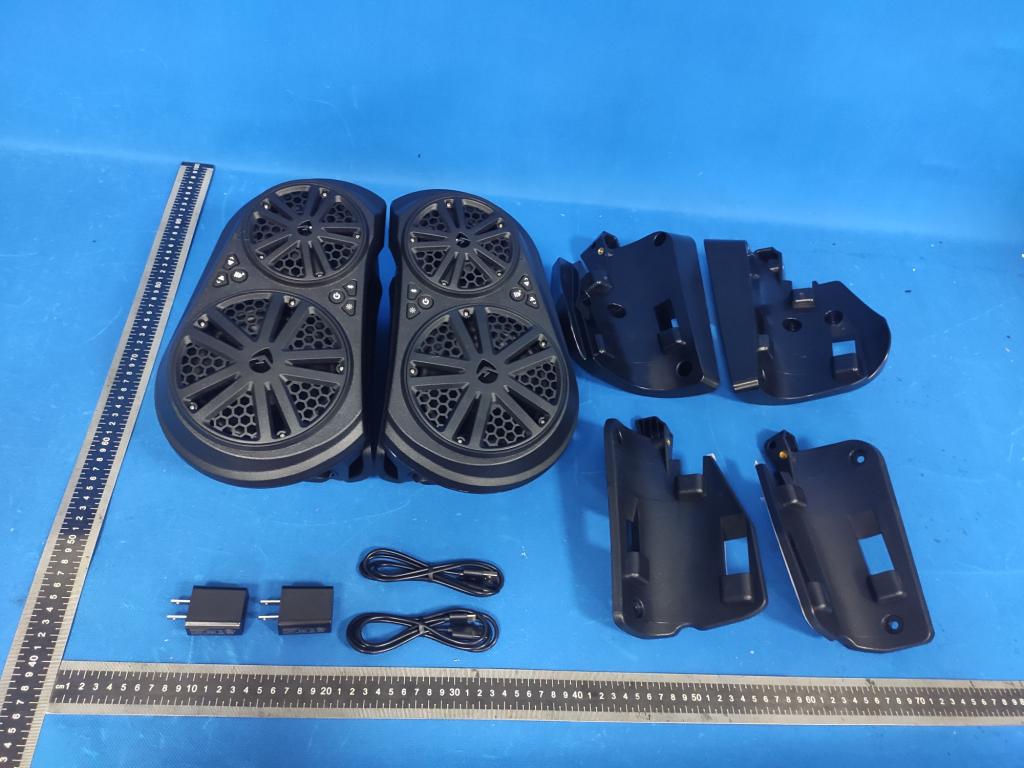

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

21mm HEJYYMMX 以 xx 121mm

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 BT ANT

FCC ID:2AAUI-GDIVXYMHFTW RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) MPE Calculation Method E (V/m) ＝ d GP**30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 *377 **30 D GP From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Measurement Result Operation Frequency: BT: 2402-2480MHz Power density limited: 1mW/ cm 2 Antenna Type: FPC Antenna Antenna gain: 3dBi, R=20cm conducted power Evaluation result Power density Limits (dBm)(mW)(dBi)Numeric 2402 4.256 4±15 3.1623.002.000.00131 2441 4.643 4±15 3.1623.002.000.00131 2480 4.77 4±15 3.1623.002.000.00131 2402 6.139 6±17 5.0123.002.000.00201 2441 6.362 6±17 5.0123.002.000.00201 2480 6.67 6±17 5.0123.002.000.00201 2402 6.591 7±18 6.3103.002.000.00251 2441 6.831 7±18 6.3103.002.000.00251 2480 7.229 7±18 6.3103.002.000.00251 24025.993 6±17 5.0123.002.000.00201 2440 6.806 6±17 5.0123.002.000.00201 2480 6.43 6±17 5.0123.002.000.00201 2402 5.996 6±17 5.0123.002.000.00201 2440 6.827 6±17 5.0123.002.000.00201 2480 6.428 6±17 5.0123.002.000.00201 GFSK-2M Channel Freq. (MHz) modulation Tune-up power (dBm) (dBm) π/4-DQPSK 8-DPSK GFSK-1M (mW/cm2 )(mW/cm2) Antenna Gain GFSK Max tune-up power Conclusion: For the max result : 0.0025≤ 1.0 for Max Power Density, compliance RF exposure.. Signature: Date: 2022-08-09 NAME AND TITLE (Please print or type): Alex Li/Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

Report No.: S22062202002002 Version.1.3 Page 1 of 64 RADIO TEST REPORT FCC ID: 2AAUI-GDIVXYMHFTW Product: Yamaha VX Footwell Speakers/Yamaha EX Footwell Speakers Trade Mark: ECOXGEAR Model No.: GDI-VXYMHFTWL01 Family Model: GDI-VXYMHFTWL08, GDI-EXYMHFTWLCST01, GDI-EXYMHFTWLCST08 Report No.: S22062202002002 Issue Date: Jul 12, 2022 Prepared for Grace Digital Inc. Grace Digital Inc. 10531 4S Commons Drive #166 Suite #430,San Diego, CA 92127 Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22062202002002 Version.1.3 Page 2 of 64 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 5 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 6 3.1 FACILITIES..................................................................................................................................................... 6 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 6 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 6 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 7 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.1.1 Applicable Standard .................................................................................................................... 14 7.1.2 Conformance Limit ...................................................................................................................... 14 7.1.3 Measuring Instruments ................................................................................................................ 14 7.1.4 Test Configuration ....................................................................................................................... 14 7.1.5 Test Procedure ............................................................................................................................ 14 7.1.6 Test Results ................................................................................................................................. 15 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.2.1 Applicable Standard .................................................................................................................... 17 7.2.2 Conformance Limit ...................................................................................................................... 17 7.2.3 Measuring Instruments ................................................................................................................ 18 7.2.4 Test Configuration ....................................................................................................................... 18 7.2.5 Test Procedure ............................................................................................................................ 19 7.2.6 Test Results ................................................................................................................................. 20 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.3.1 Applicable Standard .................................................................................................................... 26 7.3.2 Conformance Limit ...................................................................................................................... 26 7.3.3 Measuring Instruments ................................................................................................................ 26 7.3.4 Test Setup ................................................................................................................................... 26 7.3.5 Test Procedure ............................................................................................................................ 26 7.3.6 Test Results ................................................................................................................................. 26 7.4 DUTY CYCLE ............................................................................................................................................... 27 7.4.1 Applicable Standard .................................................................…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
