HCTBLE42S1D Specification nRF51822 2.4GHz BLE4.2 Low Power Consumption Bluetooth Module Chapter 1 Overview 1.1 Introduction HCTBLE42S1D is a small-sized SMD Bluetooth module developed based on nRF51822 produced by Nordic of Norway. It uses a 16Mhz industrial grade crystal to ensure its industrial characteristics and stability. nRF51822 comes with high-performance ARM CORTEX-M0 core and Bluetooth 4.2 radio frequency transceiver and protocol stack, and has rich peripheral resources such as UART, I2C, SPI, ADC, DMA, and PWM. This module redeveloped some IO ports. For details, please refer to the pin definition, which is convenient for users to carry out multi-directional development. The module has built-in on-board PCB antenna, it does not require external antennas. 1.2 Features 85 °C . BLED4.2 compatible; . Fixed transmit rate 0dB, software adjustment not available . Global license-free ISM 2.4GHz band compatible . Built-in high-performance low-power Cortex-M0 core processor . Power supply 2.0 ～ 3.6V. . Industrial standard design, be able to function during temperature range from -40 °C to 1.3 3 Applications .Remote Game Control .Medical and healthcare product .Wireless Head phones Chapter 2 Specifications 2.1 Parameter Range Parameters Range Note Min Max Power Supply Volt（V） 0 3.6 Permanent damage to module if power supply exceeds 3.6 V Blocking Power（dBm） 0 10 low rate of burn in near site use Working Temperature （°C ） -40 +85 Industrial standard design 2.1 Working parameter Parameters Range Note Min Standard Max Operating Voltage（V） 1.8 3.3 3.6 ≥3.3V be able to stable output Output level（V） 3.0 Using 5V TTL risk of burn Working Temperature（°C） -40 - +85 Working Frequency（MHz） 2379 2430 2496 Power Consumption Emission current（mA） 14 Instant power consumption Receive current（mA） 12 Sleep current （μA） 1 Software shut down Max Transmit power（dBm） 0 0.3 Receiving sensitivity（dBm） -95.4 -96.0 -96.8 1Mbps in the air Parameters description Note Reference distance 100m Clear and open, antenna gain 0dBi, antenna height 2.5 meters, air speed 1Mbps Crystal frequency 16MHz Protocol BLE4.2 Packaging method SMD 2496 Support ISM band Interface method 1.2mm Instantaneous power IC Description nRF51822-QFACA/QFN48 Size 13.5mm*20.5mm Antenna interface PCB PCB Antenna，Equivalent resistance 50Ω Module communication method Full-duplex serial transmission Only supports 115200 baud rate Chapter 3 Mechanical Size and Pin Definition TOP PAD BOTTOM PAD Pin No. Pin Name Pin Direction Pin Usage 1 XL2 Output Connect 32.768 KHz external crystal 2 GND Ground, connected to power reference ground 3 XL1 Input Connect 32.768 KHz external crystal 4 PO28 Input/ Output MCU GPIO 5 PO29 Input/ Output MCU GPIO 6 DVDD Power 1.8V-3.6V DC 7 PO02 Input/ Output MCU GPIO 8 PO03 Input/ Output MCU GPIO 9 PO04 Input/ Output MCU GPIO 10 PO08 Input/ Output MCU GPIO 11 PO09 Input/ Output MCU GPIO 12 PO10 Input/ Output MCU GPIO 13 PO11 Input/ Output MCU GPIO 14 PO14 Input/ Output MCU GPIO 15 PO15 Input/ Output MCU GPIO 16 PO16 Input/ Output MCU GPIO 17 SWD_DAT Input/ Output System reset (low active) hardware debugging and programming Flash。 18 SWD_CLK Input Hardware debugging and programming Flash。 19 PO17 Input/ Output MCU GPIO 20 PO18 Input/ Output MCU GPIO 21 PO19 Input/ Output MCU GPIO 22 PO20 Input/ Output MCU GPIO Chapter 4 Operation Instruction 4.1 Software Architecture 4.1.1 BLE4.2 protocol stack
Standard BLE protocol stack
SOC Libray
Soft Device Manager 4.1.2 Underlying hard drive
nRF51822 Wireless API
Protocol API 4.1.3 App-Specific periphereal drivers
BLE4.2 protocol stack initialization
Serial command processing 4.2 Antenna designs a) Antenna size chart b) Component list c) UART Interface Serial number Tag number Device package Device parameters Note 1 C6 0402 4.7PF 2 C7 0402 1.2PF 3 C8 0402 0.1PF 4 C9 0402 47NF 5 C10 0402 2.2NF 6 L1 0402 3.6nH 7 L2 0402 4.7nH 8 L3 0402 15nH The UART interface provides two signals. TXD and RXD pins are used for data, fixed baud rate, support 115200bps. 4.3 Hardware Design 1. It is recommended to use a DC stabilized power supply to power the module. The ripple factor of the power supply should be as small as possible and the module should be reliably grounded; 2. Please pay attention to the correct connection of the positive and negative poles of the power supply, such as reverse connection may cause permanent damage to the module; 3. Please check the power supply to ensure that between the recommended power supply voltages, if the maximum value is exceeded, the module will be permanently damaged; 4. Please check the stability of the power supply, the voltage cannot fluctuate greatly and frequently; 5. When designing the power supply circuit for the module, it is often recommended to reserve more than 30% of the margin, as the whole machine is conducive to long-term stable work; 6. The module should be far away from the parts with large electromagnetic interference such as power supply, transformer, high-frequency wiring; 7. High-frequency digital routing, high-frequency analog routing, and power routing must be avoided under the module. If it is necessary to pass under the module, it is assumed that the module is soldered to the top layer, and copper is laid on the top layer of the module's contact part (all copper and Good grounding), must be close to the digital part of the module and routed in the Bottom Layer; 8. Assuming that the module is soldered or placed on the Top Layer, it is also wrong to arbitrarily route the Bottom Layer or other layers, which will affect the spurs and receiving sensitivity of the module to varying degrees; 9. It is assumed that there are devices with large electromagnetic interference around the module, which will greatly affect the performance of the module. According to the strength of the interference, it is recommended to stay away from the module appropriately. If the situation allows, you can do proper isolation and shielding; 10. It is assumed…

Text truncated - open the document above for the full version.

Shenzhen Honeycomb Technologies Company Limited Address: Xinhe Xinxing Industrial Park Block 3 A7 building, Shenzhen RE FCC ID: 2AAUWHBT42A20N To the certification reviewer: We are hereby applying for [full] modular approval of the above-referenced FCC ID, based on compliance with [all] of the criteria as detailed below. Sincerely, [signature] [name] Jensen He [title] General Manager Part 15 Unlicensed Single Modular Transmitter Approval Justification per 15.212 Requirement per 15.212 reference (i) The radio elements of the modular transmitter must have their own RF shielding. The Shielding for RF module will be provided in the host. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided. All modulation and data inputs are buffered by circuitry on the transmitter chip nRF51822. (iii) The modular transmitter must have its own power supply regulation. Power supply regulation is provided by host at DC 3.3 volts. (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna is integral. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 parameters. Testing was performed in a stand-alone configuration, as shown in the test setup photos. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. A sample of the label is provided as an exhibit, showing the FCC identifier of the module. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The module is compliant with all applicable FCC rules. (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module complies with applicable RF exposure requirements.

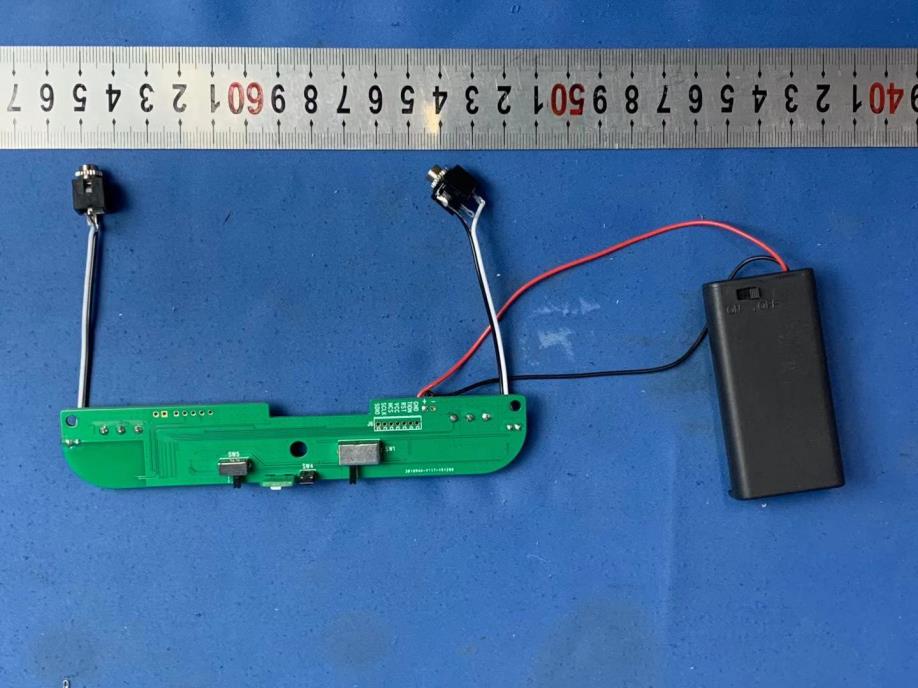

Module is mounted on a test board

Size: 17mm*1.1mm

antenna

INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a module with Bluetooth and 2.4G transmitter functions. It is powered by DC 3.3V. The Bluetooth function and 2.4G transmitter can’t transmit at the same time. This module is only use for battery-powered products. For more detail information pls refer to the user manual. Standalone SAR evaluation for BT function Bluetooth Version: 4.2 (BLE Single mode) Antenna Type: Integral antenna. Antenna Gain: 0dBi. Modulation Type: GFSK The nominal conducted output power specified: -5dBm (+/-3dB) The nominal radiated output power (e.i.r.p) specified: -5dBm (+/- 3dB) The maximun conducted output power for the EUT is -4.70 dBm in the frequency 2480MHz which is within the production variation. The minimum conducted output power for the EUT is -6.21 dBm in the frequency 2402MHz which is within the production variation. The maximun conducted output power specified is -2.0dBm = 0.631mW The source- based time-averaging conducted output power = 0.631 * Duty factor mW (where Duty Factor≤1) = 0.631mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AAUWHBT42A20N INTERTEK TESTING SERVICES Standalone SAR evaluation for 2.4G transmitter function Antenna Type: Integral antenna. Antenna Gain: 0dBi. Modulation Type: GFSK The nominal conducted output power specified: -2dBm (Tolerance: +/- 3dB) The nominal radiated output power (e.i.r.p) specified: -2dBm (+/- 3dB) The maximun conducted output power for the EUT is -2.82 dBm in the frequency 2450MHz which is within the production variation. The maximun conducted output power specified is 1.0dBm = 1.259mW The source- based time-averaging conducted output power = 1.259 * Duty factor mW (where Duty Factor≤1) = 1.259mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.450) mW = 9.58 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2AAUWHBT42A20N

Shenzhen Honeycomb Technologies Company Limited TEST REPORT SCOPE OF WORK FCC TESTING–nRF51822 Module V1 REPORT NUMBER 191203019SZN-001 ISSUE DATE [REVISED DATE] 18 December 2019 [---------------------] PAGES 32 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: 191203019SZN-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 32 FCC ID 247_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Shenzhen Honeycomb Technologies Company Limited Application For Certification FCC ID: 2AAUWHBT42A20N BT+2.4G wireless module Model: nRF51822 Module V1 2.4GHz Transceiver Report No.: 191203019SZN-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-18] Prepared and Checked by: Approved by: Damon Wang Kidd Yang Project Engineer Technical Supervisor Date: 18 December 2019 Intertek Report No.: 191203019SZN-001 Version: 01-November-2017 Page: 2 of 32 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-18 Edition] provision. Report prepared by: Damon Wang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6661 Intertek Report No.: 191203019SZN-001 Version: 01-November-2017 Page: 3 of 32 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test Results ................................................................................................. 4 2.0 General Description ........................................................................................................ 5 2.1 Product Description ..................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ........................................................................................................ 5 2.4 Test Facility .................................................................................................................. 5 3.0 System Test Configuration .............................................................................................. 6 3.1 Justification ................................................................................................................. 6 3.2 EUT Exercising Software ............................................................................................... 6 3.3 Special Accessories ....................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty ........................................................................................... 7 3.6 Support Equipment List and Description ...................................................................... 7 4.0 Test Results ..................................................................................................................... 8 4.1 Radiated Test Result ..................................................................................................... 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .......................................................... 9 4.1.3 Radiated Emission .................................................................................................... 9 4.1.4 Transmitter Spurious Emissions (Radiated)............................................................. 12 4.2 Peak Power ................................................................................................................ 16 4.3 6dB Bandwidth ........................................................................................................... 19 4.4 Power Density ............................................................................................................ 21 4.5 Out of Band Conducted E…

Text truncated - open the document above for the full version.

Shenzhen Honeycomb Technologies Company Limited TEST REPORT SCOPE OF WORK FCC TESTING–nRF51822 Module V1 REPORT NUMBER 191203019SZN-002 ISSUE DATE [REVISED DATE] 18 December 2019 [---------------------] PAGES 25 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: 191203019SZN-002 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 25 FCC ID 247_b TEST REPORT 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 www.intertek.com Shenzhen Honeycomb Technologies Company Limited Application For Certification FCC ID: 2AAUWHBT42A20N BT+2.4G wireless module Model: nRF51822 Module V1 2.4GHz Transceiver Report No.: 191203019SZN-002 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-18] Prepared and Checked by: Approved by: Damon Wang Kidd Yang Project Engineer Technical Supervisor Date: 18 December 2019 Intertek Report No.: 191203019SZN-002 Version: 01-November-2017 Page: 2 of 25 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-18 Edition] provision. Report prepared by: Damon Wang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community, GuanHu Subdistrict, LongHua District, Shenzhen. Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6661 Intertek Report No.: 191203019SZN-002 Version: 01-November-2017 Page: 3 of 25 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test Results ................................................................................................. 4 2.0 General Description ........................................................................................................ 5 2.1 Product Description ..................................................................................................... 5 2.2 Related Submittal(s) Grants ......................................................................................... 5 2.3 Test Methodology ........................................................................................................ 5 2.4 Test Facility .................................................................................................................. 5 3.0 System Test Configuration .............................................................................................. 6 3.1 Justification ................................................................................................................. 6 3.2 EUT Exercising Software ............................................................................................... 6 3.3 Special Accessories ....................................................................................................... 6 3.4 Equipment Modification .............................................................................................. 6 3.5 Measurement Uncertainty ........................................................................................... 7 3.6 Support Equipment List and Description ...................................................................... 7 4.0 Test Results ..................................................................................................................... 8 4.1 Radiated Test Result ..................................................................................................... 8 4.1.1 Field Strength Calculation ......................................................................................... 8 4.1.2 Radiated Emission Configuration Photograph .......................................................... 9 4.1.3 Radiated Emission .................................................................................................... 9 4.1.4 Transmitter Spurious Emissions (Radiated)............................................................. 12 4.2 Peak Power ................................................................................................................ 14 4.3 6dB Bandwidth ........................................................................................................... 16 4.4 Power Density ............................................................................................................ 17 4.5 Out of Band Conducted E…

Text truncated - open the document above for the full version.
