2AAV4DWP-PCWRXWireless Receiver Set

Wireless for Weighing Scale AD Transmitter DA Receiver Accuracy 1/10,000 for any indicator Load cell 1 to 12 load cells 350Ω Frequency bands 915.55MHz Power consumption 270 hours under weighing mode for one load cell 350Ω, 29 months under sleeping mode( battery should be recharged every 5 months) Range 150 meters Working temperature -10°C to +60 °C LED indication AD transmitter LED indication LED location Status Indication 10Hz frequency flash Normal communication Communicate LED（left） 0.3Hz frequency flash Sleeping status, communicate break flashing Battery voltage too low, need to recharge Battery voltage LED（middle） Not flashing Battery voltage in good status Red light on Charging status Green light on Battery is full Charger LED（right） Neither red or green light on Charger adapter is not connecting DA receiver LED indication Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. LED location Status Indication 10Hz frequency flash Normal communication Communicate LED（left） Not flashing communicate break flashing Battery voltage in AD transmitter too low, need to recharge Battery voltage LED（middle） Not flashing Battery voltage in good status Green light on Power supply status Power supplier LED（right） Green light off Power off status Transmitter Excitation 3.3v Input <12.9 mv Power 4V-5.5V Receiver Excitation 5-15V Output 3mV/V Load cell and Indicator wiring connection 1 +Excitation 2 +Signal 3 -Signal 4 -Excitation 5 Shield

DATE : April 2, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AAV4DWP-PCWRX Product Name: Wireless Receiver Set Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this April 02, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Kerry Huang Signature Printed Title: President On behalf of : AC INTERNATIONAL CORP. Telephone: (909) 393-1188 ext 102 • ΒΟΜ

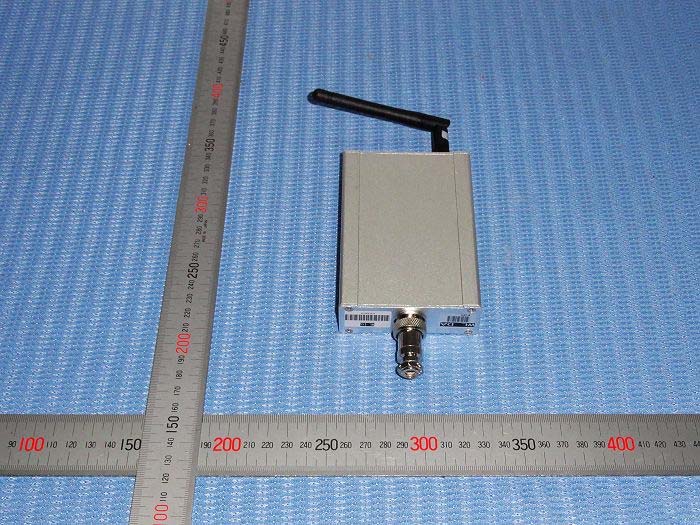

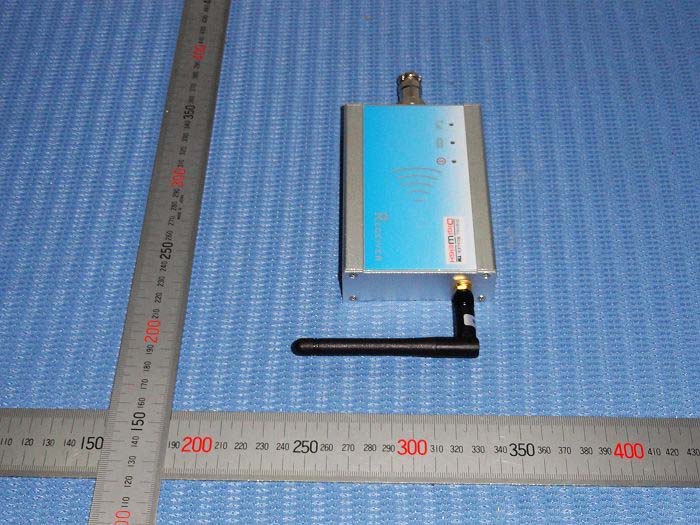

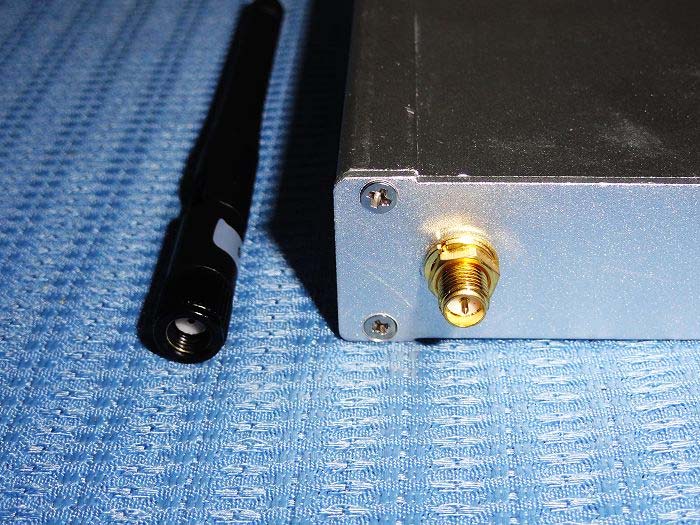

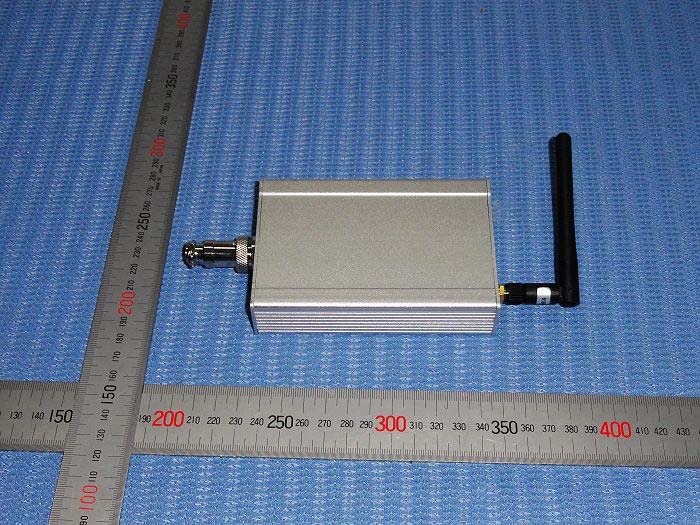

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5

FCC ID: 2AAV4DWP-PCWRX Serial No. 1401001 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID Label Location

Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m) ---3m So pt = (EXd) 2 /30 x gt Field strength = 79.19dBuV/m @3m Ant gain =3dBi; so Ant numeric gain= 1.995 So pt={ [10 (79.19 /20) /10 6 x3] 2 /30x1.995 }x1000 mW = 0.0497 mW So ( 0.0497mW/5mm)x √0.91555 =0.0095<3 Then SAR evaluation is not required

Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201403089 FCC Page 1 of 42 FCC TEST REPORT Prepared For : AC INTERNATIONAL CORP. Product Name: Wireless Receiver Set Model : DWP-PCWRX Prepared By : Shenzhen BATT Testing Technology Co., Ltd. 11F, Bldg.B, Xinbaoyuan, Xinanhu Commercial city, Bao’an District, Shenzhen, Guangdong, China. Tel: 86-755-27753991 Fax: 86-755-27754182 Test Date: March 12,2014 to March 28, 2014 Date of Report : March 31, 2014 Report No.: BATT201403089FCC Note: This report shall not be reproduced except in full, without the written approval of Shenzhen BATT Testing Technology Co., Ltd. This document may be altered or revised by Shenzhen BATT Testing Technology Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201403089FCC Page 2 of 29 TABLE OF CONTENTS 1.0 TEST CERTIFICATION............................................................................... 3 2.0 Test Equipment......................................................................................... 4 3.0 Technical Details........................................................................................ 5 4.0 Test Lab Details......................................................................................... 5 5.0 Power Line Conducted Emission Test............................................................ 6 6.0 Radiated Emission test............................................................................... 10 7.0 Band Edge............................................................................................... 16 8.0 Antenna Requirement................................................................................ 18 9.0 20dB bandwidth measurement..................................................................... 19 10.0 FCC ID Label............................................................................................ 20 11.0 Photo of Test Setup and EUT View............................................................... 21 Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201403089FCC Page 3 of 29 1 TEST CERTIFICATION Product: Wireless Receiver Set Model: DWP-PCWRX Applicant: AC INTERNATIONAL CORP. 15830 EL PRADO RD., # B CHINO, CA 91708 Factory: AC INTERNATIONAL CORP. 15830 EL PRADO RD., # B CHINO, CA 91708 Trade Mark: Tested: March 12,2014 to March 28, 2014 Test Voltage: DC5V Operational Frequency Range: 915.55MHz Modulation Type: FSK Antenna: Dipole antenna with Gain 3.0 dBi FCC ID: 2AAV4DWP-PCWRX Applicable Standards: FCC Part 15.249 The test report was prepared by Shenzhen BATT Testing Technology Co., Ltd.and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Prepared by : Hellen XiaoAssistant Reviewer : Mike Yong/Supervisor Approved & Authorized Signer : Jones Song/ Manager Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201403089FCC Page 4 of 29 2.0 Test Equipments Instrument Type Manufacturer Model Serial No. Date of Cal. Due Date ESPI Test Receiver ROHDE&SCHWA RZ ESPI 3 100379 2013-05-27 2014-05-26 EMI Test Receiver Rohde & Schwarz ESU 1302.6005.26 2013-05-27 2014-05-26 Impuls-Begrenzer ROHDE&SCHWA RZ ESH3-Z2 100281 2013-05-27 2014-05-26 Loop Antenna EMCO 6502 00042960 2013-05-27 2014-05-26 ESPI Test Receiver ROHDE&SCHWA RZ ESI26 838786/013 2013-05-27 2014-05-26 3m OATS -- -- N/A 2013-05-27 2014-05-26 Horn Antenna SCHWARZBECK BBHA 9170 BBHA9170399 2013-05-27 2014-05-26 Horn Antenna SCHWARZBECK BBHA 9120 D143 2013-05-27 2014-05-26 Power meter Anritsu ML2487A6K00003613 2013-05-27 2014-05-26 Power sensor Anritsu MA2491A32263 2013-05-27 2014-05-26 Bilog Antenna Schwarebeck VULB916 3 9163/142 2013-05-27 2014-05-26 LISN (Three Phase) Schwarebeck NSLK 8126 8126453 2013-05-27 2014-05-26 9*6*6 Anechoic -- -- N/A 2013-05-27 2014-05-26 EMI Test Receiver RS ESCS30 100139 2013-05-27 2014-05-26 LISN RS ESH2-Z5 100225 2013-05-27 2014-05-26 LISN (Three Phase) Schwarebeck NSLK 8126 8126453 2013-05-27 2014-05-26 Pre-Amplifier A.H. PAM-01261415261 2013-05-27 2014-05-26 Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201403089FCC Page 5 of 29 3.0 Technical Details 3.1 Summary of test results The EUT has been tested according to the following specifications: Standard Test Type Result Notes FCC Part 15, Paragraph 15.207 Conducted Emission Test Pass Complies FCC Part 15 Subpart C Paragraph 15.249(a) & 15.249(b) Limit Field Strength of Fundamental PASSComplies FCC Part 15, Paragraph 15.209 Radiated Emission Test PASSComplies FCC Part 15 Subpart C Paragraph 15.249(d) Limit Band Edge Test PASS Complies 4.0 Test LAB Details All Tests Performed at Name: Shenzhen Emtek Co., Ltd. Address: Bldg. 69, Majialong Industry Zone,,Nanshan District,Shenzhen, Guangdong, 518052China FCC Registration Number: 406365 Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201403089FCC Page 6 of 29 5. Power Line Conducted Emission Test 5.1 Schematics of the test Test Receiver AC Mains L.I.S.N EUT Load EUT: Equipment Under Test 5.2 Test Method and test Procedure The EUT was tested according to ANSI C63.4-2003.The Frequency spectrum From 0.15MHz to 30MHz was investigated. The LISN used was 50ohm/50uH as specified by section 5.1 of ANSI C63.4 –2003. Block diagram of Test setup Cable 800mm 5.3 Configuration of The EUT The EUT was configured according to ANSI C63.4-2003. All interface ports were connected to the appropriate peripherals. All peripherals and cables are listed below. One channels are provided to the EUT A. EUT Device Manufacturer Model FCC ID Wireless Receiver Set AC INTERNATIONAL CORP. DWP-PCWRX 2AAV4DWP-PCWRX EUT L.S.I. N AC Receiver Shenzhen …

Text truncated - open the document above for the full version.

Conducted Emissions Radiated Emissions
