2AAVJ-CF001Beverage Dispensing Data Collection

SERVICE AND FACTORY ASSISTANCE: Please record your Installer/Service Agent's name and phone number here for future reference: SERIAL NUMBER: ____________________ DATE OF INSTALLATION: ____________________ SERVICE AGENT NAME: ___________________ PHONE: _______________ PAGER: ______________ Service Assistance: call Wunder-Bar "Toll Free Service Hotline" @ 866-986-3372 anytime, or (707) 448-5151 Monday through Friday, 7:00 AM to 5:00 PM Pacific Time. REV090413 CFU INSTRUCTS.pub CONTENTS PAGE NUMBER Safety and Warnings / Sécurité et Avertissements....... 2 CFU Front and Left Side Features............................... 3 – 4 CFU Rear Panel Features........................................... 4—5 Mounting Points........................................................ 5 Set-Up Instructions................................................... 6 For Systems with the model number: CF-001 External, 5 VDC, 1 Amp Setting the standards for over 40 years. www.wunderbar.com Setting the standards for over 40 years. www.wunderbar.com 2 This Instruction Manual describes the different hardware functionalities of the Cloudflo® Unit (CFU). The CFU is the main component of the Cloudflo® System. It receives wireless messages from external RF wireless devices like Skyflo® Spouts and Beerflo® meters. It stores pour data, and enables a remote system to retrieve and generate informative reports. This Instruction Manual is intended to provide a technician/installer/manager the ability to learn about the CFU’s physical attributes and functions to assist with installation, operation, and maintenance. ATTENTION! • Read all Instructions before setting up or operating the CloudFlo® Unit. Install and use the CloudFlo® Unit only as described in this instruction manual. Use only the manufacturer’s recommended power supply, cables, and accessories. • Always disconnect the power supply from the electrical source before removing the CloudFlo® Unit cover or attempting any servicing of internal parts or components. • Do not operate the CloudFlo® Unit if the power supply has been damaged, if the power supply has a damaged cord, or if the CloudFlo® Unit has been damaged – until any damage has been examined by a qualified CloudFlo® service technician. • The CloudFlo® Unit should never be exposed to or sprayed with excess water or moisture. Clean with a damp cloth, only. • There are no End-User serviceable parts or components inside the CloudFlo® Unit enclosure. The CloudFlo® Unit’s cover should only be removed by, and internal parts and components serviced by a qualified service person with the knowledge, experience, and training for servicing of the CloudFlo® Unit. • The CloudFlo Unit should be operated in these ambient temperatures: MIN: 36° F, 2° C MAX: 104° F, 40° C • IMPORTANT! Changes or modifications not expressly approved by Automatic Bar Controls, Inc could void the user’s authority to operate the equipment. • Lisez toutes les instructions avant d'installer ou de faire fonctionner l'unité CloudFlo®. Installez et utilisez l'unité CloudFlo® uniquement comme décrit dans ce manuel d'instruction. Utilisez seulement recommandé alimentation, les câbles et les accessoires du fabriquant. • Toujours débrancher l'alimentation de la source électrique avant de retirer le capot de l'unité CloudFlo® ou de tenter toute réparation de pièces ou de composants internes. • Ne pas faire fonctionner l'unité CloudFlo® si l'alimentation a été endommagé, ou si l'alimentation a un cordon endommagé, ou si le CloudFlo® appareil a été endommagé - jusqu'à ce que tout dommage a été examiné par un technicien qualifié. • L'Unité CloudFlo® ne doit jamais être exposé ou pulvérisé avec de l'eau en excès ou à l'humidité. Nettoyer avec un chiffon humide seulement. • Il n'y a aucune pièce réparable par l'utilisateur final ou de composants à l'intérieur de l'enceinte de l'unité CloudFlo®. La couverture du CloudFlo® Unité ne doit être retiré par, et ses composants internes que par un personnel de service qualifié les connaissances, l'expérience et la formation pour l'entretien de l'unité CloudFlo®. • IMPORTANT! Les changements ou modifications non expressément approuvés par les contrôles automatiques de barres, Inc pourraient annuler l'autorité de l'utilisateur à utiliser l'équipement. FCC Statement: The CloudFlo Unit complies with Part 15.19 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Canadian IC Statement: The CloudFlo Unit complies with the Industry Canada license– exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. CloudFlo Unit M/N: CF-001 FCC ID: 2AAVJ-CF001 IC ID: 11358A-CF001 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the deal…

Text truncated - open the document above for the full version.

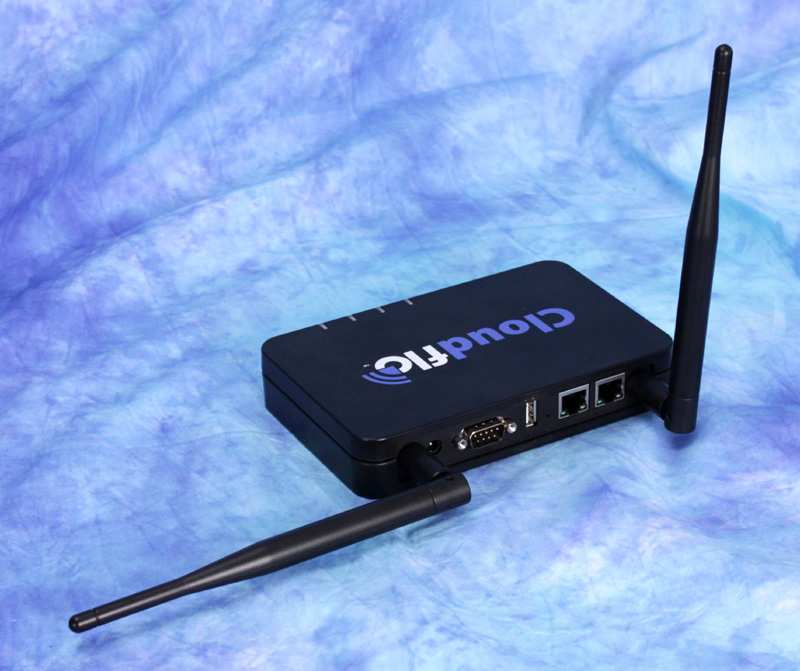

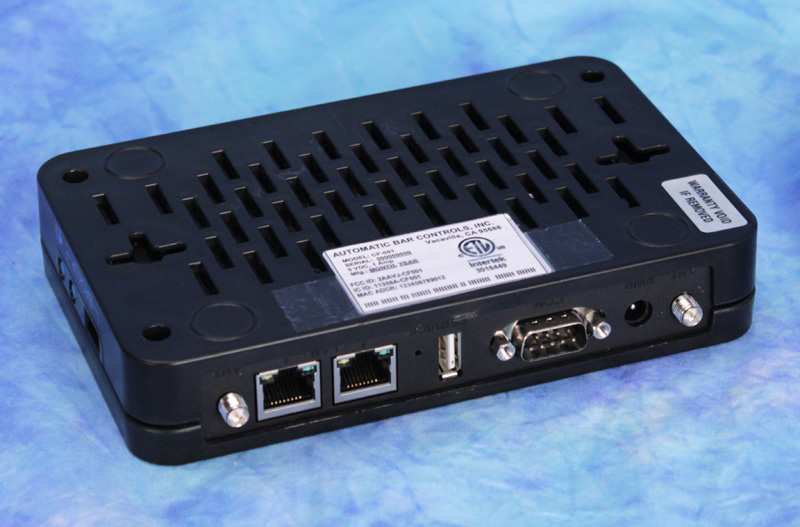

External Photographs FCC ID: 2AAVJ-CF001 IC: 11358A-CF001

FCC ID and IC ID Label Artwork Location of the label on product

Internal Photographs FCC ID: 2AAVJ-CF001 IC: 11358A-CF001

Setup Photographs FCC ID: 2AAVJ-CF001 IC: 11358A-CF001 Radiated Emissions Radiated Emissions AC Line Conducted Emission AC Line Conducted Emission
