2AAW7-CTM-2US3G Tablet

Startup Guide For online help and support: Tap the question mark (?) in the tablet Or visit www.oioo.com/support Model 2 BC O Model 22 Micro USB Cable This Startup GuideWarranty Card What’s in the box? Model 23 Let’s Get Familiar SIM card slot. SIM is pr e-installed. Micro SD memory card slot Micro USB port Speaker Fr ont camera Touchscreen Volume up/down Headset jack Power button Microphone Rear Camera Slots for attaching Color Backs Fr ont Back 10 oioo Note: Colored Backs that attach are sold separately, so you can choose your o ioo colors! Find A Charger Many households today have several USB chargers around from other devices, so we didn’t want to add to the clutter. You are free to use a charger you may already have, or purchase a new one. Look for a 5V-2Amp USB power adapter for best results. oioo also has a charger you can purchase separately. Insert the cable connector the correct way! Model 24 -the wider side UP. CorrectIncorrect Note: T he illus tra tion display s both the correct and incorrect orie ntations for connecting the USB cable. If the USB plug is incorre ctly inse rted, damage to th e USB port may occu r an d void the tablet's w arranty. Model 25 * Wall charger not i ncluded Charge the Battery Your oiootablet battery may have lost some of it’s juice while sitting in the store. It’s a good idea to fully charge the battery as soon as you get a chance. Connect the Micro USB cable supplied to the tablet, and then to a power adapter, then connect the power adapter to a power outlet. IF your tablet is idle and the battery becomes drained, just charge it for 30 minutes before trying to start up. Note: we do not recommend charging through a computer USB connection, which may take too long to charge or may not keep the tablet charged when powered on. On/Off/Wake/Sleep Press and hold the power button for 4 seconds to power ON, press the power button again to go to WAKE or SLEEP mode. To power OFF, press and hold the power button until you see a confirmation message, then follow the instructions. Power Button Model 26 Set Up the The first time you turn on your oiootablet, you will see a welcome screen and an introductory video. From there you will be guided through the setup process to understand how to make the o iootablet behave just the way you like. You will have immediate access to the full power of Android and over one million apps and more on Google Play TM that will make your digital life uniquely yours. 4G and Storage Options The oiootablet comes with a SIM card from T-Mobile pre-loaded into the Micro SIM card slot. This enables you to activate 200 MB of free cellular data every month for the life of your tablet! Yes, free data every month with no annual service contracts, unless you want more. You can activate or upgrade this service with T- Mobile through the o iootablet setup process. The tablet also comes with an open Micro SD slot for extra storage space - for apps, music, photos, videos, documents - your digital stuff. But you will need to supply your own Micro SD card and insert into the slot as shown. Micro SD Card Micro SIM Card Model 27 Always Connected You can connect the oiootablet to the internet by BOTH Wi-Fi and 4G, so you can take your digital life wherever your real life goes. Social We encourage you to login with your social network credentials if you have them, to make it easy to sign into all your apps and stay in sync with your friends via your favorite apps and networks. Useful Android is fantastic. But it can take a lot of effort to FIND all the best apps for you, and to CONFIGURE everything the way you like it. The o iootablet does the GEEK work for you (if you choose) and sets you up with a carefully selected set of some of the best widgets and apps from Google Play from the start. You can choose from many ‘Stiles’ - like a turnstile, these home- pages are your entry into your favorite and most useful topics with great apps and widgets to explore. Uniquely YOU, ‘IOO’ or ‘U‘ Everyone does not like the same color at the same time. No single style fits everyone’s interest. So we have created many 'Stiles' (with an 'i' ) to fit lots of different personal tastes. Discover your favorite Stiles in the oioo Library! Model 28 T-Mobile Legal: Service or use is your agreement to T-Mobile’s Terms and Conditions. T- Mobile requires ARBITRATION of disputes UNLESS YOU OPT-OUT WITHIN 30 DAYS OF ACTIVATION. See T-Mobile’s Terms and Conditions for details at www.T-Mobile.com. Use of some content or features may incur separate, additional charges and/or require qualifying service or access to a Wi-Fi connection. M obile Internet Service: For service beyond the 200 mb free monthly offer, T-Mobile data rates apply. Domestic only. Partial megabytes rounded up. Full speeds available up to monthly allotment; then slowed to up to 2G speeds for rest of billing cycle. Roaming and on-network data allotments differ; see your selected service for details. Data connection speed can vary due to location, environment, network conditions and other factors. C overage: Service not available in some areas. N etwork Management: Service may be slowed, suspended, terminated, or restricted for misuse, abnormal use, interference with our network or ability to provide quality service to other users, or significant roaming. See brochures and Terms and Conditions (including arbitration provision) at www.T-Mobile.com for plan options, coverage maps and additional information. T-Mobile is a registered trademark of Deutsche Telekom AG. Android, Google TM , & Apps The oiootablet brings the best of Google with the latest version of Android. It comes with all the top Google apps and widgets for mobility, such as Google TM Search, Google Now TM , Google Maps TM , Gmail TM , Chrome TM , Google+ TM and YouTube TM . It also comes with the Google Play Store app, which gives access to over one million apps and more from all the best developers. Android, Google, Google Play and other marks are trademar…

Text truncated - open the document above for the full version.

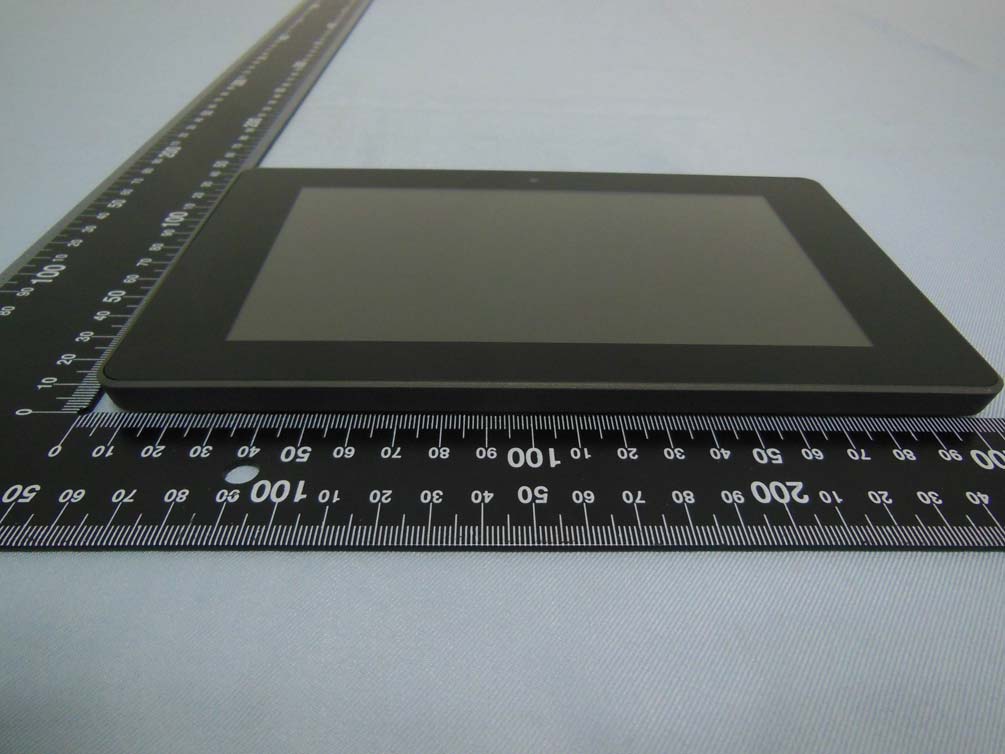

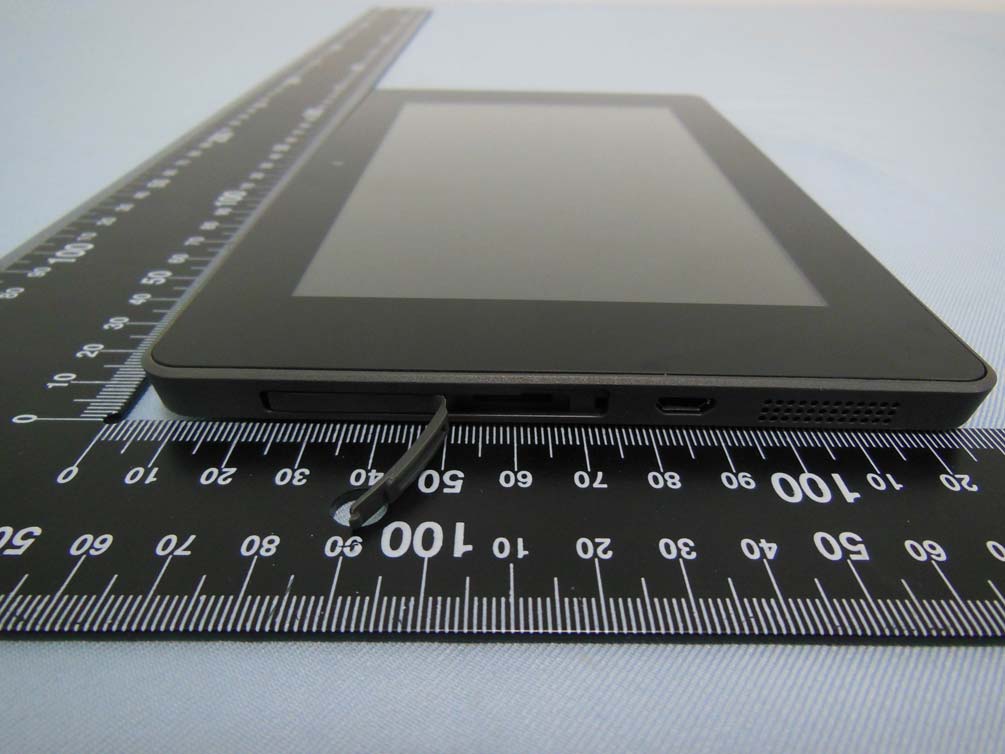

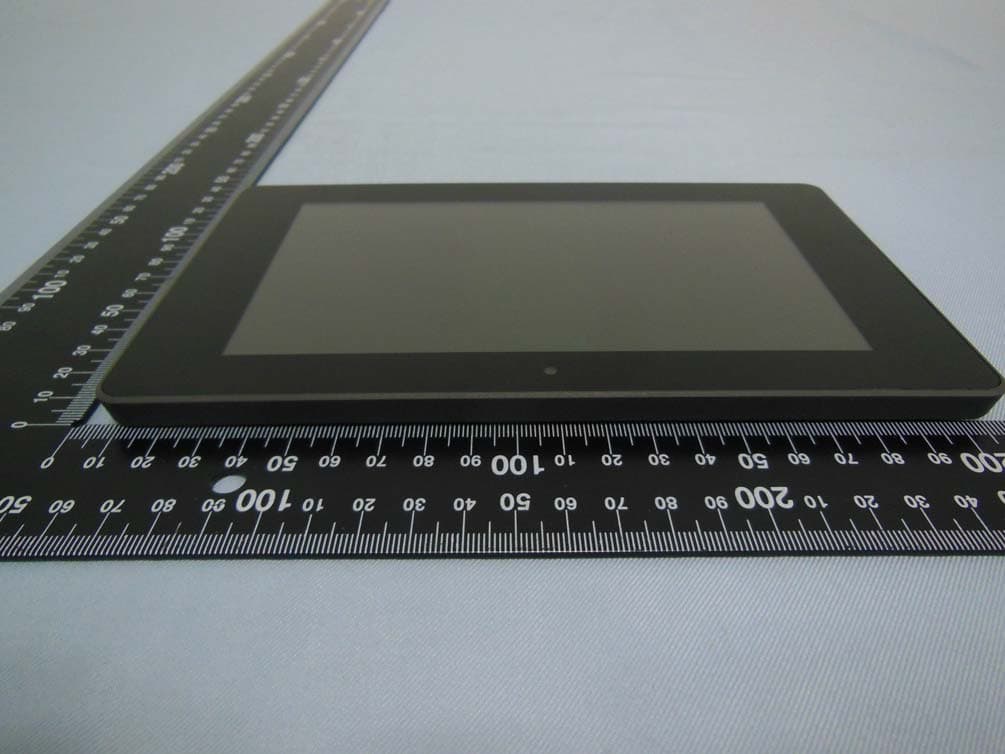

Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US 1. External Photograph of EUT Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 3 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 4 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 5 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 6 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 7 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US List of Accessory: Specification of Accessory Battery Brand Name ATL Model Name GB-S10-556790-0100 USB Cable Signal Line Type 1.0meter, shielded cable, without ferrite core Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 8 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 9 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Battery Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 10 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US

Main Frame silkscreenRendering show

Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 11 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US 3. Internal Photograph of EUT Bluetooth/WLAN Antenna <Tx / Rx> GPS Antenna < Rx> WWAN Antenna <Tx/Rx> Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 12 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 13 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 14 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 15 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 16 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 17 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 18 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 19 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 20 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 21 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 22 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 23 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 24 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 25 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 26 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 27 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 28 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 29 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 30 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US WWAN Antenna <Tx / Rx> Photographs of EUT Report No.: EP380501 Brand Name: OiOO; Model Name: Model 2V; Model 2; SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 31 of 32 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID: 2AAW7-CTM-2US GPS Antenna <Rx> Photographs of EUT R…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 49 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AAW7-CTM-2US FCC SAR Test Report Report No. : FA380501 FCC SAR Test Report APPLICANT : Emerging Technology (Holdings) Ltd. EQUIPMENT : 3G Tablet BRAND NAME : OiOO MODEL NAME : Model 2V, Model 2 MARKETING NAME : OiOO FCC ID : 2AAW7-CTM-2US STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 The product was completely tested on Oct. 30, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL (SHENZHEN) INC. No. 101, Complex Building C, Guanlong Village, Xili Town, Nanshan District, Shenzhen, Guangdong, P.R.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 49 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AAW7-CTM-2US FCC SAR Test Report Report No. : FA380501 Table of Contents 1. Statement of Compliance ..............................................................................................................................................4 2. Administration Data .......................................................................................................................................................5 2.1 Testing Laboratory ...................................................................................................................................................5 2.2 Applicant .................................................................................................................................................................5 2.3 Manufacturer ...........................................................................................................................................................5 2.4 Application Details ...................................................................................................................................................5 3. General Information .......................................................................................................................................................6 3.1 Description of Equipment Under Test (EUT) ...........................................................................................................6 3.2 Maximum RF output power among production units ...............................................................................................7 3.3 Applied Standard .....................................................................................................................................................8 3.4 Device Category and SAR Limits ............................................................................................................................8 3.5 Test Conditions ........................................................................................................................................................8 4. Specific Absorption Rate (SAR) ....................................................................................................................................9 4.1 Introduction .............................................................................................................................................................9 4.2 SAR Definition .........................................................................................................................................................9 5. SAR Measurement System ..........................................................................................................................................10 5.1 E-Field Probe ........................................................................................................................................................ 11 5.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 5.3 Robot ....................................................................................................................................................................12 5.4 Measurement Server .............................................................................................................................................12 5.5 Phantom ................................................................................................................................................................13 5.6 Device Holder .......................................................................................................................................................14 5.7 Data Storage and Evaluation ................................................................................................................................15 5.8 Test Equipment List ...............................................................................................................................................17 6. Tissue Simulating Liquids ...........................................................................................................................................18 7. System Verification Procedures .................................................................................................................................20 7.1 Purpose of System Performance check ..........................................................................................................…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : C1 of C1 TEL : 86-755-8637-9589 Report Issued Date : Nov. 21, 2013 FAX : 86-755-8637-9595 Report Version : Rev. 01 FCC ID : 2AAW7-CTM-2US FCC SAR Test Report Report No. : FA380501 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D835V2, serial No. 4d091 Extended Dipole Calibrations Referring to KDB 865664 D01v01r01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D835V2 – serial no. 4d091 ʳ 835 Head 835 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.18.2011 -25.734 ʳ 50.867 ʳ -5.1504ʳ -22.318 ʳ47.082 ʳ -6.8594ʳ 11.17.2012 -25.917 0.7149.7731.09-5.13290.02 -22.4660.6648.683 1.60 -6.35980.50 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data> - D835V2, serial no. 4d091 835MHz - Head 835MHz – Body SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D1800V2, serial no. 2d177 Extended Dipole Calibrations Referring to KDB 865664 D01v01r01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1800V2 – serial no. 2d177 1800 Head 1800 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.21.2011 -31.777 50.373 -2.5605 -24.986 45.373 -2.7363 11.17.2012 -31.824 0.15 49.606 0.77 -2.5882 -0.03 -24.683 -1.21 46.199 0.83 -2.6218 0.11 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data>- D1800V2, serial no. 2d177 1800MHz - Head 1800MHz - Body

SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report D1900V2, serial no. 5d118 Extended Dipole Calibrations Referring to KDB 865664D01V01r01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Justification of the extended calibration> D1900V2 – serial no. 5d118 1900 Head 1900 Body Date of Measurement Return-Loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) Return-Los s (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary Impedance (ohm) Delta (ohm) 11.21.2011 -22.535 53.449 6.9277 -22.401 47.82 7.1133 11.17.2012 -22.603 0.3053.491 -0.047.10090.17-22.45 0.2246.14 -1.68 6.7234-0.39 The return loss is < -20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. SPORTON INTERNATIONAL (SHENZHEN) INC. TEL : 86-755-8637-9589 FAX : 86-755-8637-9595 FCC Test Report <Dipole Verification Data>- D1900V2, serial no. 5d118 1900MHz – Head 1900MHz - Body

SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 1 of 91 TEL : 86-755- 3320-2398 Report Issued Date : Nov. 21, 2013 FCC ID : 2AAW7-CTM-2US Report Version : Rev. 01 FCC RF Test Report Report No. : FG380501 FCC RF Test Report APPLICANT : Emerging Technology (Holdings) Ltd. EQUIPMENT : 3G Tablet BRAND NAME : OiOO MODEL NAME : Model 2V, Model 2 MARKETING NAME : OiOO FCC ID : 2AAW7-CTM-2US STANDARD : FCC 47 CFR Part 2, 22(H), 24(E), 27(L) CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Aug. 05, 2013 and testing was completed on Nov. 15, 2013. We, SPORTON INTERNATIONAL (SHENZHEN) INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown to be compliant with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL (SHENZHEN) INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL (SHENZHEN) INC. No. 3 Building, the third floor of south, Shahe River west, Fengzeyuan warehouse, Nanshan District, Shenzhen, Guangdong, P.R.C. SPORTON INTERNATIONAL (SHENZHEN) INC. Page Number : 2 of 91 TEL : 86-755- 3320-2398 Report Issued Date : Nov. 21, 2013 FCC ID : 2AAW7-CTM-2US Report Version : Rev. 01 FCC RF Test Report Report No. : FG380501 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 6 1.5 Modification of EUT ........................................................................................................................... 6 1.6 Maximum ERP/EIRP Power, Frequency Tolerance, and Emission Designator ............................... 7 1.7 Testing Site ....................................................................................................................................... 7 1.8 Applied Standards ............................................................................................................................. 8 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 9 2.1 Test Mode.......................................................................................................................................... 9 2.2 Connection Diagram of Test System .............................................................................................. 11 2.3 Support Unit used in test configuration and system ........................................................................ 11 2.4 Measurement Results Explanation Example .................................................................................. 12 3 TEST RESULT ........................................................................................................................................... 13 3.1 Conducted Output Power Measurement ......................................................................................... 13 3.2 Peak-to-Average Ratio .................................................................................................................... 15 3.3 Effective Radiated Power and Effective Isotropic Radiated Power Measurement ......................... 24 3.4 Occupied Bandwidth and 26dB Bandwidth Measurement .............................................................. 29 3.5 Band Edge Measurement ................................................................................................................ 47 3.6 Conducted Spurious Emission Measurement ................................................................................. 58 3.7 Field Strength of Spurious Radiation Measurement ....................................................................... 72 3.8 Frequency Stability Measurement .....…

Text truncated - open the document above for the full version.
