Date: 2012-06-11 Vers. no. 1.12 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Annex no. 5 User Manual Statements Technical Manual MW-T / Version: 1.62013-08-28 Microwave Moisture and Density Measuring System MW-T Technical Manual Version 1.6 TEWS Elektronik GmbH & Co KG Sperberhorst 10, 22459 Hamburg TEWS Elektronik GmbH & Co KG, Hamburg1/24EIS Technical Manual MW-T / Version: 1.62013-08-28 TEWS Elektronik GmbH & Co KG, Hamburg2/24EIS Technical Manual MW-T / Version: 1.62013-08-28 Table of Contents 1. Version Control ............................................................................................................................4 2. EG Declaration of Conformity ......................................................................................................5 3. Intended Use, Safety Precautions and Warnings ........................................................................6 3.1. Intended Use..............................................................................................................6 3.2. Reduction of Safety....................................................................................................6 3.3. Modifications...............................................................................................................6 3.4. Operation....................................................................................................................6 3.5. General Operating Instructions...................................................................................6 4. Technical Data..............................................................................................................................8 5. Wiring Overview ..........................................................................................................................9 6. Allocation of the Connectors.......................................................................................................10 7. Wiring Diagrams ........................................................................................................................12 7.1. Connecting Light Barriers ........................................................................................12 7.2. Connecting Temperature Sensors............................................................................13 7.3. Connecting Antenna Switches..................................................................................14 7.4. Connecting a LED Signal Tower...............................................................................15 7.5. Connecting a GSM Modem......................................................................................15 8. Mechanical Drawings.................................................................................................................16 8.1. MW-T, views: front, side, bottom..............................................................................16 8.2. MW-T, Mounting View...............................................................................................17 9. Installation Advices.....................................................................................................................17 10. Service and Maintenance.........................................................................................................20 11. Scope of Supply, Options, Additional Equipment......................................................................21 11.1. Scope of Supply of the measuring system MW-T..................................................21 11.2. Additional Options of the MW-T..............................................................................21 11.3. Accessory for the Measuring System MW-T..........................................................21 TEWS Elektronik GmbH & Co KG, Hamburg3/24EIS Technical Manual MW-T / Version: 1.62013-08-28 1. Version Control VersionDate Comment / Modification 1.0 2008-09-08 First edition 1.1 2008-10-13 Figures “MW-T views: front, sides, bottom“ and “Wiring overview MW-T measurement system“ edited 1.22008-12-03Figure „Antenna views: front, left side“ included; chapter 11.1. „Scope of supply...“ edited; pinning of connector „AIN“ edited; technical data of inputs/outputs edited 1.32009-10-22Chapter 9 „Installation Advices“ revised; additional connector „DIN2“ for input of conveyor signal included 1.42010-01-04115VAC supply included 1.52011-11-07Chapter 4 -Interfaces corrected; Chapter 9 – antenna „Dual Vivaldi“ included 1.62013-08-28FCC declaration TEWS Elektronik GmbH & Co KG, Hamburg4/24EIS Technical Manual MW-T / Version: 1.62013-08-28 2. Declaration of Conformity For the product denoted in the following way: Machine Type:Microwave Moisture and Density Measuring System MW-T equipped: antennas “dual Vivaldi“, light barriers “RL29/55/73c/136“, LED signal tower “960 000 02“, Pt100 sensor “TMR31“,IR sensor “DYNMID10LT“, Ethernet cable it is hereby certified, that it corresponds to the essential safety regulations which are required according to the guidelines of The Approximation of Law of the Member States concerning Electromagnetic Compatibility 2004/108/ EG and Low Voltage Directives 20 06/95/EG. For the evaluation of the certificate regarding to the electromagnetical compatibility, the following norms were referred to: EN 55011 A2 (2007) EN 61326-1 (2006) EN 61000-4-2 (2001) EN 61000-4-3 (2006) + A1 (2008) EN 61000-4-4 (2004) EN 61000-4-5 (2006) EN 61000-4-6 (2007) EN 61000-4-11 (2004). For the evaluation of the certificate regarding to the safety requirements, the following norm was referred to: EN 61010-1 (2002). Construction: Measuring unit MW-T, 2 antennas, 3 light barriers, IR sensor, PT100 sensor and LED Signal tower on a table. Cable for the antennas: coaxial cable “S04272B“, 3m Cable for the light barriers: 10m+2m, unscreened Cable for the LED signal tower: 2m, unscreened Cable for the IR sens…

Text truncated - open the document above for the full version.

m. dudde hochfrequenz-technik Rottland 5a, D-51429 Bergisch-Gladbach DIN EN ISO/IEC 17025 certified DAkkS accreditation number: D-PL-12053-01 Tel. : +49 22 07 - 96 89 - 0 Fax : +49 22 07 - 96 89 - 20 email: [email protected] www.dudde.com Request for Confidentiality Date: 2013-10-30 FCC ID: 2AAX7MWT To whom it may concern, Pursuant to sections 0.457(d) and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, our customer TEWS Elektronik GmbH & Co. KG hereby requests long-term confidential treatment of information accompanying this application as outlined below: Schematics Parts List Block Diagram Operational Description In addition they hereby request the following exhibits contained in this application to be temporarily (short-term confidentiality) withheld from the public disclosure for an initial period of days until: not applicable External Photos Users Manual Test Setup Photos The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457(d), disclosure of this application and all accompanying documentation will not be made before the date of the GRANT for this application. Thank you for your attention in this matter. m. dudde hochfrequenz-technik Anja Hittig-Rademacher Homologation Manager

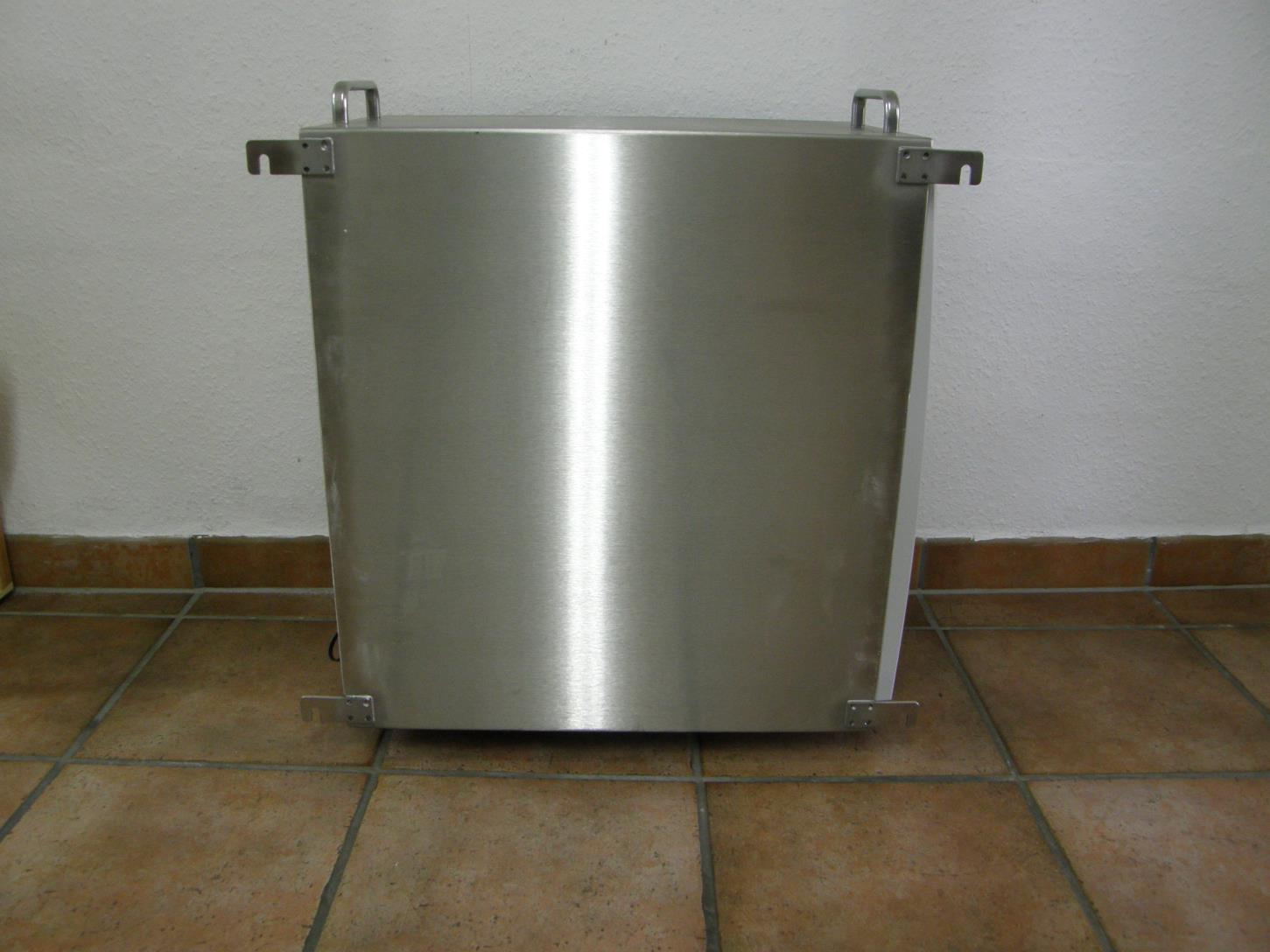

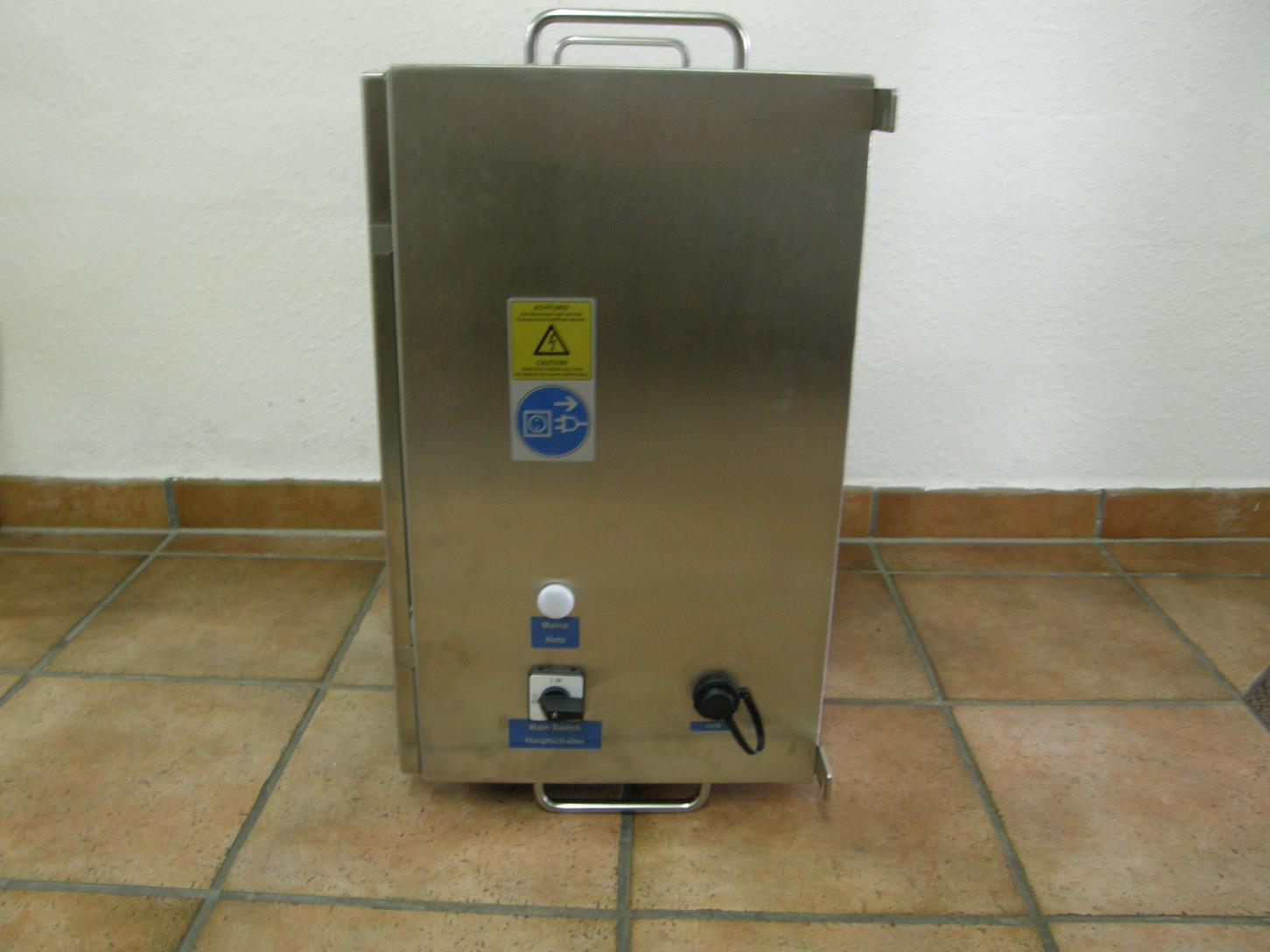

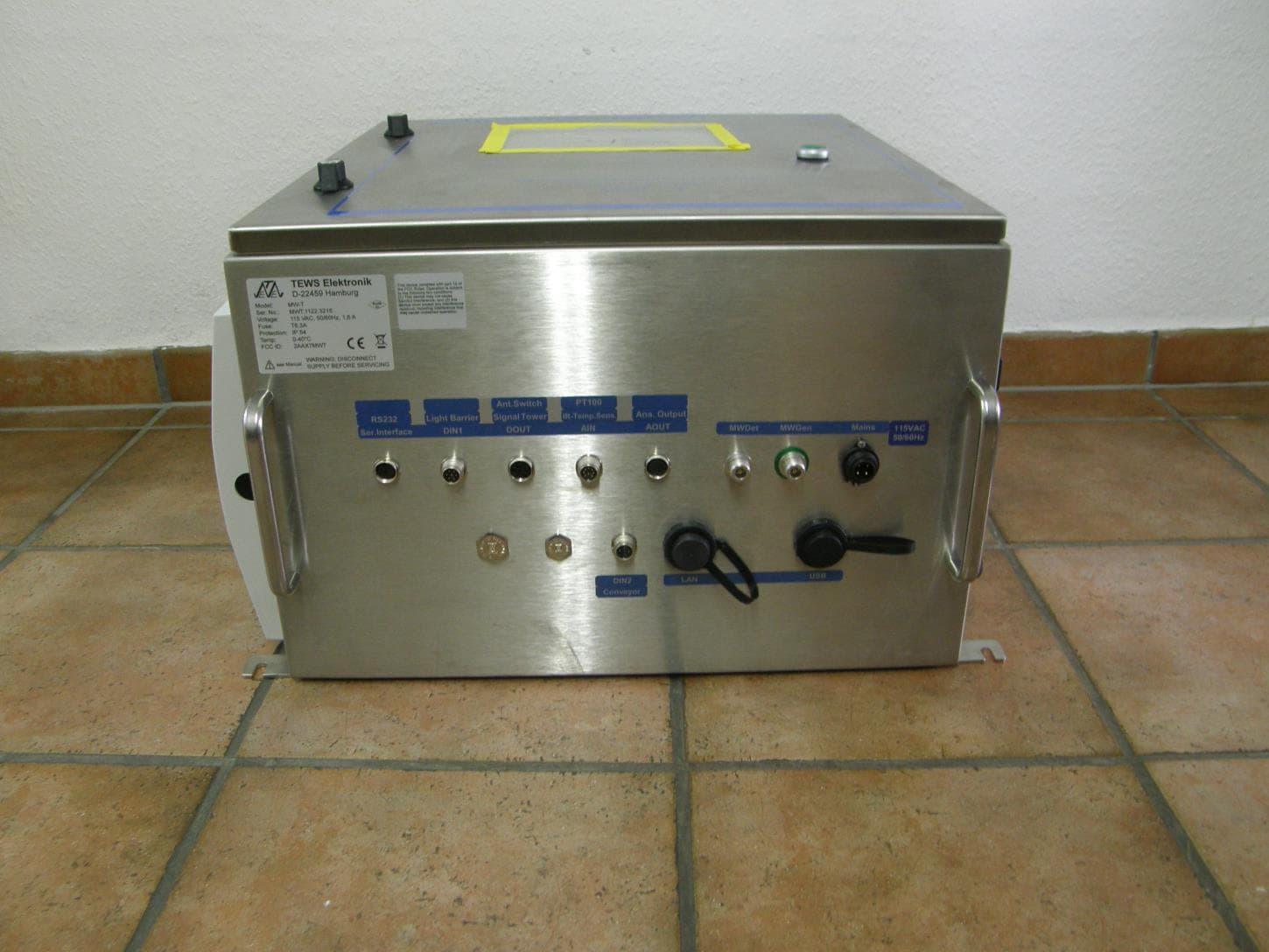

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 1 External Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 4 Label Sample State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Label sample State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Label location RSS-310 RSS-310

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 2 Internal Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 10 Antenna Description Antenna “Dual Vivaldi” for Microware Moisture and Density Measuring System MW-T Datasheet TEWS Elektronik GmbH & Co. KG Sperberhorst 10, D-22459 Hamburg Datasheet Antenna „Dual Vivaldi“ for MW-T -2- MW-T Antenna Type „Dual Vivaldi“ Specification PCB Material: Rogers RT 5880, 150x120mm, 1,575mm, 17μm Cu Antenna Layout Top Layer – brown Bottom Layer - magenta Datasheet Antenna „Dual Vivaldi“ for MW-T -3- Typical Impedance matching S11 in dB (simulated) Frequency in GHz typical impedance matching at least -8dB from 2 to 11 GHz Datasheet Antenna „Dual Vivaldi“ for MW-T -4- Pattern E-Field at 3GHz (simulated) angle in deg. vs dBi maximum gain: 9,8 dBi Dual - Vivaldi - Antenna Datasheet Antenna „Dual Vivaldi“ for MW-T -5- Pattern E-Field at 10GHz (simulated) angle in deg. vs dBi maximum gain: 11,2 dBi Dual - Vivaldi - Antenna

Test report no. 13008819a Page 1 of 30 EUT: Microwave Moisture and Density Measuring System MW-T FCC ID: 2AAX7MWT Date of issue: 2013-11-28 Date: 2013-11-26 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Test Report acc. to FCC Title 47 CFR Part 15 relating to TEWS Elektronik GmbH & Co. KG Microwave Moisture and Density Measuring System MW-T Title 47 - Telecommunication Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators Measurement Procedure: ANSI C63.4-2009 Test report no. 13008819a Page 2 of 30 EUT: Microwave Moisture and Density Measuring System MW-T FCC ID: 2AAX7MWT Date of issue: 2013-11-28 Date: 2013-11-26 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Manufacturer’s details Manufacturer TEWS Elektronik GmbH & Co. KG Manufacturer’s grantee code 2AAX7 Manufacturer’s address TEWS Elektronik GmbH & Co. KG Sperberhorst 10 22459 Hamburg Germany +49 (0) 40 55 59 11 53 +49 (0) 40 552 57 59 [email protected] Relevant standard used 47 CFR Part 15C - Intentional Radiators ANSI C63.4-2009 Test Report prepared by Technical engineer Ralf Trepper m. dudde hochfrequenz-technik (laboratory) Rottland 5a 51429 Bergisch Gladbach Germany Phone: +49 2207 96890 Fax: +49 2207 968920 Email: [email protected] Equipment Under Test (EUT) Equipment category Indoor UWB System Trade name TEWS Type designation Microwave Moisture and Density Measuring System MW-T Serial no. --- Variants --- Test report no. 13008819a Page 3 of 30 EUT: Microwave Moisture and Density Measuring System MW-T FCC ID: 2AAX7MWT Date of issue: 2013-11-28 Date: 2013-11-26 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 1. Test result summary Clause Requirements headline Test result Report page number 8.1 General requirements Pass Fail N.t.* 9 8.2 Conducted limits Pass Fail N.t.* 10 to 12 8.3 Radiated emissions at or below 960 MHz Pass Fail N.t.* 13 to 19 8.4 Radiated emissions above 960 MHz Pass Fail N.t.* 20 to 26 8.5 Bandwidth (-10 dB) Pass Fail N.t.* 27 to 28 * Not tested The equipment passed the conducted tests Yes No Signature: ............................. Signature: ...................................... (Technician) (Laboratory-Manager) Test report no. 13008819a Page 4 of 30 EUT: Microwave Moisture and Density Measuring System MW-T FCC ID: 2AAX7MWT Date of issue: 2013-11-28 Date: 2013-11-26 Vers. no. 1.13 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel: +49 2207-96890 Fax +49 2207-968920 Table of contents 1. Test result summary .......................................................................................................................................... 3 2. Introduction ...................................................................................................................................................... 5 3. Testing laboratory ............................................................................................................................................ 5 4. Applicant .......................................................................................................................................................... 6 5. Product and product documentation ................................................................................................................ 6 6. Conclusions, observations and comments ........................................................................................................ 7 7. Operational description ...................................................................................................................................... 8 8.1 General requirements ....................................................................................................................................... 9 8.1.1 Regulation ............................................................................................................................................. 9 8.1.2 Result .................................................................................................................................................... 9 8.2 Conducted limits ............................................................................................................................................ 10 8.2.1 Regulation ............................................................................................................................................. 10 8.1.2 Test equipment ...................................................................................................................................... 11 8.2.3 Test procedures ..................................................................................................................................... 11 8.2.4 Result .................................................................................................................................................... 12 8.3 Radiated emissions at or below 960 MHz ........................................................................................................ 13 8.3.1 Regulation ............................................................................................................................................. 13 8.3.2 Test equipment ...................................................................................................................................... 14 8.3.3 Test procedure ....................................................................................................................................... 16 8.4.4 Calculation of the field strength ............................................................................................................ 17 8.3.5 Result ..........................................…

Text truncated - open the document above for the full version.

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 3 Bandwidth & Emission Plots State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 -10 dB Bandwidth State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Emissions in the band 1164-1240 MHz Emissions in the band 1559-1610 MHz State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Peak power 50 MHz RBW correction = 20 log (RBW/50) dBm = 20 log (3/50) dBm = -24.4 dBm “Implemented in the TDF corrections!”

State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 Annex no. 6 Test Setup Photographs State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920 State: 2010-03-01 Vers. no.: 1.10 m. dudde hochfrequenz-technik Rottland 5a D-51429 Bergisch Gladbach/ Germany Tel. +49 2207-96890 Fax +49 2207 968920
