2AAY9DK-100Mobile Phone

Mobile Phone User Manual Brand Name: Duophone Model Name: DK-100 FCC ID: 2AAY9DK-100 -I- Contents 1.Getting to know your phone ............................ 1 1.1 Your Phone .................................................. 1 1.2 Installing SIM card and battery ..................... 1 1.3 Installing Storage card ................................. 1 1.4 Battery charging ........................................... 1 1.5 Power on/ off ................................................ 1 1.5.1 Power on ............................................... 1 1.5.2 Power off ............................................... 1 1.6 Using shortcut keys ...................................... 2 2.Using Call Function .......................................... 2 2.1 Making a call ................................................ 2 2.2 Answering or rejecting a call ........................ 2 2.2.1 Answer a call ......................................... 2 2.2.2 Reject a call ........................................... 2 2.3 Adjusting call volume ................................... 2 2.4 Ending a call ................................................ 2 3.Contacts ............................................................ 2 3.1 View a contact .............................................. 2 3.2 Adding a new contact ................................... 2 4.Settings ............................................................. 3 4.1 Date＆time ................................................... 3 4.2 Language settings ........................................ 3 4.3 Display ......................................................... 3 4.4 Call settings ................................................. 3 4.4.1 Dual-SIM ............................................... 3 4.4.2 Call divert .............................................. 3 4.4.3 Call waiting ............................................ 3 4.4.4 Call barring ............................................ 3 4.4.5 Hide ID .................................................. 4 4.4.6 Others ................................................... 4 4.5 Security ....................................................... 4 4.5.1 PIN ........................................................ 4 4.5.2 Modify PIN2 .......................................... 5 4.5.3 Phone locked ........................................ 5 4.5.4 Modify the cellphone password ............. 5 4.5.5 Privacy .................................................. 5 4.5.6 Lock screen by end-key ........................ 6 4.5.7 Guardlock.............................................. 6 4.5.8 Fixed dialing .......................................... 6 4.5.9 Blacklist ................................................. 6 4.6 Connections ................................................ 6 4.7 Profiles ........................................................ 6 4.8 Shortcut settings .......................................... 6 4.9 Auto power on/off ......................................... 6 4.10 Restore factory settings ............................. 6 5.Multimedia ........................................................ 6 5.1 Camera ........................................................ 6 5.2 Video recorder ............................................. 6 5.3 Video ........................................................... 6 5.4 FM radio ...................................................... 7 5.5 Recorder ...................................................... 7 6.Audio ................................................................. 7 7.Call logs ............................................................ 7 7.1 Missed calls ................................................. 7 7.2 Dialed calls .................................................. 7 7.3 Received calls ............................................. 7 -II- 7.4 Rejected calls .............................................. 7 7.5 Delete all ...................................................... 7 7.6 Call timers .................................................... 7 7.7 GPRS counter ............................................. 7 8.Message ............................................................ 8 8.1 Write message ............................................. 8 8.1.1 New SMS .............................................. 8 8.1.2 New MMS ............................................. 8 8.2 Inbox ............................................................ 8 8.3 Outbox ......................................................... 8 8.4 Drafts ........................................................... 8 8.5 Sentbox ....................................................... 8 8.6 Templates .................................................... 8 8.7 Broadcast message ..................................... 8 8.8 Voice mail server ......................................... 8 9.Games ............................................................... 8 9.1 Snake .......................................................... 8 10.Tools ................................................................ 8 10.1 My files ...................................................... 8 10.2 Calendar .................................................... 8 10.3 Alarm ......................................................... 9 10.4 Calculator .................................................. 9 10.5 Bluetooth ................................................... 9 10.6 FlashLight .................................................. 9 11.Internet ............................................................ 9 11.1 Input URL ................................................... 9 11.2 Bookmarks ................................................. 9 11.3 History ........................................................ 9 11.4 Offline pages .............................................. 9 12.Safety Precaution ........................................... 9 12.1 Usage environment .................................... 9 12.2 Med…

Text truncated - open the document above for the full version.

DUOCELL SA RUC 0992664673001 AV. FCO DE ORELLANA #234 EDIF BLUETOWERS, PISO 15, OF 1508 GUAYAQUIL, ECUADOR Date: Sep. 23, 2013 Statement We, DUOCELL SA RUC 0992664673001 states that our device, FCC ID: 2AAY9DK-100, has no space to put the label except the battery compartment of this device. It is visible to the users as they purchase the products and install the battery. Regards Company: DUOCELL SA RUC 0992664673001 Contact Person: JORGE CADME Title: Manager

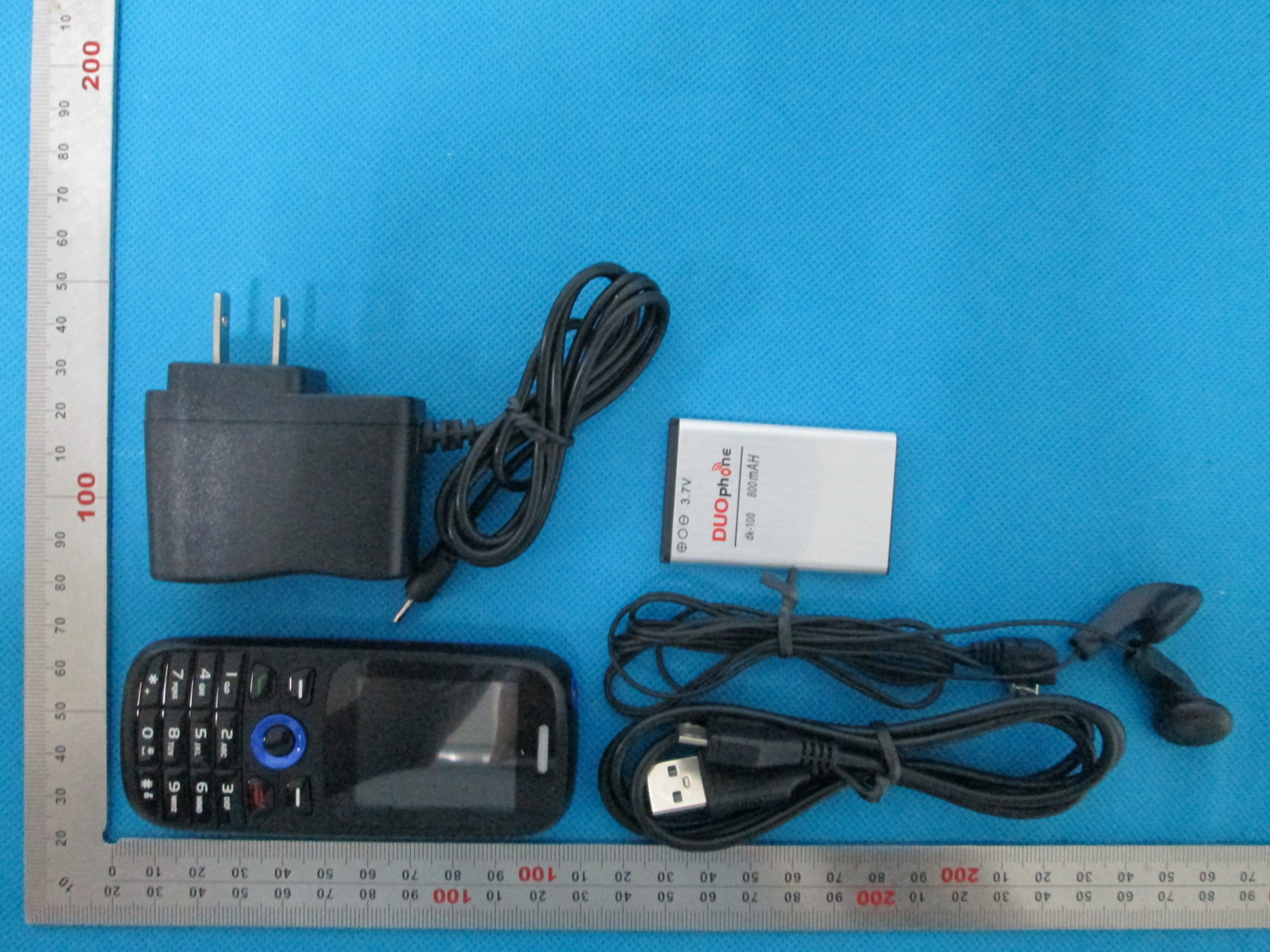

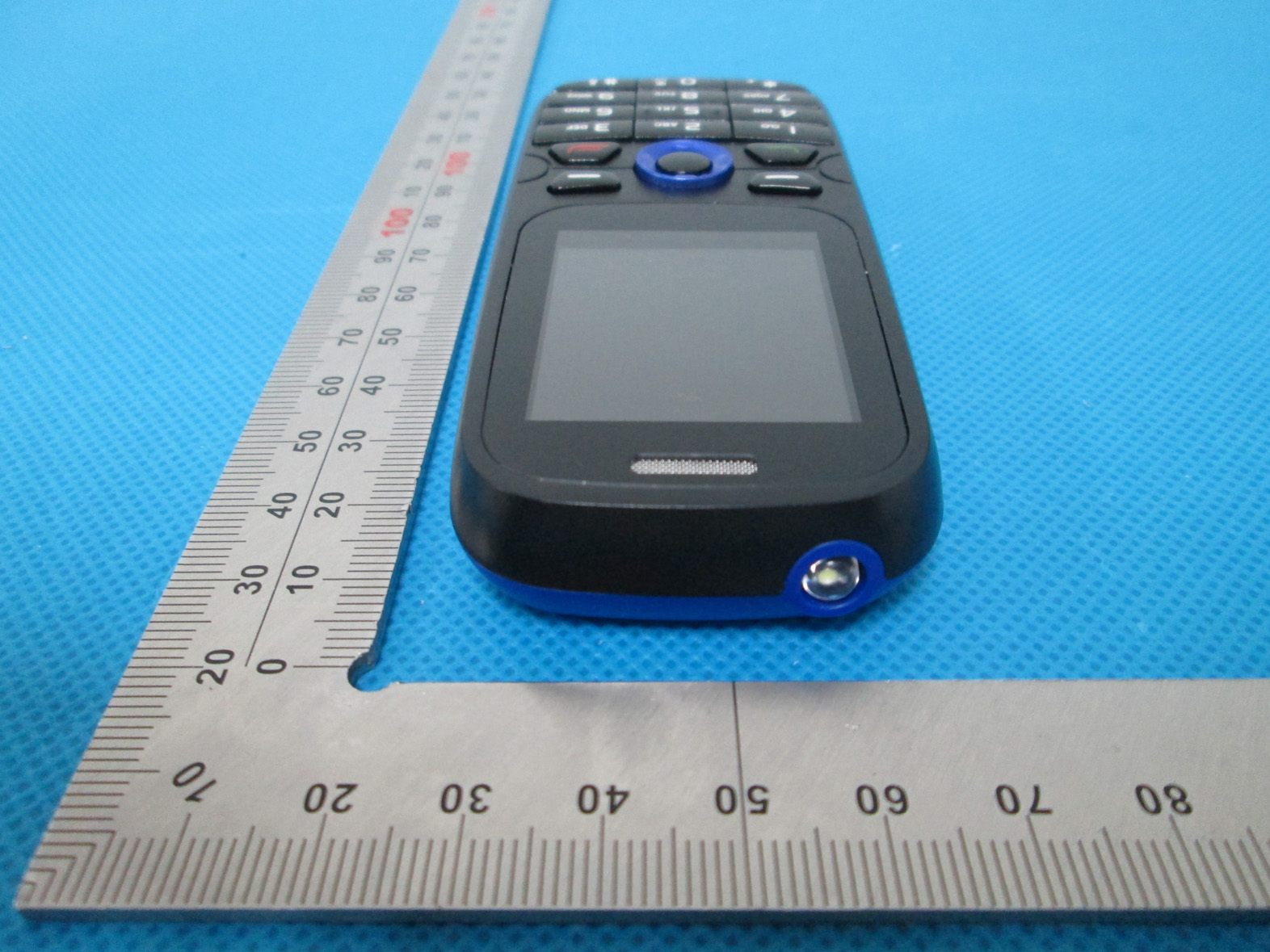

External Photos TOTAL VIEW OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location Model: DK-100 Trade Name: Duophone FCC ID: 2AAY9DK-100 DK-200,DK-300, DK-400,DK-500

Internal Photos OPEN VIEW OF EUT‐1 OPEN VIEW OF EUT‐2 OPEN VIEW OF EUT‐3 GSM Antenna INTERNAL VIEW OF EUT‐1 INTERNAL VIEW OF EUT‐2 BT Antenna

Report No.:AGC01054130901FH01 Page 1 of 98 SAR Test Report Report No.: AGC01054130901FH01 FCC ID : 2AAY9DK-100 PRODUCT DESIGNATION : Mobile Phone APPLICATION PURPOSE : Original Equipment BRAND NAME : Duophone MODEL NAME : DK-100, DK-200, DK-300, DK-400, DK-500 CLIENT : DUOCELL SA RUC 0992664673001 DATE OF ISSUE : Sep.24, 2013 STANDARD(S) : IEEE Std. 1528:2003 47CFR § 2.1093 IEEE/ANSI C95.1 REPORT VERSION : V1.0 Attestation of Global Compliance(Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.:AGC01054130901FH01 Page 2 of 98 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sep.24, 2013 Valid Original Report The test plans were performed in accordance with IEEE Std. 1528:2003; 47CFR § 2.1093; IEEE/ANSI C95.1 and the following specific FCC Test Procedures: ·KDB 447498 D01 General RF Exposure Guidance v05r01 ·KDB 648474 D04 SAR Handsets Multi Xmiter and Ant v01 ·KDB 865664 D01 SAR measurement 100 MHz to 6 GHz v01 Report No.:AGC01054130901FH01 Page 3 of 98 Test Report Certification Applicant Name DUOCELL SA RUC 0992664673001 Applicant Address AV. FCO DE ORELLANA #234 EDIF BLUETOWERS, PISO 15, OF 1508, GUAYAQUIL, ECUADOR Manufacturer Name He Thai lndustrial lntl Co., Limited (Hong kong) Manufacturer Address Room5 C2, Yunsong Building,Tairan lndustrial Park, Shenzhen, China Product Designation Mobile Phone Brand Name Duophone Model Name DK-100, DK-200, DK-300, DK-400, DK-500 Different Description All the models are the same, only different in model names. The test model is DK-100. EUT Voltage DC3.7V by battery Applicable Standard IEEE Std. 1528:2003 47CFR § 2.1093 IEEE/ANSI C95.1 Test Date Sep.24, 2013 Test Results MAX SAR MEASUREMENT(1g) Head: 0.701 W/Kg Body: 0.647 W/Kg (Maximum Scaling SAR =0.827 W/Kg) simultaneous transmission: 0.765 W/Kg Performed Location Attestation of Global Compliance(Shenzhen) Co., Ltd. 2 F, Building 2, No.1-No.4, Chaxi Sanwei Technical Industrial Park, Gushu, Xixiang Street, Bao'an District, Shenzhen, China Report Template AGCRT-US-2G/SAR (2013-03-01) Tested By Eric Zhou Sep.24, 2013 Checked By Angela Li Sep.24, 2013 Authorized By Solger Zhang Sep.24, 2013 Report No.:AGC01054130901FH01 Page 4 of 98 TABLE OF CONTENTS 1. GENERAL INFORMATION ..........................................................................................................................5 1.1. EUT DESCRIPTION ....................................................................................................................................5 1.2. TEST PROCEDURE ....................................................................................................................................7 1.3. TEST ENVIRONMENT ..................................................................................................................................7 2. SAR MEASUREMENT SYSTEM....................................................................................................................8 2.1. COMOSAR SYSTEM DESCRIPTION ............................................................................................................8 2.2. COMOSAR E-FIELD PROBE .................................................................................................................... 10 2.3. ROBOT .................................................................................................................................................. 10 2.4. VIDEO POSITIONING SYSTEM .................................................................................................................... 11 2.5. DEVICE HOLDER ..................................................................................................................................... 11 2.6. SAM TWIN PHANTOM .............................................................................................................................. 12 3. TISSUE SIMULATING LIQUID ................................................................................................................... 13 3.1. THE COMPOSITION OF THE TISSUE SIMULATING LIQUID .................................................................................. 13 3.2. TISSUE CALIBRATION RESULT ................................................................................................................... 14 3.3. TISSUE DIELECTRIC PARAMETERS FOR HEAD AND BODY PHANTOMS ............................................................. 15 4. SAR MEASUREMENT PROCEDURE ........................................................................................................ 16 4.1. SAR SYSTEM VALIDATION ........................................................................................................................ 16 4.2. SAR MEASUREMENT PROCEDURE ............................................................................................................ 18 5. SAR EXPOSURE LIMITS ........................................................................................................................... 19 6. TEST EQUIPMENT LIST ............................................................................................................................ 20 7. MEASUREMENT UNCERTAINTY .............................................................................................................. 21 8. CONDUCTED POWER MEASUREMENT ................................................................................................... 22 9. TEST RESULTS ........................................................................................................................................ 23 9.1. SAR TEST RESULTS SUMMARY ................................................................................................................ 23 APPENDIX A. SAR SYSTEM VALIDATION DATA .................................................................................…

Text truncated - open the document above for the full version.

Report No.:AGC01054130901FH01 Page 61 of 98 Appendix C. TEST SETUP PHOTOGRAPHS &EUT PHOTOGRAPHS Test Setup Photographs LEFT-CHECK TOUCH LEFT-TILT 15 0 Report No.:AGC01054130901FH01 Page 62 of 98 RIGHT-CHECK TOUCH RIGHT-TILT 15 0 Report No.:AGC01054130901FH01 Page 63 of 98 Body Back 5mm Body Front 5mm 5mm Report No.:AGC01054130901FH01 Page 64 of 98 DEPTH OF THE LIQUID IN THE PHANTOM—ZOOM IN Note：The position used in the measurement were according to IEEE 1528-2003 Report No.:AGC01054130901FH01 Page 65 of 98 EUT PHOTOGRAPHS TOTAL VIEW OF EUT TOP VIEW OF EUT Report No.:AGC01054130901FH01 Page 66 of 98 BOTTOM VIEW OF EUT FRONT VIEW OF EUT Report No.:AGC01054130901FH01 Page 67 of 98 BACK VIEW OF EUT LEFT VIEW OF EUT Report No.:AGC01054130901FH01 Page 68 of 98 RIGHT VIEW OF EUT OPEN VIEW OF EUT-1 Report No.:AGC01054130901FH01 Page 69 of 98 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 GSM Antenna Report No.:AGC01054130901FH01 Page 70 of 98 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna

Report No.:AGC01054130901FH01 Page 71 of 98 Appendix D. Probe Calibration Data Report No.:AGC01054130901FH01 Page 72 of 98 Report No.:AGC01054130901FH01 Page 73 of 98 Report No.:AGC01054130901FH01 Page 74 of 98 Report No.:AGC01054130901FH01 Page 75 of 98 Report No.:AGC01054130901FH01 Page 76 of 98 Report No.:AGC01054130901FH01 Page 77 of 98 Report No.:AGC01054130901FH01 Page 78 of 98 Report No.:AGC01054130901FH01 Page 79 of 98 Report No.:AGC01054130901FH01 Page 80 of 98 Report No.:AGC01054130901FH01 Page 81 of 98 Appendix E. Dipole Calibration Data Report No.:AGC01054130901FH01 Page 82 of 98 Report No.:AGC01054130901FH01 Page 83 of 98 Report No.:AGC01054130901FH01 Page 84 of 98 Report No.:AGC01054130901FH01 Page 85 of 98 Report No.:AGC01054130901FH01 Page 86 of 98 Report No.:AGC01054130901FH01 Page 87 of 98 Report No.:AGC01054130901FH01 Page 88 of 98 Report No.:AGC01054130901FH01 Page 89 of 98 Report No.:AGC01054130901FH01 Page 90 of 98 Report No.:AGC01054130901FH01 Page 91 of 98 Report No.:AGC01054130901FH01 Page 92 of 98 Report No.:AGC01054130901FH01 Page 93 of 98 Report No.:AGC01054130901FH01 Page 94 of 98 Report No.:AGC01054130901FH01 Page 95 of 98 Report No.:AGC01054130901FH01 Page 96 of 98 Report No.:AGC01054130901FH01 Page 97 of 98 Report No.:AGC01054130901FH01 Page 98 of 98

Report No.: AGC01054130901FE02 Page 1 of 60 FCC Test Report Report No.: AGC01054130901FE02 FCC ID : 2AAY9DK-100 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Mobile Phone BRAND NAME : Duophone MODEL NAME : DK-100, DK-200, DK-300, DK-400, DK-500 CLIENT : DUOCELL SA RUC 0992664673001 DATE OF ISSUE : Sept. 24, 2013 STANDARD(S) : FCC Part 22H & 24E Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01054130901FE02 Page 2 of 60 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Sept. 24, 2013 Valid Original Report Report No.: AGC01054130901FE02 Page 3 of 60 TABLE OF CONTENTS 1. GENERAL INFORMATION ....................................................................................................................... 7 1.1 PRODUCT DESCRIPTION .............................................................................................................................. 7 1.2 RELATED SUBMITTAL(S) / GRANT (S) .......................................................................................................... 8 1.3 TEST METHODOLOGY ................................................................................................................................... 9 1.4 TEST FACILITY................................................................................................................................................ 9 1.5 MEASUREMENT INSTRUMENTS .................................................................................................................. 9 1.6 SPECIAL ACCESSORIES ............................................................................................................................... 9 1.7 EQUIPMENT MODIFICATIONS ....................................................................................................................... 9 2. SYSTEM TEST CONFIGURATION ........................................................................................................ 10 2.1 EUT CONFIGURATION ................................................................................................................................. 10 2.2 EUT EXERCISE ............................................................................................................................................. 10 2.3 GENERAL TECHNICAL REQUIREMENTS .................................................................................................. 10 2.4 CONFIGURATION OF EUT SYSTEM ............................................................................................................ 11 3. SUMMARY OF TEST RESULTS ............................................................................................................ 12 4. DESCRIPTION OF TEST MODES ......................................................................................................... 12 5. OUTPUT POWER ................................................................................................................................... 13 5.1 CONDUCTED OUTPUT POWER .................................................................................................................. 13 5.2 RADIATED OUTPUT POWER ....................................................................................................................... 16 6. PEAK-TO-AVERAGE RATIO .................................................................................................................. 20 6.1 MEASUREMENT METHOD ........................................................................................................................... 20 6.2 PROVISIONS APPLICABLE .......................................................................................................................... 20 6.3 MEASUREMENT RESULT ............................................................................................................................ 21 7. SPURIOUS EMISSION ........................................................................................................................... 22 7.1 CONDUCTED SPURIOUS EMISSION .......................................................................................................... 22 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................... 24 8. MAINS CONDUCTED EMISSION .......................................................................................................... 28 Report No.: AGC01054130901FE02 Page 4 of 60 8.1 MEASUREMENT METHOD ........................................................................................................................... 28 8.2 PROVISIONS APPLICABLE .......................................................................................................................... 28 8.3 MEASUREMENT RESULT ............................................................................................................................ 29 9. FREQUENCY STABILITY ....................................................................................................................... 31 9.1 MEASUREMENT METHOD ........................................................................................................................... 31 9.2 PROVISIONS APPLICABLE .......................................................................................................................... 31 9.3 MEASUREMENT RESULT (WORST TEST) .................................................................................................. 32 10. OCCUPIED BANDWIDTH .................................................................................................................... 34 10.1 MEASUREMENT METHOD .................................................................................…

Text truncated - open the document above for the full version.

Te s t Setup Photos FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
