2AAYX9411Mini Bluetooth Retro Phone

Outfitting your mobile life. ® User’s Guide 1709411, 1709412 23456 Changing Phones To change phones, you must first disconnect the first phone. 1. Press and hold the Multifunction button for 5 seconds to turn off the handset. 2. Press and hold the Multifunction again until the LED flashes red and blue. If you release the button before the LED flashes red and blue, the handset will automatically connect to the first smartphone. 3. When PointMobl Mini Phone appears in the list of devices on the second phone, select it. When paired, the LED flashes blue every three seconds. n Note: If the handset malfunctions, reset it by pressing the Multifunction button twice quickly when the LED flashes blue and red. Charging Your Handset Use the supplied charging cable to connect the handset to a USB port or a USB charger (not included). When the battery is low, the LED flashes red and the handset beeps every 20 seconds. While charging, the LED lights red, but may flash blue to indicate the Bluetooth status. Using Your Handset To use the Multifunction button: • Power on – Press and hold for 2 seconds. • Answer or end a call – Press once. • Reject a call – Press and hold for 2 seconds. • Answer a second call – Press and hold for 2 seconds to place the current call on hold and answer the second call. • Redial – Press twice quickly. This redials the last call dialed from the phone. • Turn off the handset – Press and hold for 5 seconds. When turned on, the handset automatically connects to the most recently paired phone. If that phone is not available, it will search for other phones. If the connected phone moves too far away from the handset, the handset disconnects from the device but resumes connection when the device is detected within 5 minutes. Wireless Retro Handset For Your Smartphone Package Contents • Wireless Retro Handset • Micro USB Charging Cable • Neck and Wrist Lanyards • User’s Guide Features • Miniature size and retro-styling meet the convenience of modern technology • Wireless Bluetooth connection means you can leave your smartphone in your purse or pocket • Go ahead and multitask–your other phone functions are still accessible during a call Attaching a Lanyard (Optional) You can use either of the supplied lanyards to carry your handset. Pairing Your Handset 1. Press and hold the Multifunction button for 2 seconds to turn on the handset. While searching for Bluetooth devices, the LED flashes blue and red. 2. Activate your phone’s Bluetooth function (refer to the phone user’s guide). 3. When PointMobl Mini Phone appear, select it. When paired, the LED flashes blue every three seconds. n Note: • If prompted for a PIN, enter 0000. • The handset automatically turns off if no phone is connected for 10 minutes. Multifunction Button Ô Ô X LED 1709411_412_UG_EN.indd 1-610/7/2013 5:16:00 PM 789101112 Specifications Power Input ......................................5V DC, 500mA Charging Time ..........................................1.5 hours Operating Time ............................................5 hours Bluetooth Protocol ...........................................V3.0 Operating Distance ..............................33 ft. (10m) Handset Weight ..................................0.88 oz (25g) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. FCC Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Limited Warranty Ignition L.P. warrants this product against defects in materials and workmanship under normal use by the original purchaser for ninety (90) days after the date of purchase. IGNITION L.P. MAKES NO OTHER EXPRESS WARRANTIES. This warranty does not cover: (a) damage or failure caused by or attributable to abuse, misuse, failure to follow instructions, improper installation or maintenance, alteration, accident, Acts of God (such as floods or lightning), or excess voltage or current; (b) improper or incorrectly performed repairs by persons who are not a Ignition L.P. Authorized Service Facility; (c) consumables such as fuses or batteries; (d) ordinary wear and tear or cosmetic damage; (e) transportation, shipping or insurance costs; (f) costs of product removal, installation, set-up service, adjustment or reinstallation; and (g) claims by persons other than the original purchaser. Should a problem occur that is covered by this warranty, take the product and the sales receipt as proof of purchase date to the place of purchase. Ignition L.P. will, at its option, unless otherwise provide…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 DD CC BB AA 11 Block Diagram A0 2013/08/20 Title: Size: Number:Date: Revision: Sheet:of A4 Protract: bas Auditing: Approved: Mini Bluetooth Retro Handset Block Diagram BC6145 (U1) Audio Power Amplifier Charge Circuitry AEC651220 single cell with PCM LED display circuit and buttons Spe1 32R BT1 Battery Mic1 XTL-26M 12 XT1 26MHZ EEPROM AT24C32-1 ANT 2.4-2.483GHZ Antenna Matching (U3) Balun and filter MIC input circuit Functional Block Diagram G-TW-0006399.1.1 Bluetooth Modem Clock Generation RF_P Basic Rate Modem Enhanced Rate Modem Radio Control Baseband XTAL_OUT XTAL_IN LO_REF VDD_LO LED[0] VDD_PADS[0]RST#TEST_EN VDD_CORE I 2 C bus interface can only connect to a serial EEPROM Memory Management Unit Microcontroller MCU Interrupt Controller Timers System RAM DSP Kalimba DSP Interrupt Controller Timers Data Memory DM2 Program Memory PM Data Memory DM1 Internal Memory Interface ROM Programmable I/O LED Driver AIO GPIO LED[1] AIO[0] AIO[1] PIO[2:0] RF_N Audio Codec Interface SPKR_PSPKR_NMIC_BIASMIC_PMIC_NAU_REF Bluetooth v3.0 Radio Serial Interfaces VDD_AUDIO Power Control and Regulation VDD_CHG BAT_P VREGENABLE_H LX SMP_SENSE VREGIN_H VREGOUT_H VREGENABLE_L VREGIN_L VDD_ANA VDD_RADIO Switch-mode Regulator High-voltage Regulator Low-voltage Regulator Battery Charger INOUT EN IN OUT EN SENSE OUTIN EN INOUT SENSESENSE VDD_PADS[1] UART UART_RX/PIO[20]UART_TX/PIO[23] SPI Flash Interface PIO[11]PIO[3] SPI Interface SPI_CS#SPI_MISOSPI_MOSISPI_CLKSPI_DEBUG_EN I 2 C Interface PIO[7]PIO[8]PIO[6] SCL SDA Figure : Functional Block Diagram Functional Block Diagram CS-204118-DSP2 Production Information © Cambridge Silicon Radio Limited 2010 This Material is Subject to CSR 's Non-disclosure Agreement Page 3 of 69 _`SNQR=nck Data Sheet

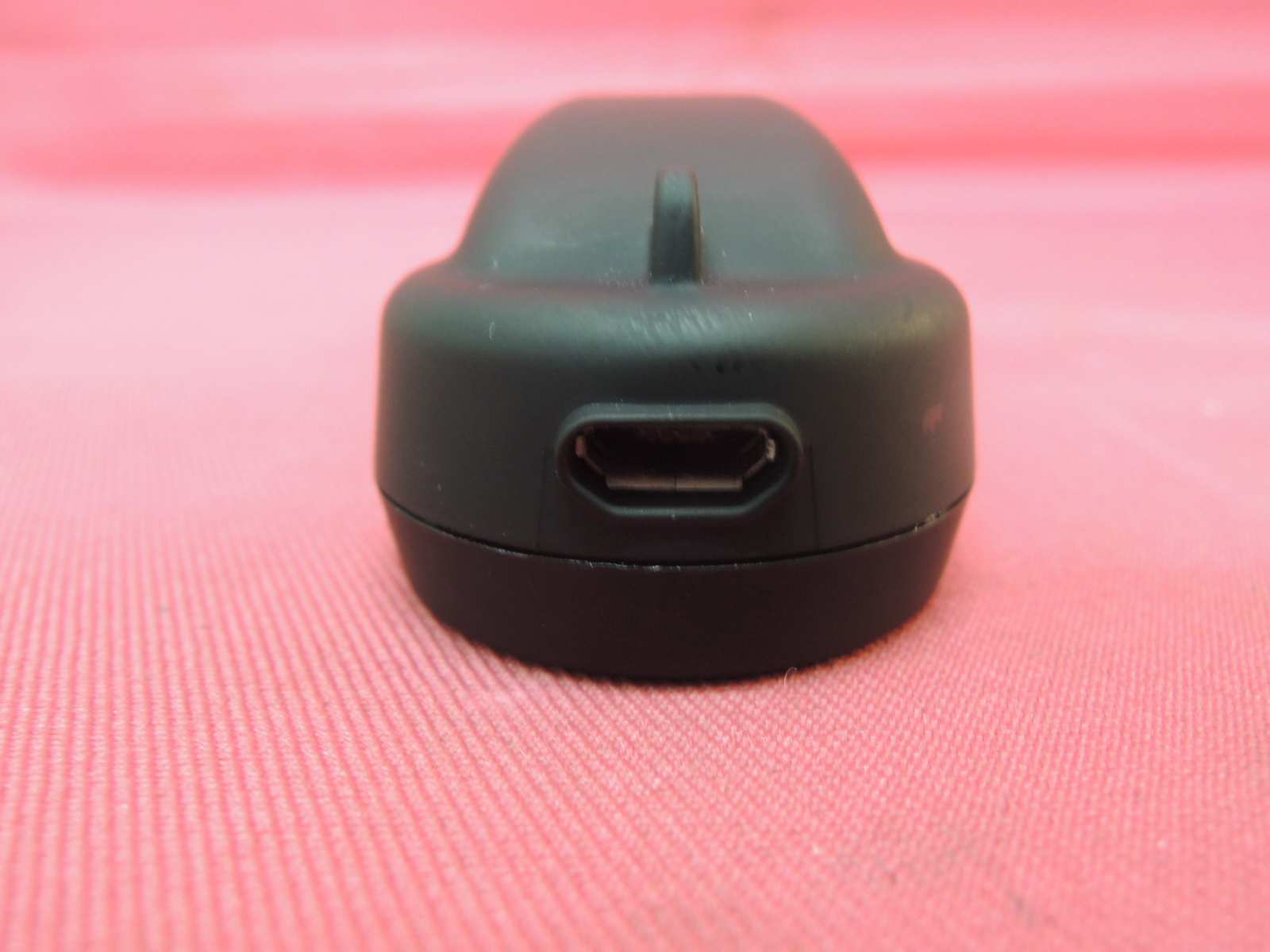

INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model : 1709411 (External) INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model : 1709411 (External)

1709411 10A13 China 2013/09/23 A0 1: 1 UNLESS OTHERWISE SPECIFICATION UNIT: APPROVAL mm 3 P/N: 4 APP. DATE CHK. ANGLES 0.5° A DWN. TOLERANCES ARE: . ± 0.5 .x ± 0.2 .xxx ± 0.05 REV.: DRAW NO: MATERIAL: TITLE: 本件保存至产品结束一年 RDD-P-001-6A THIRD ANGLE PROJECTION .xx ± 0.1 SCALE: Protop International Inc. JACK 1709411 printing 1709411_printing_A0_20130923 “ ” White 1709411 10A13 China

INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model: 1709411 (Internal) INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model: 1709411 (Internal) INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model: 1709411 (Internal) INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model: 1709411 (Internal) INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model: 1709411 (Internal) INTERTEK TESTING SERVICE Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 Equipment Photographs Model: 1709411 (Internal)

Technical Description: The brief circuit description is listed as follows: U4 and associated circuit act as Bluetooth module -U1 acts as Bluetooth Transceiver -U2 acts as Multilayer Balanced Band Pass Filter -U3 act as 2-Wire Serial EEPROM An internal, integral antenna has been used. Antenna Gain: 0dBi Nominal rated field strength: 100.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB F-3098 Module Specification 一、Module Description  Using the latest CSR BC6 chip, sound quality and overall RF performance improved significantly  Comply with Bluetooth V3.0  Bluetooth headsets, speakers, car accessories, low-cost solution  Supports two phones simultaneously connected  Supports HSP V1.2, HFP V1.5  High quality audio processor A2DP V1.2  Transmit power up to 8.5dB,-91dB Receiver Sensitivity  Module size: L23.5 x W15.5 x H1.8 mm 二、Applications  High-quality Bluetooth headset  Car Hands free Bluetooth  High quality Bluetooth audio 三、Module size and pin diagram 四、Performance Parameters Model F-3098 Bluetooth Specification Bluetooth V3.0 Modulation Mode GFSK, 1Mbps, 0.5BT Gaussian Supply voltage Battery voltage VDD:3.3Vdc supply Supply Bluetooth Agreement A2DP,HSP,HFP Operating current ≤30mA Standby Current <0.4mA Temperature Range -40°C to +80°C Wireless transmission range 10 meter Transmission power CLASS 24dBm Sensitivity -91 dBm @ 0.1% BER Frequency Range 2.4GHz-2.48GHz External Interface PIO, SPI, Speaker , microphone Audio Performance High acoustic fidelity sound Audio SNR ≧75dB Distortion ≤0.01% 五、Pin Function Description: PIN NO. NAME TYPE FUNCTION 1 GND2 GND Ground connections 2 AIO1 Bidirectional Programmable input/output line 3 AIO1 Bidirectional Programmable input/output line 4 PIO20/RX Bidirectional with weak internal pull-down UART data input, active high. PIO[20] is clock for SPI flash interface 5 PIO23/TX Bidirectional with weak internal pull-up UART data output, active high. PIO[23] is data output for SPI flash interface 6 PIO3 Bidirectional with programmable strength internal pull-up/down Programmable input/output line PIO[3] is chip select for SPI flash interface 7 PIO2 Bidirectional with programmable strength internal pull-up/down Programmable input/output line 8 PIO1 Bidirectional with programmable strength internal pull-up/down Programmable input/output line 9 PIO0 Bidirectional with programmable strength internal pull-up/down Programmable input/output line 10 RST Input with weak internal pull-up Reset if low. Input debounced so must be low for >5ms to cause a reset 11 PIO11 Bidirectional with programmable strength internal pull-up/down Programmable input/output line. PIO[11] is data input for SPI flash interface 12 LED1 Open drain output LED driver 13 LED0 Open drain output LED driver 14 GND3 GND Ground connections 15 GND GND Ground connections 16 1V8 Power Positive supply for bluecore 17 POWER_EN Take high to enable both high-voltage regulator and switch-mode regulator 18 BAT Lithium ion/polymer battery positive terminal. Battery charger output and input to switch-mode regulator 19 CHG Lithium ion/polymer battery charger input 20 MIC_BIAS Analogue Microphone bias 21 MIC_P Analogue Microphone input, positive 22 MIC_N Analogue Microphone input, negative 23 SPKR_N Analogue Speaker output, negative 24 SPKR_P Analogue Speaker output, positive 25 MOSI with weak internal pull-down SPI data input 26 CLK Bidirectional with weak internal pull-down SPI clock 27 CSB Bidirectional with weak internal pull-down Chip select for SPI, active low 28 MISO Bidirectional with weak internal pull-down SPI data output 29 GND1 GND Ground connections 30 RF RF RF 31 GND0 GND GND 六、Note:  next to the antenna can not have metal  large box can not be shielded  to be placed near the power modules PAD electrolytic capacitors.  Common end-to-noise inhibition, you need to increase the amplifier or main front part of the op amp to eliminate interference  amplifier module must be grounded well, allowed to exist island or in closed loop, the module grounding Point with the master and the potential difference between the amplifier ground shall not be greater than 1mV. 七、Application Circuit: 八、Solder reflow temperature Features _äìÉ`çêÉ ∆ =_`SNQR»=nck ■ 6 th generation 1-mic CVC audio enhancements ■ A2DP v1.2 for high-quality mono music streaming ■ Supports mSBC wideband speech codec ■ Programmable audio prompts: available from either EEPROM or a low-cost SPI flash ■ Bidirectional noise reduction: Hear and Be Heard ■ Long-tail echo cancellation for low-cost speakerphones and car-kits ■ Low power consumption: over 11 hours talk time from a 120mAhr battery ■ Advanced multipoint support: enables a headset (HFP) connection to 2 phones for voice ■ Multipoint A2DP streaming: enables a mono headset (A2DP) connection to 2 A2DP source devices for music playback ■ Secure simple pairing, CSR's proximity pairing and CSR's proximity connection ■ 64MIPS Kalimba DSP coprocessor ■ HFP v1.5 and HSP v1.2. ■ Integrated linear and switch-mode regulators ■ 150mA lithium battery charger, with fast charge and external boost charge for a total 240mA ■ High-quality mono codec with 95dB SNR DAC ■ 48-lead 7 x 7 x 0.9mm, 0.5mm pitch QFN, pin compatible with BC6140™ QFN and BC6130™ QFN ■ Green (RoHS compliant and no antimony or halogenated flame retardants) 1-mic CVC Mono Headset Solution Advanced Echo and Noise Cancellation Fully Qualified Single-chip Bluetooth ® v3.0 System Production Information BC6145A04 Issue 2 General Description BlueCore ® BC6145™ QFN is a low-cost fully-featured ROM IC solution for Bluetooth mono headsets with extremely low power consumption. The BC6145 QFN ensures increased speech clarity and improves intelligibility through spectral enhancement, with the bidirectional noise reduction Hear and Be Heard feature. BC6145 QFN reduces the number of external components required, minimising production costs. It includes a Bluetooth radio, baseband, Kalimba DSP, DAC/ADC, switch-m…

Text truncated - open the document above for the full version.

Analysis Report Report No.: 13081079HKG-001 The equipment under test (EUT) is a portable Bluetooth headset. The EUT equipped with a USB interface and contains a Bluetooth module. The Bluetooth module in the EUT supports both is operating in the frequency range from 2402MHz to 2480MHz (79 channels with 1MHz channel spacing). The EUT is powered by 1 X 3.7V rechargeable battery (Li-Poly). The EUT can be used for management and communication of phone calls once paired with Bluetooth enabled mobile phones. The EUT is using non-adaptive frequency hopping in the Bluetooth module as declared by the applicant. The USB interface of the EUT does not contain PC Connectivity which is for charging use only. Antenna Type: Internal integral antenna Antenna Gain: 0dBi Nominal rated field strength: 100.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 103.9dBμV/m at 3m in frequency 2.4GHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 7.364mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 7.364mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

A B C DD C B A 00 Mini Bluetooth Retro Handset A0 23-Jul-2013 Title: Size: Number:Date: Revision: Sheet:of A4 Protract: Navy Auditing: Approved: GND 1 NC 2 AI00 3 PI020 4 PI023 5 PI03 6 PI02 7 PI01 8 PI00 9 RST 10 PI011 11 LED1 12 LED0 13 GND 14 1V8 16 POWER_EN 17 BAT 18 CHG 19 MIC_BIAS 20 MIC_+ 21 MIC_- 22 SPKR_- 23 SPKR_+ 24 MOSI 25 CLK 26 CSB 27 MISO 28 GND 15 U1 F-3098 C3 150nF R4 2.2K C9 15pF L1 15nH MIC1 MIC C4 150nF C6 2.2uF C10 15pF R5 1K C5 2.2uF 1 2 3 4 5 J1 CON5 Q1 MMBT3904 C7 220nF C8 104 R6 220K RST 1 2 J2 CON2 C12 104 C11 105 VBAT VBAT Power_EN 1V8 SPE1 32R C1 15pF C2 15pF R1 1K R2 560R LED1 RED LED2 BLUE VBAT SW1 SW SPST1 R3 10K Power_ENVBAT C13 105 C14 NC R7 NC R8 NC NC SPEAKER Q2 NC D1 NC VBAT RST B 1 1 R E V : S I Z E : C O D E : D R A W N : D A T E D : D A T E D : C H E C K E D : Q U A L I T Y C O N T R O L : D A T E D : D A T E D : R E L E A S E D : C O M P A N Y : T I T L E : D R A W I N G N O : S H E E T : O F S C A L E : R E V I S I O N R E C O R D A P P R O V E D : E C O N O : ABD D A T E : 1 2 3 4 5 6 DCAB C L T R 7 R F _ P 8 R F _ N 3 7 V D D _ C H G 3 2 V R E G I N _ H 3 6 B A T _ P 2 6 R S T # 3 9 S P I _ C L K 4 0 S P I _ C S B 4 1 S P I _ M I S O 3 8 S P I _ M O S I 4 2 S P I _ D E B U G _ E N 2 1 P I O 3 4 6 P I O 6 4 5 P I O 7 4 4 P I O 8 2 7 P I O 1 1 1 9 P I O _ 2 3 / U A R T _ T X 1 8 P I O _ 2 0 / U A R T _ R X 2 5 T E S T _ E N 1 6 A I O 1 1 7 A I O 0 28 LED1 29 LED0 22 PIO2 23 PIO1 24 PIO0 33 VREGENABLE_H 31 VREGOUT_H 43 VDD_PADS1 20 VDD_PADS0 11 VREGIN_L 10 VREGENABLE_L 35 LX 34 SMP_SENSE 48 VDD_AUDIO 12 VDD_ANA 6 VDD_RADIO 9 VDD_LO 30 VDD_CORE 13 XTAL_IN 14 XAL_OUT 15 LO_REF 5 AU_REF 47 MIC_BIAS 2 MIC_N 1 MIC_P 3 SPKR_N 4 SPKR_P 49 VSS_CNTR_PAD U 1 B C 6 1 4 5 213 57 4 8 6 U 2 D E A 2 0 2 4 5 0 B T 1 3 2 4 X T 1 X T L - 2 6 M 1 E 0 2 E 1 3 E 2 4 V S S 8 V C C 7 / W C 5 S D A 6 S C L U 3 A T 2 4 C 3 2 - 1 U4 U5 U6 U7 U8 U 9 U 1 0 U 1 1 U 1 2 U 1 3 U 1 7 U 1 8 U 1 9 U 2 0 T 2 1 U22 U23 U24 U25 U26 U 2 7 U 2 8 U 2 9 R3 2.2K R2 2.2K R1 2.2K C 1 1 0 0 N F C 2 1 0 0 N F C 3 1 0 0 N F C 4 2 . 2 U F R4 2.2R U14 12 L1 IND-MOLDED-1206 22uH C 5 2 . 2 U F C 7 2 2 N F C 8 1 5 P F C 9 1 5 P F L2 15nH ANT U 1 5 L 3 0 R C 1 0 C ? C 1 1 C ? L4 NC C 1 2 4 . 7 U F C 1 3 4 . 7 U F C 1 4 4 7 N F C 1 5 2 2 N F C 1 6 1 8 P F C 1 7 6 . 8 P F R5 2.2R C 1 8 2 . 2 U F C 6 4 7 N F U 3 0 U31 C 1 9 1 5 P F [ 1 ] W P [ 1 ] S D A [ 1 ] S C L 1 . 8 V [ 1 ] S C L [ 1 ] S D A [ 1 ] W P 1 . 8 V 1 . 5 V 1 . 5 V

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 13081079HKG-001 Protop International Inc. Application For Certification (Original Grant) (FCC ID: 2AAYX9411) Transceiver Prepared and Checked by: Approved by: Signed On File Allen Wong Assistant Engineer Wong Kwok Yeung, Kenneth Lead Engineer Date: October 16, 2013 INTERTEK TESTING SERVICES Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 i GENERAL INFORMATION Protop International Inc. BRAND NAME: PointMobl, MODEL: 1709411, 1709412 FCC ID: 2AAYX9411 Grantee: Protop International Inc. Grantee Address: 5F-3, No. 33, Sec. 1, Min-Sheng Road, Banqiao City, Taipei County 220, Taiwan. Contact Person: YF Du Tel: +886-2-29509035 Fax: +886-2-29509037 e-mail: [email protected] Manufacturer: Dongguan Tai Ying Precision Electronics Co., Ltd. Manufacturer Address: Zhenhua Middle Road, Tielukeng Industrial Area, Qishi Town, Dongguan, Guangdong, China. Brand Name: PointMobl Model: 1709411, 1709412 Type of EUT: Transceiver Description of EUT: Mini Bluetooth Retro Phone Serial Number: N/A FCC ID: 2AAYX9411 Date of Sample Submitted: August 28, 2013 Date of Test: August 29, 2013 to September 23, 2013 Report No.: 13081079HKG-001 Report Date: October 07, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 ii SUMMARY OF TEST RESULT Protop International Inc. BRAND NAME: PointMobl, MODEL: 1709411, 1709412 FCC ID: 2AAYX9411 TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 Pass Transmitter Field Strength and Bandwidth Requirement 15.249 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 13081079HKG-001 FCC ID: 2AAYX9411 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description ...................................................................................... 1 1.2 Related Submittal(s) Grants .......................................................................... 1 1.3 Test Methodology ......................................................................................... 1 1.4 Test Facility .................................................................................................. 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification................................................................................................... 2 2.2 EUT Exercising Software .............................................................................. 2 2.3 Special Accessories...................................................................................... 2 2.4 Equipment Modification................................................................................. 2 2.5 Measurement Uncertainty ............................................................................. 2 2.6 Support Equipment List and Description........................................................ 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation ............................................................................. 3 3.2 Radiated Emission Configuration Photograph ............................................... 4 3.3 Radiated Emission Data ............................................................................... 4 3.4 Conducted Emission Configuration Photograph ............................................ 4 3.5 Conducted Emission Data............................................................................. 4 4.0 Equipment Photographs ................................................................................ 9 5.0 Product Labelling ........................................................................................... 9 6.0 Technical Specifications ................................................................................ 9 7.0 Instruction Manual......................................................................................... 9 8.0 Miscellan…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 13081079HKG-001 FCC ID: 2AAYX9411 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 1709411 Radiated Emission 1709411 13081079HKG-001 INTERTEK TESTING SERVICE Report No: 13081079HKG-001 FCC ID: 2AAYX9411 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 1709411 Radiated Emission 1709411 13081079HKG-001

INTERTEK TESTING SERVICE Report No: 13081079HKG-001 FCC ID: 2AAYX9411 Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) Model: 1709411 INTERTEK TESTING SERVICE Report No: 13081079HKG-001 FCC ID: 2AAYX9411 Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) Model: 1709411 INTERTEK TESTING SERVICE Report No: 13081079HKG-001 FCC ID: 2AAYX9411 Configuration Photographs Worst-Case Line-Conducted Emissions (Side View) Model: 1709411
