2AAZF-ACCRX02RFID Module

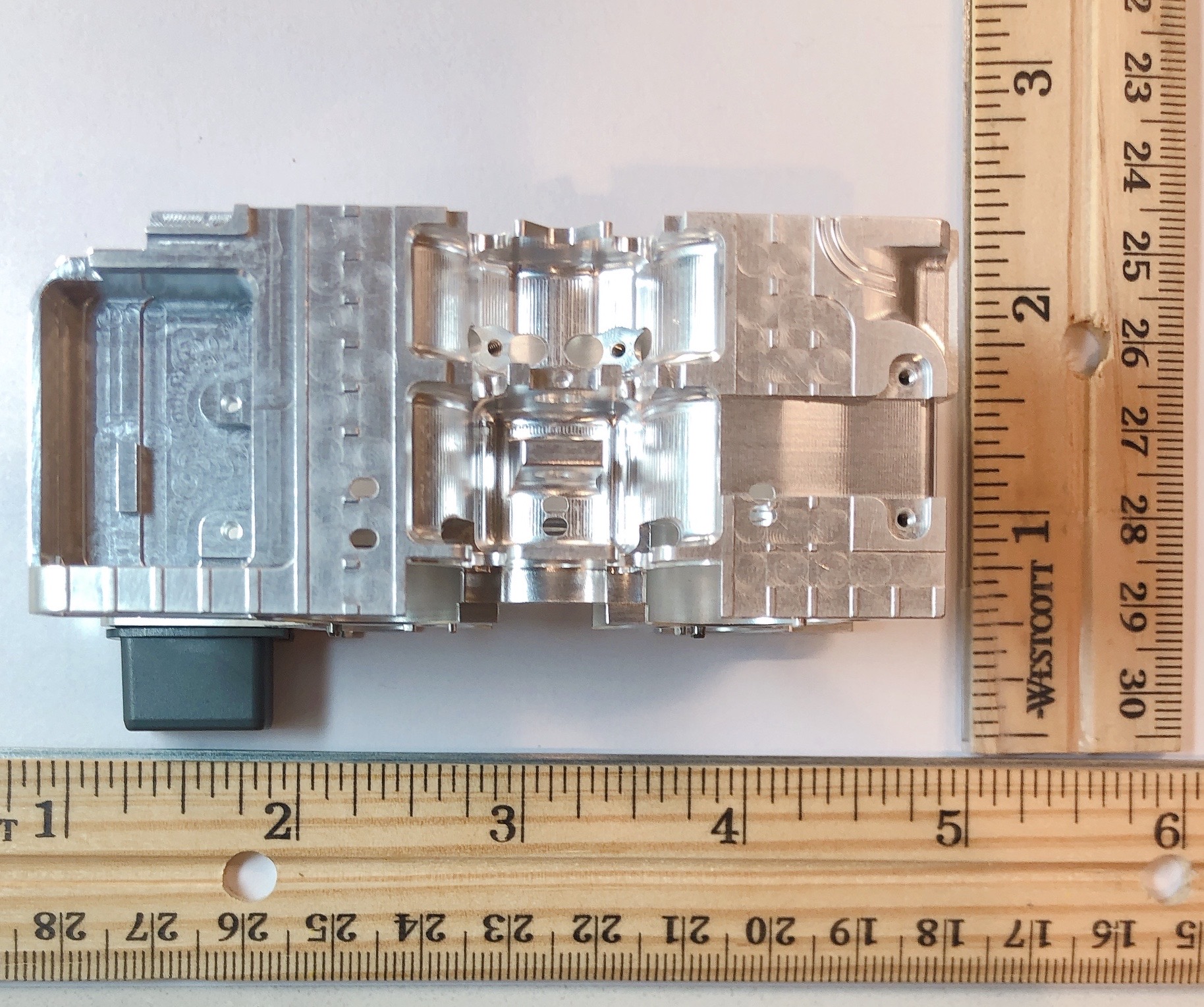

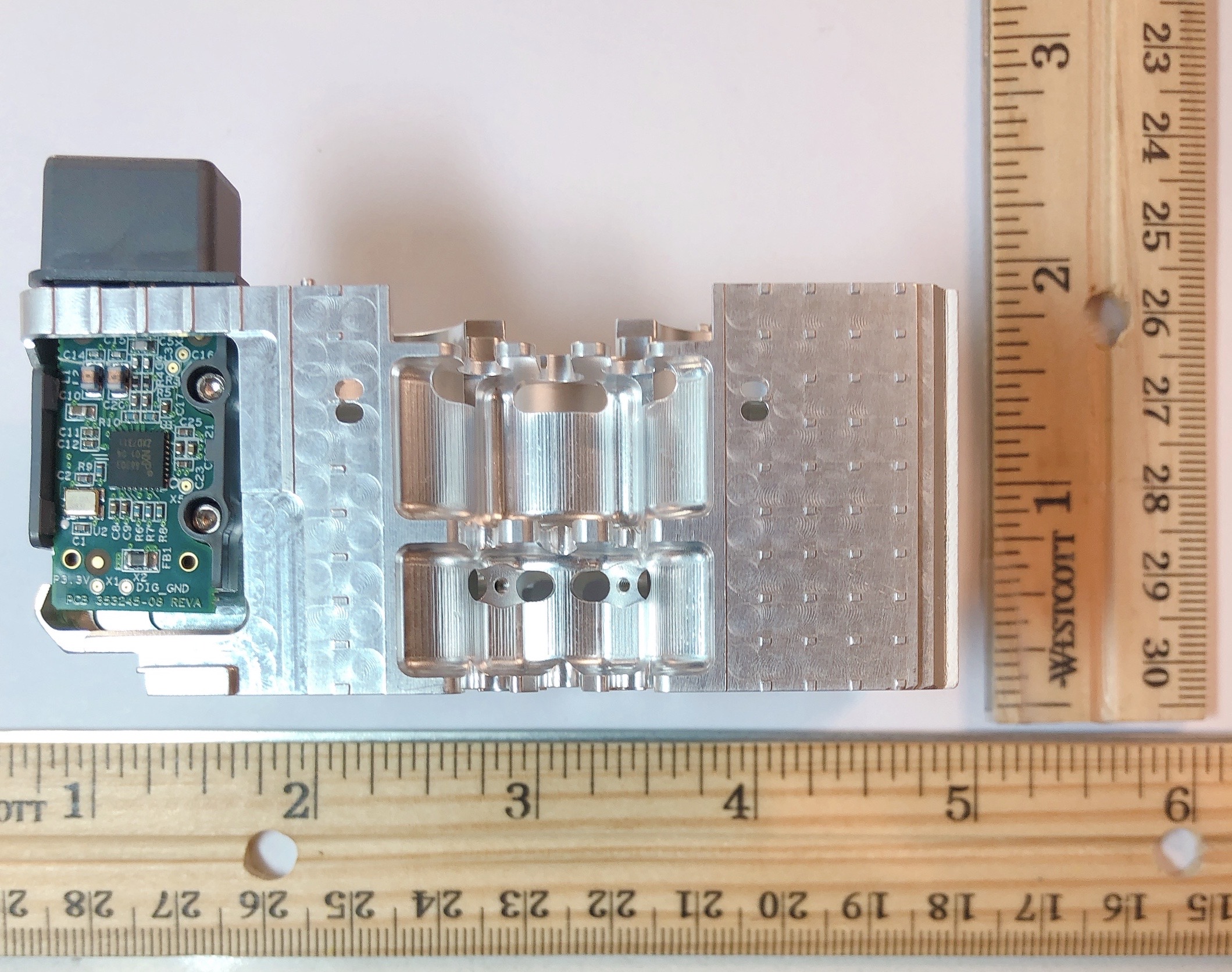

CONFIDENTIAL AND PROPRIETARY – Intuitive Surgical Inc. Prior to use, use ACCS to verify that this is the current revision Template File: 853244 Form_Template Rev D.doc DOCUMENT: 818385-02 REVISION: A PAGE: 1 of 4 TITLE: Installation Instructions for RFID Module ACCRX02 The RFID module (Model: ACCRX02) is used with the host devices (model PS4000 and PS4200) and as such, required testing and approval is completed. Use with any other host device may or may not require additional testing and approval. Consult Hardware Compliance Engineering for assistance. The RFID module includes the main block (P/N 318215), the top plate (P/N 318216), the ACCR PCA (P/N 353240-08), ACCRA PCA (P/N 343460-05), the pod support (P/N 318273), and board support (P/N 318230). For instruction on how to install RFID module to the host device (PS4000 and PS4200), refer to Manufacturer Process Instruction, Carriage, Housing Assembly,USM,IS4000 (P/N 1001924) and Manufacturer Process Instruction, Carriage Integration,USM,IS4000 (P/N 844505-01). USM = Universal Surgical Manipulator (aka. Robot Arm). The label (P/N 510196-02) contains FCC ID (2AAZF-ACCRX02), IC ID (11508A- ACCRX02), and RFID Model name (ACCRX02) for identification. See Figure 1. The label having white background with black text, is affixed to the module in a manner such that it will remain adhered to the module during the expected life of the product. The minimum size of the font is 4 pt. The label is applied on the main carriage block near the ACCR PCA location. See Figure 2. Figure 1: Label of RFID module (P/N 510196-01) Figure 2: Location of Label of RFID module CONFIDENTIAL AND PROPRIETARY – Intuitive Surgical Inc. Prior to use, use ACCS to verify that this is the current revision Template File: 853244 Form_Template Rev D.doc DOCUMENT: 818385-02 REVISION: A PAGE: 2 of 4 TITLE: Installation Instructions for RFID Module ACCRX02 The label of RFID module is not visible when RFID module is installed on host device. This is acceptable because FCC ID and IC ID information are also marked on the rear vent panel of the host device. See Figure 4 for example of label of the host device containing FCC ID and IC ID information of RFID module. See Figure 5 for the location. In addition, the intentional radiator symbol (see Figure 3) is also affixed along with FCC ID and IC ID information (refer to Label P/N 880175-06 for PS4000 and P/N 880341-03 for PS4200) on the host device, per EN 60601-1-2 Ed.3. This marking is readily visible to the user of the host device without the use of tools. Figure 3: Intentional radiator symbol Figure 4: Example of label of host device containing FCC ID and IC ID of RF ID module Figure 5: Location of label on rear vent panel of host device CONFIDENTIAL AND PROPRIETARY – Intuitive Surgical Inc. Prior to use, use ACCS to verify that this is the current revision Template File: 853244 Form_Template Rev D.doc DOCUMENT: 818385-02 REVISION: A PAGE: 3 of 4 TITLE: Installation Instructions for RFID Module ACCRX02 Note: Statements below that are within quotation marks have fixed wording. FCC The host product must be labeled with the following: “Contains FCC ID: 2AAZF-ACCRX02” The host product manual must include following statements: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Changes or modifications, not expressly approved by Intuitive Surgical, may void the user’s authority to operate the equipment. (Note: the wording for this statement is not fixed) Industry Canada The host product must be labeled with the following (in English and French): “Contains IC: 11508A-ACCRX02” The host product manual must include following statements (in English and French): “Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (eirp) is not more than necessary for successful communication.” “This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” "Conformément à la réglementation d'Industrie Canada, cet émetteur radio peut fonctionner uniquement à l'aide d'une antenne de type et de gain maximum (ou moindre) approuvés pour l'émetteur par Industrie Canada. Pour réduire le risque d'interférence aux autres utilisateurs, le type d'antenne et son gain doivent être choisis afin que la puissance isotrope rayonnée équivalente (PIRE) n‘excède pas celle nécessaire à une communication réussie ". CONFIDENTIAL AND PROPRIETARY – Intuitive Surgical Inc. Prior to use, use ACCS to verify that this is the current revision Template File: 853244 Form_Template Rev D.doc DOCUMENT: 818385-02 REVISION: A PAGE: 4 of 4 TITLE: Installation Instructions for RFID Module ACCRX02 "Cet appareil est conforme au(x) standard(s) des CNR d’Industrie Canada pour appareils radio exempt(s) de licence . Son fonctionnement est soumis aux deux conditions suivantes: (1) ce dispositif ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent provoquer un fonctionnement indésirable ".

MPI, Carriage Integration, USM, IS4000 Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 INTUITIVE SURGICAL CONFIDENTIAL AND PROPRIETARY. Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI #: 844505-01 REV. L 1 of 20 Note: Brake Release Tool (A) may be used to release the Brake and position the Arm throughout this MPI. 1. Verify Screws holding Carriage Top Plate are tight. Record result in Results Sheet. 2.Carefully remove Carriage Cover Aide from Carriage. ITEM PART # DESCRIPTION QTY A 723618 TOOL, ASSY, SPRING BRAKE RELEASE, IS4000 NA Carriage Cover Aide ESD Precautions Required CAUTION: Once Carriage Cover Aide is removed the fragile ACCP LEDs will be exposed. Handle Carriage with care to avoid damage. D MPI, Carriage Integration, USM, IS4000 Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 INTUITIVE SURGICAL CONFIDENTIAL AND PROPRIETARY. Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI #: 844505-01 REV. L 2 of 20 3.Carefully remove Kapton tape and Protection Clip securing the fiber cables to the FFCs. 4.Verify FFC’s are in order 1, 2, 3, 4, and 5. 5.Fold FFC 90° flush with bottom edge of Bracket. MPI, Carriage Integration, USM, IS4000 Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 INTUITIVE SURGICAL CONFIDENTIAL AND PROPRIETARY. Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI #: 844505-01 REV. L 3 of 20 6.Align Carriage to Insertion Assembly as shown. CAUTION: Be careful working with Fiber Cables. Avoid extreme bends or pinching of cables. ESD Precautions Required MPI, Carriage Integration, USM, IS4000 Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 INTUITIVE SURGICAL CONFIDENTIAL AND PROPRIETARY. Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI #: 844505-01 REV. L 4 of 20 7.Secure Carriage to Bracket with Qty: 2 Screws (A) using Loctite 222. 8.Install Screw (B) with Loctite 222. Torque Screws (A) to 1 in-lbs using (C). Torque Screws (B) to 1.6 in-lbs using (D). ITEM PART # DESCRIPTION QTY A 902947 SCREW, SHCS, M2X5, STST 2 B 902460 SCREW, SHCS, M1.6X12, STST 1 C 721916 EFT, TORQUE WRENCH, 1.0 IN-LBF, 1/4" FEM HEX ADAPTER NA D 722555 EFT, TORQUE WRENCH, 1.6 IN-LBF, 1/4" FEM HEX ADAPTER NA A B 222 Torque 1.6 in-lbs 222 Torque 1 in-lbs ESD Precautions Required MPI, Carriage Integration, USM, IS4000 Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 INTUITIVE SURGICAL CONFIDENTIAL AND PROPRIETARY. Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI #: 844505-01 REV. L 5 of 20 A 9.Route FFC’s against Carriage. Secure by installing Clamp (A) using Qty: 2 Screws (B) Loctite 222. Torque to 1.0 in-lbs using (C). ITEM PART # DESCRIPTION QTY A 318276 CLAMP,FFC,IS4000 CARRIAGE 1 B 902463 SCREW, PHFH, 0-80 X .125, STST 2 C 721916 EFT, TORQUE WRENCH, 1.0 IN-LBF, 1/4" FEM HEX ADAPTER NA 222 Torque 1.0 in-lbs ESD Precautions Required MPI, Carriage Integration, USM, IS4000 Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 INTUITIVE SURGICAL CONFIDENTIAL AND PROPRIETARY. Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI #: 844505-01 REV. L 6 of 20 10.Route Fiber Cables on Carriage and secure with Kapton Tape (A). CAUTION: Be careful working with Fiber Cables. Avoid extreme bends or pinching of cables. Fiber Cables ESD Precautions Required ITEM PART # DESCRIPTION QTY A 963004 TAPE,POLYIMIDE (KAPTON),ROLL,.001 X.50W NA MPI, Carriage Integration, USM, IS4000 Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to …

Text truncated - open the document above for the full version.

Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 Rev. E Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI, Carriage Housing Assembly, USM, IS4000 MPI #: 1001924 REV. E 1 of 6 ITEM DESCRIPTION PART # QTY VERIFY CAUTION ACCI Pod Assembly 1.Fold ACCI PCA (A) Flex Circuit as shown below. Do not crease Flex Circuit. ESD precautions required. A 353970 1 PCA,AXESCONTROLLER CARRIAGE INTRUMENT (ACCI) ESD Precautions Required Trim board to be flush here if needed. Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 Rev. E Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI, Carriage Housing Assembly, USM, IS4000 MPI #: 1001924 REV. E 2 of 6 ITEM DESCRIPTION PART # QTY VERIFY CAUTION 2.Snap ACCI to Board Support (A). Note that part of the ACCI Flex Circuit goes between the PCA and the Board Support as shown. ESD precautions required. A 318229 1 BOARD SUPPORT, ACCI,IS4000 CARRIAGE FFC goes under here ESD Precautions Required Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 Rev. E Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI, Carriage Housing Assembly, USM, IS4000 MPI #: 1001924 REV. E 3 of 6 ITEM DESCRIPTION PART # QTY VERIFY CAUTION 3.Cut and place a small piece of Tape (B) onto Board Support to hold both boards down. Fold sub-boards into position and attach Dallas Pod Cover (A) to Board Support as shown. Do not crease Flex Circuit. ESD precautions required. A 318272 1 POD,DALLAS, IS4000 CARRIAGE B 963013 DOUBLE SIDED ADHESIVE FOAM AR B ESD Precautions Required Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 Rev. E Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI, Carriage Housing Assembly, USM, IS4000 MPI #: 1001924 REV. E 4 of 6 ITEM DESCRIPTION PART # QTY VERIFY CAUTION 4.Install ACCI Pod into Main Block (B) using Screws (A) and Loctite 425. Torque to 1.0 in-lbs using (C). A 902462 2 SCREW,PHPH, M1.6X3,STST A 4 2 5 C 721916 NA EFT, TORQUE WRENCH, 1.0 IN-LBF, 1/4" FEM HEX ADAPTER TORQUE 1.0 in-lbs B 318215 1 MAIN BLOCK,IS4000 CARRIAGE Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 Rev. E Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI, Carriage Housing Assembly, USM, IS4000 MPI #: 1001924 REV. E 5 of 6 ITEM DESCRIPTION PART # QTY VERIFY CAUTION ACCR Pod Assembly 5.Connect FFC (A) to ACCR (B) with ground bump on the end away from the board. ESD precautions required for the all the following steps. 6.Snap ACCR into Housing (C). 7.Put Qty: 2 Foam Dots (D) on top of Housing as shown. A 181141 1 CABLE,FFC,11-PIN, 75MM,0.5MM P, SHLD,AU,USM,IS4000 B 353240 1 PCA,AXES CONTROLLER CARRIAGE RFID (ACCR) C 318230 1 BOARD SUPPORT, ACCR,IS4000 CARRIAGE D 319770 2 FOAM DOT,ACCRA RETAIN,IS4000 CARRIAGE WARNING!!! ESD precautions required. D Intuitive Surgical Confidential – This document contains confidential and proprietary information, and except with written permission of Intuitive Surgical, such information shall not be published or disclosed to others or used for any purpose other than on behalf of Intuitive Surgical. This document shall not be copied in whole or in part, including electronically. MPI Template: 800103 Rev. E Users of any printed hard copy of this document must verify that it represents the most current revision prior to use. MPI, Carriage Housing Assembly, USM, IS4000 MPI #: 1001924 REV. E 6 of 6 ITEM DESCRIPTION PART # QTY VERIFY CAUTION 8.Put ACCRA PCA (A) into housing. Orientation Shown 9.Add Kapton Tape here (1x) 10.Snap RFID Pod (B) on, keeping flat edge on right side. 11.Insert into Carriage Housing and attach with Qty: 2 Screws (C) and Loctite 425. Torque to 1.0 in-lbs using (D). A 353460 1 PCA,ACCRA,AXES CONTROLLER CARRIAGE RFID ANTENNA B 318273 1 POD,RFID,IS4000 CARRIAGE C 902462 2 SCREW,PHPH, M1.6X3,STST C B 4 2 5 TORQUE 1.0 in-lbs D NA EFT, TORQUE WRENCH, 1.0 IN-LBF, 1/4" FEM HEX ADAPTER WARNING!!! ESD precautions required. 721916

Page 1 of 1 July 8, 2020 National Technical Systems TCB 41039 Boyce Road Fremont, CA, 94538 FCC ID: 2AAZF-ACCRX02 IC: 11508A-ACCRX02 To whom it may concern: The enclosed documents constitute a formal submittal and application for FCC Equipment Authorization and ISED Canada Certification for a RFID Module pursuant to the following rules: Subpart C of Part 15 (§15.225) of FCC Rules (CFR 47) RSS-Gen Issue 5, April 2018, “General Requirements for Compliance of Radio Apparatus” RSS-210, Issue 10, December 2019, “Licence-Exempt Radio Apparatus: Category I Equipment” National Technical Systems, as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is included with the application. If there are any questions or if further information is needed, please contact National Technical Systems for assistance. Sincerely, David W. Bare Chief Engineer

Intuitive Surgical 1266 Kifer Road Sunnyvale, CA 94086 T. 408 523 2100 F.408 523 1390 Intuitive.com National Technical Systems – Silicon Valley TCB 41039 Boyce Road Fremont, CA. 94538 June 11, 2020 Dear Sir or Madam: This is your letter of authorization to accept our appointment of National Technical Systems – Silicon Valley as our Agent for INTUITIVE SURGICAL 1266 Kifer Road, Sunnyvale, CA 94086, to sign applications before National Technical Systems – Silicon Valley TCB and to make representations to you on our behalf. National Technical Systems – Silicon Valley is to receive and exchange data between our company and National Technical Systems – Silicon Valley TCB. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in FCC and Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by National Technical Systems – Silicon Valley TCB, still resides with INTUITIVE SURGICAL 1266 Kifer Road, Sunnyvale, CA 94086. I hereby certify on behalf of INTUITIVE SURGICAL ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988 21 U.S.C. 853a. Sincerely, Tony Permsombut Sr. Hardware Compliance Engineer

Taking surgery beyond the limits of the human hand. ™ Intuitive Surgical, Inc. Ph: 408.523.2100 1266 Kifer Road Fax: 408.523.1390 Sunnyvale, California 94086 www.intuitivesurgical.com Date: June 16, 2020 Subject: Signing Authority for Agency Approvals Dear Regulatory Authority, Please accept this letter authorizing Tony Permsombut of Intuitive Surgical Inc. to act on my behalf as the point of contact for any FCC or Industry Canada filings and submissions for Grantee Code 2AAZF and Industry Canada Company Number 11508A. Should you have any questions regarding this issue, please feel free to contact me at 408-523-7373 (fax 408-523-1390) or by e-mail at [email protected]. Regards, Bryan Blair Intuitive Surgical, Inc. Sr. Manager, Hardware Compliance

Intuitive Surgical 1266 Kifer Road Sunnyvale, CA 94086 T. 408 523 2100 F.408 523 1390 Intuitive.com Request for Confidentiality June 11, 2020 Subject: Confidentiality Request for: FCC ID: 2AAZF-ACCRX02 and IC ID: 11508A-ACCRX02 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and/or RSP-100, the applicant requests that a part of the subject FCC and/or ISED application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: N/A ____INTUITIVE SURGICAL_____ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of _______N/A_______days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify FCC in the event information regarding the product or the product is made available to the public. FCC will then release the documents listed above for public disclosure pursuant to FCC KDB 726920 D01. The applicant understands that until such time that Innovation Science and Economic Development Canada distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to ISED. Sincerely, By: /Sr. HW Compliance Engiener____ Tony Permsombut________________ (Signature/Title 2 ) (Printed name) 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Intuitive Surgical 1266 Kifer Road Sunnyvale, CA 94086 T. 408 523 2100 F.408 523 1390 Intuitive.com Modular Approval Request Letter July 21, 2020 FCC ID: 2AAZF-ACCRX02, IC: 11508A-ACCRX02 Dear Sir or Madam: Limited Modular Approval is being requested for RFID module (Model: ACCRX02) and the module will be installed only in host systems manufactured by Intuitive Surgical Inc. The following paragraphs detail the requirements for modules and explain how the module meets those requirements. Where requirements are not met a justification for a limited modular approval is presented. FCC §15.212 Requirements for Single Modular Transmitters (includes RSS GEN Section 3.2.2) (a) Single modular transmitters consist of a completely self-contained radiofrequency transmitter device that is typically incorporated into another product, host or device. Split modular transmitters consist of two components: a radio front end with antenna (or radio devices) and a transmitter control element (or specific hardware on which the software that controls the radio operation resides). All single or split modular transmitters are approved with an antenna. All of the following requirements apply, except as provided in paragraph (b) of this section. (1) Single modular transmitters must meet the following requirements to obtain a modular transmitter approval. (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes. The module has a shield consisting of the carriage frame. (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes. Data to the modulation circuit is buffered on the module inside component U1 on the schematic (Mfg: NXP, Model: CLRC66303HNE) Intuitive Surgical 1266 Kifer Road Sunnyvale, CA 94086 T. 408 523 2100 F.408 523 1390 Intuitive.com (iii) The modular transmitter must have its own power supply regulation. Yes. The module contains its own power supply regulation and RF reference oscillator is contained within the module. Power supply regulation is provided via pin 18 of U1 on the schematic (Mfg: NXP Model: CLRC66303HNE) (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The module connects to its antenna via Connector Header Surface Mount, Right Angle 2 position 0.079" (2.00mm). This connector is a non-standard connector. The antenna is a PCB-trace loop antenna (13.72 mm x 8.64 mm) with Q Factor < 10 at 13.56MH. Installation instructions for the module explain that only these antennas may be used with the device and that the end user shall not be able to access the antenna port or change antennas. (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). Test data contained in this application is for the device tested in a stand-alone configuration. Radiated spurious emissions data and AC conducted emissions data demonstrating compliance with the requirements of Part 15 of the FCC rules for intentional radiators and RSS GEN/RSS 210 has been provided. (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording Intuitive Surgical 1266 Kifer Road Sunnyvale, CA 94086 T. 408 523 2100 F.408 523 1390 Intuitive.com that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device int…
