2AAZL-GTCU-002Battery operated asset tracking device

GTCU-002 Theory of Operation December 8, 2014 December 8, 2014 GTCU-002 Theory of Operation 2 of 8 Legal Notice .................................................................................................................................................. 3 1 Overview ............................................................................................................................................... 3 2 Main Processor ..................................................................................................................................... 4 3 Wireless Interfaces ............................................................................................................................... 4 3.1 GSM/GPRS Cellular ....................................................................................................................... 5 3.2 Wi-Fi (802.11 b/g/n) ...................................................................................................................... 5 3.3 433 MHz ........................................................................................................................................ 6 3.4 GPS ................................................................................................................................................ 6 4 Wired Interfaces ................................................................................................................................... 6 5 Internal Sensors .................................................................................................................................... 7 5.1 Motion Sensor ............................................................................................................................... 7 5.2 Temperature Sensor ..................................................................................................................... 7 5.3 Voltage Sensing ............................................................................................................................. 7 6 Power Regulation and Control .............................................................................................................. 7 7 GTCM Connection Mid-Plate ................................................................................................................ 8 7.1 SMB Connectors ............................................................................................................................ 8 7.2 DB-9 Connector and Power-On Jumpers ...................................................................................... 8 7.3 LED Indicators ............................................................................................................................... 8 December 8, 2014 GTCU-002 Theory of Operation 3 of 8 Legal Notice This document contains information confidential/proprietary to Globe Tracker International, ApS and shall not be used for engineering design, procurement or manufacturing in whole or part without the express written permission of Globe Tracker International, ApS. 1 Overview This document provides the theory of operation for the Globe Tracker Communications Unit (GTCU). The GTCU is battery operated and features GSM/GPRS Cellular, Wi-Fi, 433 MHz, and GPS radio frequency (RF) technologies. The GTCU system consists of the Globe Tracker Communications Module (GTCM) and the Globe Tracker Antenna Module (GTAM). The GTCM contains the main PCB, battery, and an internal 433 MHz trace antenna located in the GTCM end cap. The GTAM contains an antenna array with cellular (GSM) and 433 MHz PCB trace antennas, as well as Wi-Fi and GPS patch antennas. The GTAM also contains a low noise amplifier (LNA) for the GPS. The GTCM and GTAM connect via four (4) SMB RF cable assemblies that protrude through sealed openings in their housings. The GTCM uses a connection plate in the housing for mounting the SMB connectors, a DB-9 connector for external interfacing, and LED indication. The GTCU is able to be powered from an internal battery pack or an external input. Units powered from the internal battery pack are typically in a stand-by power down state to conserve battery energy. In the simplest configuration for battery powered units, the GTCU will wake-up at pre-defined and customizable intervals. Upon wake-up the GTCU will power on the various sub-circuits, attempt to obtain a GPS fix, log any relevant data from its sensors or communication interfaces (typically UART or 433MHz), and transmit data via an appropriate wired or wireless interface if applicable (e.g. UART, 433MHz, Cellular, or Wi-Fi). Units powered externally operate similarly to battery powered units but may not enter into stand-by mode, and may have increased data acquisition and reporting frequency. The GTCM main circuit board has the following sub-circuits. • Main Processor (STM32F2) o SPI Flash Memory o JTAG • Wireless Interfaces o GSM/GPRS Cellular (Telit GE865-Quad) o Wi-Fi (802.11 b/g/n) (GainSpan GS1011MIE13) o 433 MHz Transceiver (Texas Instruments CC1110) o GPS Receiver (U-Blox IT530M) December 8, 2014 GTCU-002 Theory of Operation 4 of 8 • Wired Interfaces o External UART o Debug UART • Internal Sensors o Accelerometer (LIS3DH) o Temperature Sensor (TMP112AIDRLT) • Power Regulation and Control o 2 linear LDO (Low Drop Out) regulators o 3 switching regulators o Battery Input o External Input o FET switching networks 2 Main Processor The main processor is an ST Microelectronics STM32F2 series which features an ARM Cortex M3 core. The processor is driven from an internal R/C oscillator with a base frequency of 16MHz, an internal phase locked loop (PLL) multiplies the base to provide a core frequency of 120MHz. No formal operating systems is used, rather a simple scheduler is implemented. The STM32F2 supports a standard JTAG interface for programming and debug. An external SPI flash is used for data logging. 3 Wireless Interfaces The GTCU features three (…

Text truncated - open the document above for the full version.

Confidentialily Request 11-01-2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Confidentiality Request FCC ID: 2AAZL-GTCU-002 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, (Globe Tracker,Inc.) hereby requests permanent confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description (Globe Tracker,Inc.) also hereby requests short-term confidential treatment of information accompanying this application as outlined below for a period of (up to 180) days: -Internal Photos -External Photos -User Manual The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Telephone Number: (321) 914-4729 Email: [email protected]

Agency Authorization 11-01-2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL Dear Sir or Madam, We, (Globe Tracker,Inc.; 304 E Strawbridge Ave, Melbourne, FL USA, 32901), hereby authorize (Shenzhen Microtest Technology Co.,Ltd;Lisa Li) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on (Jan. 11, 2016). Sincerely, Company Officer: Telephone Number: (321) 914-4729 Email: [email protected]

Cover Letter Feb. 11 2015 TUV SUD BABT TCB Octagon House, Segensworth Road, Fareham, Hampshire, PO15 5RL FCC ID: 2AAZL-GTCU-002 Dear Sir or Madam, The following application is submitted on behalf of our client, Globe Tracker, for evaluation of their model GTCU-002 for certification under FCC Part 15.231(e). The Globe Tracker Communication Unit model GTCU-002 INCLUDES A 433 MHz transceiver and a GSM module (FCC ID:R17GE865) and an 802.11b Wi-Fi module FCC ID:2AAZL-GTCU-GS-001. The GTCU-002 system only allows sequential transmission among the radios. The FCC ID: 2AAZL-GTCU-002 was evaluated in full and was found to be compliant with the aforementioned test requirements. Sincerely, Company Officer: Telephone Number: (321) 914-4729 Email: [email protected]

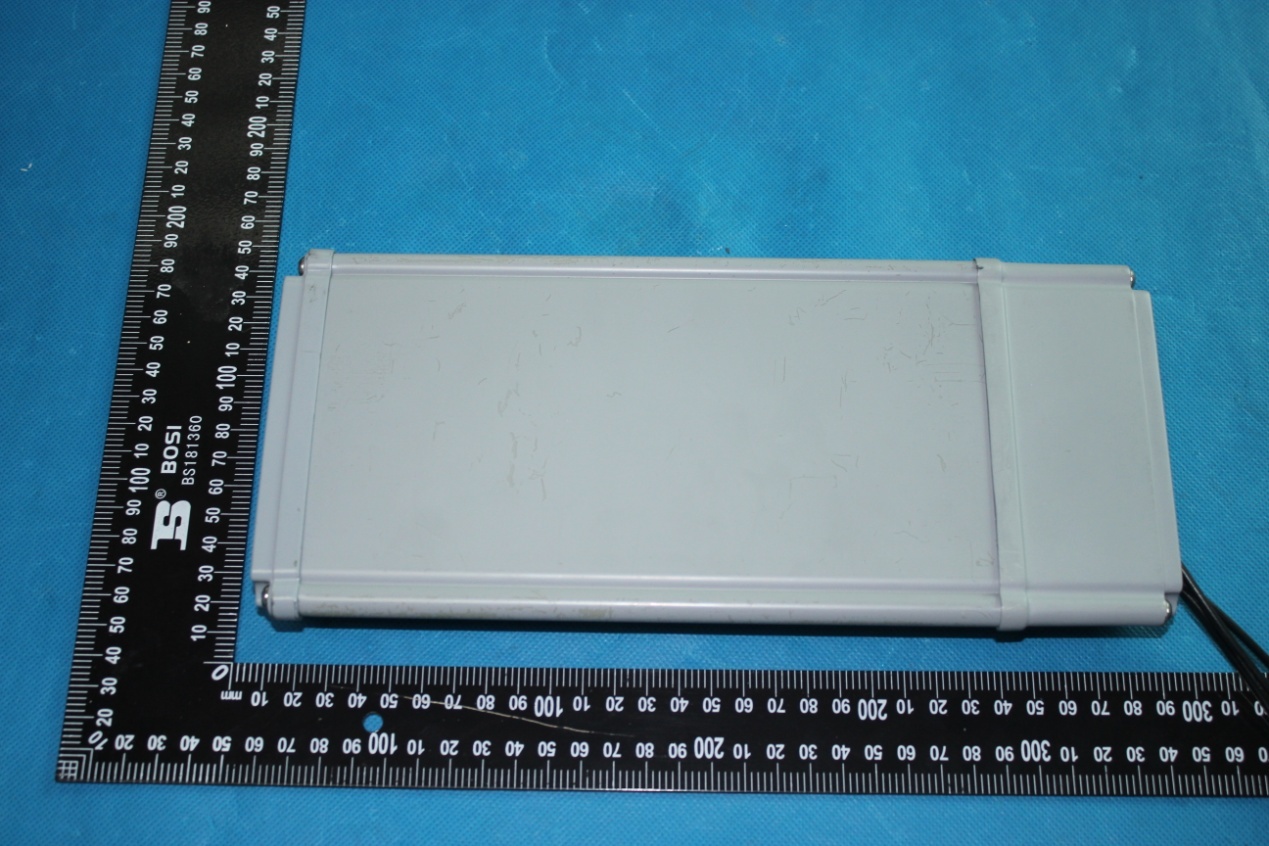

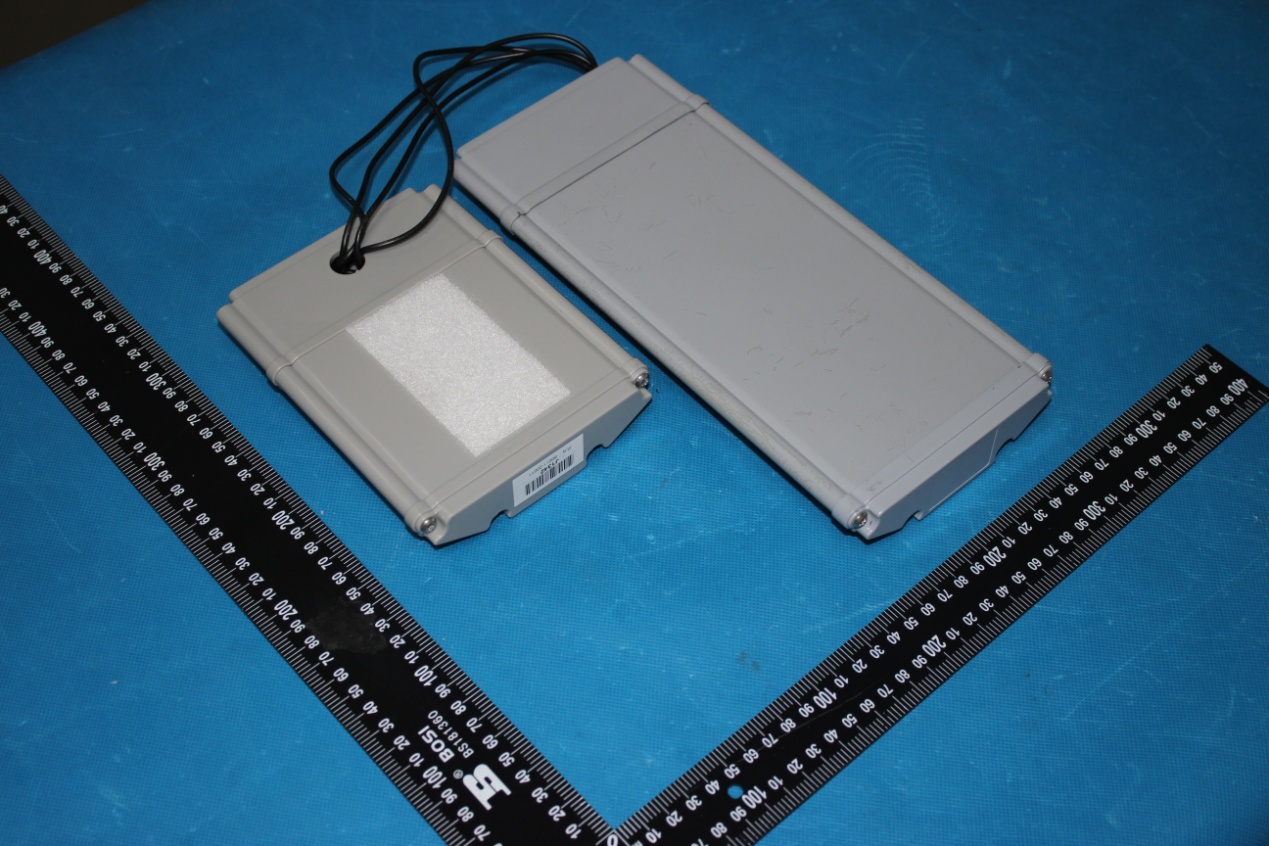

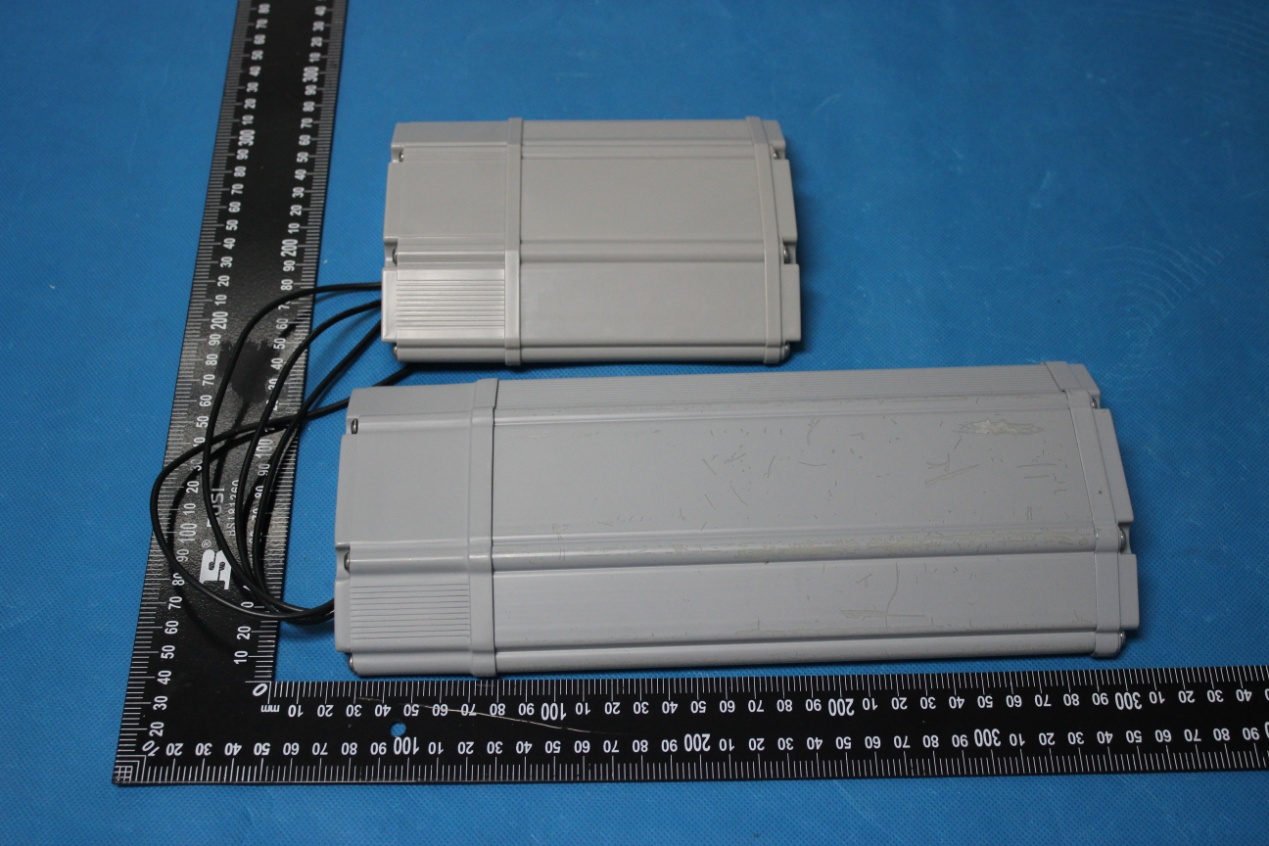

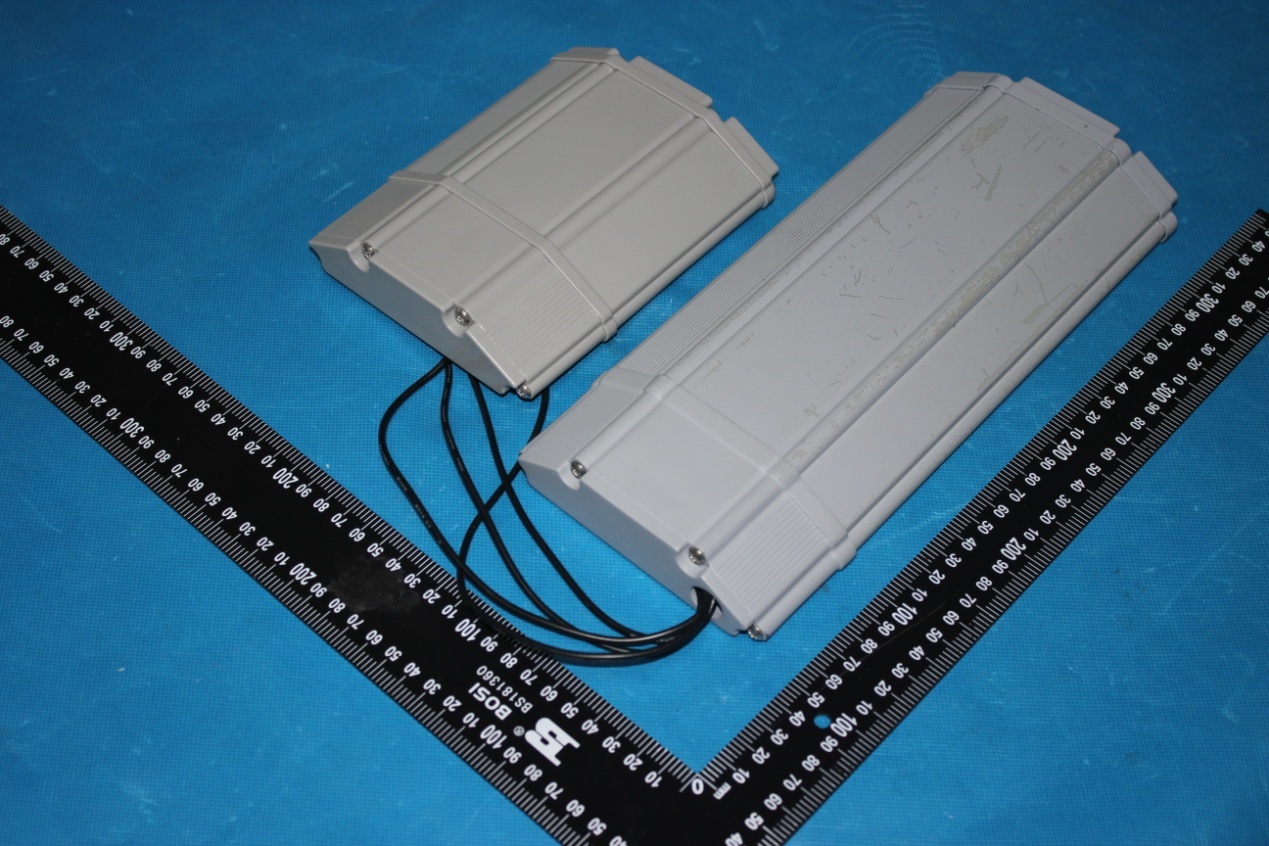

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12

Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 433 ANT Photo 6 Photo 7 Photo 8

RF EXPOSURE TEST FCC ID: 2AAZL-GTCU-002 Applied procedures / limit These devices are not exempted from compliance does not exceed the Commission’s RF exposure guidelines.Unless a device operates at substantially low power levels,with a low gain antenna(s),supporting information is generally needed to establish the various potential operating configurations and exposure conditions of a transmitter and its antenna(s) in order to determine compliance with the RF exposure guidelines. In order to demonstrate compliance with MPE requirement(see Section 2.1091),the following information is typically needed: Calculation that estimates the minimum separation distance(20 cm or more)between an antenna and persons required to satisfy power density limits defined for free space. Antenna installation and device operating instructions for installers(professional/unskilled users),and the parties responsible for ensuring compliance with the RF exposure requirement Any caution statements and/or warming labels that are necessary in order to comply with the exposure limits Any other RF exposure related issues that may affect MPE compliance. FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency(RF) radiation as specified in 1.1307(b). (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density MPE CALCULATION METHOD Calculation Method of RF Safety Distance: P :power input to the antenna in Mw EIRP :Equivalent(effective) isotropic radiated power. S :power density mW/ cm 2 G ;numeric gain of antenna relative to isotropic radiator R :distance to centre of radiation in cm FCC radio frequency exposure limits may be exceeded at distances closer than r cm from the antenna of this device EIRP=10 ( Antenna Gain+Peak Output Power/10) Note: 1. s=61.4V/m for limits for General Population/Uncontrolled Exposures. 2. The time averaged power over 30 minutes will be equaled Output Power. TEST RESULTS Electric Field Strength (E) (dBuV/m) Electric Field Strength (E) (V/m) Electric Field Strength (E) V/m Result 71.94 dBuV/m 0.00395 V/m 61.4V/m Pass

FCC Part 15.231 Test Report For Globe Tracker, ApS 304 E Strawbridge Ave, Melbourne, FL USA, 32901 FCC ID: 2AAZL-GTCU-002 Jan.10, 2015 This Report Concerns: Original Report Equipment Type: GTCU (Globe Tracker Communications Unit) Report Number: MTI141216001RF Test Engineer: David Chen Reviewed By: Tim Zhang Approved & Authorized By: Hebe Lee Test Date: Jan.01- Jan.10,2015 Prepared By: Shenzhen Microtest Technology Co.,Ltd 6F, Zhongbao Building, Gushu, Baoϗ an District, Shenzhen, P.R.China Tel: +86-755-8885 0135 Fax: +86-755-8885 0136 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of Shenzhen Microtest Technology Co.,Ltd. Report No.:MTI141216001RF Page 2 of 31 ` TEST RESULT CERTIFICATION Applicant’s name ................. : Globe Tracker, ApS Address ................................. : 304 E Strawbridge Ave, Melbourne, FL USA, 32901 Manufacture's Name ............ : Seveco Global Limnited Address ................................. : Room 1301-4 Kwong Kin Trade Center, 5 Kin Fat Street Tuen Mun, Hong Kong Product description Product name ........................... : GTCU (Globe Tracker Communications Unit) Model and/or type reference : GTCU-002 Serial ModelΚ N/A Standards ............................. : FCC Part15.231 Test procedure ..............................ANSI C63.4-2003 Report No.:MTI141216001RF Page 3 of 31 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 7 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 9 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 10 3 . ANTENNA REQUIREMENT 11 3.1 STANDARD REQUIREMENT 11 3.2 EUT ANTENNA 11 3.3 CONDUCTED EMISSION MEASUREMENT 12 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 12 3.3.2 TEST PROCEDURE 13 3.3.3 DEVIATION FROM TEST STANDARD 13 3.3.4 TEST SETUP 13 3.2.5 TEST RESULT 14 3.4 RADIATED EMISSION MEASUREMENT 15 3.4.1 RADIATED EMISSION LIMITS 15 3.4.2 TEST PROCEDURE 16 3.4.3 DEVIATION FROM TEST STANDARD 16 3.4.4 TEST SETUP 17 3.4.5 TEST RESULTS (BLOW 30MHZ) 19 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 20 4 . BANDWIDTH TEST 25 4.1 TEST PROCEDURE 25 4.2 DEVIATION FROM STANDARD 25 4.3 TEST SETUP 25 4.4 TEST RESULTS 26 5 . TRANSMITTER TIMEOUT 29 5.1 REQUIREMENTS 29 6 . EUT TEST PHOTO 31 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Report No.:MTI141216001RF Page 4 of 31 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A Note(1) 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Report No.:MTI141216001RF Page 5 of 31 ` 1.1 TEST FACILITY Shenzhen Toby Technology Co., Ltd. Add.: 10/F.,A Block,Jiada R&D Bldg.,No.5 Songpingshan, Road, Science&Technology Park, Shenzhen, 518057 FCC Registration No.:811562 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement ÿ́ UΔwhere expended uncertainty Uis based on a standard uncertainty multiplied by a coverage factor of k=2Δproviding a level of confidence of approximately 95 %Ζ No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Report No.:MTI141216001RF Page 6 of 31 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment GTCU (Globe Tracker Communications Unit) Trade Name N/A Model Name GTCU-002 Serial Model N/A Model Difference N/A Product Description The EUT is a GTCU (Globe Tracker Communications Unit) Product Type Remote Control Operation Frequency: 433.26-434.371MHz Modulation Type: GFSK Number Of Channel 3CH. Antenna Designation: PCB Printed antenna Antenna Gain(Peak) 0.65 dBi Output Power: 71.94 dBuV/m (AV Max.) Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Channel List N/A Adapter N/A Battery DC 3.0V and 7.5VDC Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A PCB Printed antenna NA 0.65 Antenna Report No.:MTI141216001RF Page 7 of 31 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 TX For Conducted Emission Final Test Mode Description Mode 1 TX For Radiated Emission Final Test Mode Description Mode 1 TX Note: (1) The EUT use new battery. Report No.:MTI141216001RF Page 8 of 31 ` 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED E-1 EUT Report No.:MTI141216001RF Page 9 of 31 ` 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Item Equipment Mfr/Brand Model/Type No. Series No. Note E-1 GTCU (GlobeTracker Communications Unit) N/A GTCU-002 N/A EUT Item Shielded Type Ferrite Core Length Note Note: (1) The support equipment was authorized by Declaration of Confirmation. (2)…

Text truncated - open the document above for the full version.

Report No.:MTI141216001RF Page 31 of 31 ` 6. EUT TEST PHOTO Radiated Measurement Photos
