2AAZM870The Original Bluetooth Home Ringer

1 QUICK START GUIDE (ENGLISH) Welcome! Thank you for purchasing Renny™, the most advanced Bluetooth® Ringer on the market. Renny™ allows you to connect two phones, and our proprietary Autolinx™ technology connects to your phone "automatically", eliminating the need to manually connect when receiving calls or playing music.* Renny™ has an incredible range to accommodate most homes when placed in a central location such as a kitchen or living room.** However, if you require additional range visit www.rennyringer.com to purchase an optional external antenna to screw into the gold connector on the back of Renny™.** No other product this size offers the phone management technology and audio quality offered by Renny™. Our rechargeable Li battery means you can take Renny™ everywhere, and the optional car cable allows you to have a hands-free Bluetooth system in your car with outstanding audio quality for music. We are confident that Renny™ will become one of your favorite phone accessories! Procedures, General Operation Turning on the device / Charging Battery 1. Using the provided USB Charger, plug Renny™ into a powered wall outlet. 2. Switch the power slider on the side of Renny™ to ON (All buttons glow Blue). 2 3. Renny™ is designed to always stay on and plugged in, but is also portable. The battery takes about 2.5 Hours to fully charge when plugged in. Adjusting Volume 1. Press and Hold Updating Firmware + and - buttons to adjust volume up and down. 1. Press and Hold the Music Note button for 10 seconds (see www.rennyringer.com Turning Blue LED's On and Off for available updates and detailed instructions). 1. Press and Hold Procedures, Phone Operation Connecting your Phone the First Time + and - buttons together at the same time for 3 seconds to toggle LED’s On and Off. 1. Verify the Renny™ is turned on. 2. Press and Hold the Phone icon on the Renny™ for 3 seconds. A tone will sound and the power switch LED will blink. 3. Connect your mobile phone to the device via the Bluetooth settings for your phone. See your phone manual or service provider for details. Enter “0000” if asked for a password. Additional Bluetooth connection information is also available at www.rennyringer.com. 4. Repeat Steps 2 and 3 to connect a second phone. Changing Ringtones (Android™ only, iPhone® uses iPhone ringtone) 1. Press the Music Note button until a desired ringtone is found. Answering a Call 1. Press Phone button when Renny™ rings Ending a Call 1. Press Phone button Rejecting a Call 3 1. Press and Hold the Phone button for 3 seconds, the call will go to Voice Mail. Muting/Restoring a Call 2. Press Music Note button Power Down 1. Switch the power slider on the side of the Renny™ to OFF (The LED should turn off). Procedures, Music Operation Play & Pause Music 1. Press and Hold the Music Note button for 3 seconds. Skip to Next Song 1. Press Skip to Previous Song + button 1. Press Troubleshooting The Renny™ won’t turn on. - button 1. Confirm Renny™ USB Charger is connected to the device. DO NOT USE ANY OTHER CHARGER! 2. Charge the battery. My phone isn’t detecting the Renny™. 1. Make sure your device is Bluetooth enabled. 2. Verify the device is turned on. 3. Consult phone manual for Bluetooth settings. 4. Make sure the phone is within range.** The person I’m talking to can’t hear me clearly through the Renny™ speakerphone. 1. Make sure to face and talk directly into the microphone located just right of the LED indicator. 4 Specifications Charging Voltage: 5V / Output Power: 3W Lithium-ion Battery: 3.7V/430mA Size: D61*H55mm / Weight: 286 Grams Speaker Spec.: 40mm 2.6Ω 3W Frequency Response: 60HZ-18KHZ Distortion: ≤0.5% SNR: ≥95dB Contact Information Address: P.O. Box 386 Pismo Beach, CA 93448 Phone: (805) 489-3636 Web: www.rennyringer.com Email: [email protected] Warrant y 12 months, covers factory defects only. Damage from misuse, impact or incorrect USB Charger is not covered. No other warranties are covered or implied. See www.rennyringer.com for 5 additional warranty information. *Some cellular phones lose connection after usage, please check the specification of your cellular phone for more details. ** The introduction of objects and/or walls between the Renny™ and the connected phone(s) can significantly reduce the range. Certifications SAFETY INFORMATION WARNING! Please read these safety warnings and cautions to ensure your personal safety and prevent property damage. The device can be connected to external antenna which have a standard SMA connector. The max gain of external gain is 5dBi.Any modifications or changes to the external antenna without the permission gain is prohibited . Fire and Electric Shock Hazard Do not expose Renny™ to liquid, moisture, humidity, or rain. Do not use Renny™ near a bathtub, sink, sauna, pool, or steam room. Exposure of Renny™ to moisture could result in electric shock. Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate, paint, or insert foreign objects in to Renny™. Such actions could result in electric shock. Clean Renny™ only with a dry cloth. Do not expose Renny™ to extremely high or low temperatures. 6 Do not leave Renny™ in direct sunlight for extended periods of time. Do not leave Renny™ near open flames such as cooking burners, candles, or fireplaces. Do not block any ventilation openings. Battery/Charger Hazard Do not dispose of Renny™ in a fire. The battery could explode causing injury or death. Only charge the battery in accordance with the user instructions supplied with Renny™. Do not attempt to disassemble the Renny™ charger or force open the built in battery because this may result in electric shock. Do not charge Renny™ in damp areas or in extremely high or low temperatures because this could result in electric shock. Do not clean Renny™ when it is being charged. Always unplug the charger first before cleaning Renny™. Automobile Accident Hazard Do not leave or store Renny™ or any of its accessories near or over y…

Text truncated - open the document above for the full version.

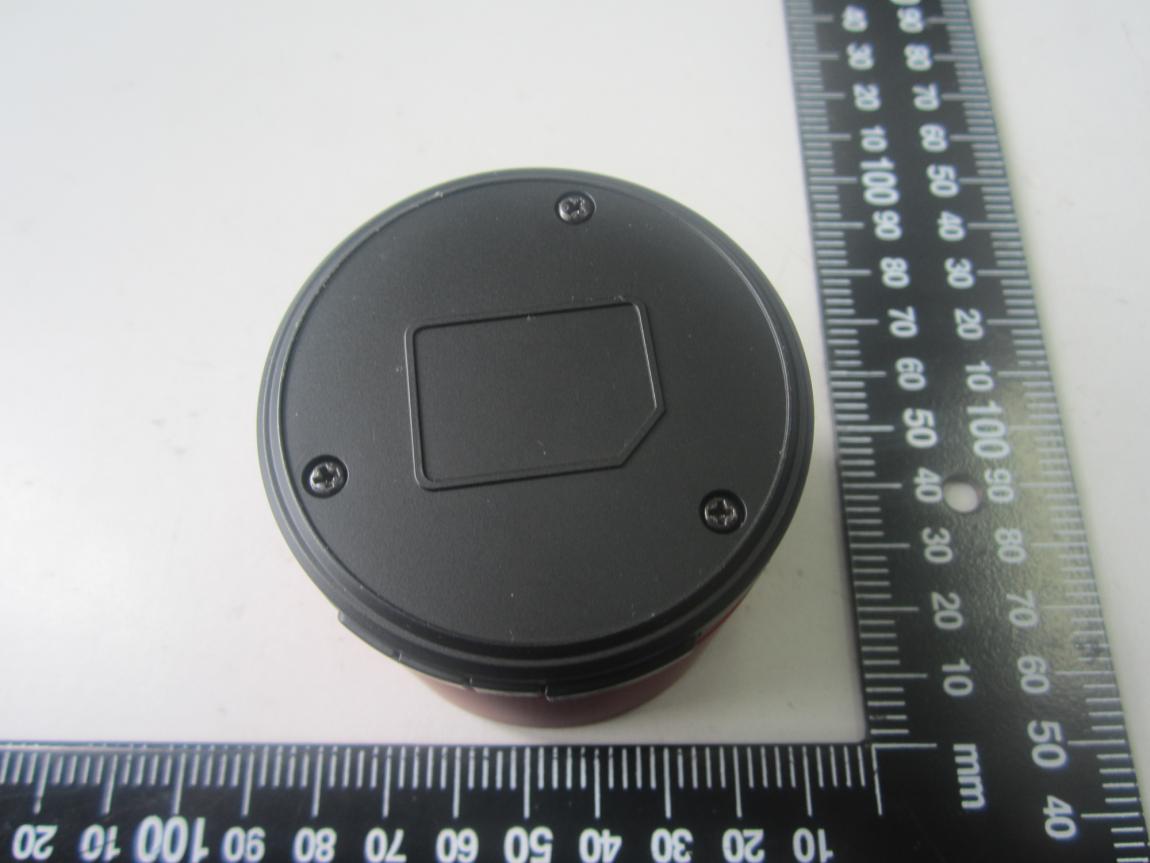

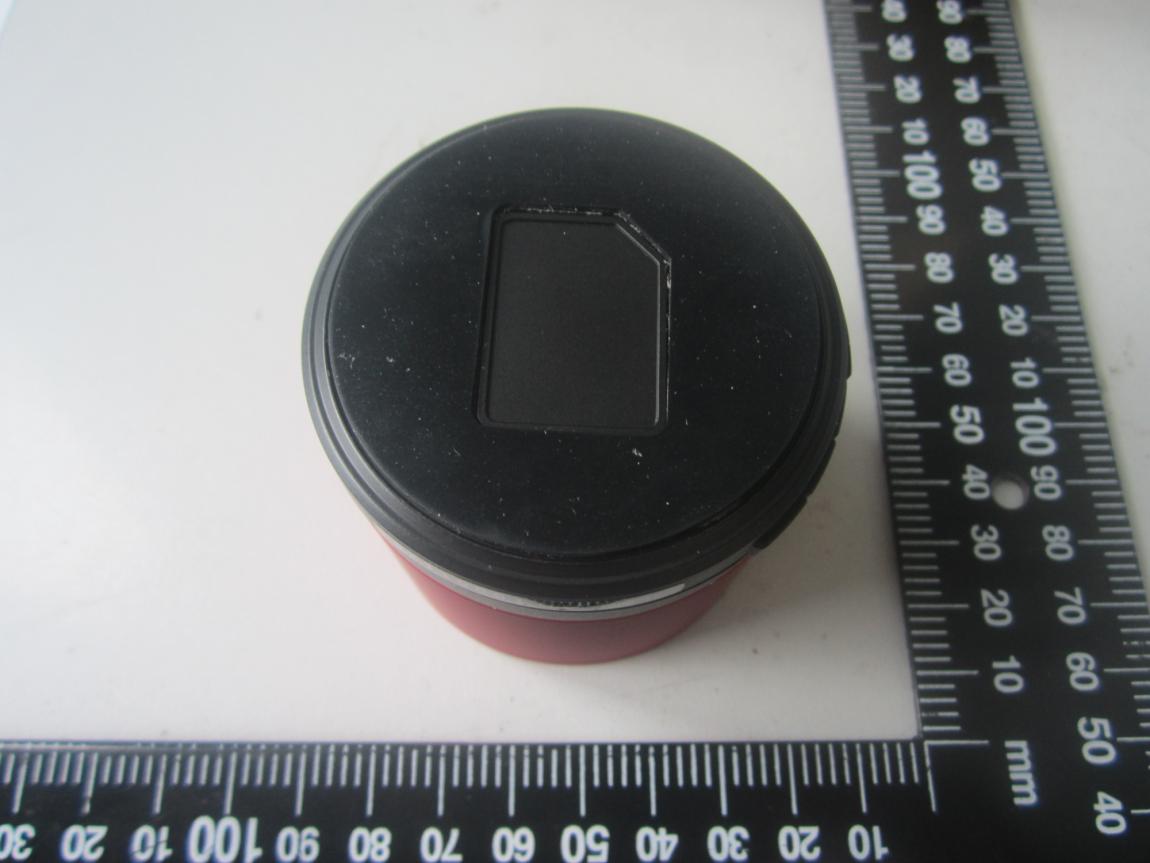

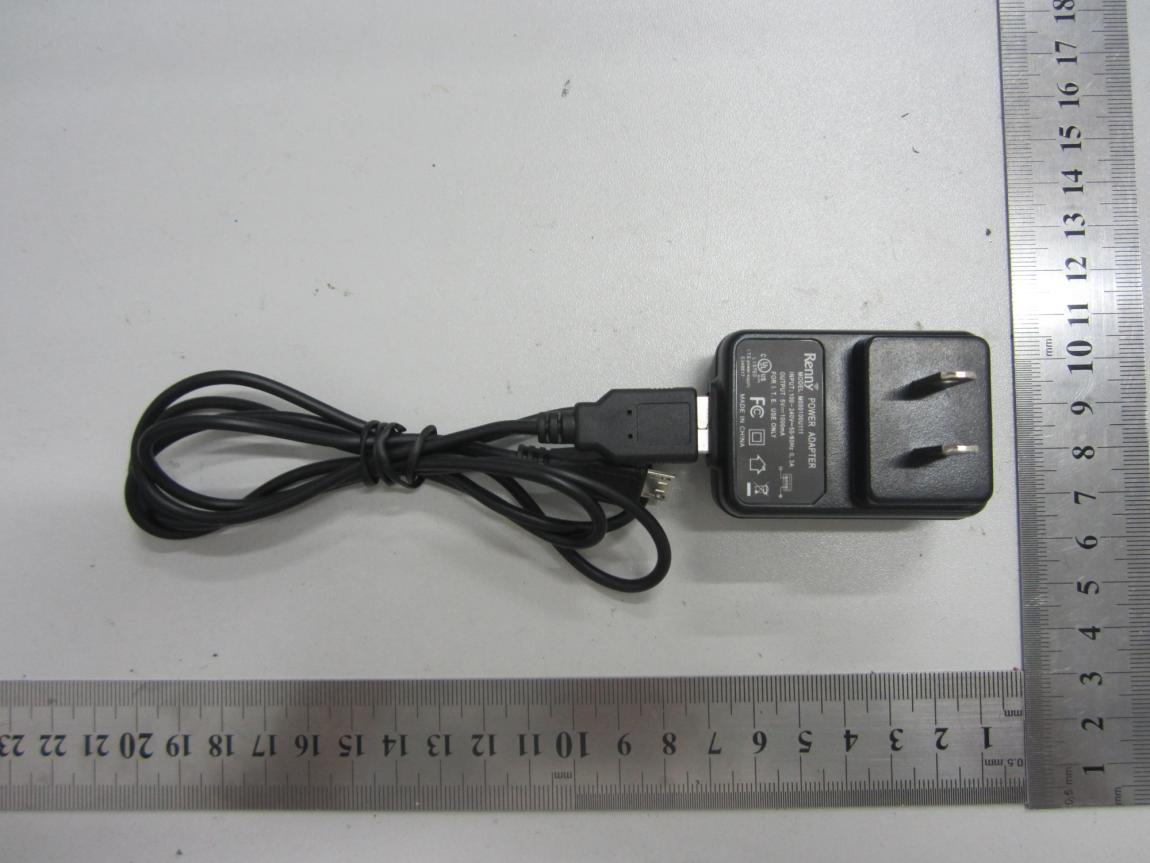

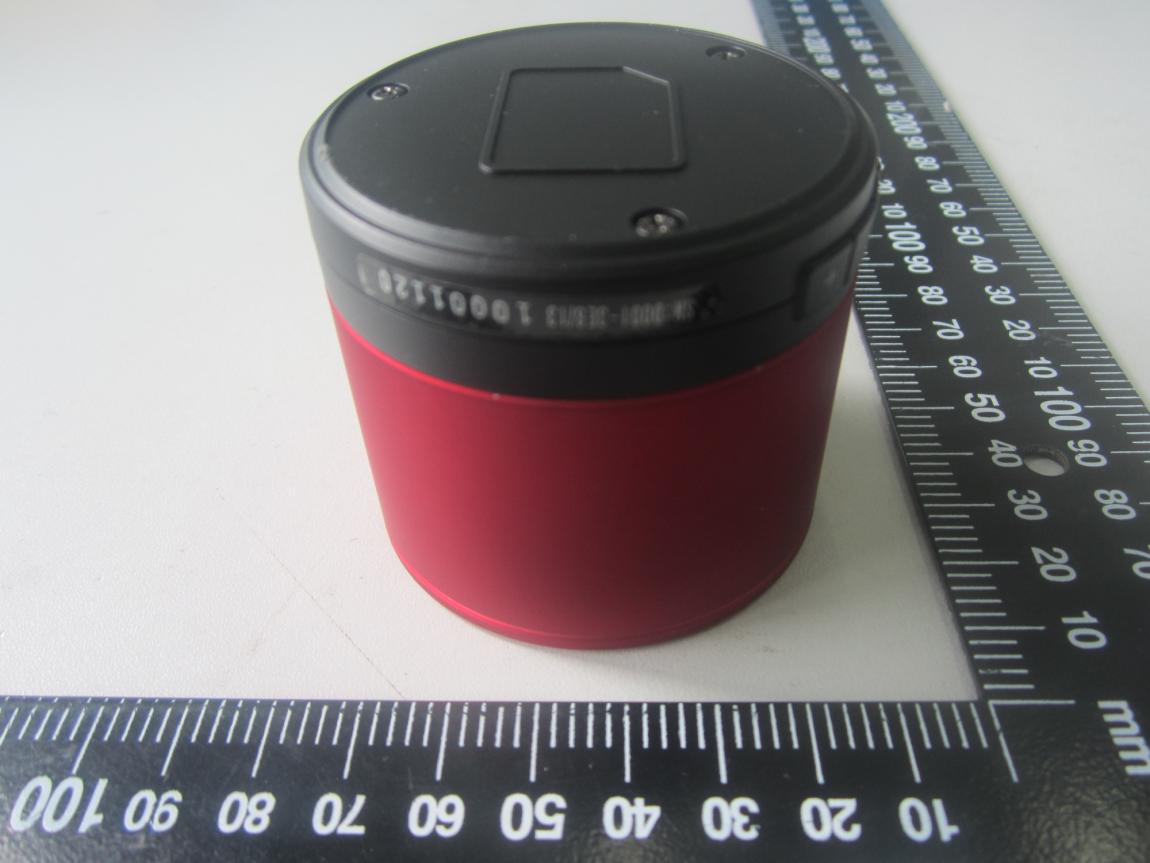

External Photos 1. EUT front view 2. EUT rear view 3. EUT left side view 4. EUT right side view 5. EUT bottom side view 6. EUT top side view 7. Accessories

FCC label and label location Label location

Internal Photos 1. EUT uncover view 2. Mainboard front view 3. Mainboard rear view 4. BT chip view 5. BT antenna view

SZ13060069W02 Page 2 of 79 DIRECTORY 1. GENERAL INFORMATION .................................................................................................... 3 1.1. EUT Description ....................................................................................................................... 3 1.2. Test Standards and Results ........................................................................................................ 4 1.3. Facilities and Accreditations ..................................................................................................... 5 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 6 2.1. Antenna requirement ................................................................................................................. 6 2.2. Number of Hopping Frequency ................................................................................................ 6 2.3. Peak Output Power.................................................................................................................. 11 2.4. 20dB Bandwidth ..................................................................................................................... 13 2.5. Carried Frequency Separation ................................................................................................. 20 2.6. Time of Occupancy (Dwell time) ........................................................................................... 23 2.7. Conducted Spurious Emissions ............................................................................................... 35 2.8. Restricted Frequency Bands.................................................................................................... 48 2.9. Conducted Emission ............................................................................................................... 57 2.10. Radiated Emission................................................................................................................... 60 2.11. RF exposure evaluation ........................................................................................................... 79 Change History Issue Date Reason for change 1.0 April 28, 2014 First edition SZ13060069W02 Page 3 of 79 1. General Information 1.1. EUT Description EUT Type ............................. : The Original Bluetooth Home Ringer Serial No. .............................. : (n.a, marked #1 by test site) Hardware Version ................. : V8 Software Version .................. : Applicant .............................. : Manufacturer ........................ : V8.1 East 2 West, LLC 1432 S SALTAIR AVE. #209, LOS ANGELES, CA 90025 SHENZHEN HI-FID ELECTRONICS TECH CO.,LTD C2,28 TH FL,DONGJIANG BLDG., LONGJING RD, 3 RD AREA, BAO’AN DISTRICT,SHENZHEN,CHINA 518101 Frequency Range .................. : The frequency range used is 2402MHz - 2480MHz (79 channels, at intervals of 1MHz); The frequency block is 2400MHz to 2483.5MHz. Modulation Type .................. : Bluetooth: FHSS (GFSK(1Mbps), ∏/4-DQPSK(EDR 2Mbps), 8-DPSK(EDR 3Mbps)) Antenna Type ........................ : PCB Antenna Antenna Gain ........................ : 0dBi for PCB Antenna Note 1: The EUT is a The Original Bluetooth Home Ringer, it contains Bluetooth Module operating at 2.4GHz ISM band; the frequencies allocated for the Bluetooth Module is F(MHz)=2402+1*n (0<=n<=78). The lowest, middle, highest channel numbers of the Bluetooth Module used and tested in this report are separately 0 (2402MHz), 39 (2441MHz) and 78 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Note 3: a. When power on, the EUT will scan the whole frequency until a Connection command from the other BT devices. b. When receiving the signal from the other BT devices, The EUT transmit a response signal. c. The other devices receive the response signal and recognize it, then send a connection command to establish the connection. d. After the connection establish successfully, the data transmission is beginning. At the same time, the both devices will shift frequencies in synchronization per a same pseudo randomly ordered list of hopping frequencies, the hopping rate is1600 times per second. This device conforms to the criteria in FCC Public Notice DA 00-705. e. The bandwidth of the receiver, which is set to a fixed width by the software. Note 4: Bluetooth signal has 9 packages DH1, DH3, DH5, 3DH1, 3DH3, 3DH5, 5DH1, 5DH3, 5DH5, DH5 package is largest, we are testing DH5 in the document. SZ13060069W02 Page 4 of 79 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C (Bluetooth, 2.4GHz ISM band radiators) for the EUT FCC ID Certification: No. Identity Document Title 1 47 CFR Part 15 (10-1-12 Edition) Radio Frequency Devices Test detailed items/section required by FCC rules and results are as below: No. Section in CFR 47Description Result 1 15.203 Antenna Requirement PASS 2 15.247(a) Number of Hopping Frequency PASS 3 15.247(b) Peak Output Power PASS 4 15.247(a) 20dB Bandwidth PASS 5 15.247(a) Carrier Frequency Separation PASS 6 15.247(a) Time of Occupancy (Dwell time) PASS 7 15.247(d) Conducted Spurious Emission PASS 8 15.247(d) Restricted Frequency Bands PASS 9 15.207 Conducted Emission PASS 10 15.209 15.247(d) Radiated Emission PASS 11 15.247(i), 1.1307&2.1093 RF exposure evaluation PA S S NOTE: The tests were performed according to the method of measurements prescribed in DA-00-705. SZ13060069W02 Page 5 of 79 1.3. Facilities and Accreditations 1.3.1. Facilities Shenzhen Morlab Communications Technology Co., Ltd. Morlab Laboratory is a testing organization accredited by China National Accreditation Service for Conformity Assessment (CNAS) according to ISO/IEC 17025. The accreditation certificate number is L3572. All measurement facilities u…
